Yamaha R-700 Stereo Receiver * 50W RMS * 1981
HomeStore

Yamaha R-700 Stereo Receiver * 50W RMS * 1981

Yamaha R-700 Stereo Receiver * 50W RMS * 1981

$200.00
Yamaha R-700 Stereo Receiver * 50W RMS * 1981—
$200.00

The Story

Yamaha R-700

Natural Sound Stereo Receiver (1981-82)

Yamaha R-700

Specifications

Tuning range: FM, MW

Power output: 50 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 100kHz

Total harmonic distortion: 0.005%

Damping factor: 40

Input sensitivity: 2.5mV (MM), 120mV (line)

Signal to noise ratio: 85dB (MM), 100dB (line)

Channel separation: 53dB (MM), 53dB (line)

Output: 120mV (line)

Semiconductors: 20 x IC, 3 x FET, 42 x transistors, 31 x diodes, 14 x LED

Dimensions: 480 x 122 x 337mm

Weight: 9kg

Year: 1981

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

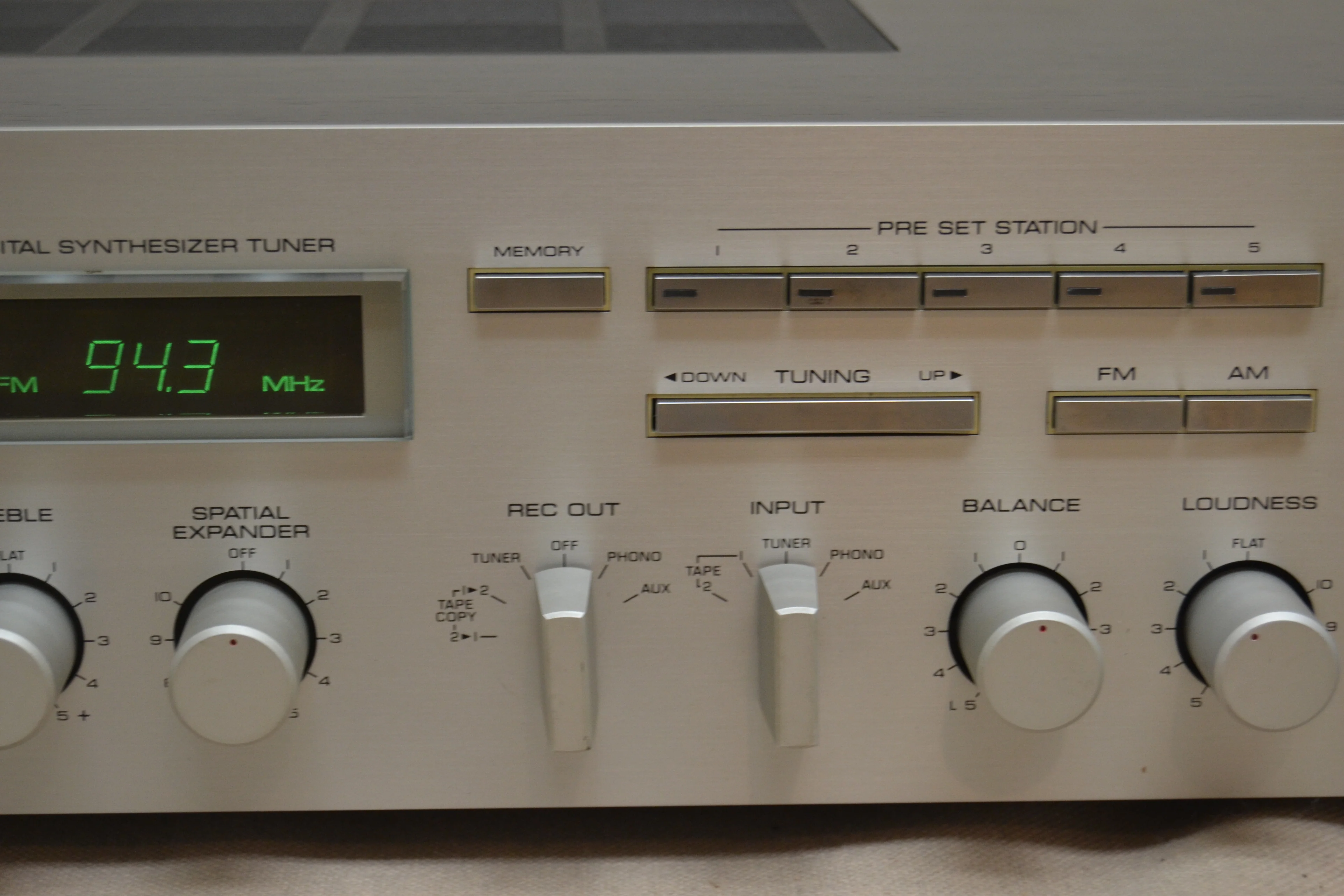

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

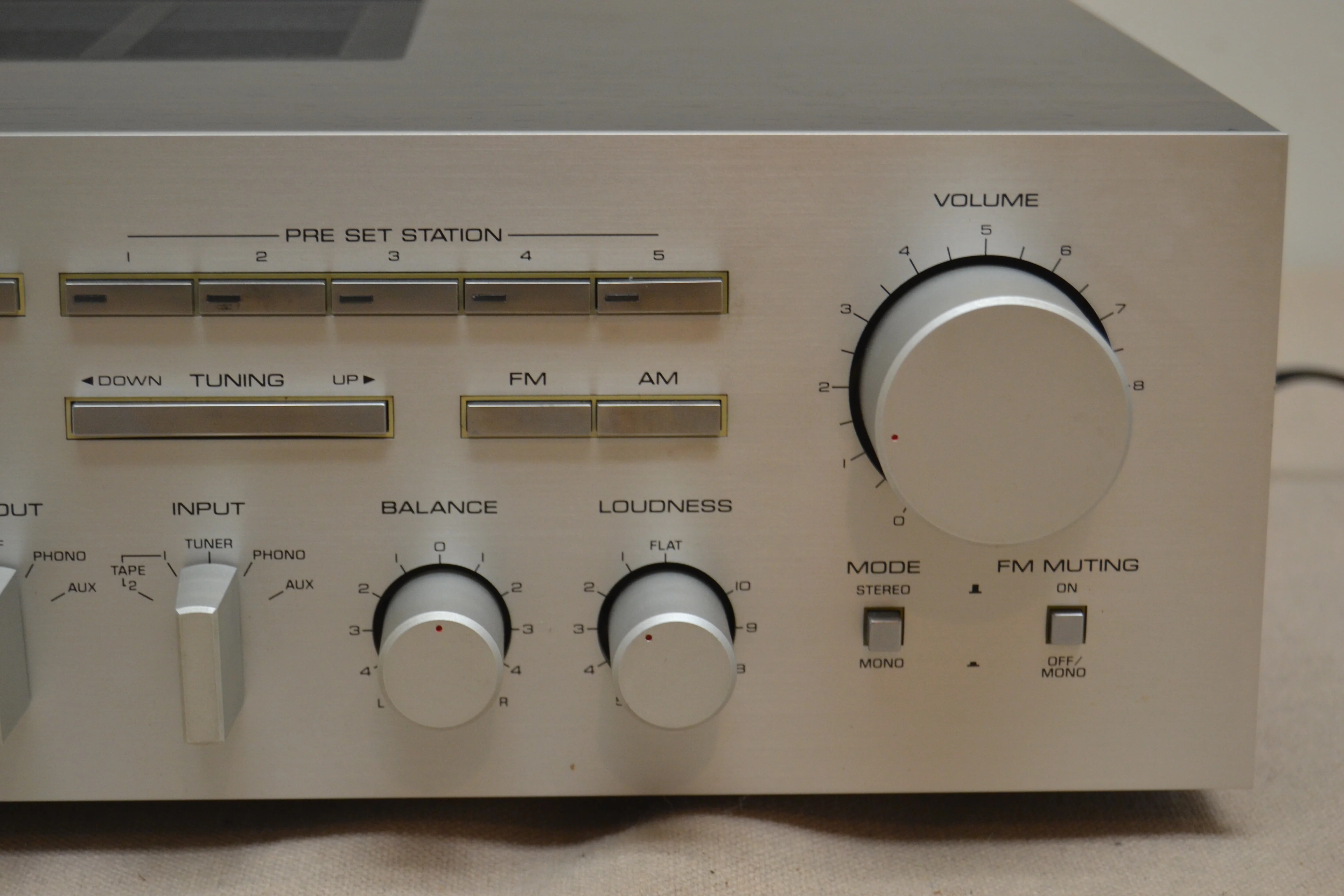

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

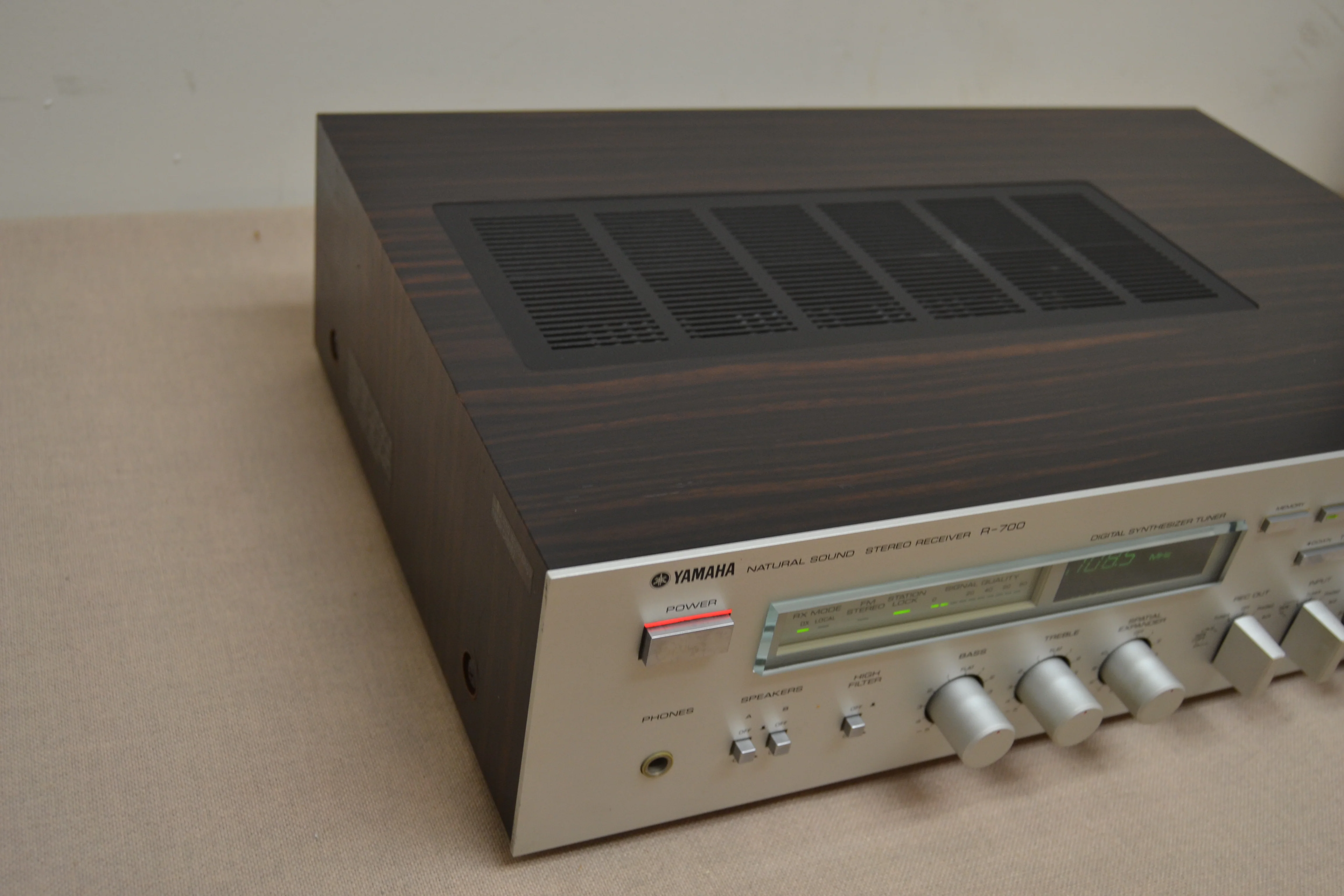

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

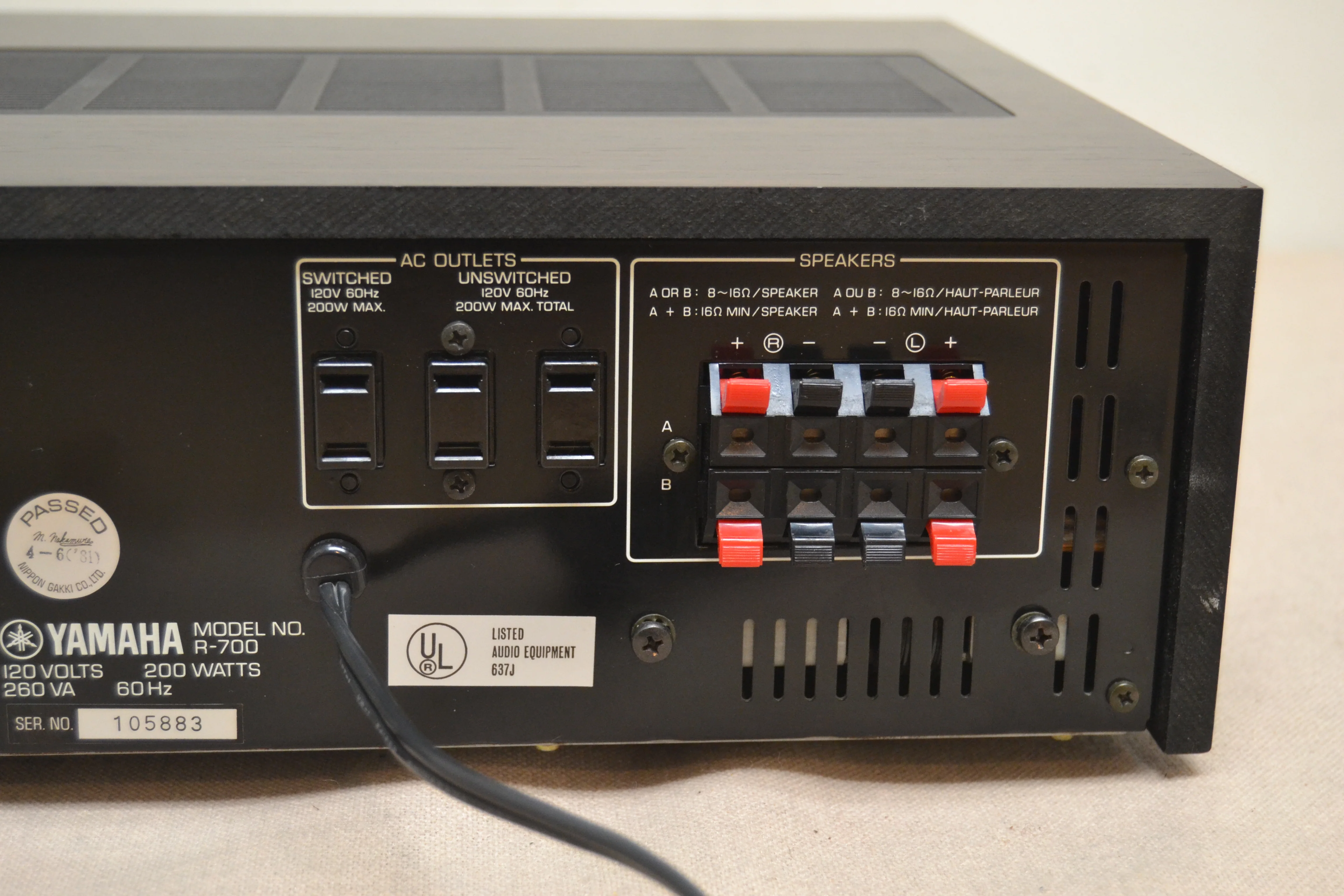

Yamaha R-700 Stereo Receiver * 50W RMS * 1981 - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Yamaha R-700

Natural Sound Stereo Receiver (1981-82)

Yamaha R-700

Specifications

Tuning range: FM, MW

Power output: 50 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 100kHz

Total harmonic distortion: 0.005%

Damping factor: 40

Input sensitivity: 2.5mV (MM), 120mV (line)

Signal to noise ratio: 85dB (MM), 100dB (line)

Channel separation: 53dB (MM), 53dB (line)

Output: 120mV (line)

Semiconductors: 20 x IC, 3 x FET, 42 x transistors, 31 x diodes, 14 x LED

Dimensions: 480 x 122 x 337mm

Weight: 9kg

Year: 1981
