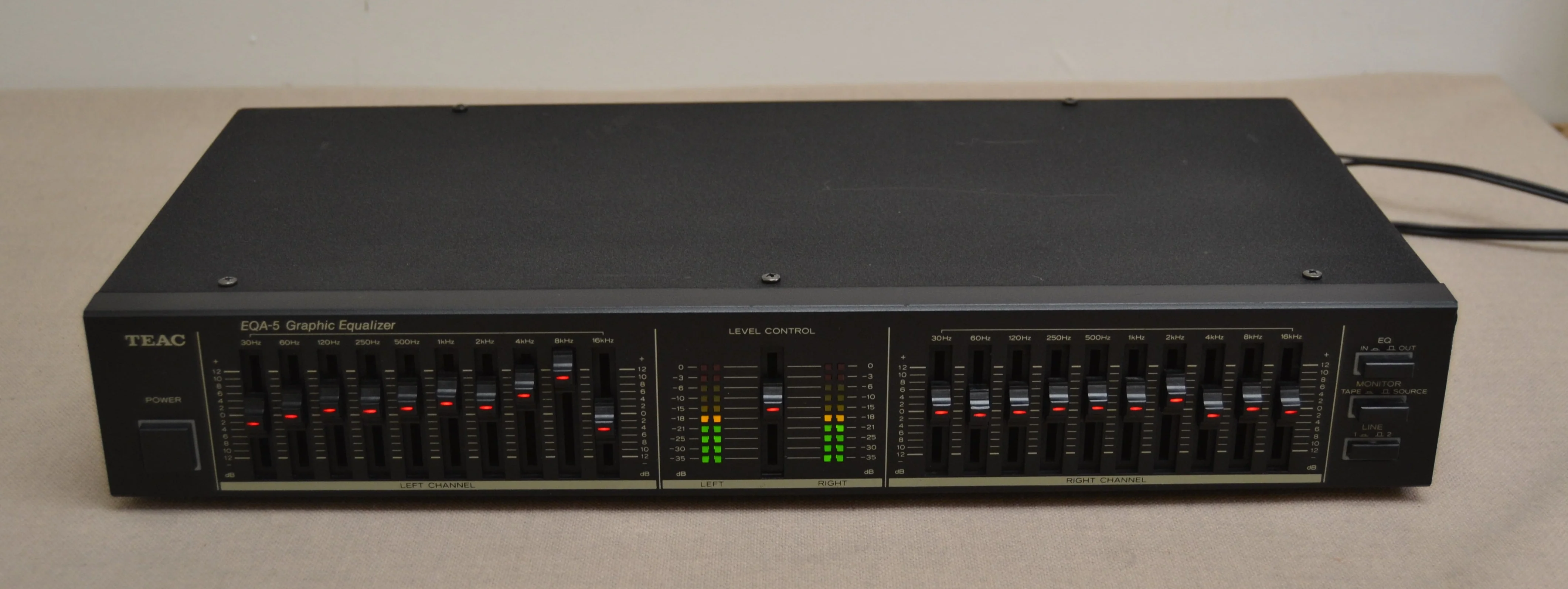

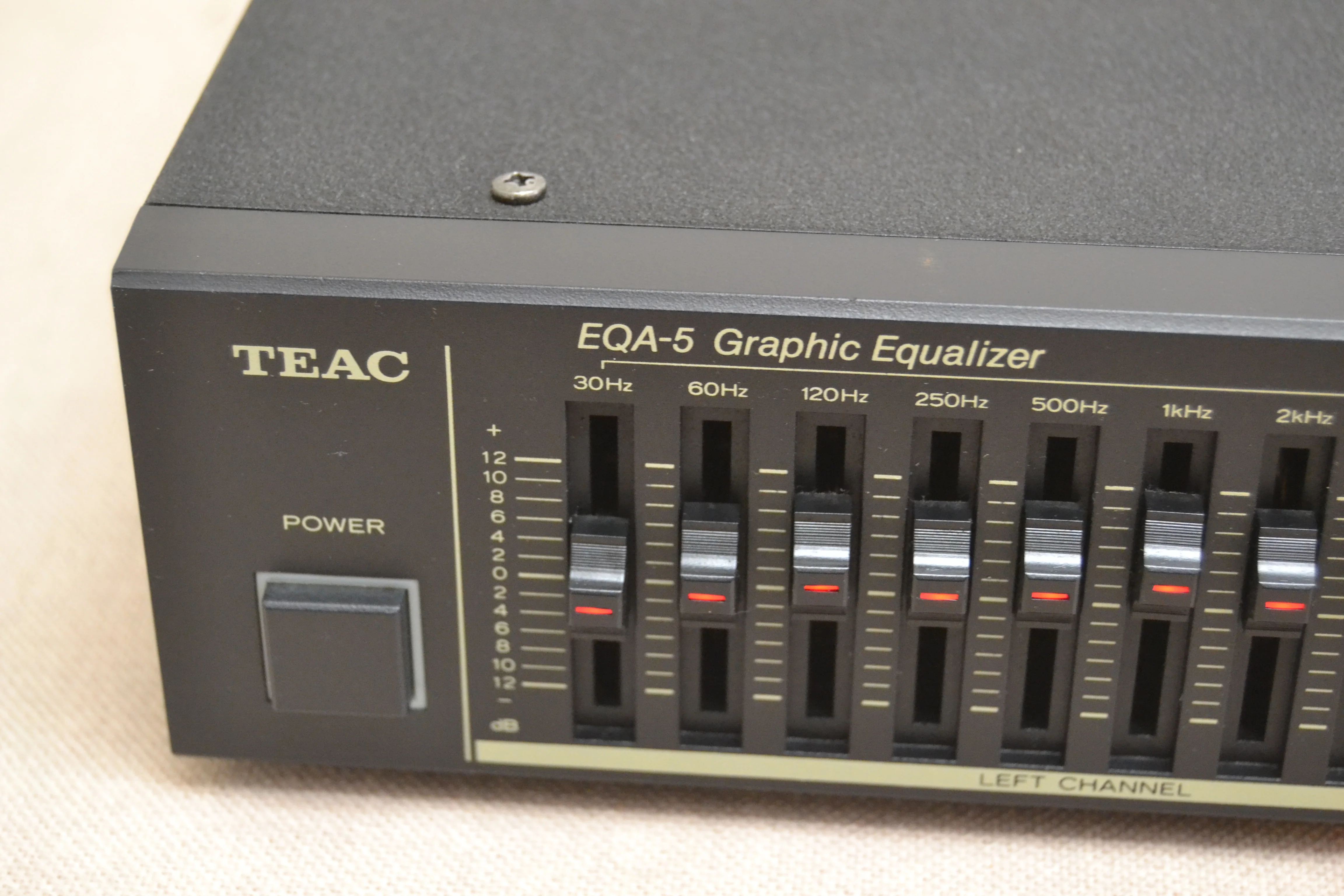

Teac EQA-5 Graphic Equalizer

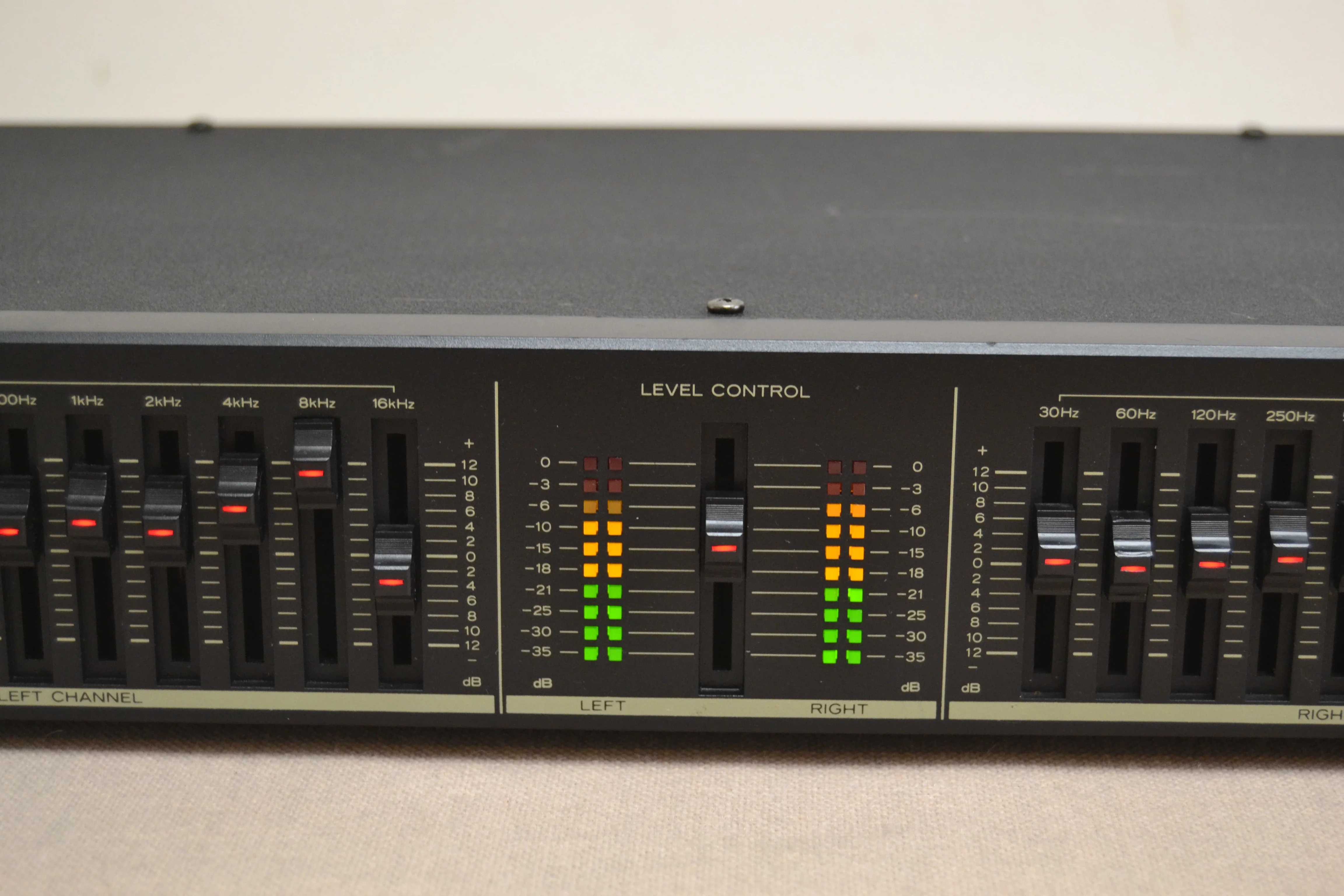

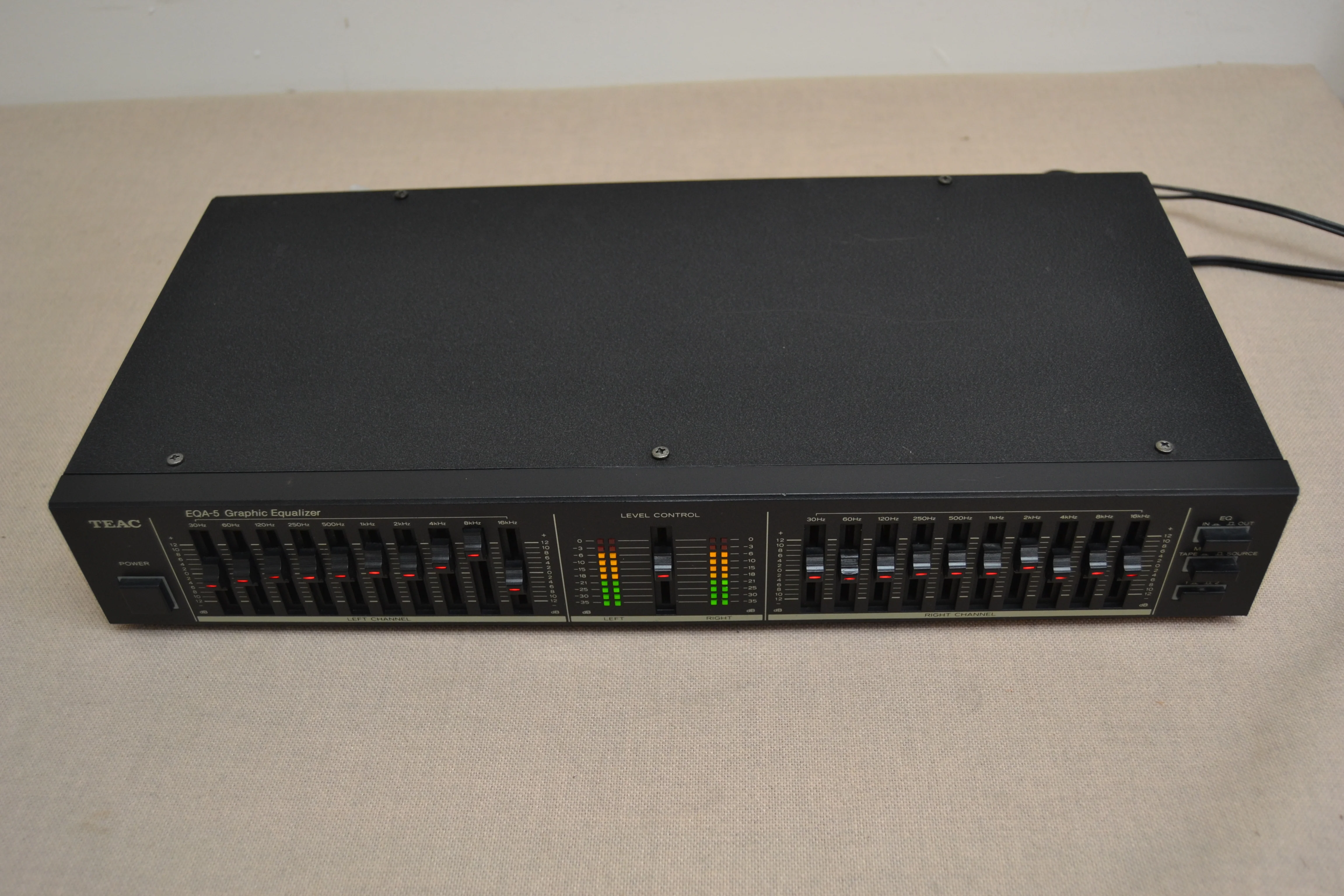

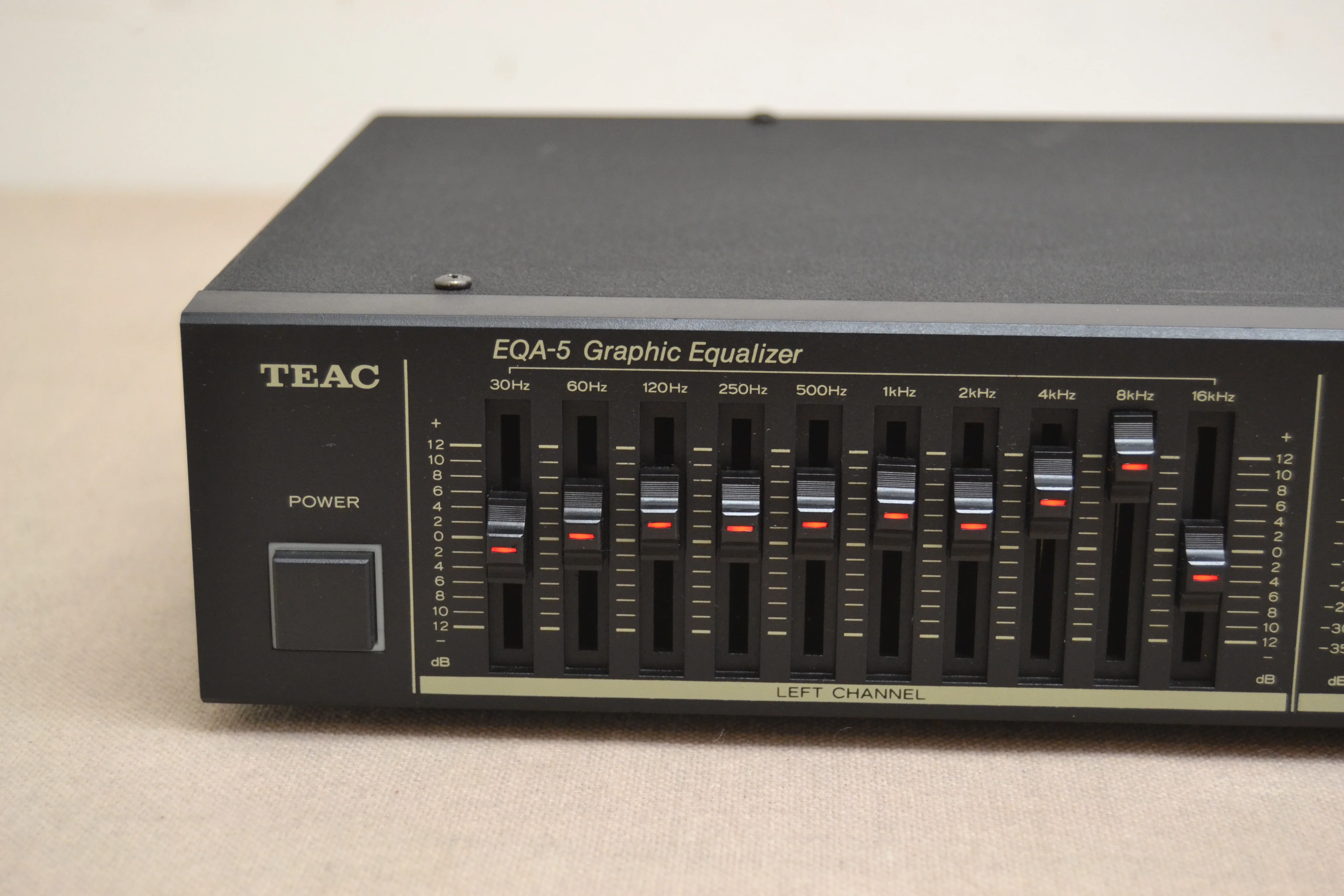

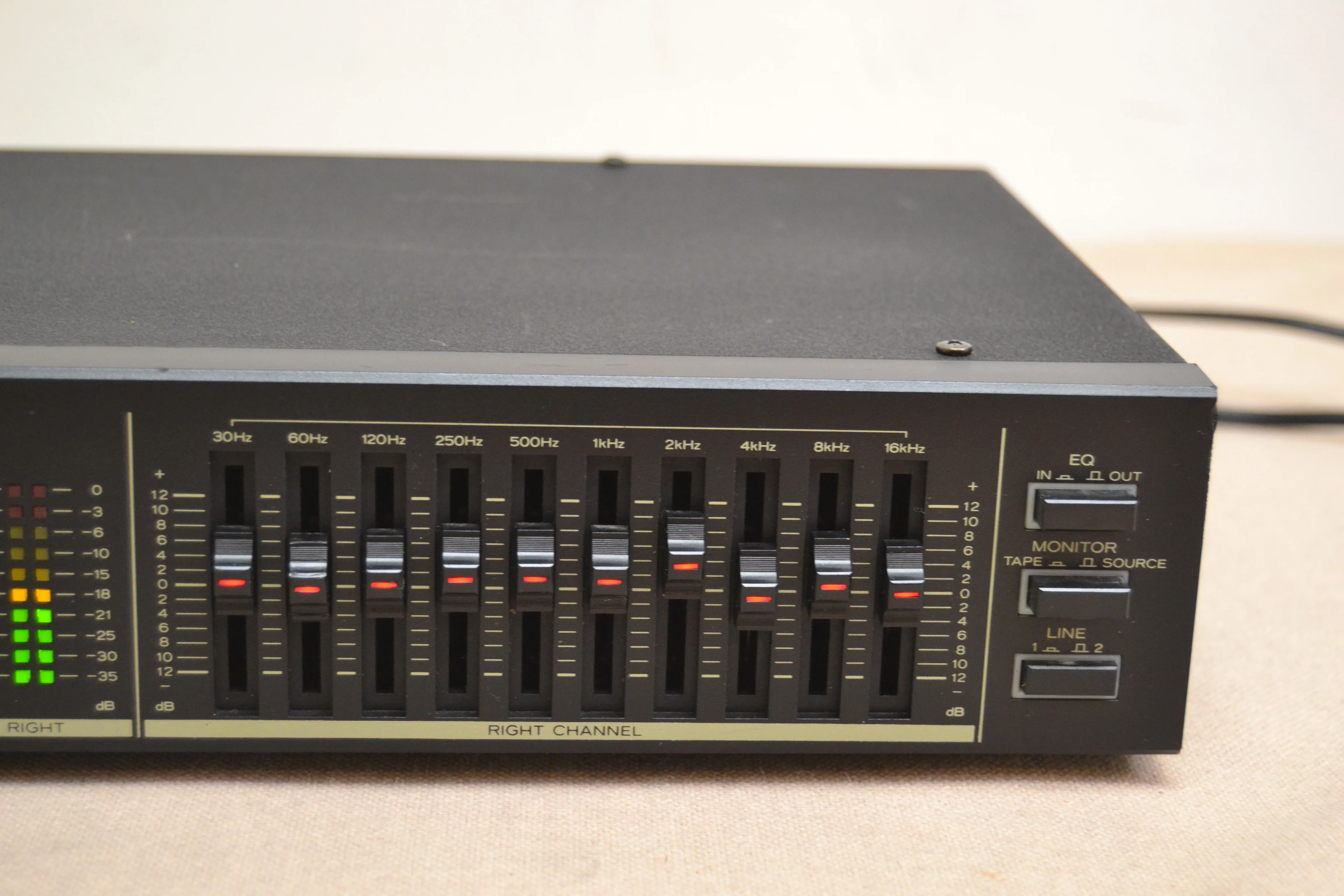

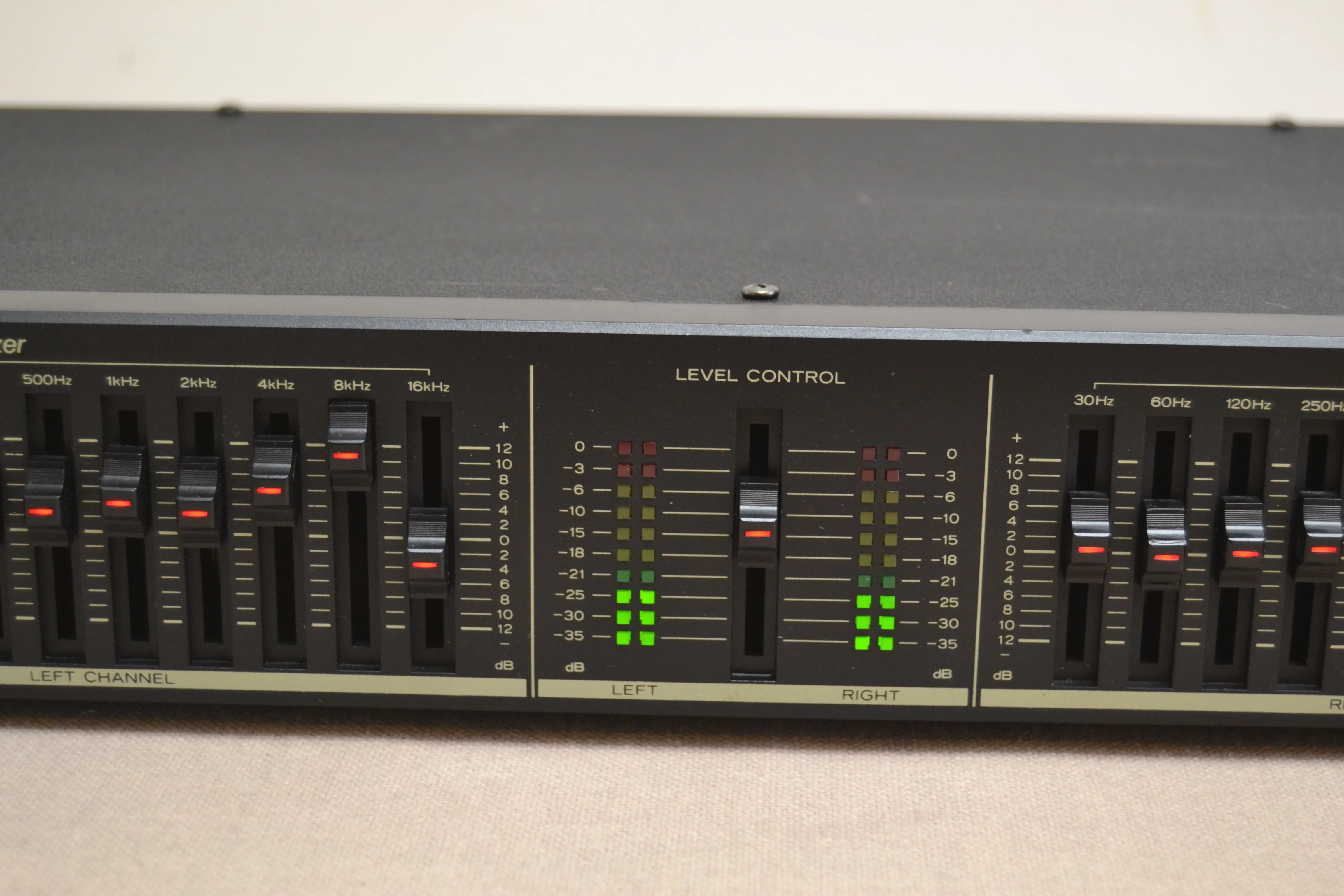

The TEAC EQA-5 is a 10-band stereo graphic equalizer with frequency bands at 30Hz, 60Hz, 120Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, and 16kHz. It features a black finish, LED indicators, and level control from \(-35\) to \(0\) dB, with line and tape inputs, and a bypass switch for comparing sound. Its dimensions are \(16.6"\times 8"\times 2.75"\) (Length x Width x Height).

General specifications

Type: 10-band stereo graphic equalizer
Frequency Bands: 30Hz, 60Hz, 120Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHzLevel Control: -35 to 0 dB
Signal-to-Noise Ratio: 85 dBTotal
Harmonic Distortion (THD): < 0.05%
Inputs: Line in and tape audio input
Outputs: RCA stereo out

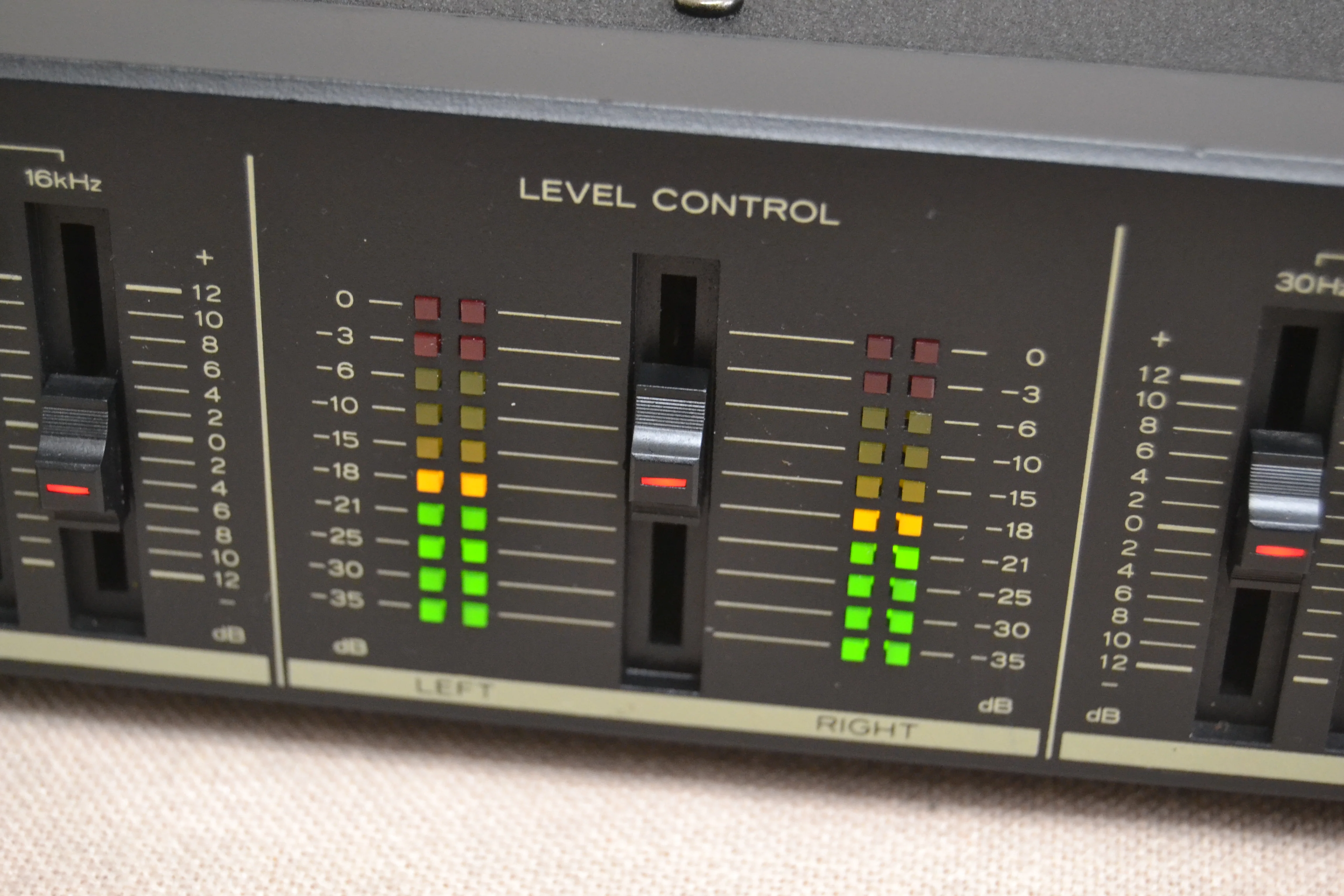

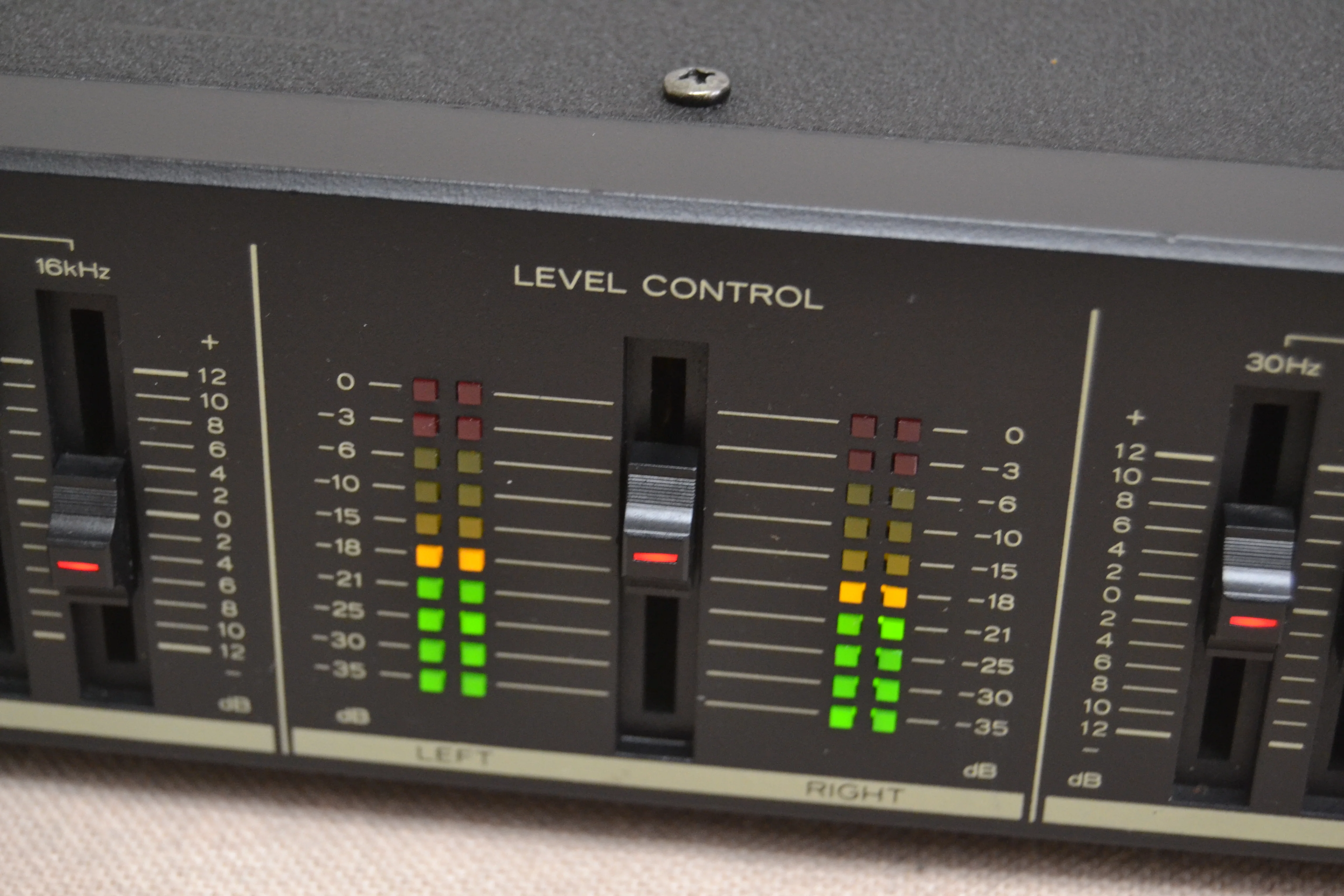

Features:LED level indicators, Bypass switch, Unswitched AC outlet
Dimensions: \(16.6"\) (L) x \(8"\) (W) x \(2.75"\) (H)
Finish: Black
Era: Approximately 1980-1989
