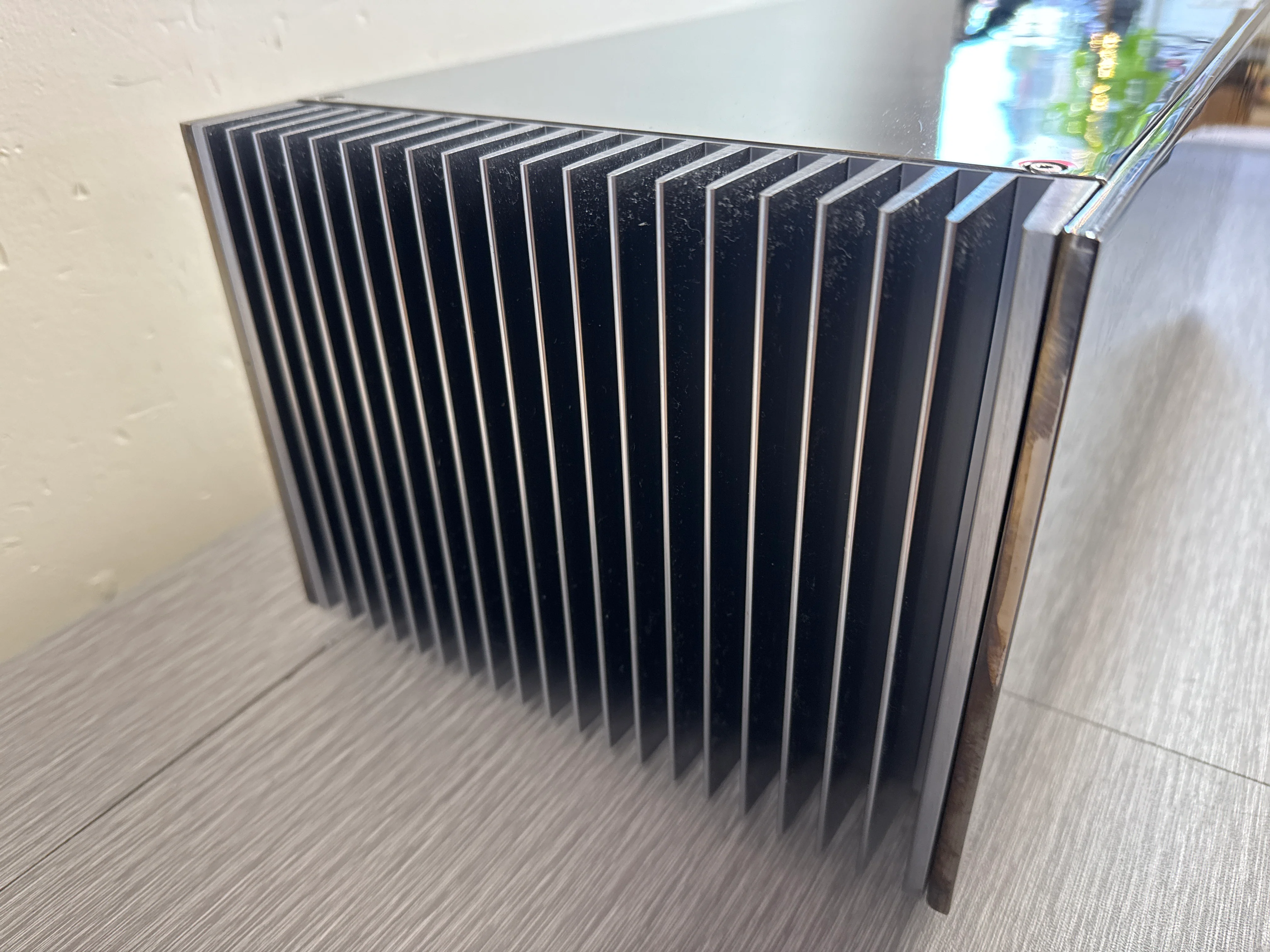

Symphonic Line RG1 mk3 Power Amplifier

Power rating:

2 x 130 Watt Sinus at 8 Ohm, 2 x 250 Watt Sinus at 4 Ohm, 2 x 330 Watt Sinus at 2 Ohm

Currency:

60 Ampere per channel. Damping factor over 800. Excellent control over any loudspeaker.

Input impedance:

1 Volt at 10 K-Ohm

Dimension:

450 mm x 150 mm x 210 mm (W x H x D)

Weight:

ca. 28,0 kg

Finish:

Chrome or aluminium black/silver

Without any problems:

On complex demands, electrostatic loudspeakers and loudspeakers which demand low impedances. Stable down to 1 Ohm.

Design:

Fast circuitry with 60 MHz output transistors, logical layout with
very short signal paths, consequent dual mono design with two fully shielded transformers. Only highest quality components used. Sophisticated loudspeaker protection circuitry. Very solid chassis with WBT binding posts and inputs. Output cable Symphonic Line 10 qmm.

Distortion:

Not audible

Frequency range:

2 Hz - 300 KHz. Slew rate/ speed 80 V µsec

Sound:

Very good inner detailing and finer dynamics.
