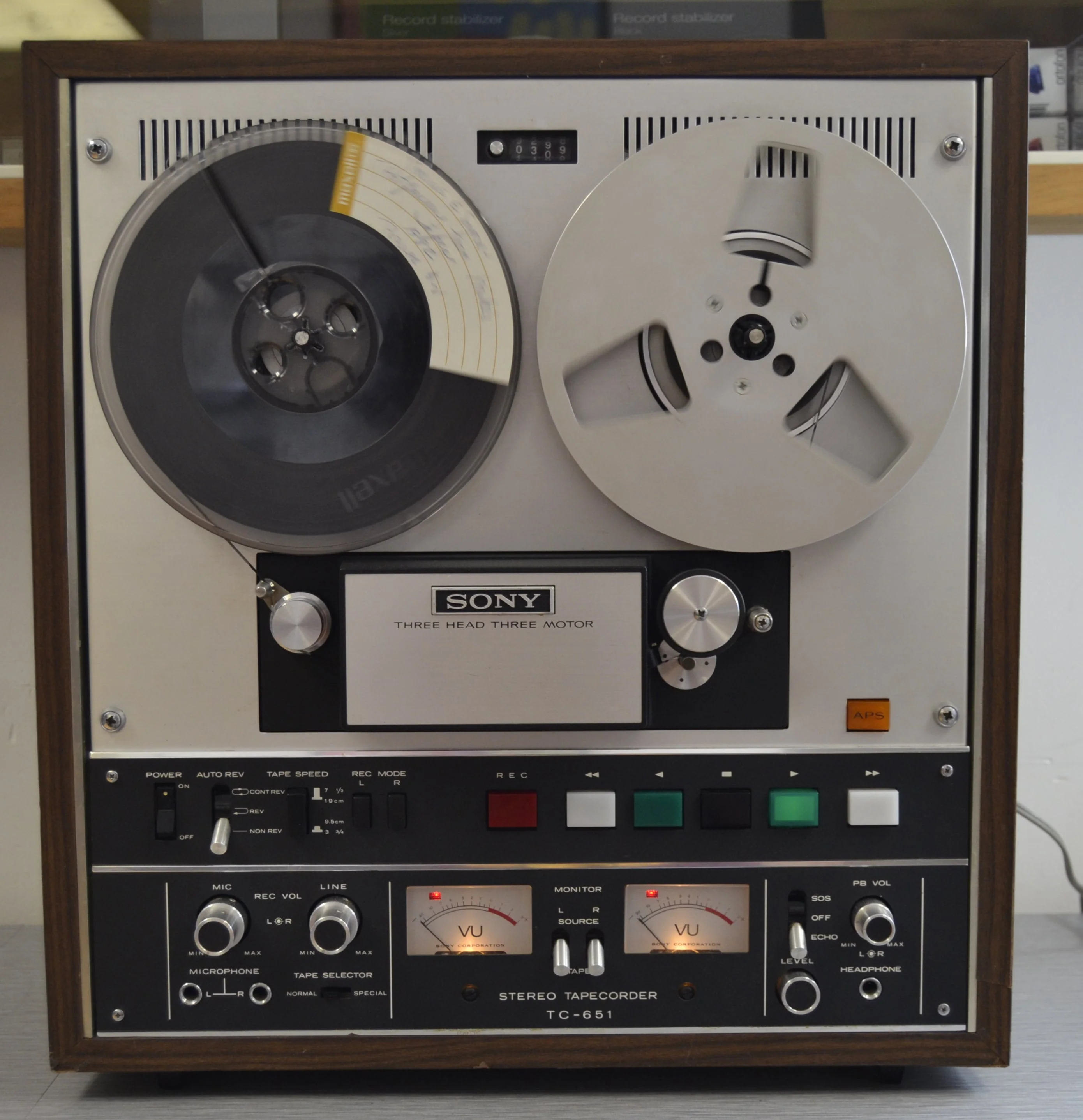

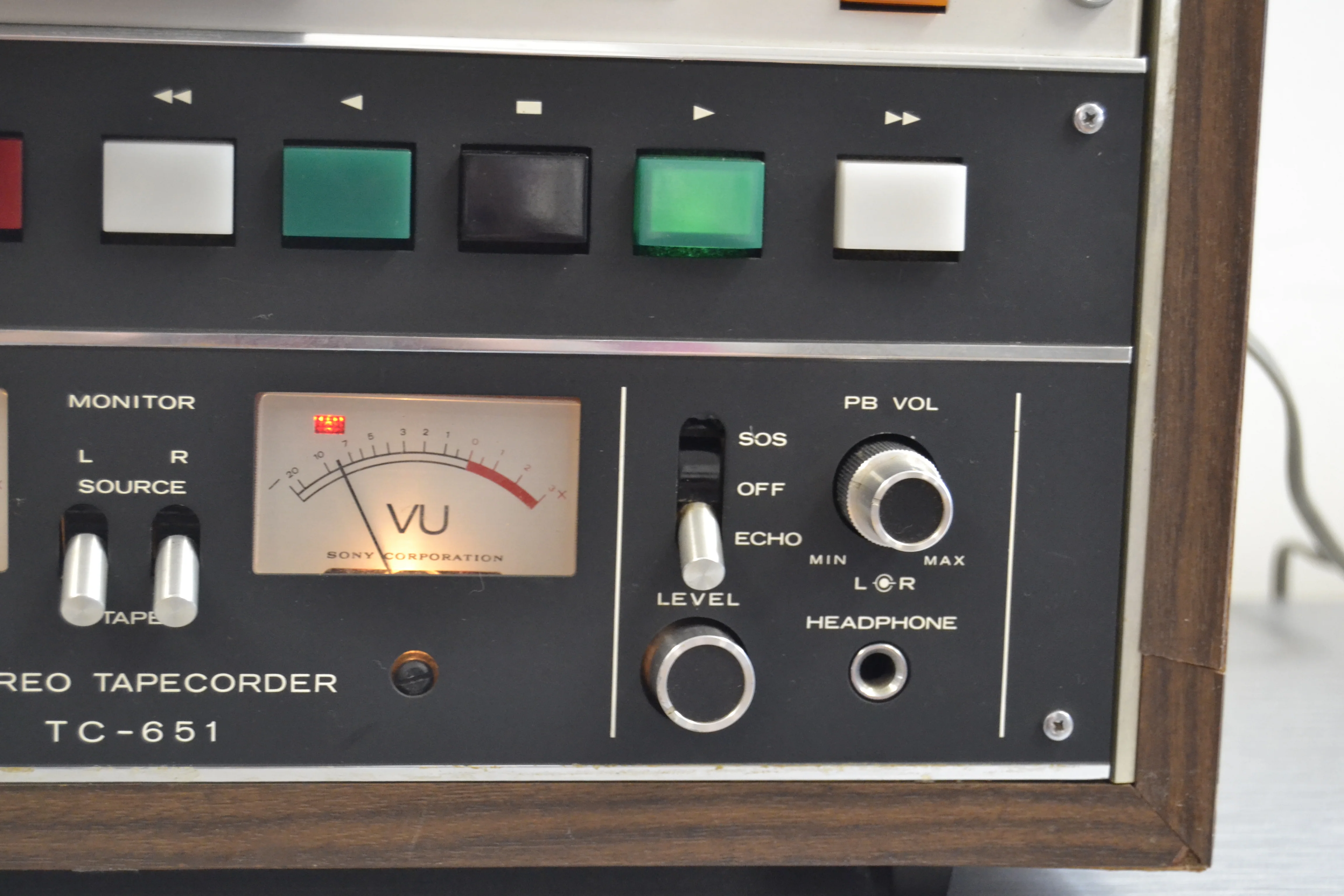

Sony TC-651

Stereo Tapecorder (1971)

Description

The Sony Model TC-651 is a solid state stereo tape deck designed for the dedicated audiophile.

The use of all silicon transistors and four precision heads including a reverse playback head results in extremely accurate handling of transient waveforms, low noise and low distortion.

The three motor tape transport mechanism is designed to provide flutter-free, stable operation either in a vertical or horizontal position.

Independent mechanism, electronic plug-in card system, plug-in head assembly and plug-in head cover make this recorder extremely simple to service.

Special features include:

APS (Automatic Program Scanner) senses the beginning of a recorded tape

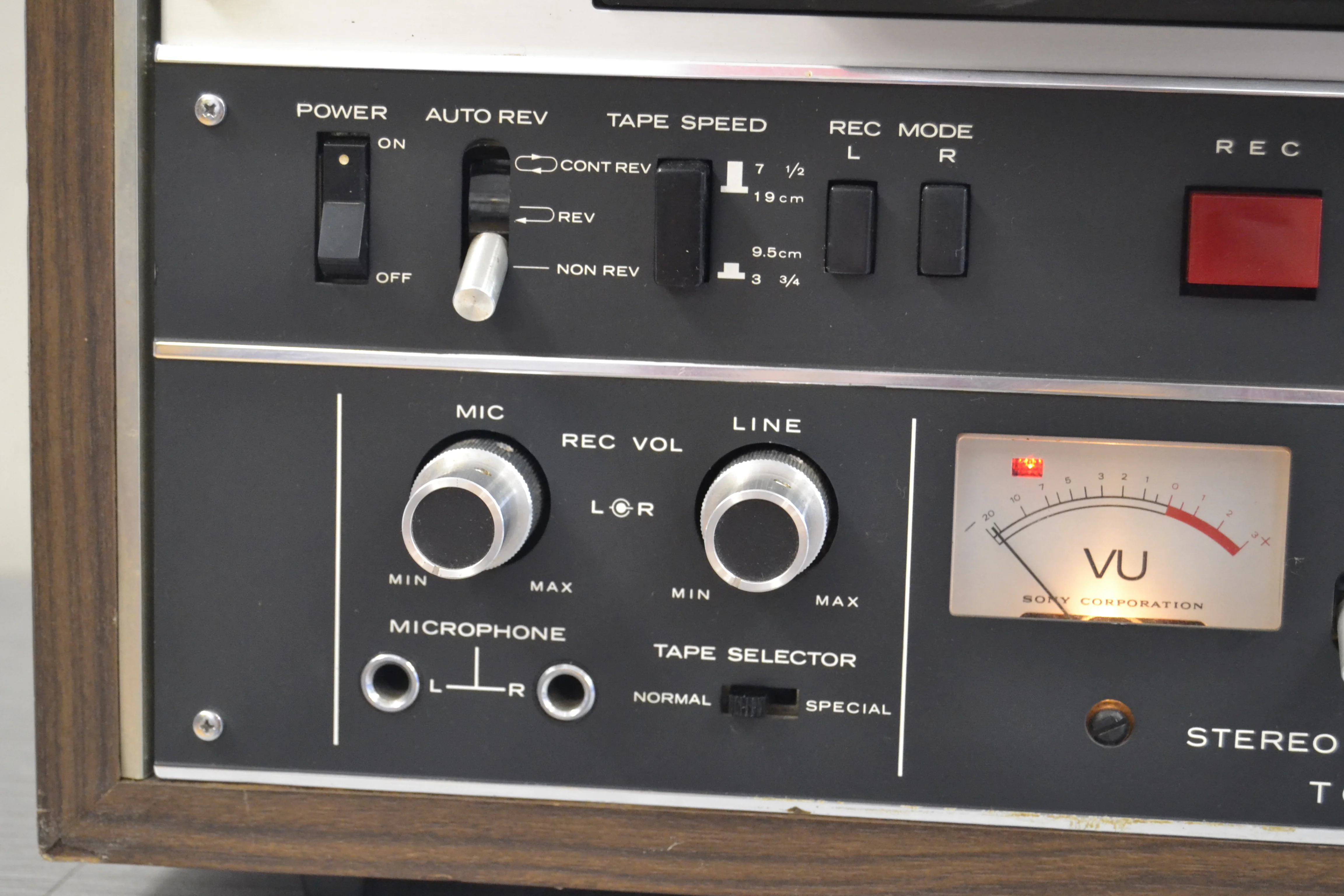

Automatic reversing system may be programmed for non reverse, one reverse cycle, or continuous play

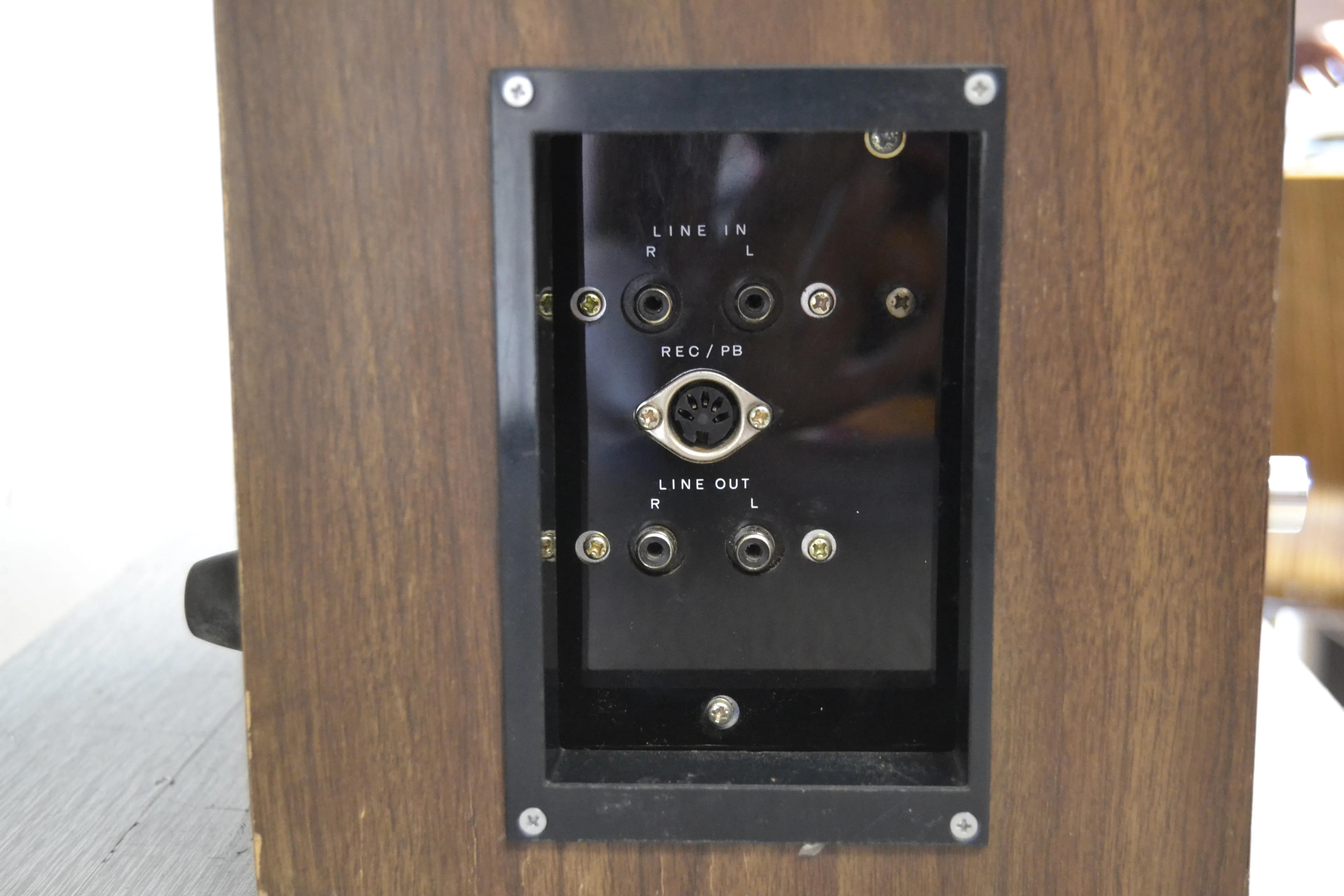

Microphone inputs, line inputs and outputs which correspond with level controls on the front panel

Tape equalization selector switch for standard or Low-noise High-output tape

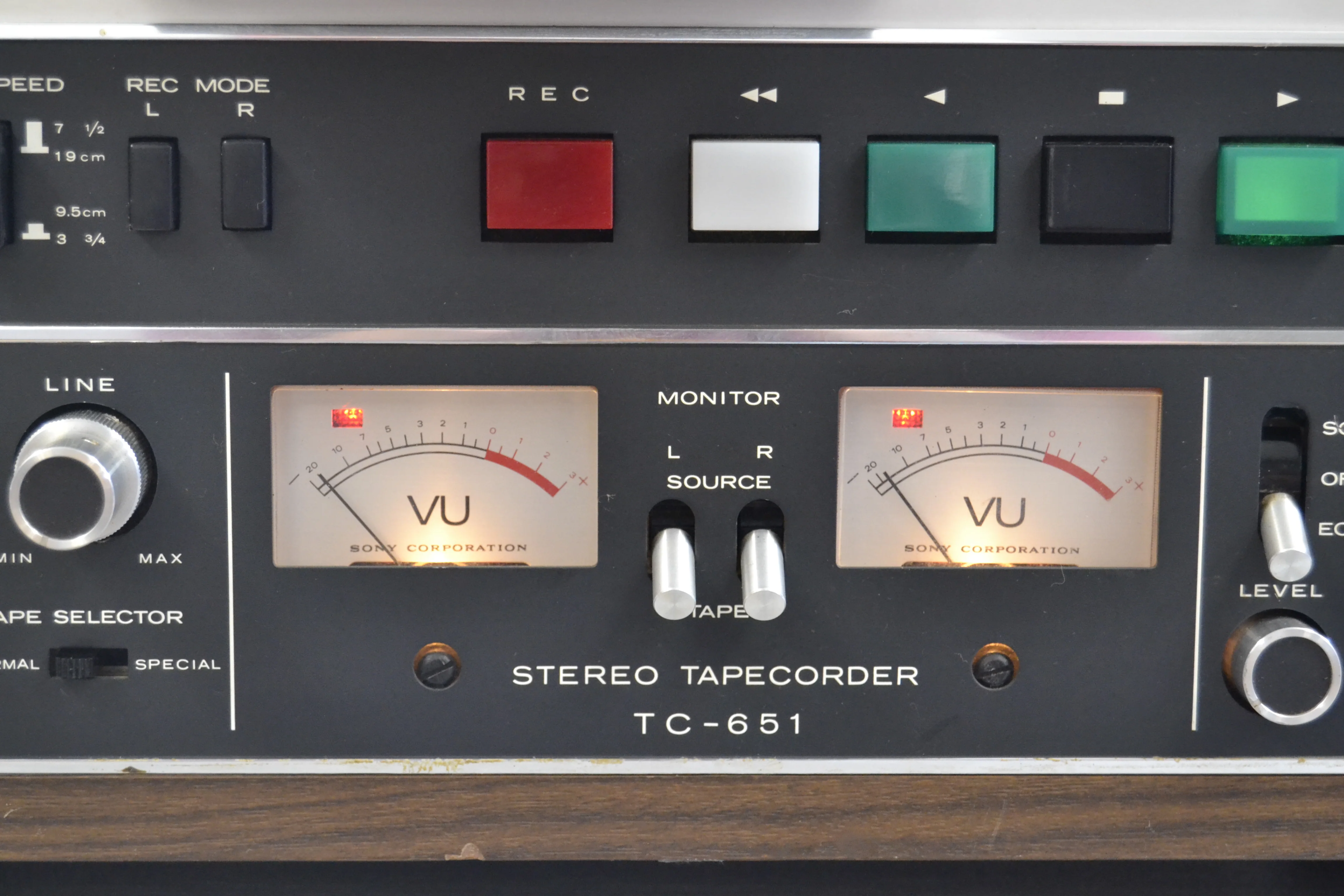

Professionally calibrated VU meters for accurate record level setting

Automatic shut-off

Instantaneous comparison of source and tape

Sound-on-sound

Echo effect for artistic recording techniques

Level adjustable headphone output

Specifications

Track system: auto reverse, 4-track, 2-channel, stereo/monaural system

Heads: 2 x playback, 1 x record, 1 x erase

Motor: 2 x reel, 1 x capstan

Reel size: up to 7 inch reel

Tape speeds: 3 ³⁄₄  7 ¹⁄₂ ips

Wow and flutter: 0.04% (7 ¹⁄₂ ips)

Frequency response: 20Hz to 25kHz (7 ¹⁄₂ ips)

Signal to Noise Ratio: 54dB

Input: 70mV (line), 0.2mV (mic)

Output: 0.775V (line)

Semiconductors: 74 x transistors, 92 x diodes

Dimensions: 422 x 457 x 243mm

Weight: 20.2kg
