Elcaset is a short-lived audio format jointly developed by Sony, Panasonic, and Teac in 1976, building on an idea introduced 20 years earlier in the RCA tape cartridge.

In 1976, it was widely felt that the compact cassette was never likely to be capable of the same levels of performance that was available from reel-to-reel systems, yet clearly, the cassette had advantages in terms of convenience. The Elcaset system was intended to marry the performance of reel-to-reel with cassette convenience, but be more of a compromise on size between the two than the RCA cassette is. The name “Elcaset” may mean L-cassette or large cassette since the 1⁄4″ tape inside is double the 1⁄8″ width of compact cassettes. They were divided into four tracks.

---

Elcaset recorder released by Sony under the WEGA brand
The cassette itself looks similar to a compact cassette, only larger – about twice the size. Like the earlier RCA tape cartridge, it contained 1⁄4 inch (6.4 mm) tape running at 3 3⁄4 inches per second (9.5 cm/s), twice the width and twice the speed of a compact cassette, providing more excellent frequency response and dynamic range with lower high-frequency noise than the compact cassette. Another notable difference from compact cassettes is that the tape is withdrawn from the cassette when run through the transport mechanism so that the manufacturing tolerances of the cassette shell will not affect sound quality. The top-of-the-line Elcaset decks also have all the features of deluxe open-reel decks, such as separate heads for erasing, recording, and playback; remote control, and heavy-duty transports for low wow & flutter.

The system is technically sound, but a nearly complete failure in the marketplace, with a very low take-up by a few audiophiles only. Apart from the problem of the bulky cassettes, the performance of compact cassettes had improved dramatically with the use of new materials such as chromium dioxide, Dolby B noise reduction, and better manufacturing quality. Audiophiles turned away from Elcaset and towards high-end compact cassette decks from companies like Nakamichi, which began making very high-quality tape decks using the compact audio cassette in late 1973, even three years before the Elcaset was released. Also, the Elcaset machines were expensive. Elcaset began a fast fade-out in 1978, after the Northern Audio Fair in Harrogate, Yorks. (Wikipedia)

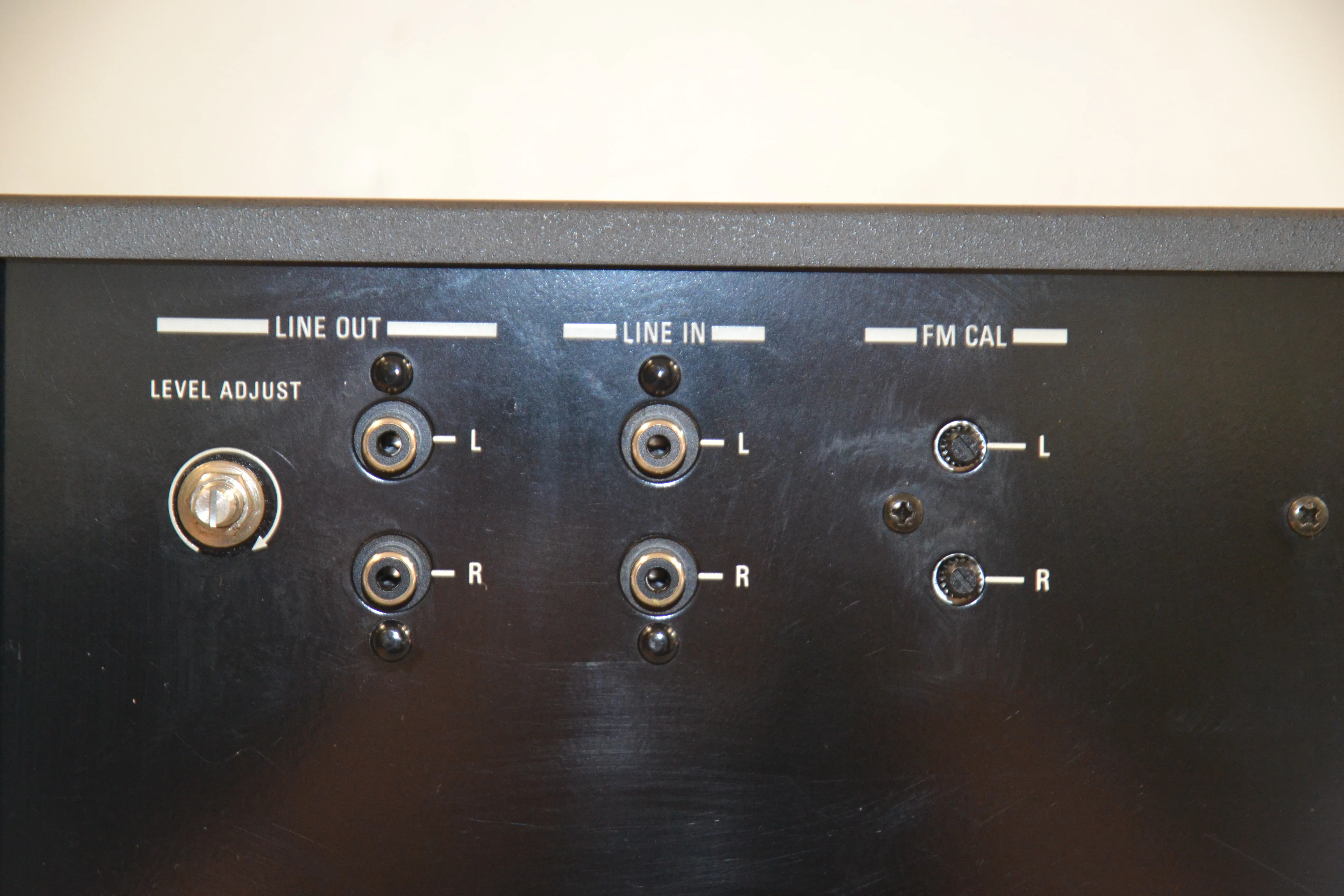

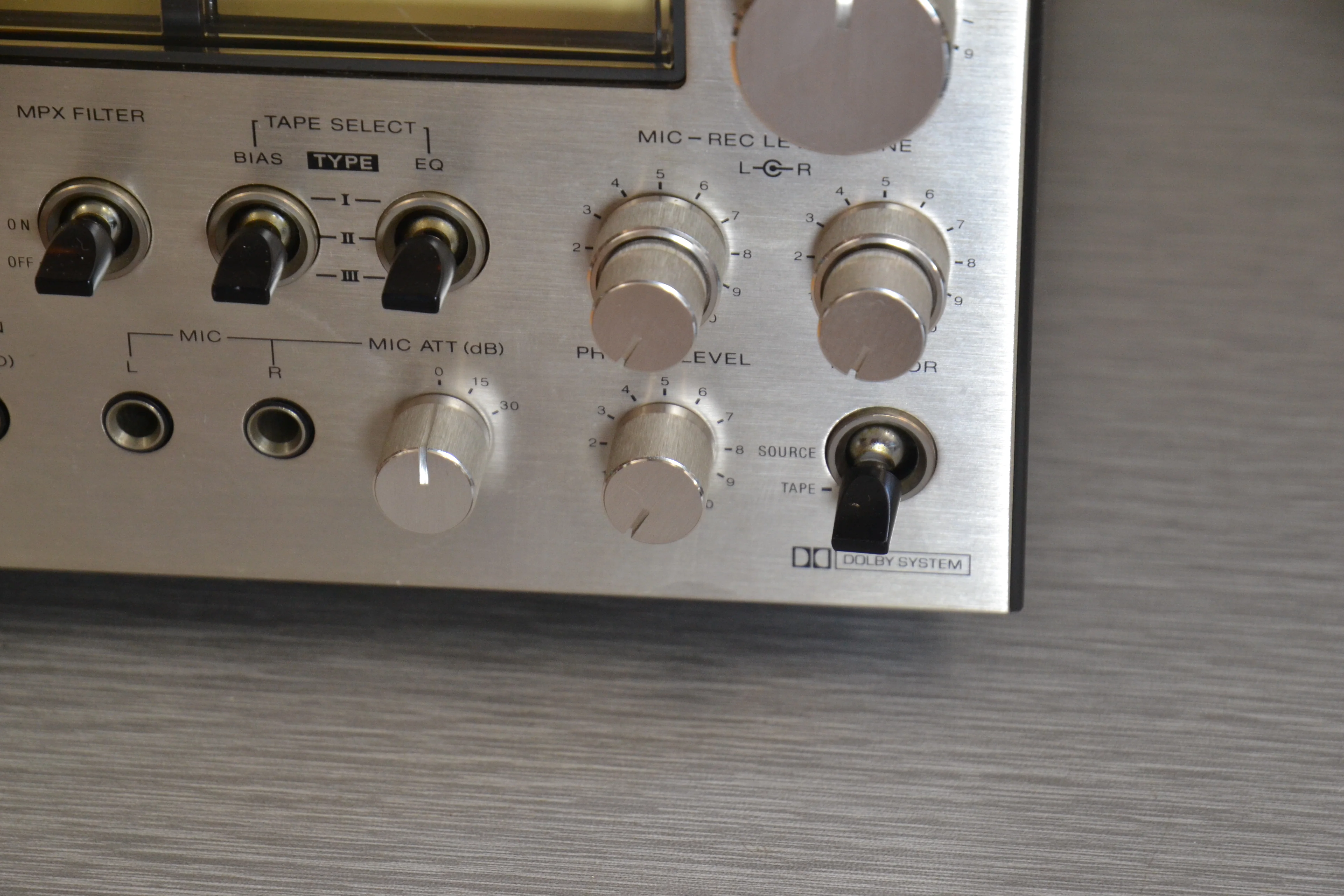

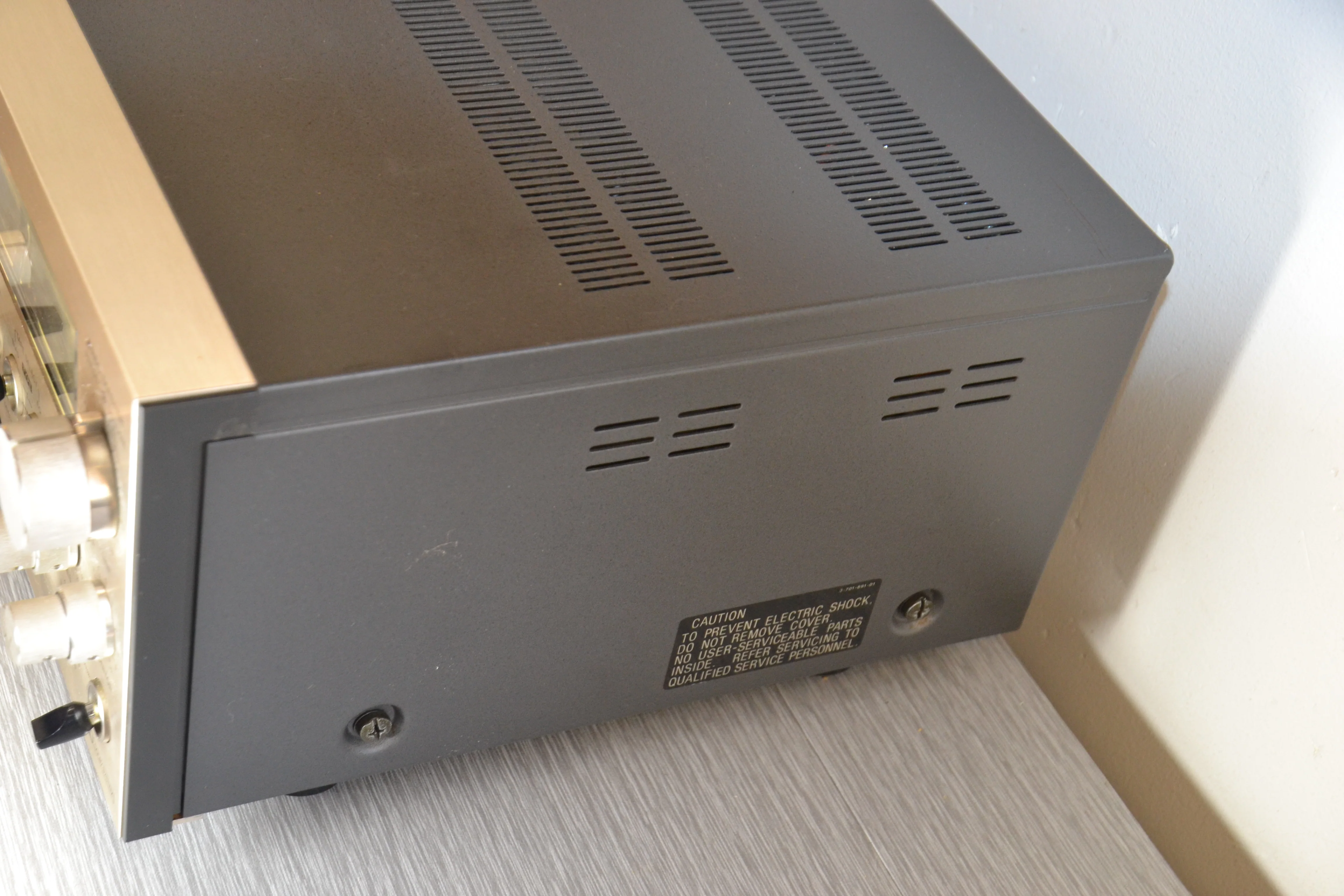

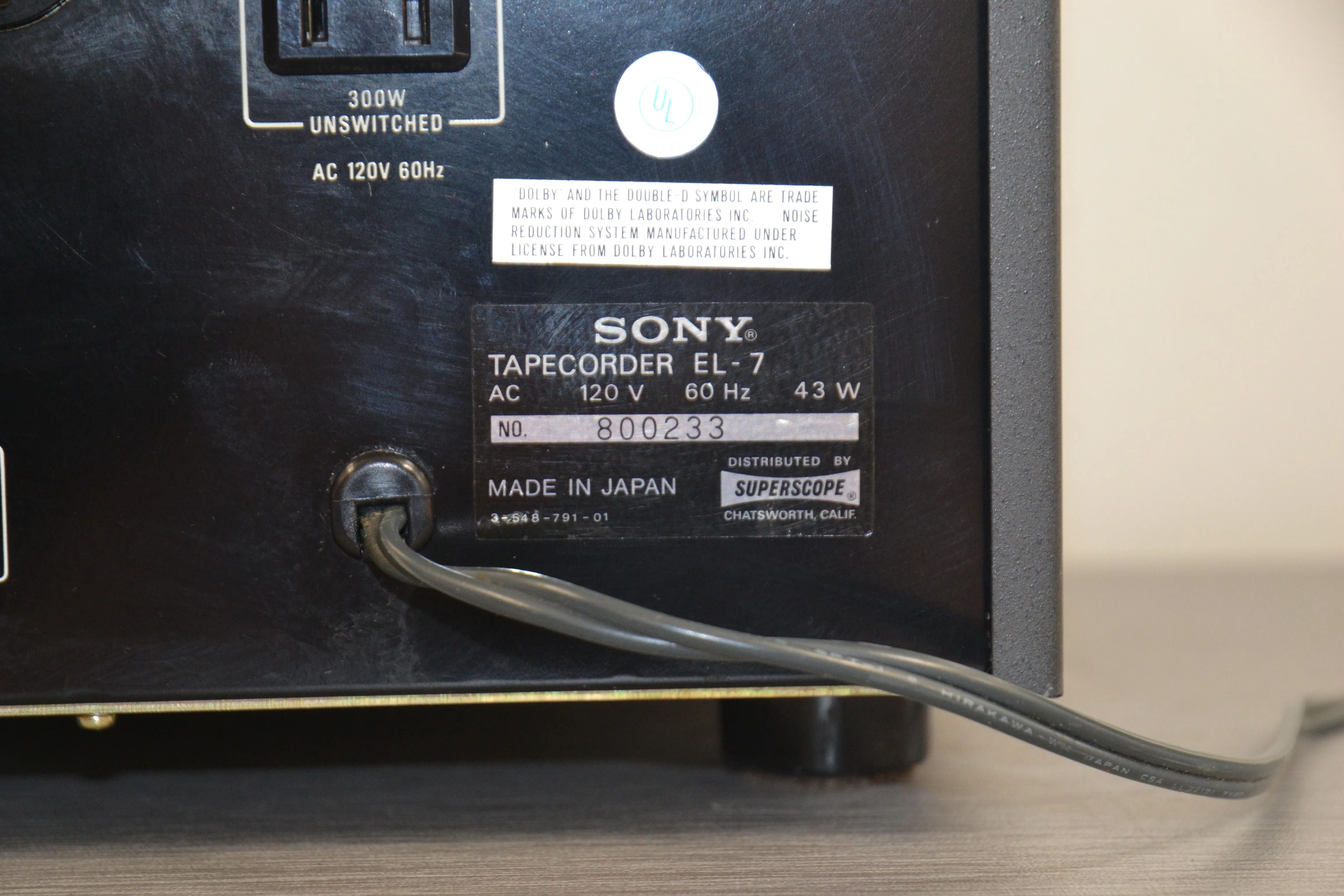

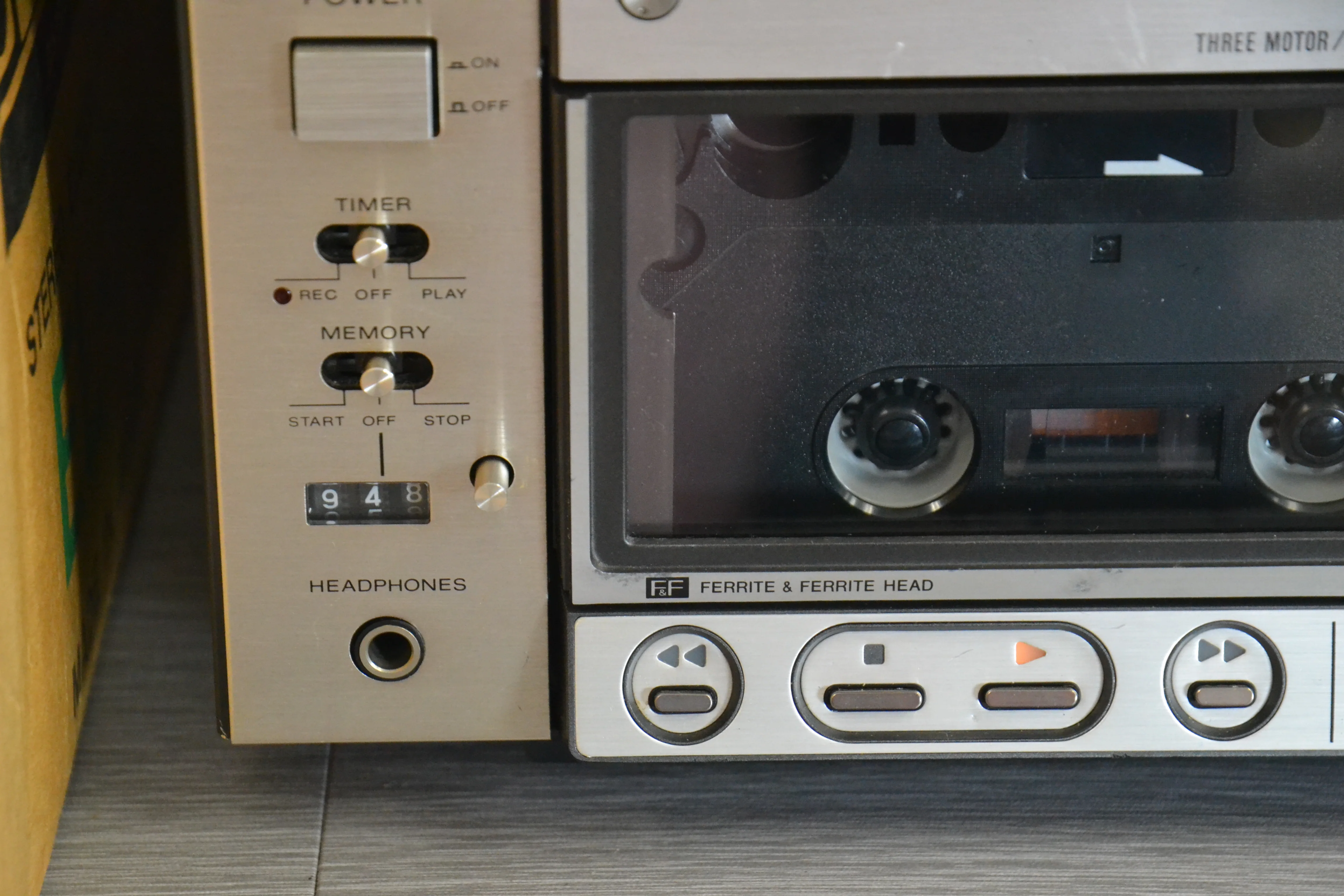

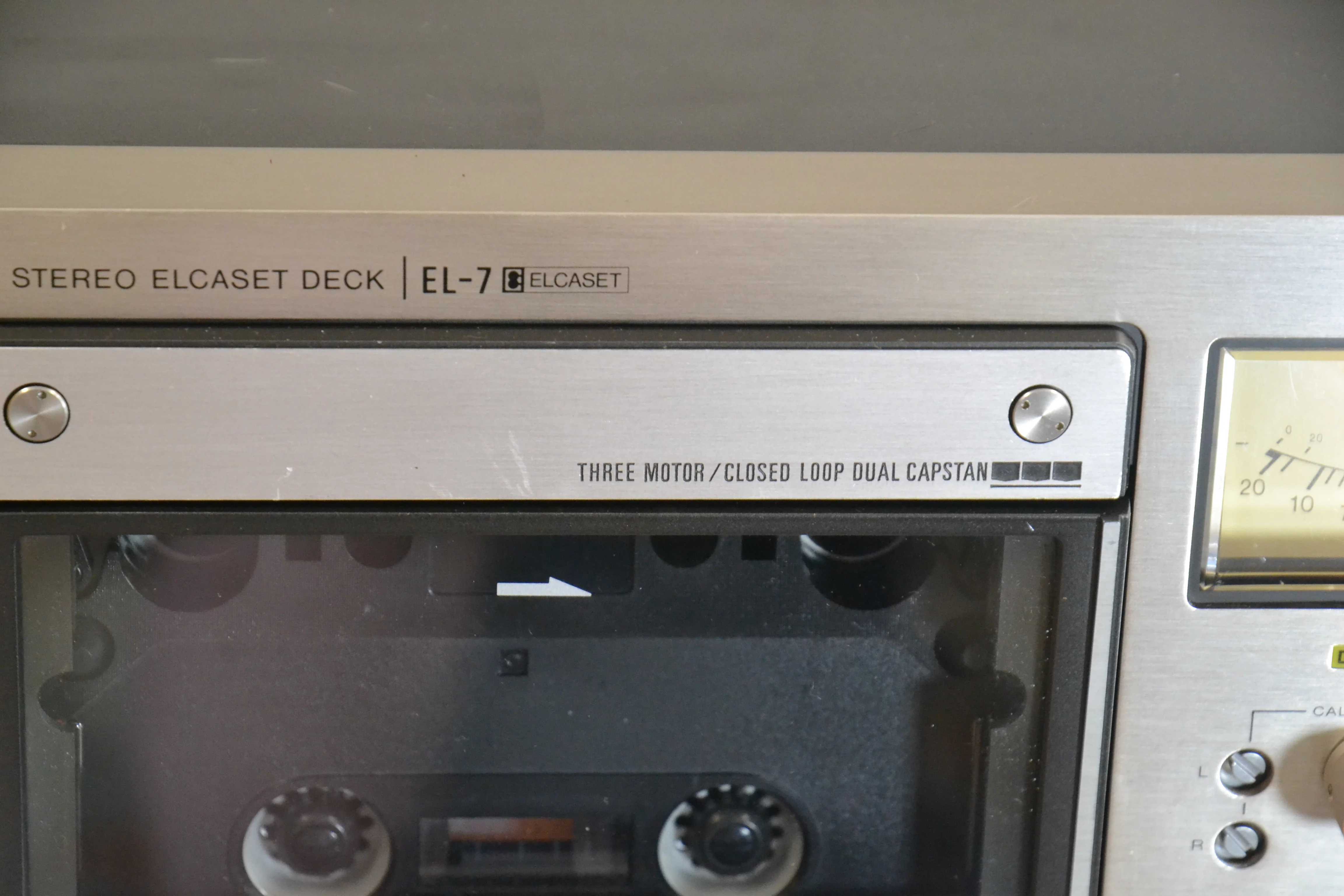

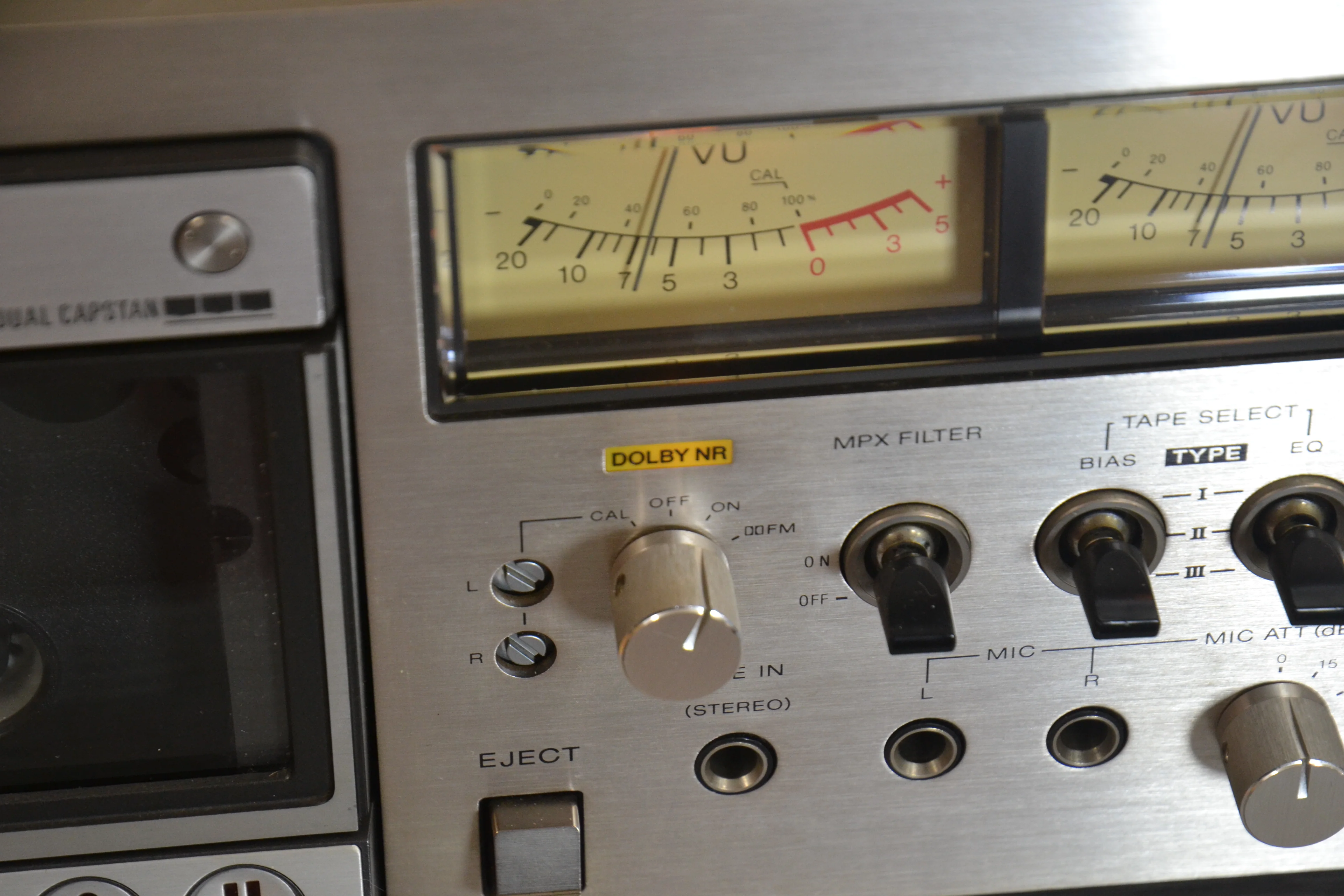

Sony EL-7

Stereo Elcaset Deck (1976-79)

Specifications

Type: 3-head, single elcaset deck

Track System: 4-track, 2-channel stereo

Tape Speed: 9.5 cm/s

Heads: 1 x playback, 1 x record, 1 x erase

Tape Type: type I, FeCr, Cr02

Noise Reduction: B

Frequency Response: 15Hz to 27kHz  (FeCr tape)

Signal to Noise Ratio: 67dB  (dolby B)

Wow and Flutter: 0.04%

Total Harmonic Distortion: 0.8%

Input: 95mV (line), 0.3mV (mic)

Output: 0.775V (line)

Dimensions: 460 x 170 x 320mm

Weight: 13.5kg

Year: 1976
