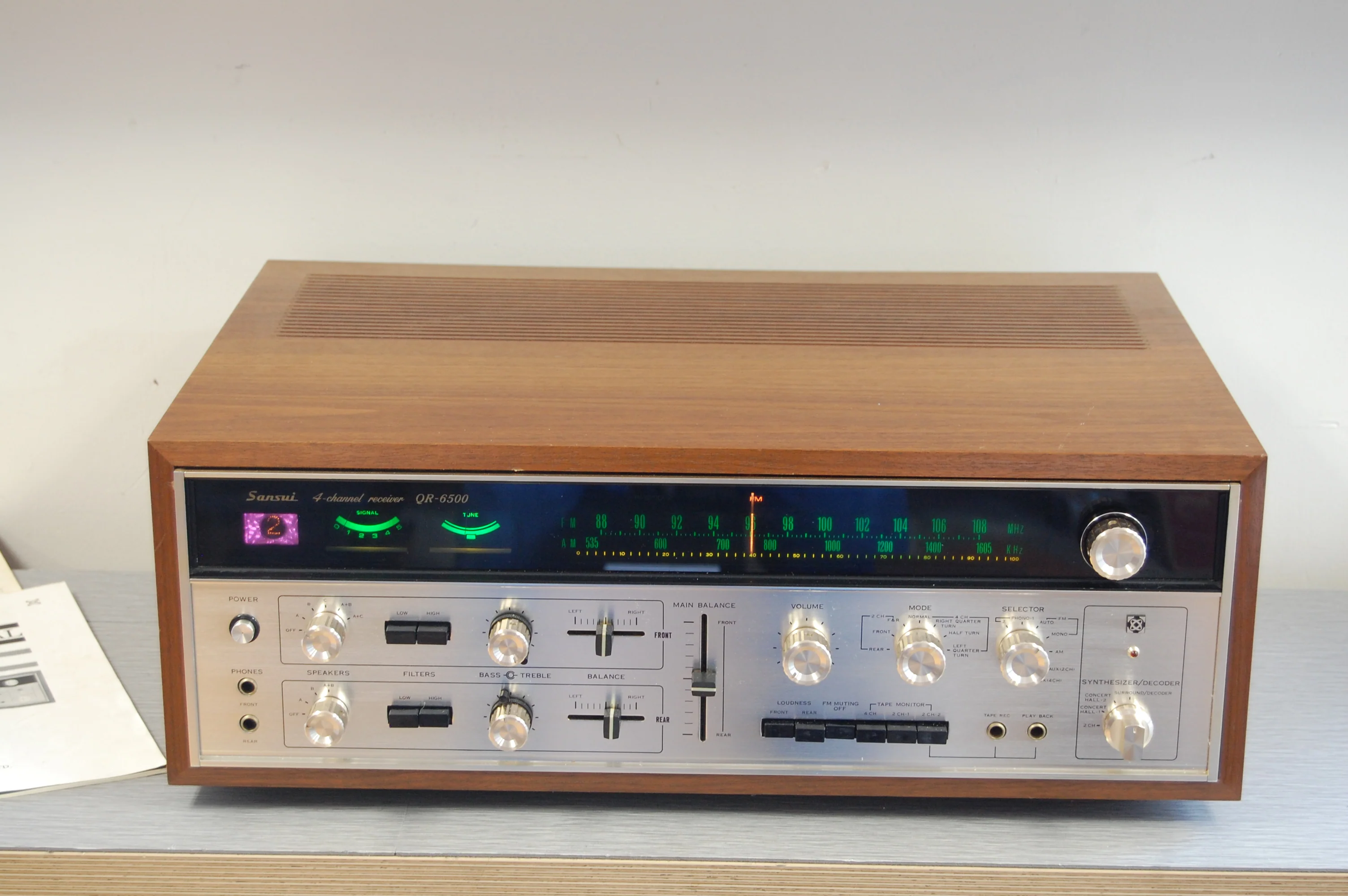

Sansui QR-6500

4 Channel Receiver (1971-72)

The Sansui QR-6500 is a monumental audio achievement - perhaps the most important in Sansui's long and illustrious history.

A combination of the fabulous new 4-channel synthesizer decoder, a mighty 280 Watt control amplifier and a super sensitive AM/FM multiplex stereo tuner.

The QR-6500 is the receiver for the serious audio enthusiast who's ready for awesomely brilliant multi dimensional sound field reproduction.

This top of the line receiver reproduces as no other can, the intensity, the vibrance and the delicate nuances of live performances.

Specifications

Tuning range: FM, MW

Power output: 37W/ch into 8Ω (quadraphonic)

Frequency response: 20Hz to 30kHz

Total harmonic distortion: 0.5%

Damping factor: 30

Input sensitivity: 2mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 60dB (MM), 70dB (line)

Channel separation: 55dB (line)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 4 x FET, 5 x IC, 93 x transistors, 24 x diodes, 2 x zener diodes

Dimensions: 538 x 197 x 362mm

Weight: 22kg
