Sansui 5000A Stereo Receiver * 55W RMS * 1970
HomeStore

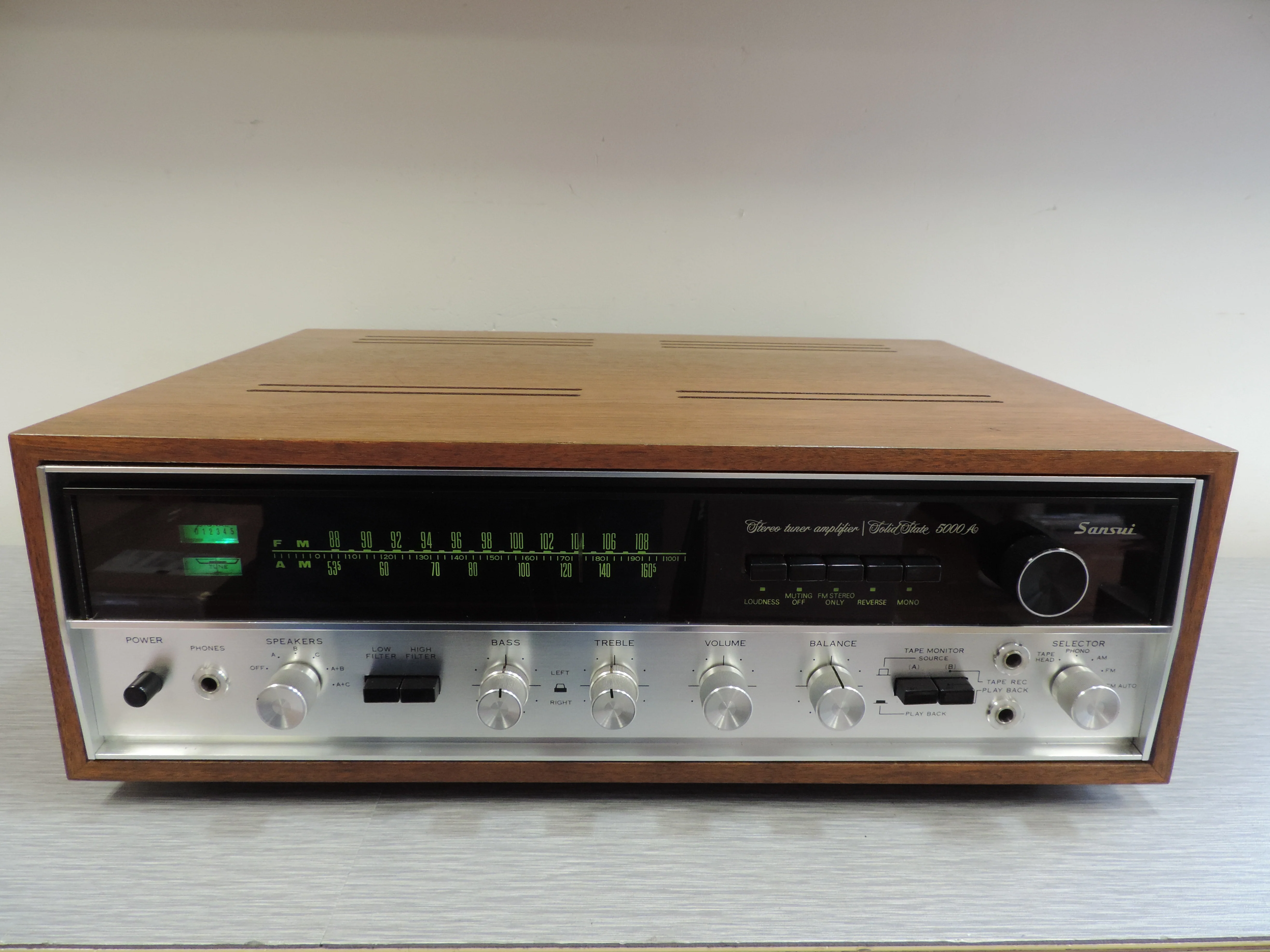

Sansui 5000A Stereo Receiver * 55W RMS * 1970

Sansui 5000A Stereo Receiver * 55W RMS * 1970

$135.00

Original: $450.00

-70%
Sansui 5000A Stereo Receiver * 55W RMS * 1970—

$450.00

$135.00

The Story

Sansui 5000A

AM/FM Stereo Tuner Amplifier (1969-70)

Specifications

Tuning range: FM, MW

Power output: 55 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 30kHz

Total harmonic distortion: 0.8%

Damping factor: 15

Input sensitivity: 2.5mV (MM), 200mV (DIN), 150mV (line)

Signal to noise ratio: 65dB (MM), 70dB (line)

Channel separation: 50dB (MM), 50dB (line)

Output: 200mV (line), 40mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 52 x transistors, 3 x FET, 4 x IC, 33 x diodes, 3 x zener diodes

Dimensions: 17-11/32 x 4-17/32 x 14-9/16 inches

Weight: 29.1lbs

Year: 1969

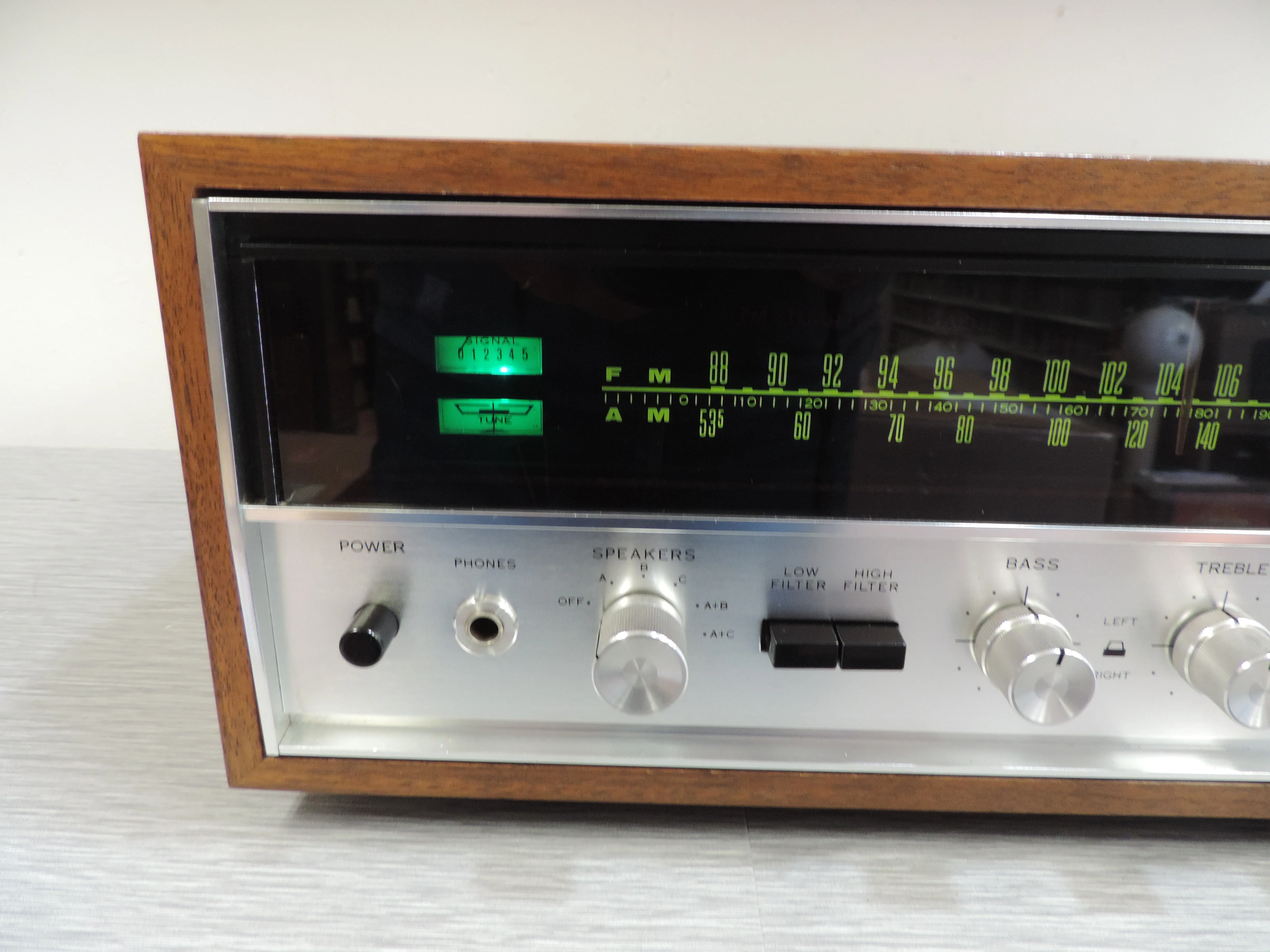

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

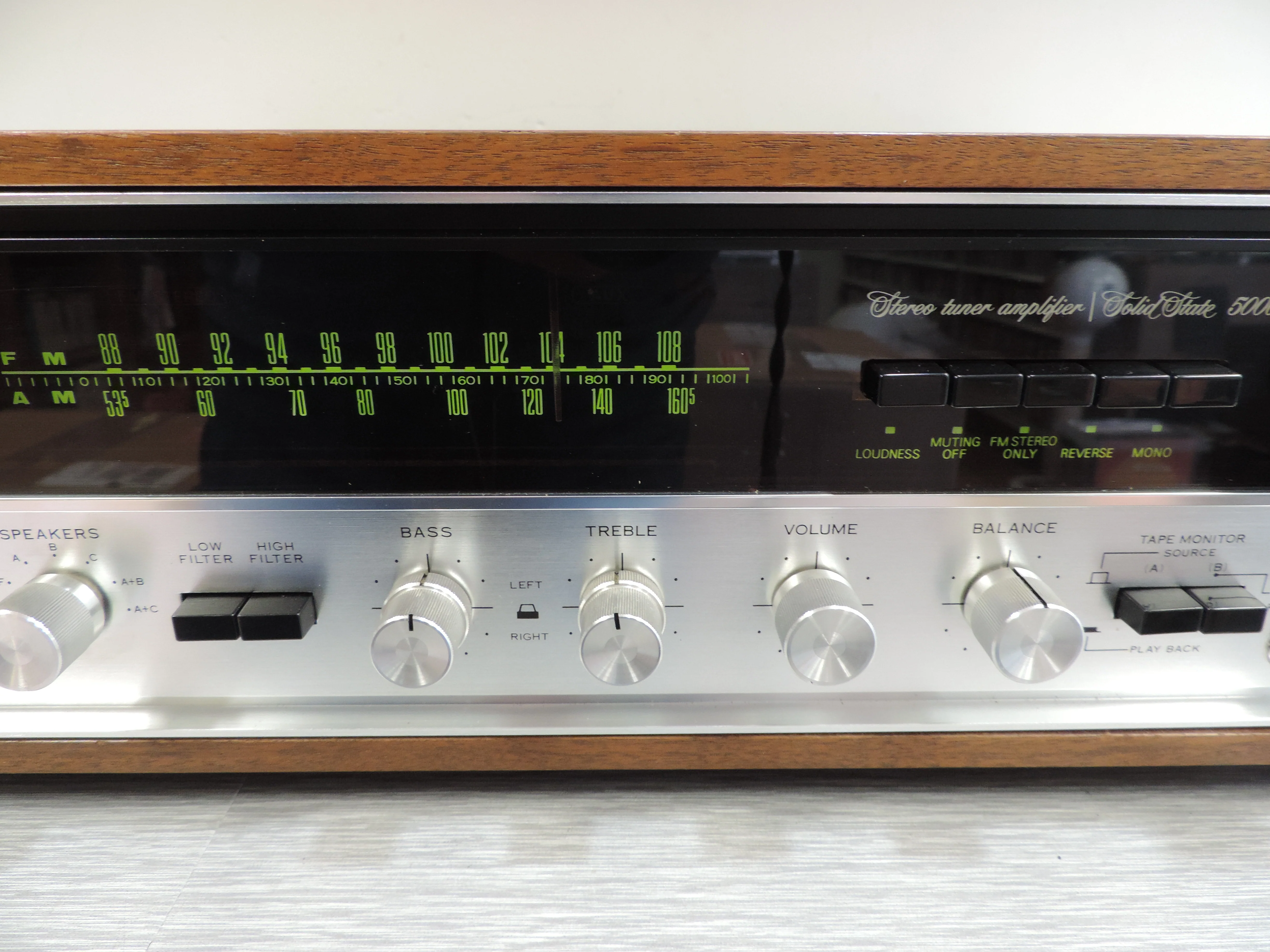

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

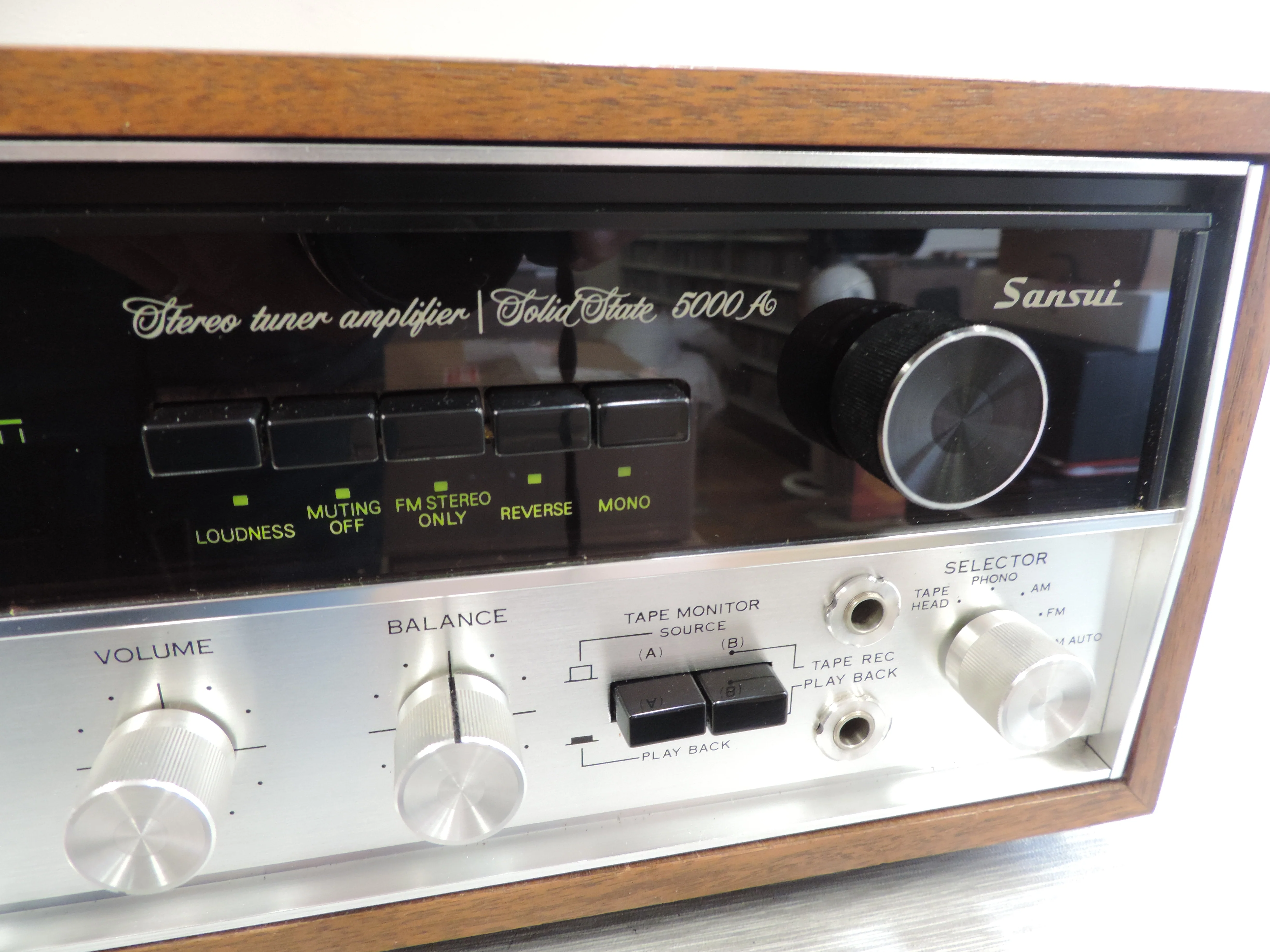

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Sansui 5000A Stereo Receiver * 55W RMS * 1970 - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Sansui 5000A

AM/FM Stereo Tuner Amplifier (1969-70)

Specifications

Tuning range: FM, MW

Power output: 55 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 30kHz

Total harmonic distortion: 0.8%

Damping factor: 15

Input sensitivity: 2.5mV (MM), 200mV (DIN), 150mV (line)

Signal to noise ratio: 65dB (MM), 70dB (line)

Channel separation: 50dB (MM), 50dB (line)

Output: 200mV (line), 40mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 52 x transistors, 3 x FET, 4 x IC, 33 x diodes, 3 x zener diodes

Dimensions: 17-11/32 x 4-17/32 x 14-9/16 inches

Weight: 29.1lbs

Year: 1969
