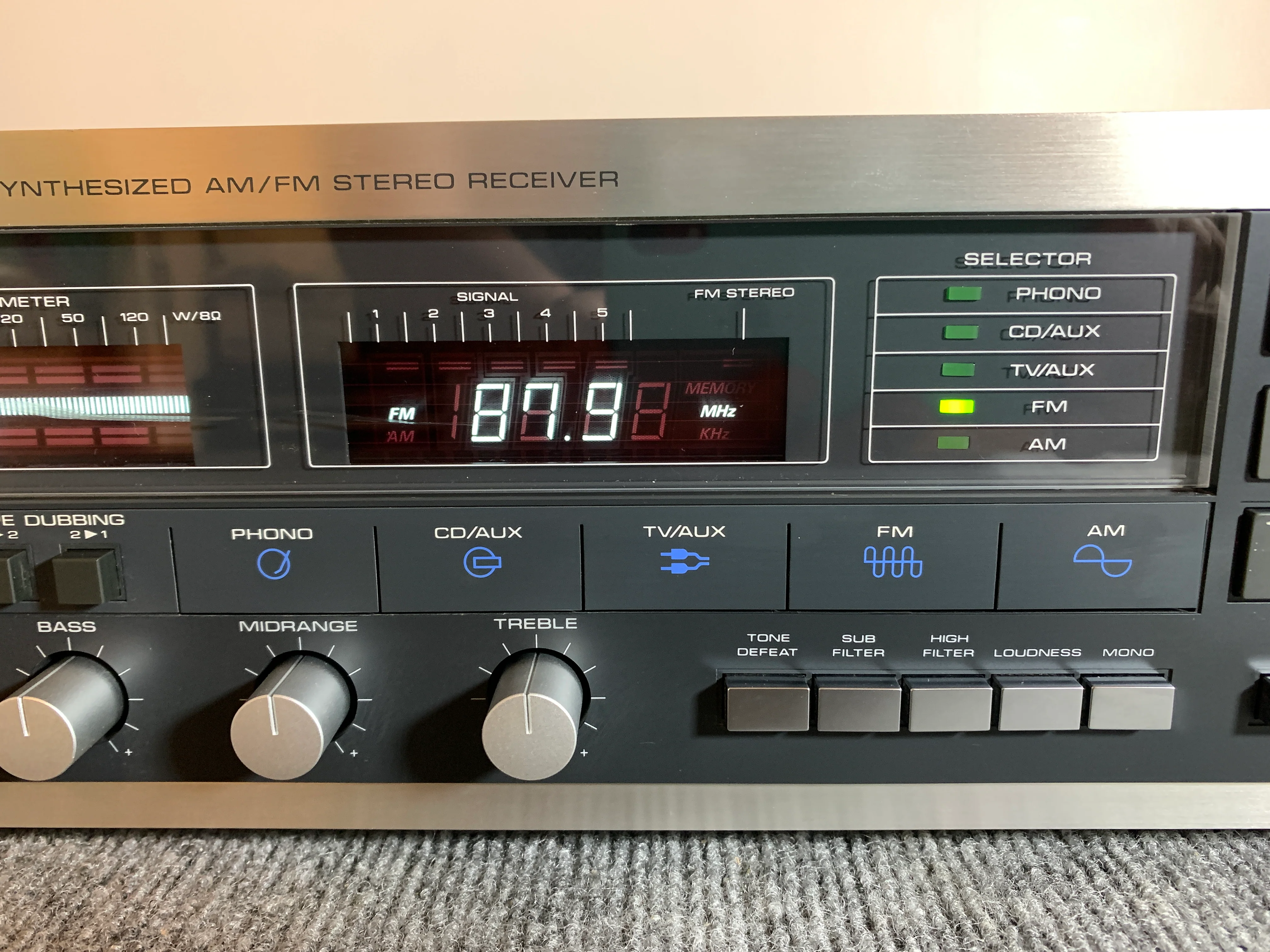

Realistic STA-2600

Solid State AM/FM Stereo Receiver

Description

Powerful and expandable, the new Realistic STA-2600 solid-state AM/FM stereo receiver embraces the sound-system components of the recent breakthrough technology.

The new STA-2600 incorporates the very latest in microprocessor and MOS F ET technology to deliver versatility and performance unmatched in its price range!

It delivers enough power to drive almost any speaker system. The 100 watts per channel over the entire audio bandwidth will drive both main and remote" speakers. And it has the performance and convenience features that distinguish a truly great receiver.

The built-in CMOS LSI Frequency Synthesizer eliminates the usual dial scale and replaces it with a digital readout. it tunes up or down the AM and FM bands automatically. The FM front-end uses a dual-gate MOS FET for immunity from overloading due to strong local signals.

Specifications

Tuning range: FM, MW

Power output: 100 watts per channel into 8Ω (stereo)

Frequency response: 15Hz to 25kHz

Total harmonic distortion: 0.01%

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 84dB (MM), 100dB (line)
