Realistic STA-100

AM/FM Stereo Receiver (1980)

Description

The STA-100 is human engineered for you with a combination of features for superb performance and ease of operation.

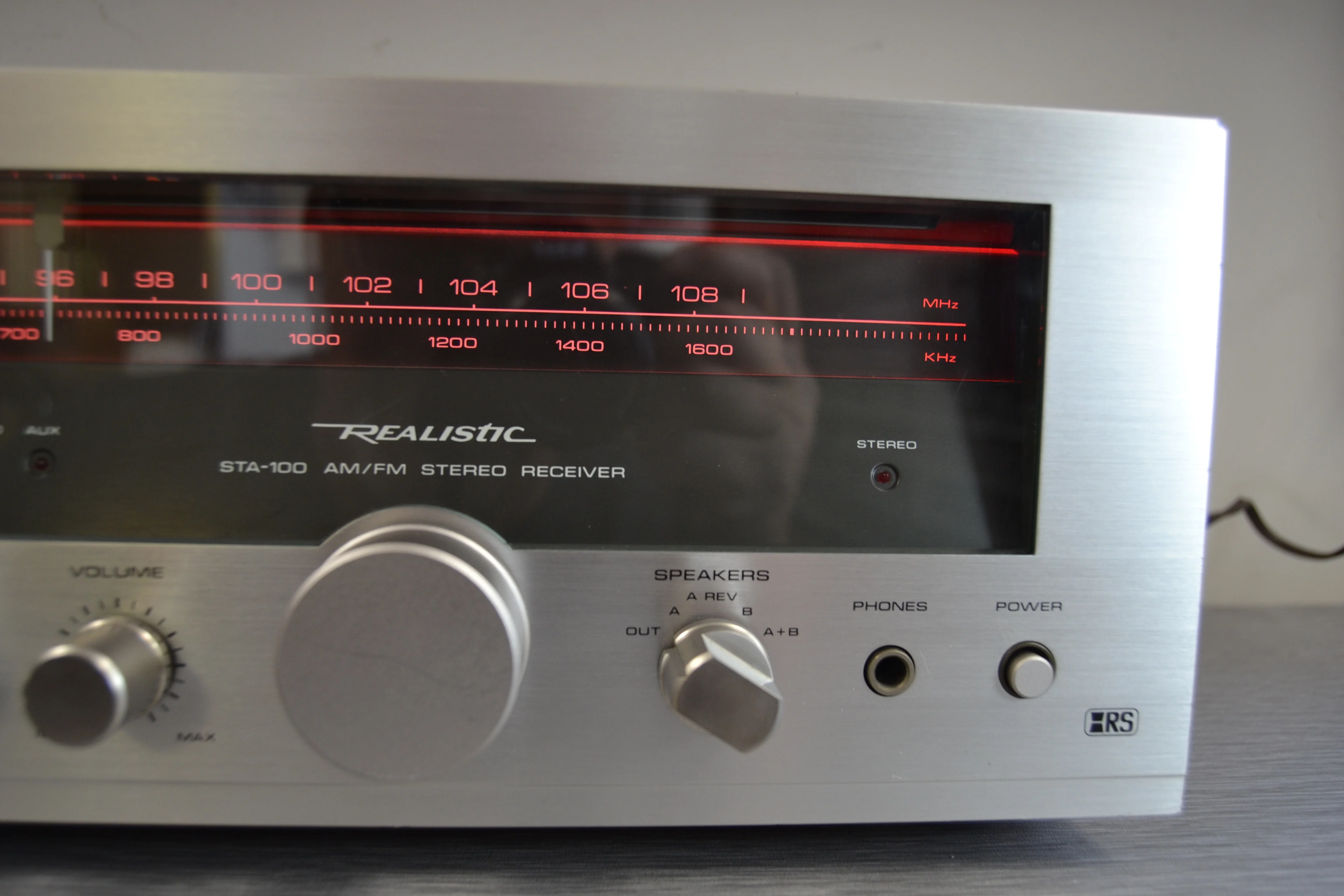

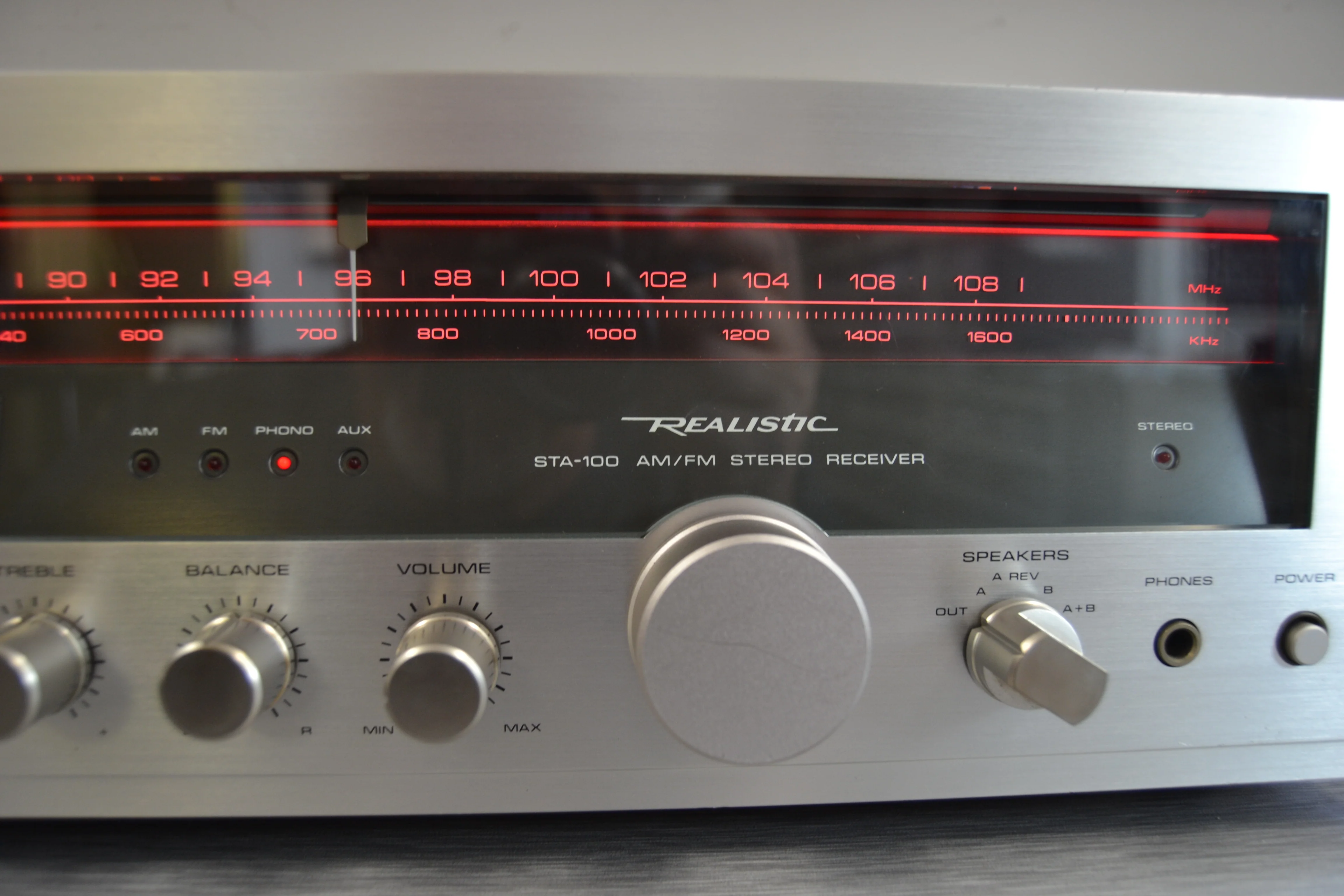

A wide, easy to read dial and illuminated FM signal strength meter make tuning easy. Bass and treble controls have detented rest stop. LED's indicate mode. FM muting silences the receiver while tuning between stations.

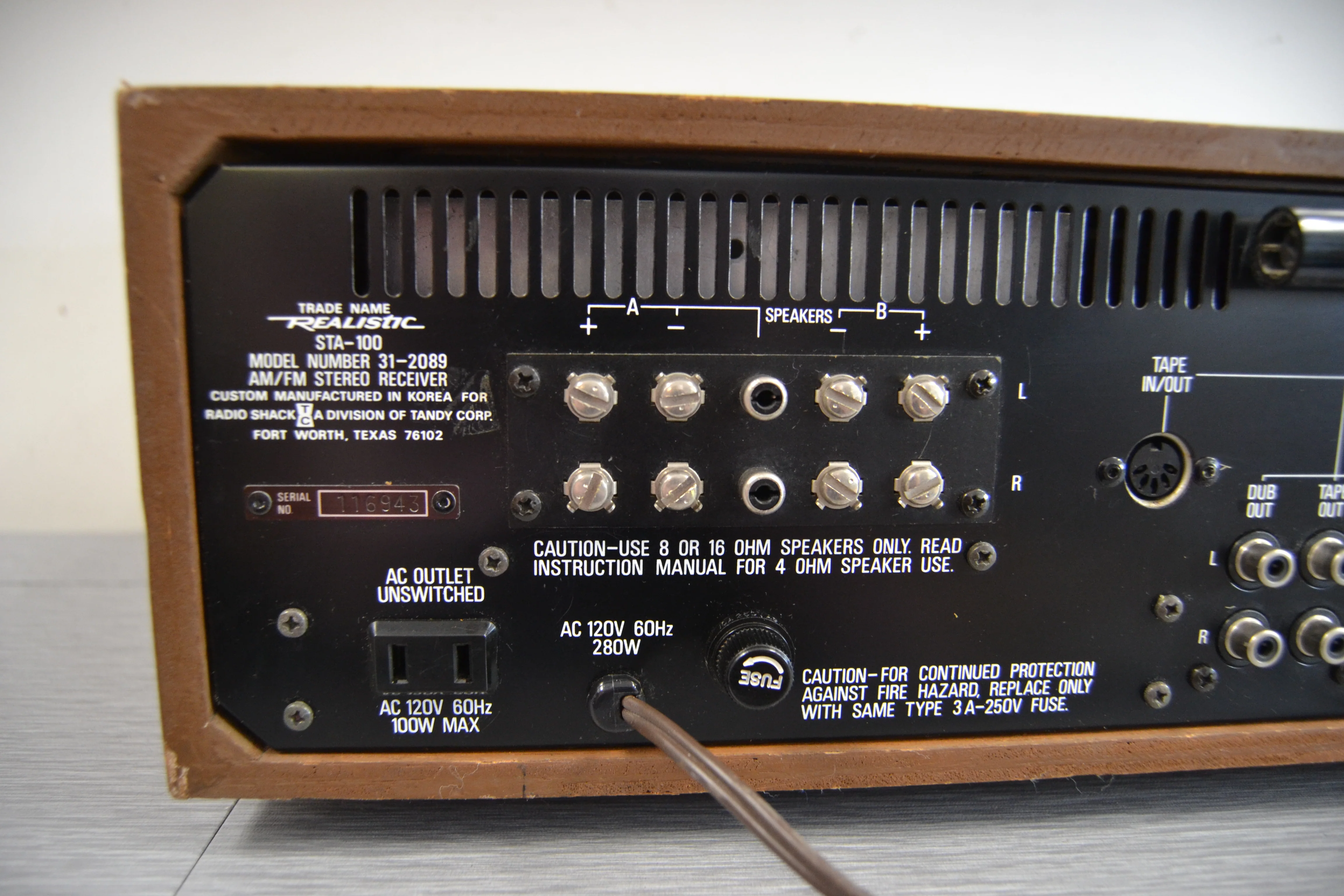

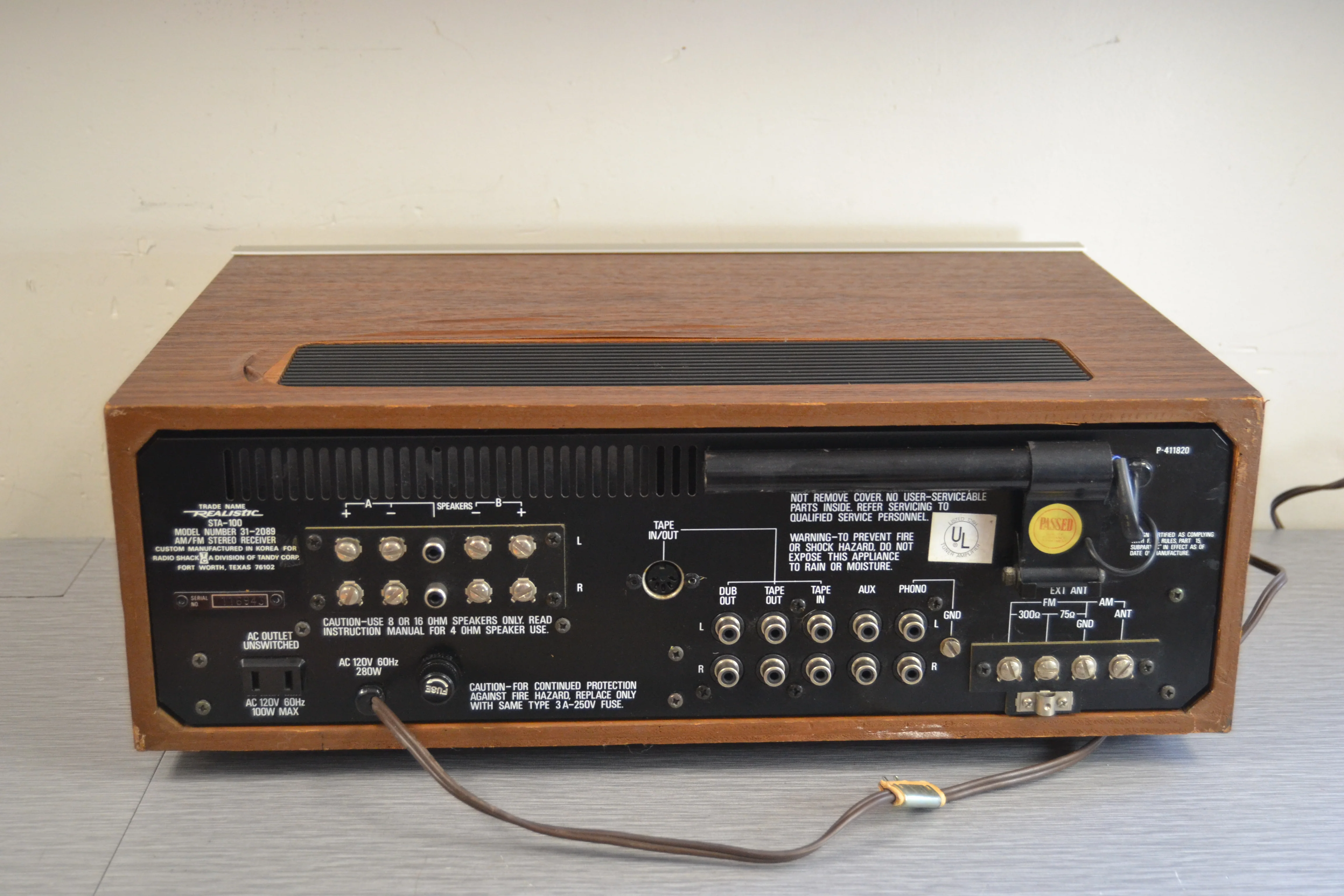

It has inputs for magnetic phono, aux, tape in, tape out and tape dubbing to a second deck.

The hot FM section pulls in even weaker stations, and advanced low noise solid state circuitry assures superior overall performance.

You also get tape monitoring facilities, and a loudness button for deep bass even at low volume levels.

Specifications

Tuning range: FM, MW

Power output: 22 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.1%

Input sensitivity: 2.2mV (MM), 160mV (line)

Signal to noise ratio: 65dB (MM), 75dB (line)

Output: 120mV (line), 3.3mV (DIN)

Dimensions: 17-3/8 x 6-1/4 x 11-5/8 inches

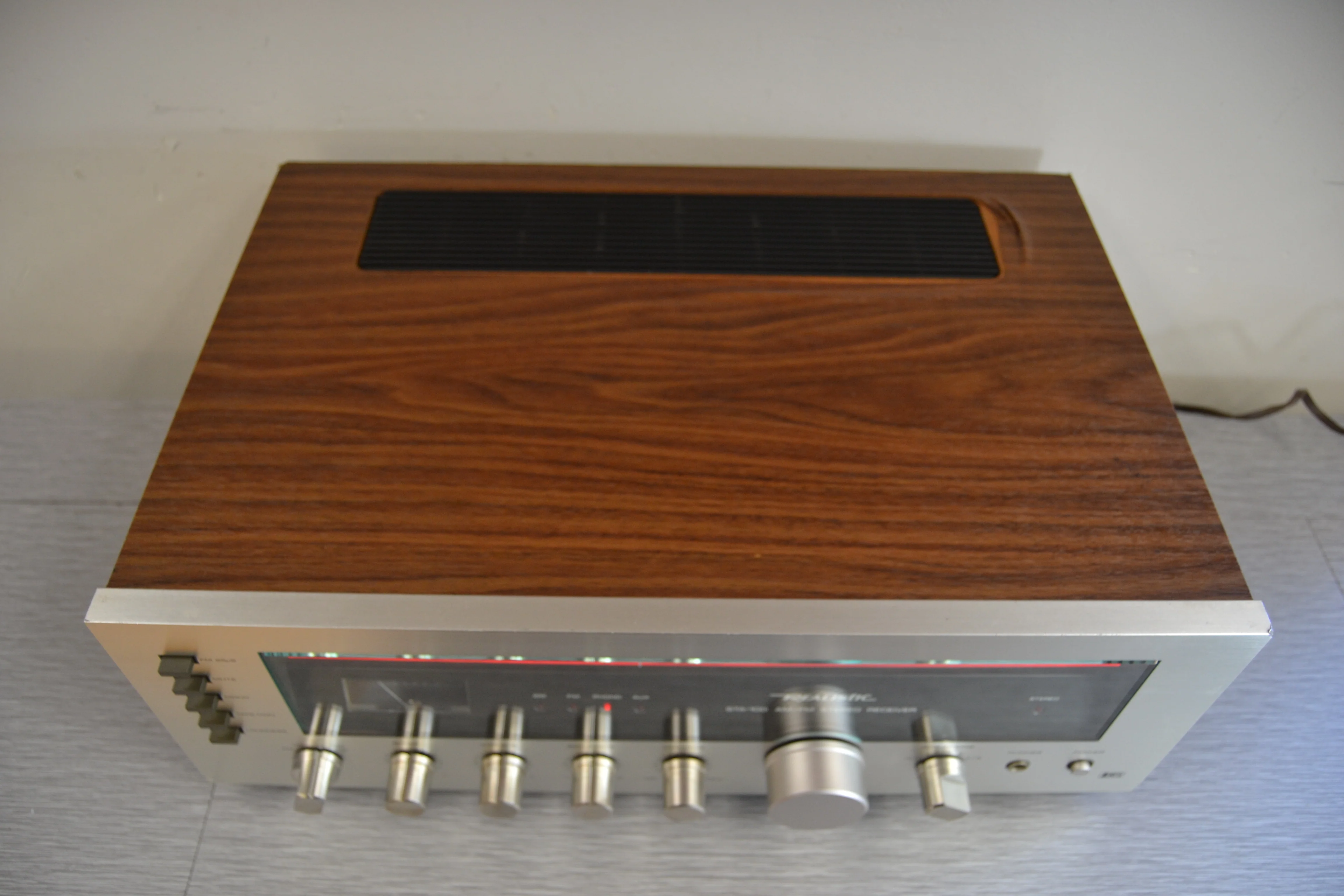

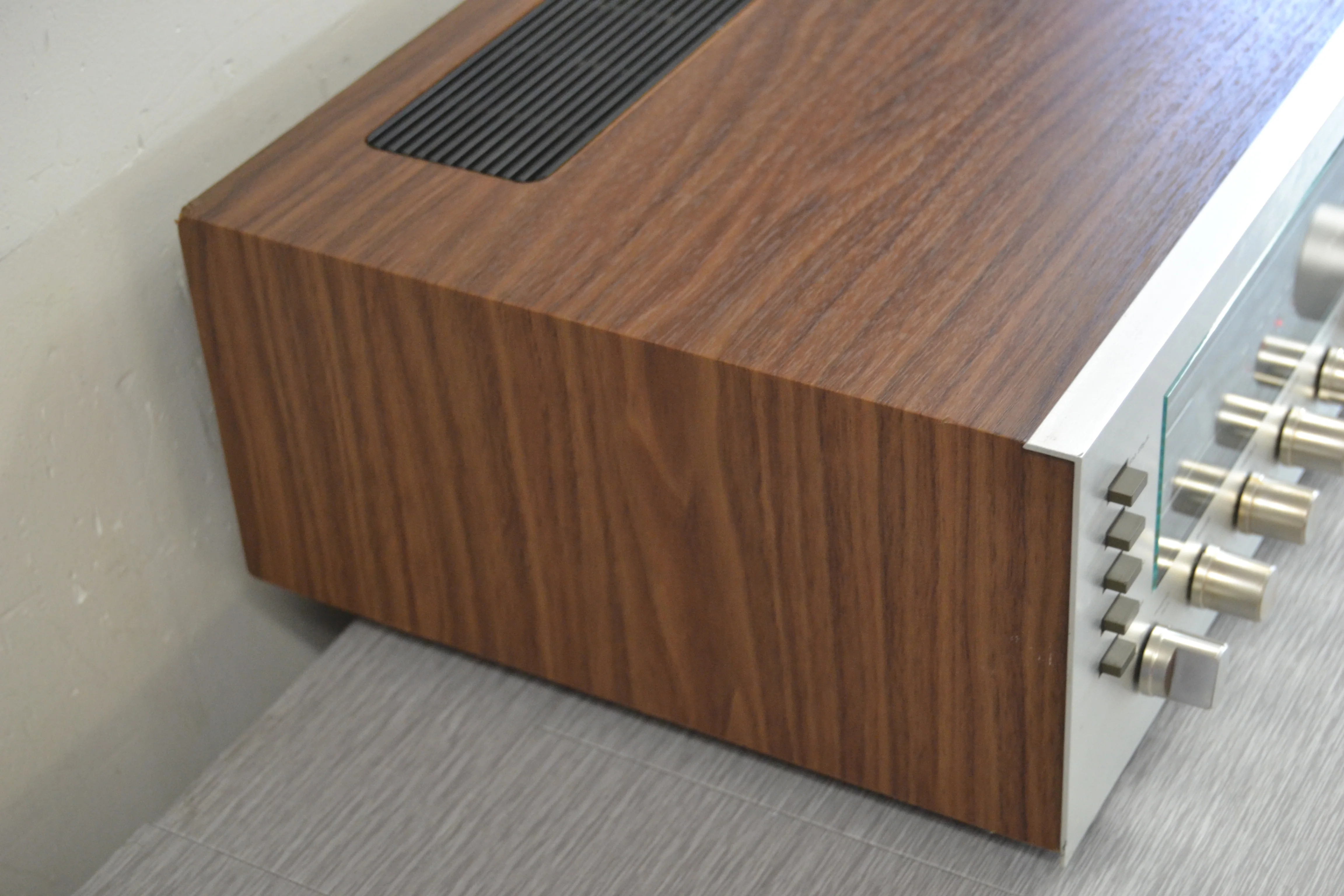

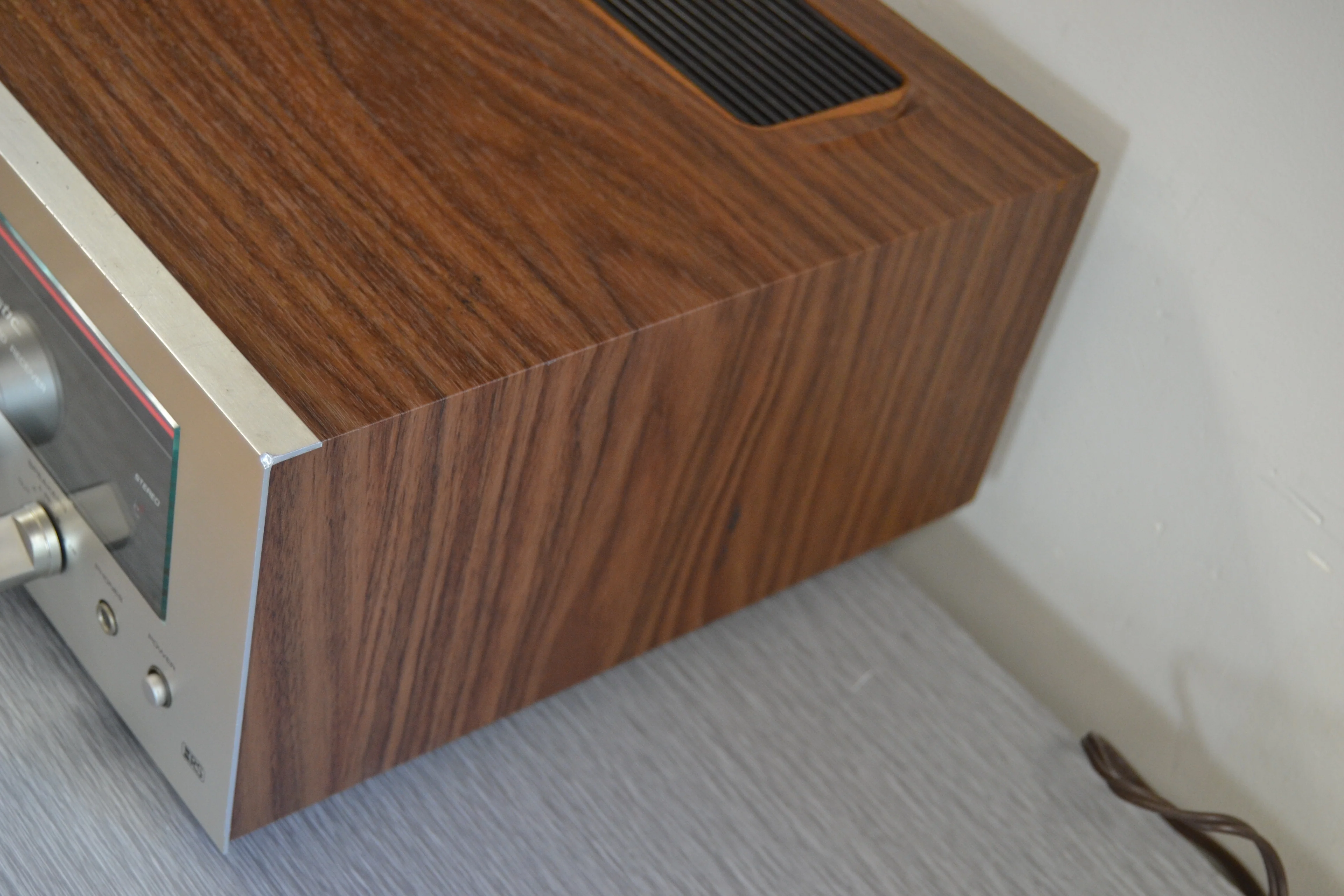

Finish: walnut vinyl veneer case

Year: 1980

Price: USD $279.95 (1980)
