RCA MGE-260 Equalizer
HomeStore

RCA MGE-260 Equalizer

RCA MGE-260 Equalizer

$50.00
RCA MGE-260 Equalizer—
$50.00

The Story

The RCE-260 Equalizer is the replacement of the MGE160 Graphic Equalizer

Specifications:

Input Sensitivity/Impedance: INPUT 1V/38 kOhms
Output Level/Impedance: OUTPUT 1V/4 kOhms
Maximum Output: 5V (T.H.D. 0.1%)
Total Harmonic Distortion: 0.02% (20 Hz - 20 KHz rated output)
Equalizer Center Frequencies:
10 Elements- 31.5 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 KHz, 2 KHz, 4 KHz, 8 KHz, 16 KHz
Variable Range of Adjustment: Left, Right independent +/- 10 dB
Gain: 0 dB
Frequency Response: 5 Hz - 30 KHz +/- 1 dB
Signal-to-Noise Ratio: 96 dB (for rated output, IHF A A network)
Power Source: 120 Volts, 60 Hz
Power Consumption: 10 Watts
Dimensions: 17.1" x 3.3" x 8.9"
Weight: 6.6 lbs.
RCA MGE-260 Equalizer - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

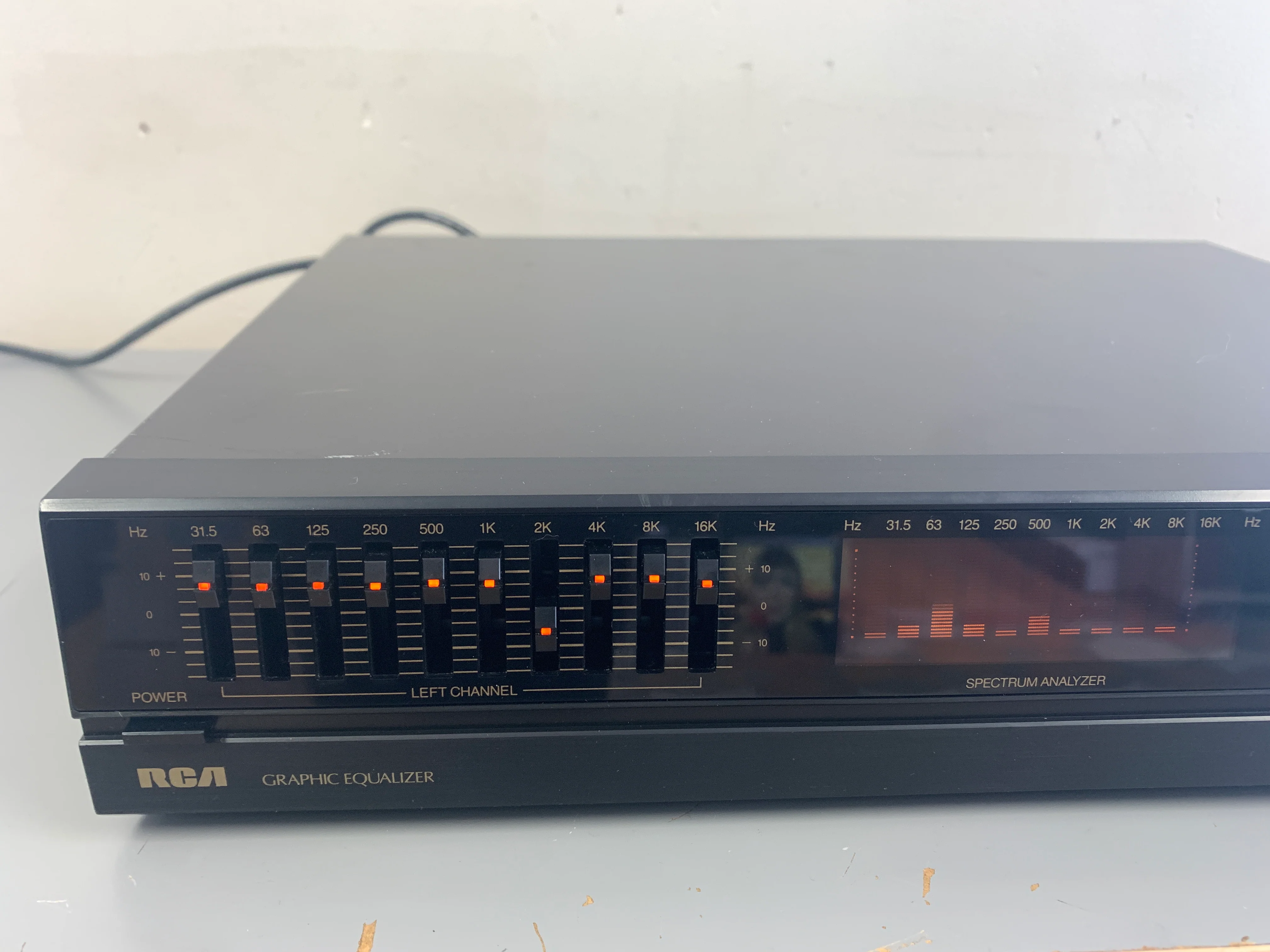

RCA MGE-260 Equalizer - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

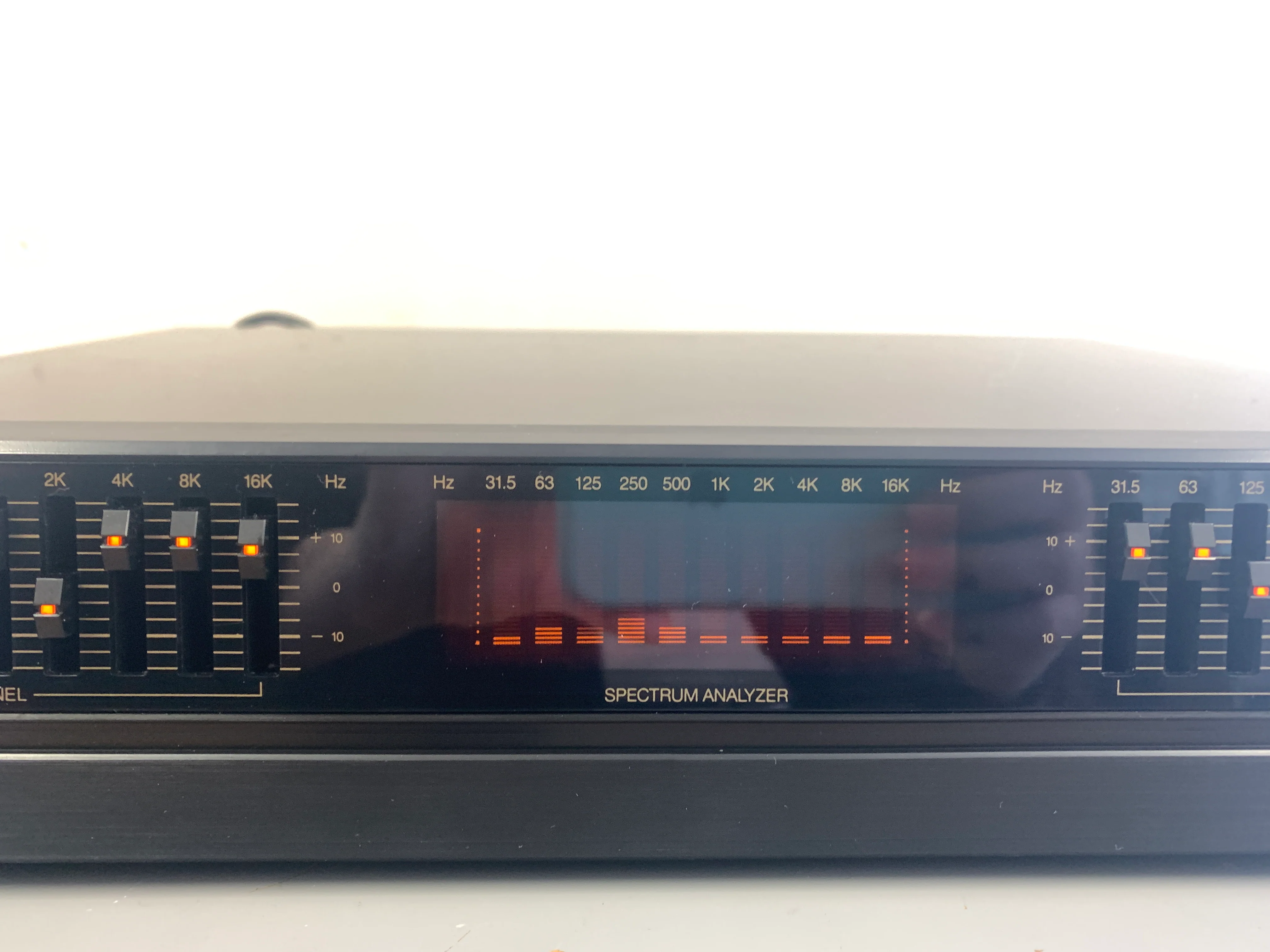

RCA MGE-260 Equalizer - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

RCA MGE-260 Equalizer - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

RCA MGE-260 Equalizer - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

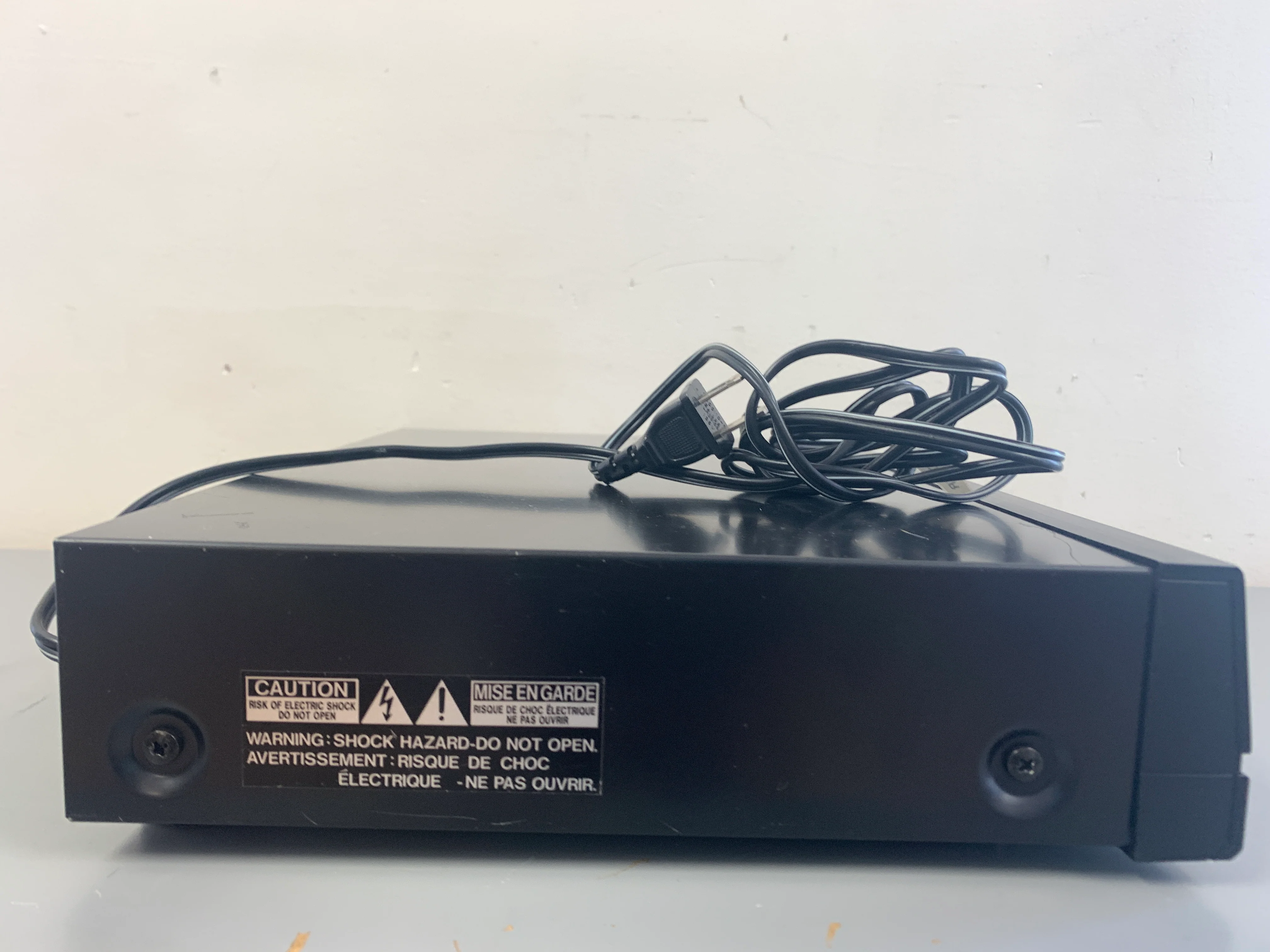

RCA MGE-260 Equalizer - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

RCA MGE-260 Equalizer - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

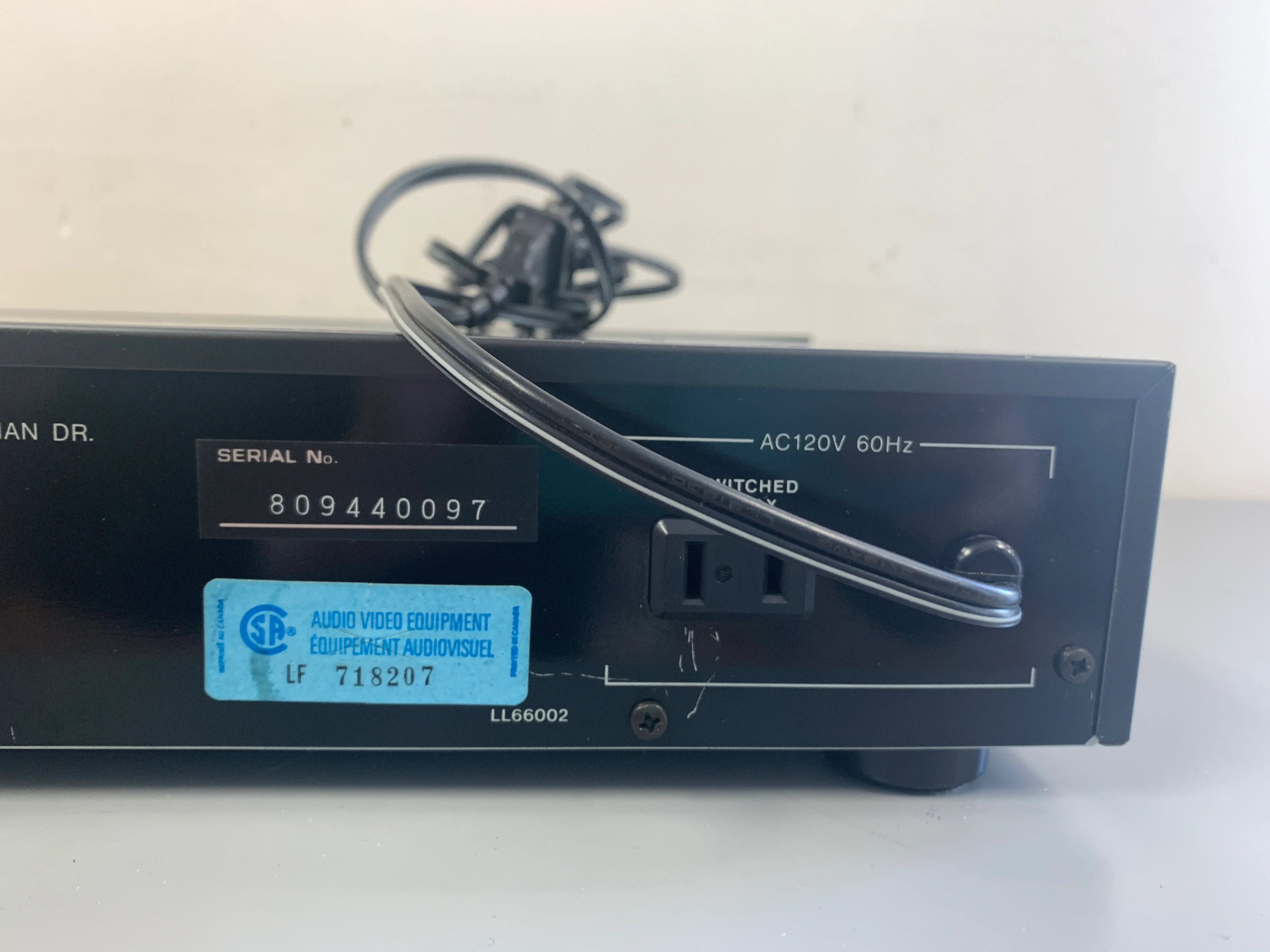

RCA MGE-260 Equalizer - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The RCE-260 Equalizer is the replacement of the MGE160 Graphic Equalizer

Specifications:

Input Sensitivity/Impedance: INPUT 1V/38 kOhms
Output Level/Impedance: OUTPUT 1V/4 kOhms
Maximum Output: 5V (T.H.D. 0.1%)
Total Harmonic Distortion: 0.02% (20 Hz - 20 KHz rated output)
Equalizer Center Frequencies:
10 Elements- 31.5 Hz, 63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 KHz, 2 KHz, 4 KHz, 8 KHz, 16 KHz
Variable Range of Adjustment: Left, Right independent +/- 10 dB
Gain: 0 dB
Frequency Response: 5 Hz - 30 KHz +/- 1 dB
Signal-to-Noise Ratio: 96 dB (for rated output, IHF A A network)
Power Source: 120 Volts, 60 Hz
Power Consumption: 10 Watts
Dimensions: 17.1" x 3.3" x 8.9"
Weight: 6.6 lbs.
