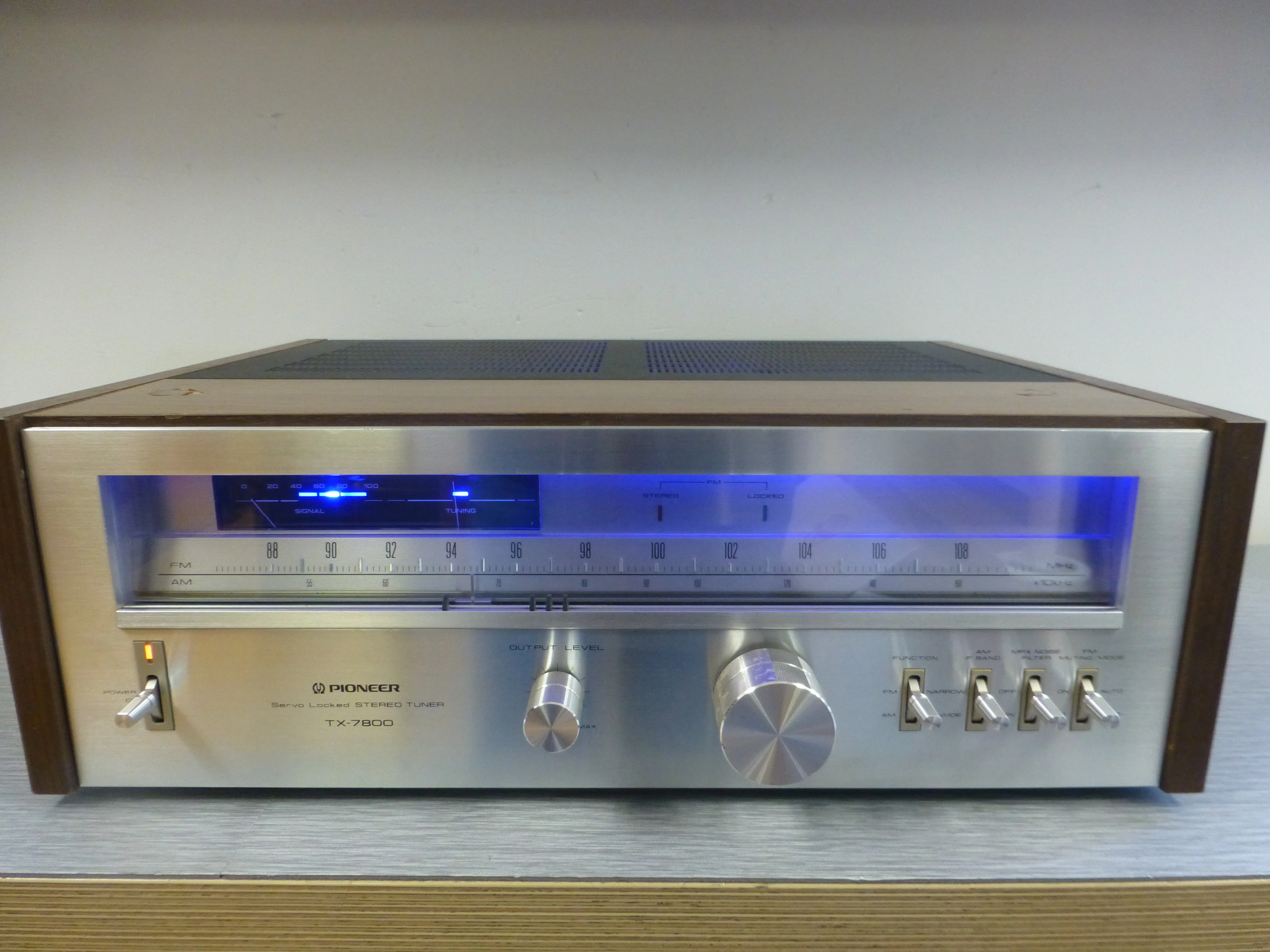

Pioneer TX-7800

AM/FM Stereo Tuner (1979-81)

Description

The Pioneer TX-7800 is an AM/FM stereo tuner featuring servo-lock / touch sensor tuning.

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

Sensitivity: 1.6uV (FM), 300uV (MW)

Signal to Noise Ratio: 79dB (FM), 50dB (MW)

Distortion: 0.3% (FM)

Selectivity: 75dB (FM), 50dB (MW)

Frequency response: 20Hz to 15kHz (FM)

Output: 650mV (FM), 200mV (MW)

Semiconductors: 2 x FET, 7 x IC, 11 x transistors, 30 x diodes

Dimensions: 420 x 150 x 390mm

Weight: 7.5kg

Year: 1980
