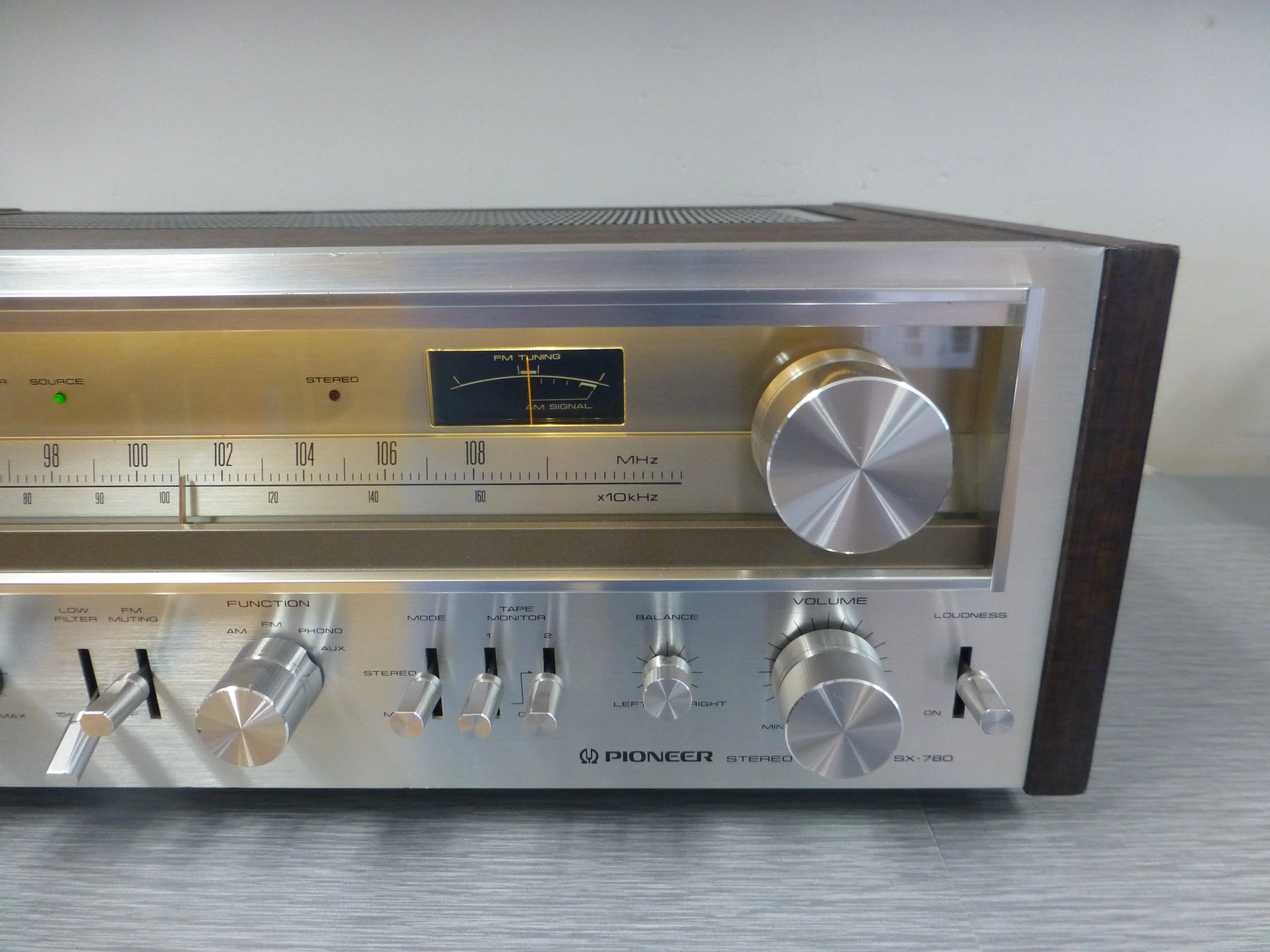

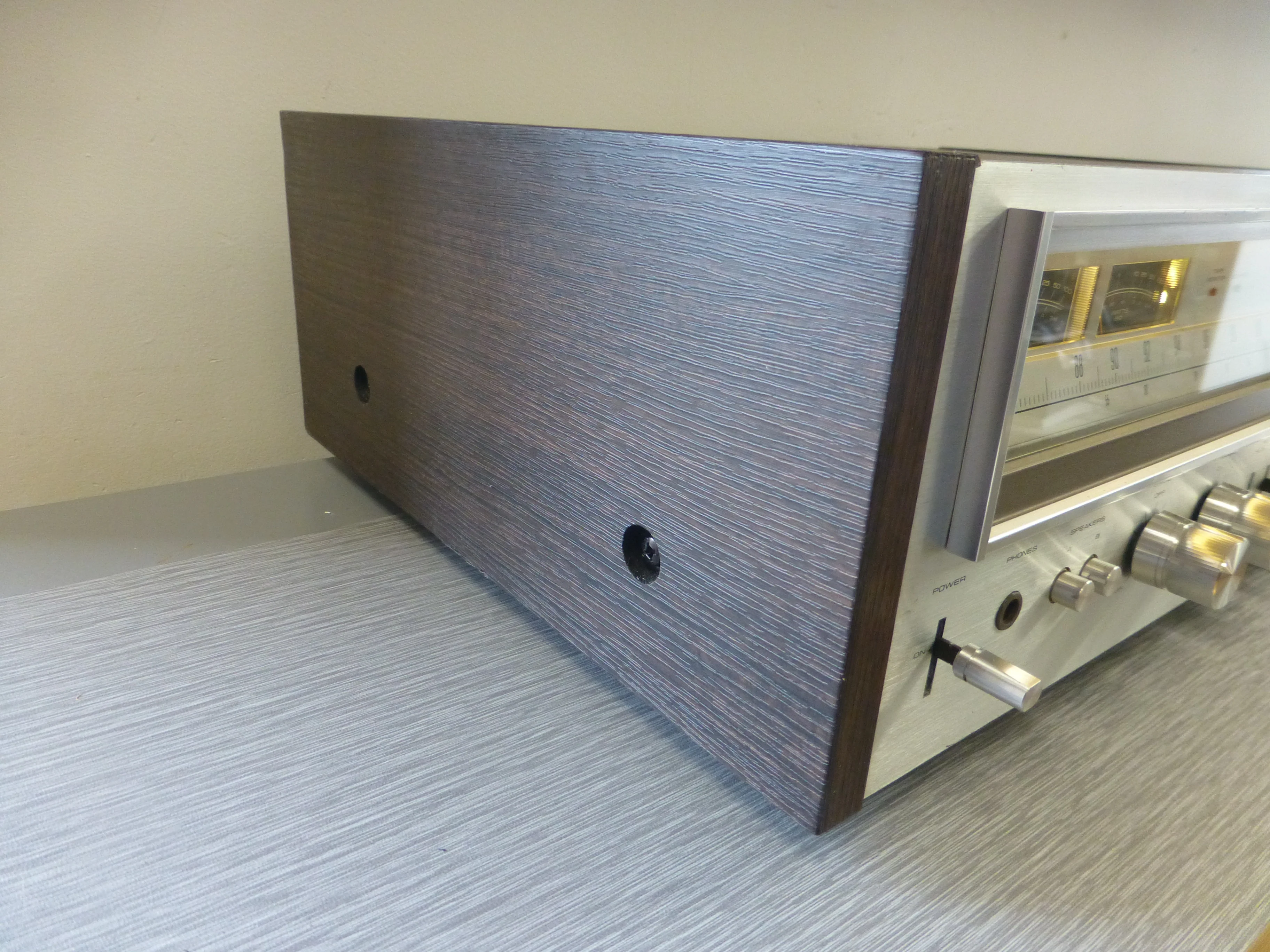

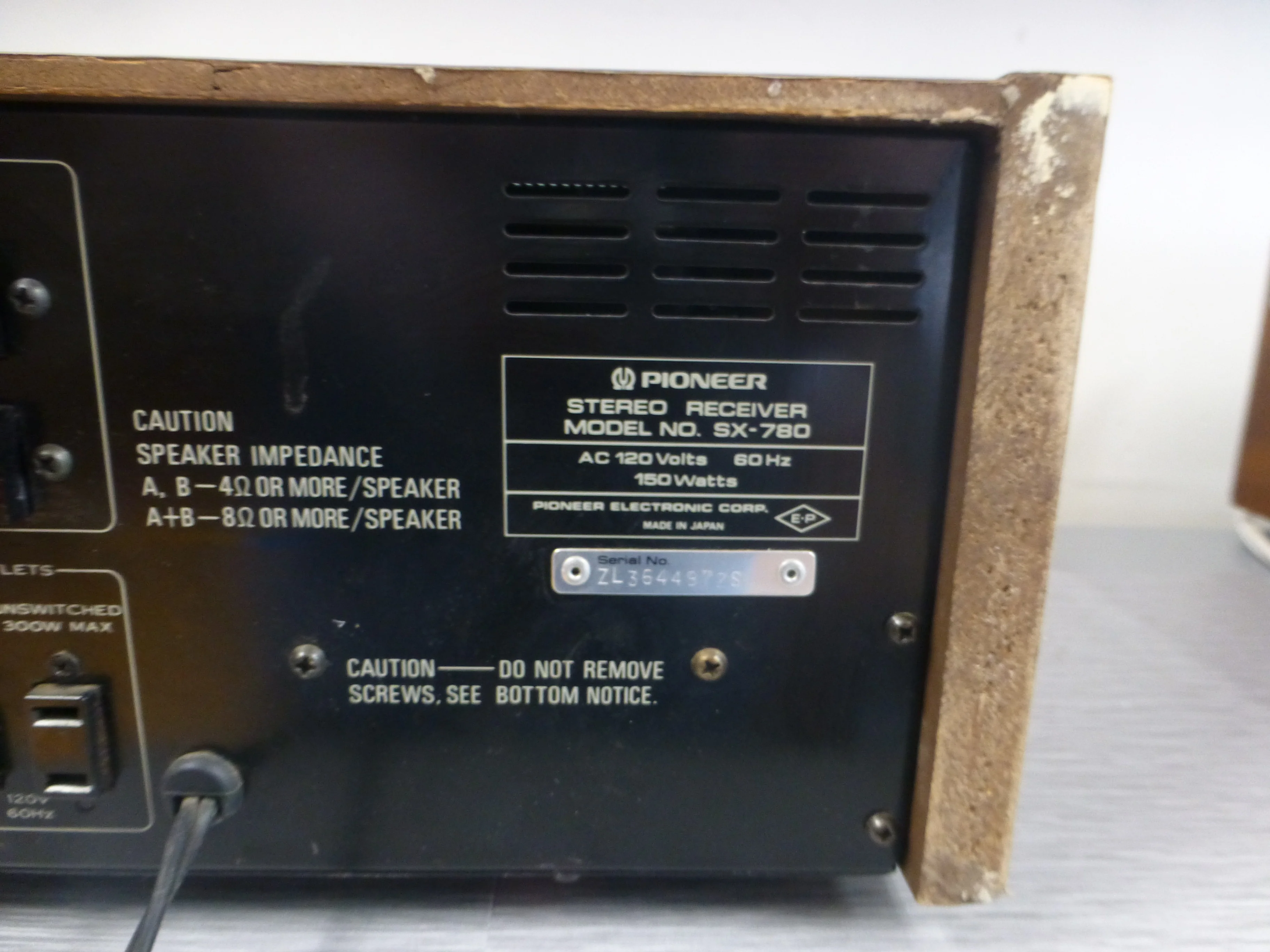

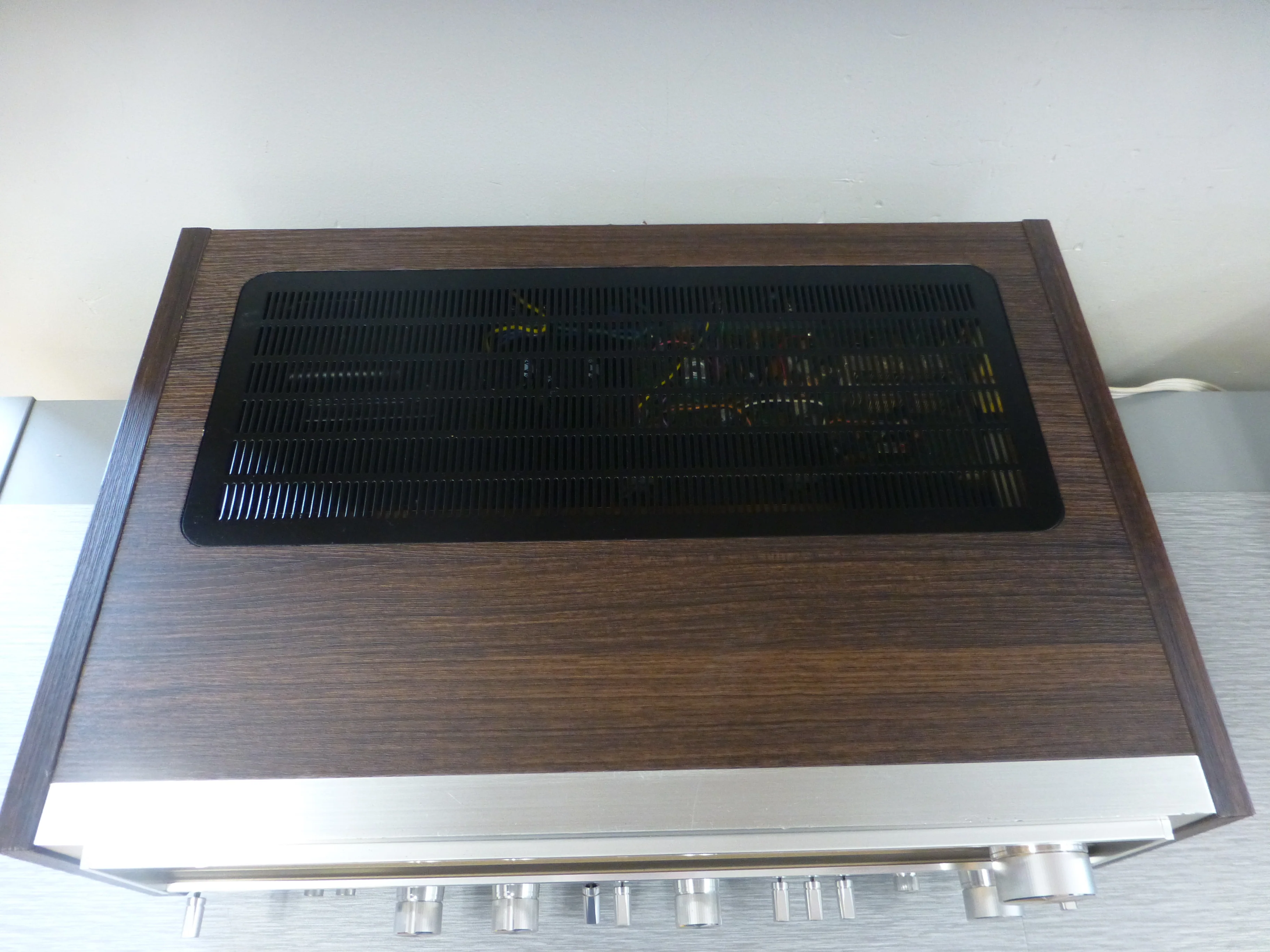

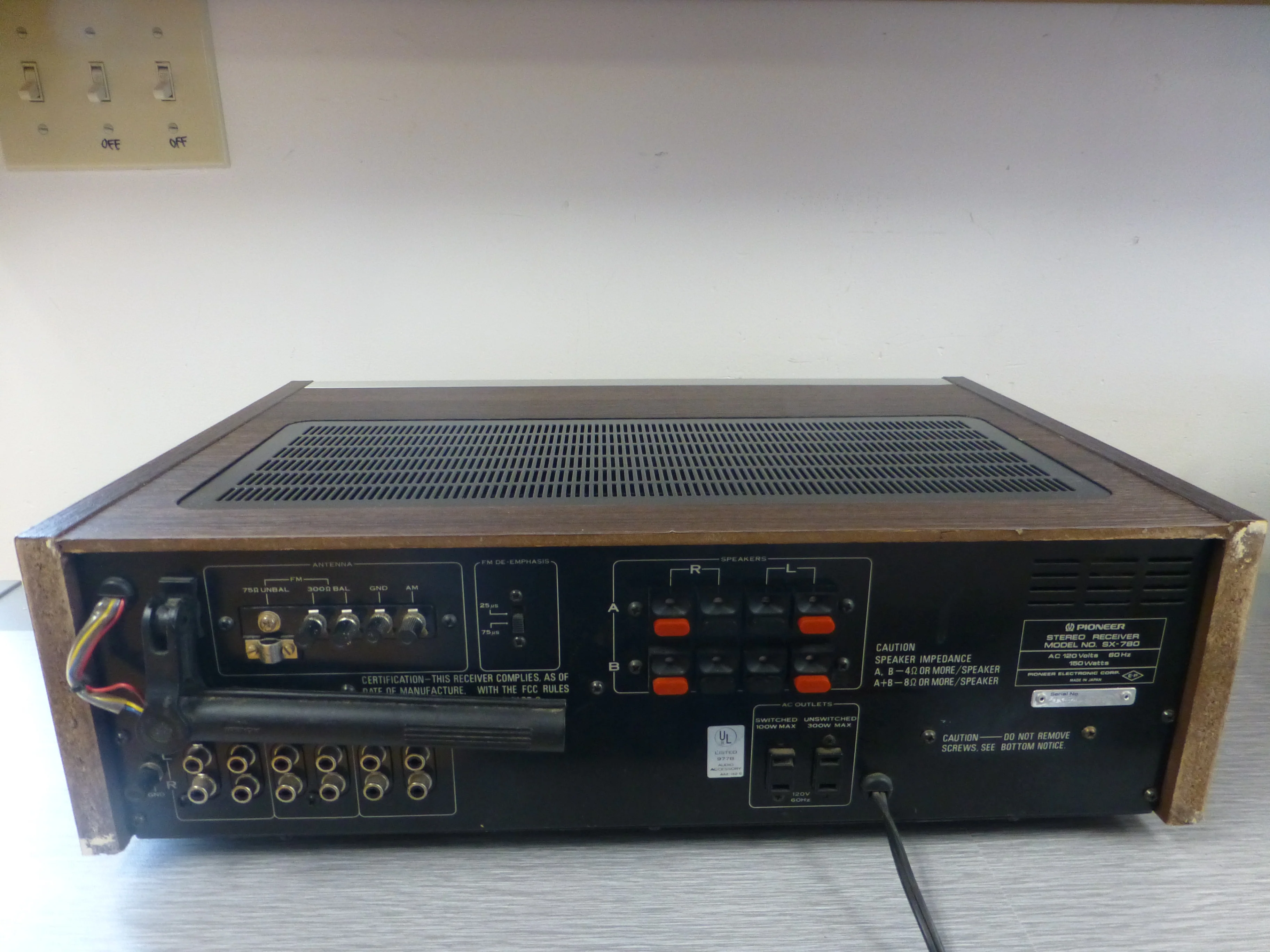

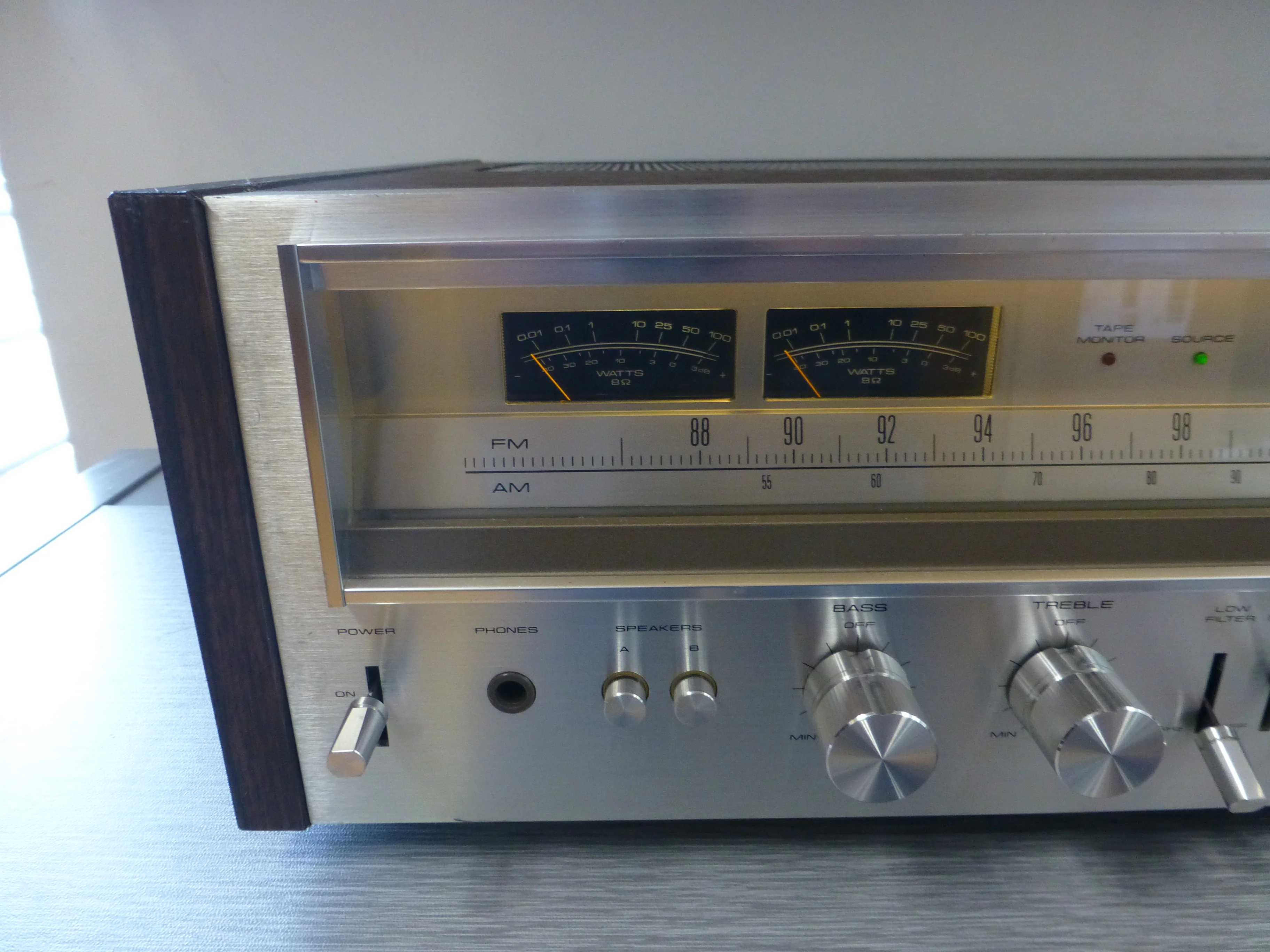

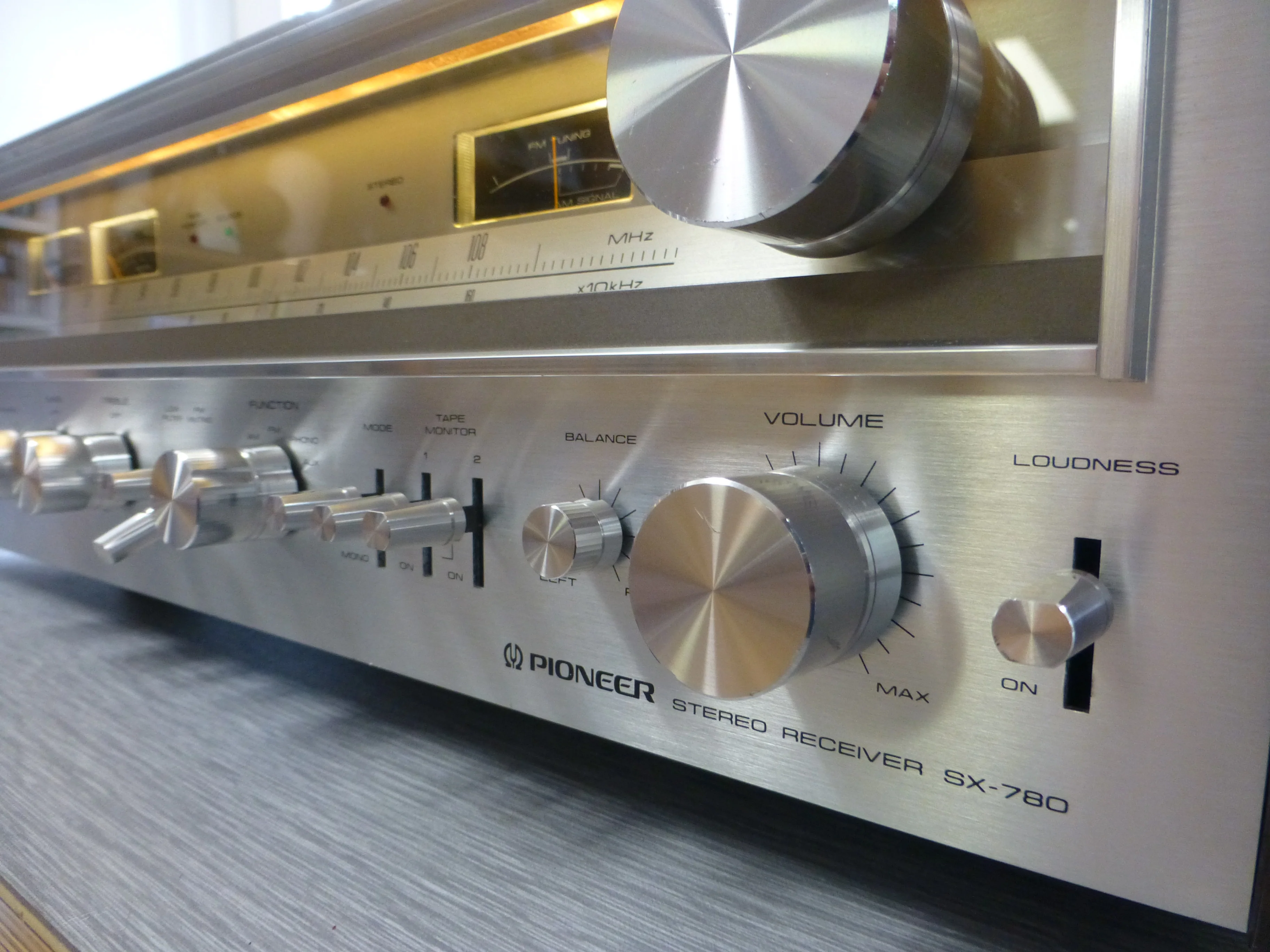

Pioneer SX-780

AM/FM Stereo Receiver (1979)

Description

The SX-780 features a high output, low distortion power amplifier, a high fidelity equalizer amplifier with low noise and high gain, a high stability tuner section, tone controls with tone defeat function, built in protection circuits and independent power meters.

Specifications

Tuning range: FM, MW

Power output: 45 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 80kHz

Total harmonic distortion: 0.05%

Damping factor: 30

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 76dB (MM), 95dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 5 x FWT, 11 x IC, 26 x transistors, 22 x diodes

Dimensions: 480 x 140 x 320mm

Weight: 11.2kg

Accessories: FM T-type antenna
