The Story

NO SHIPPING - LOCAL or 3rd PARTY PICKUP ONLY

.Pioneer SX-1010

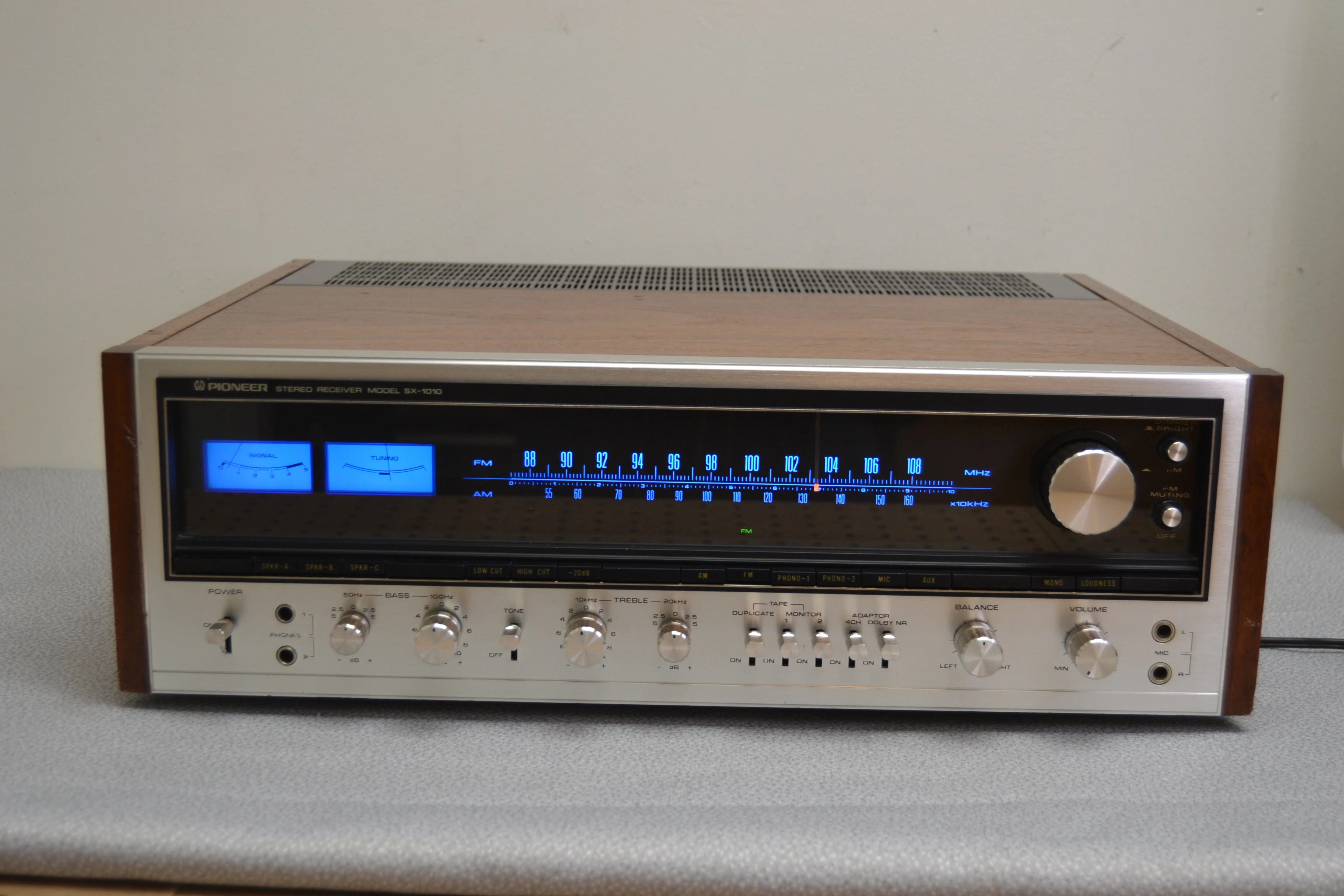

Name: Pioneer SX-1010 Stereo receiver * 100W RMS * 1974 * Fully Serviced * LED Upgraded
Brand: The Turntable Store
SKU: pioneer-sx-1010-stereo-receiver-100w-rms-1974-fully-serviced-led-upgraded
Availability: InStock

AM/FM Stereo Receiver (1974-76)

The Pioneer SX-1010 is a legendary, powerful (100W/channel) vintage solid-state stereo receiver from the mid-70s "receiver wars," known for its robust build, impressive sound, dual-gate FET FM tuner, PLL stereo demodulator, and extensive inputs for turntables, tape decks, etc., making it a sought-after "monster receiver" for vintage audio enthusiasts seeking high fidelity and classic looks.

Key Features & Specs:

Power: 100 Watts per channel into 8 ohms.
Tuner: Advanced FM front end (dual-gate FETs, ceramic filters, PLL), IC-equipped AM.

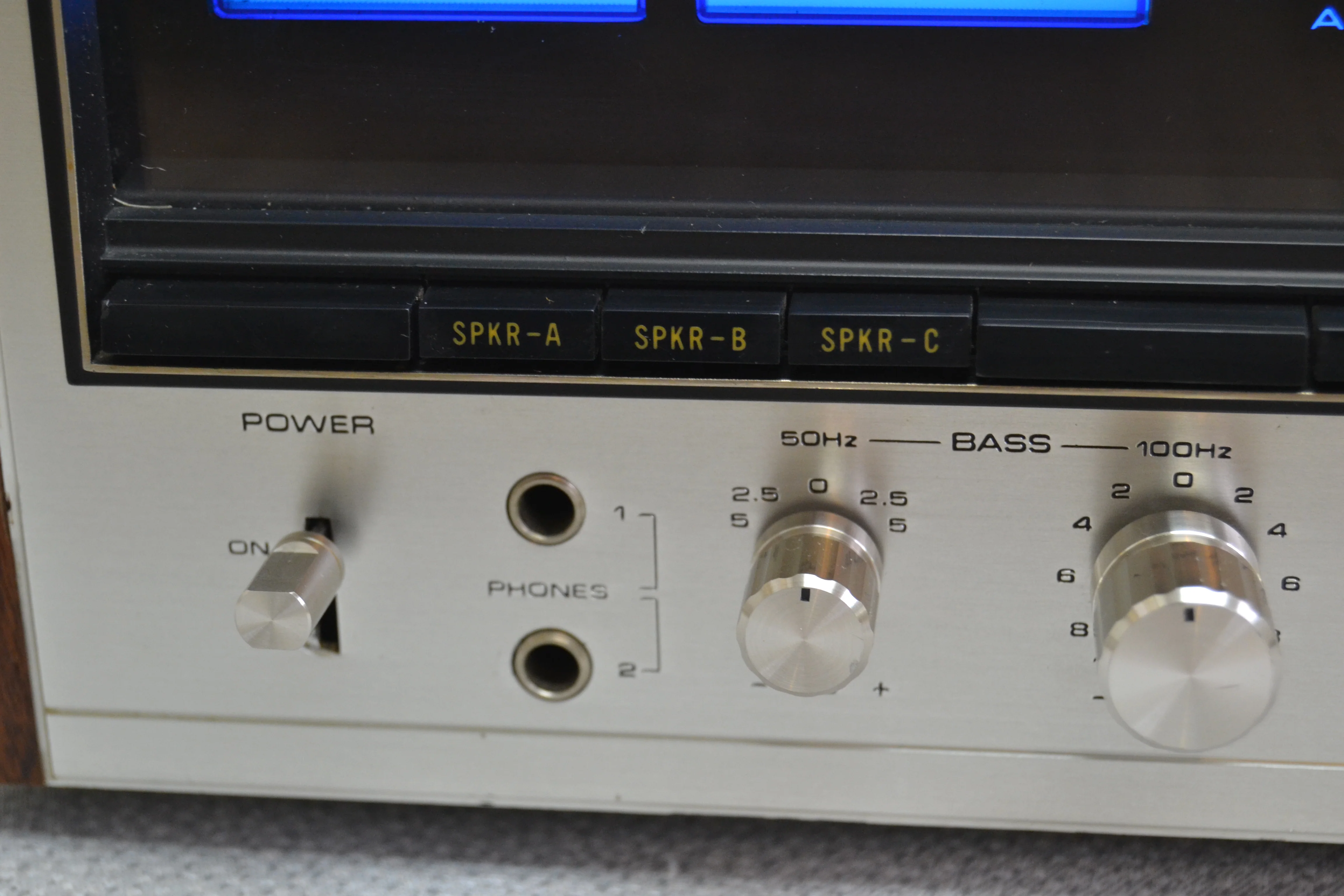

Audio: Direct-coupled power amp, twin tone controls, wide dynamic range phono stage.

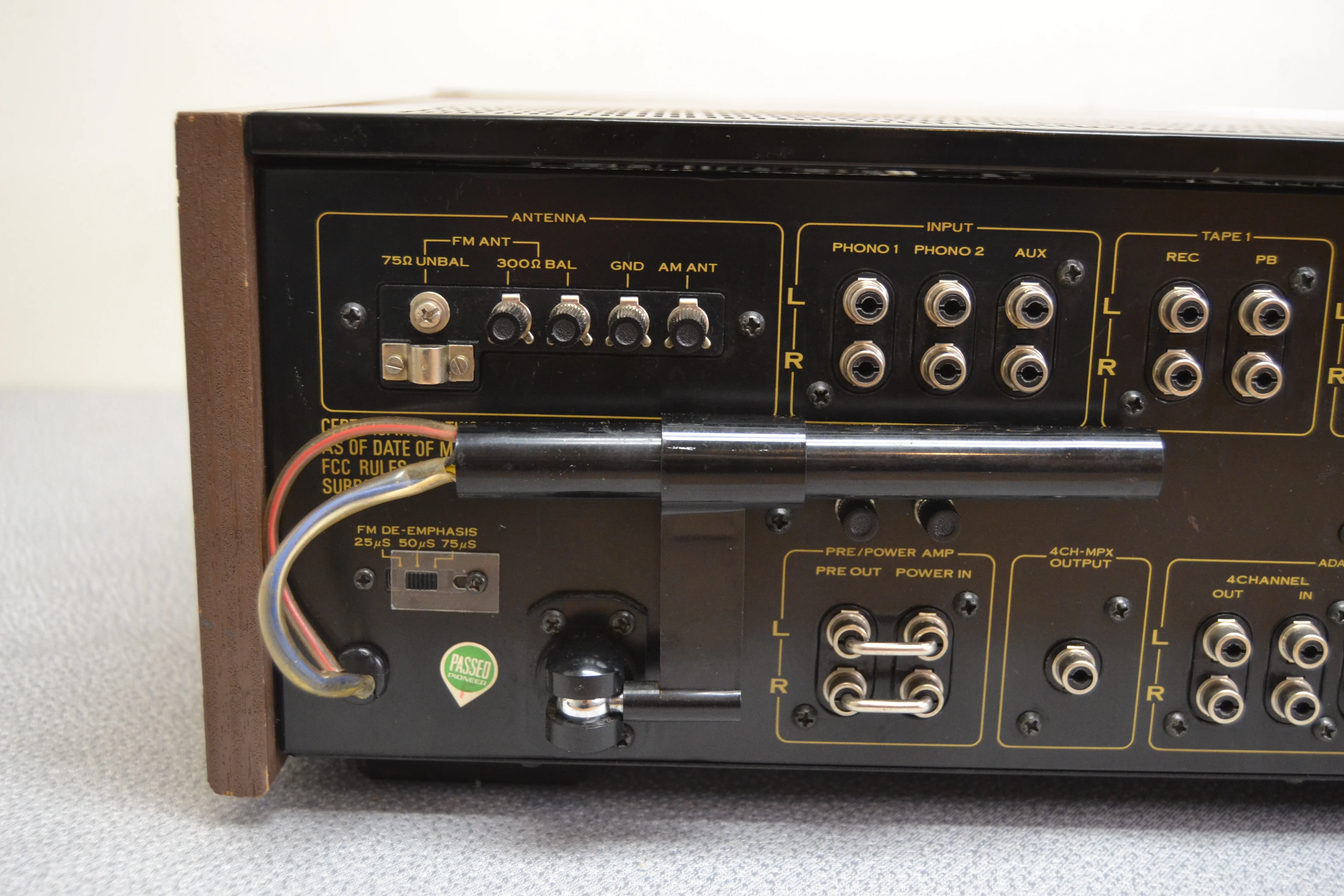

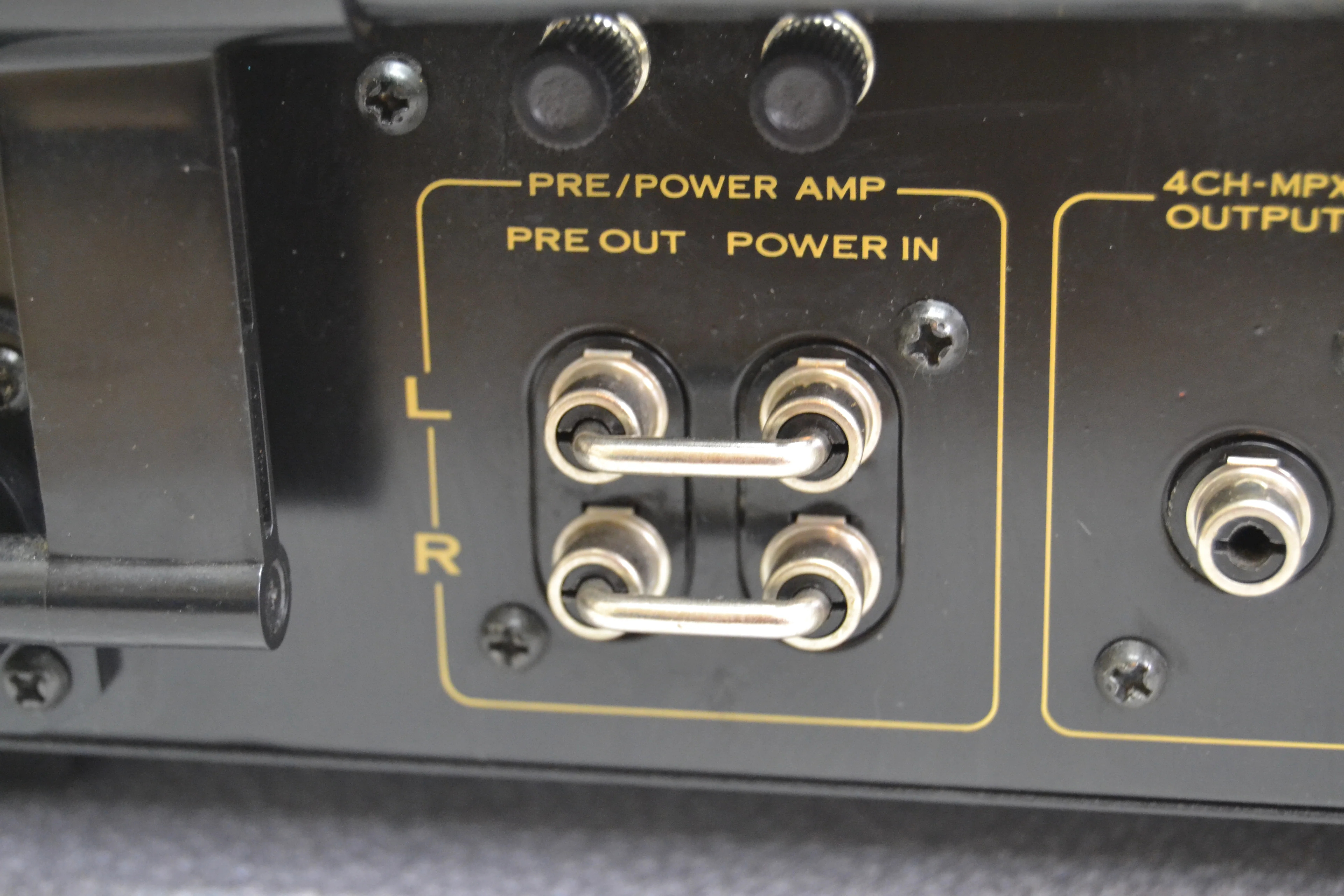

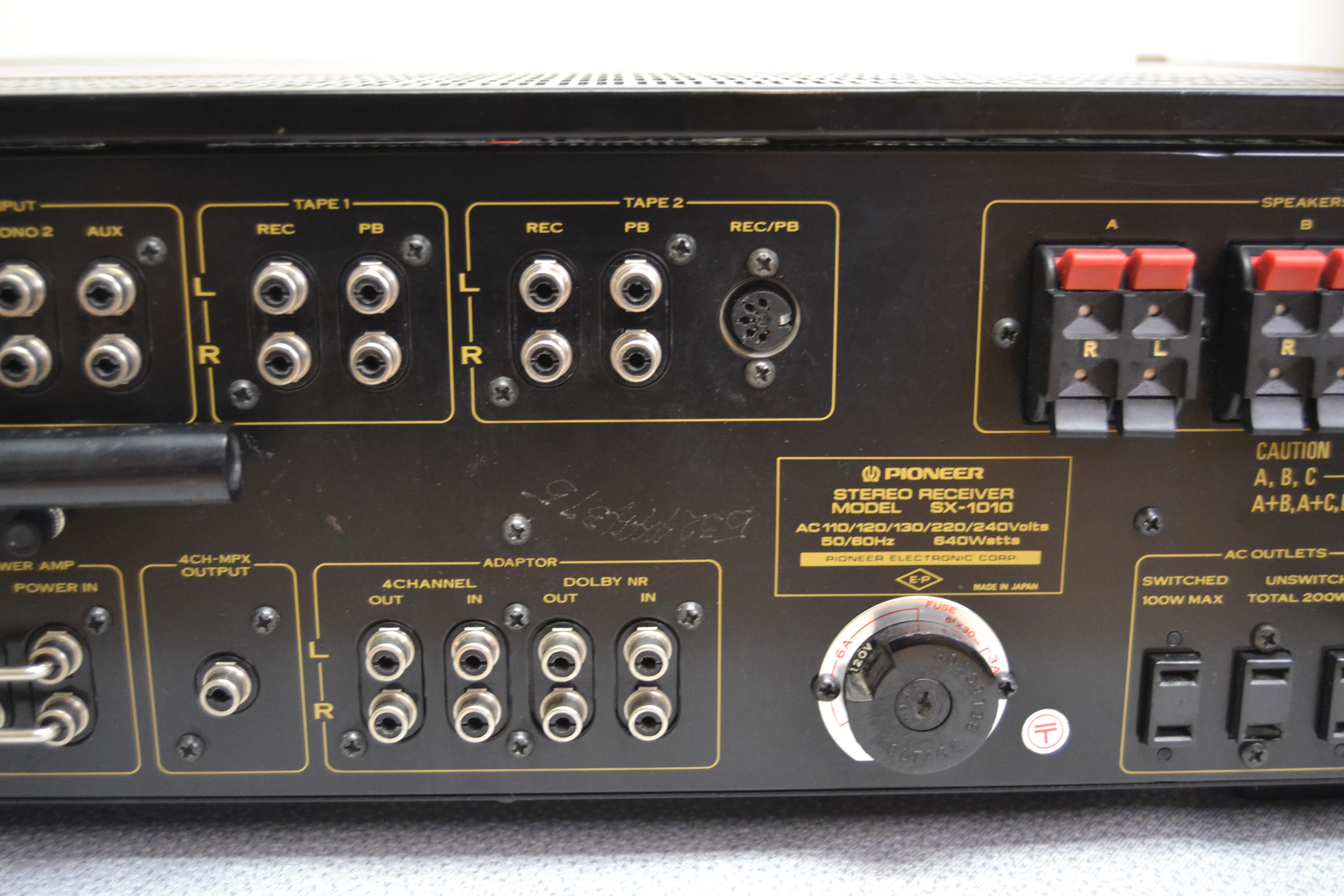

Connectivity: Inputs for multiple turntables, tape decks, Aux, Preamp In/Amp Out.

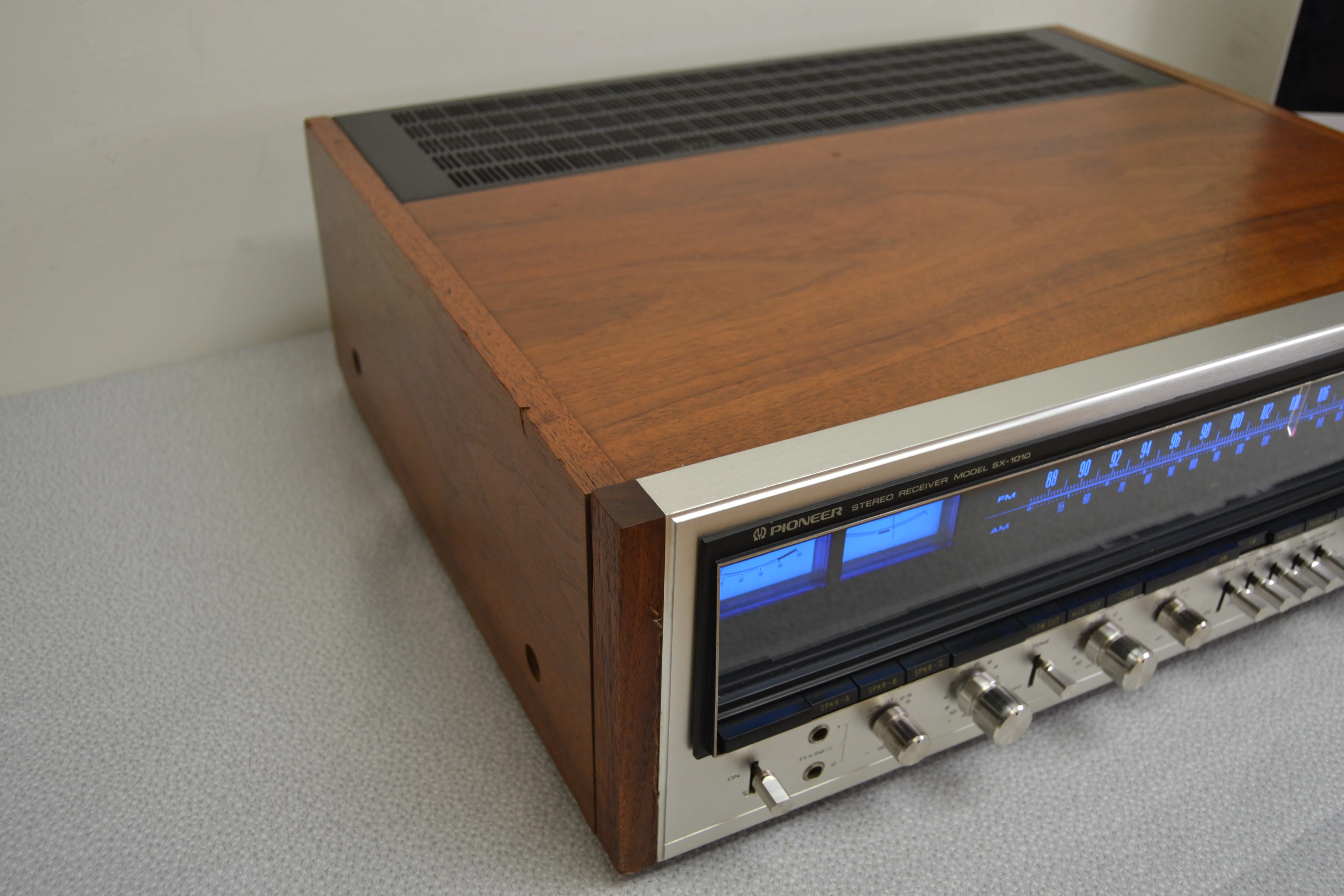

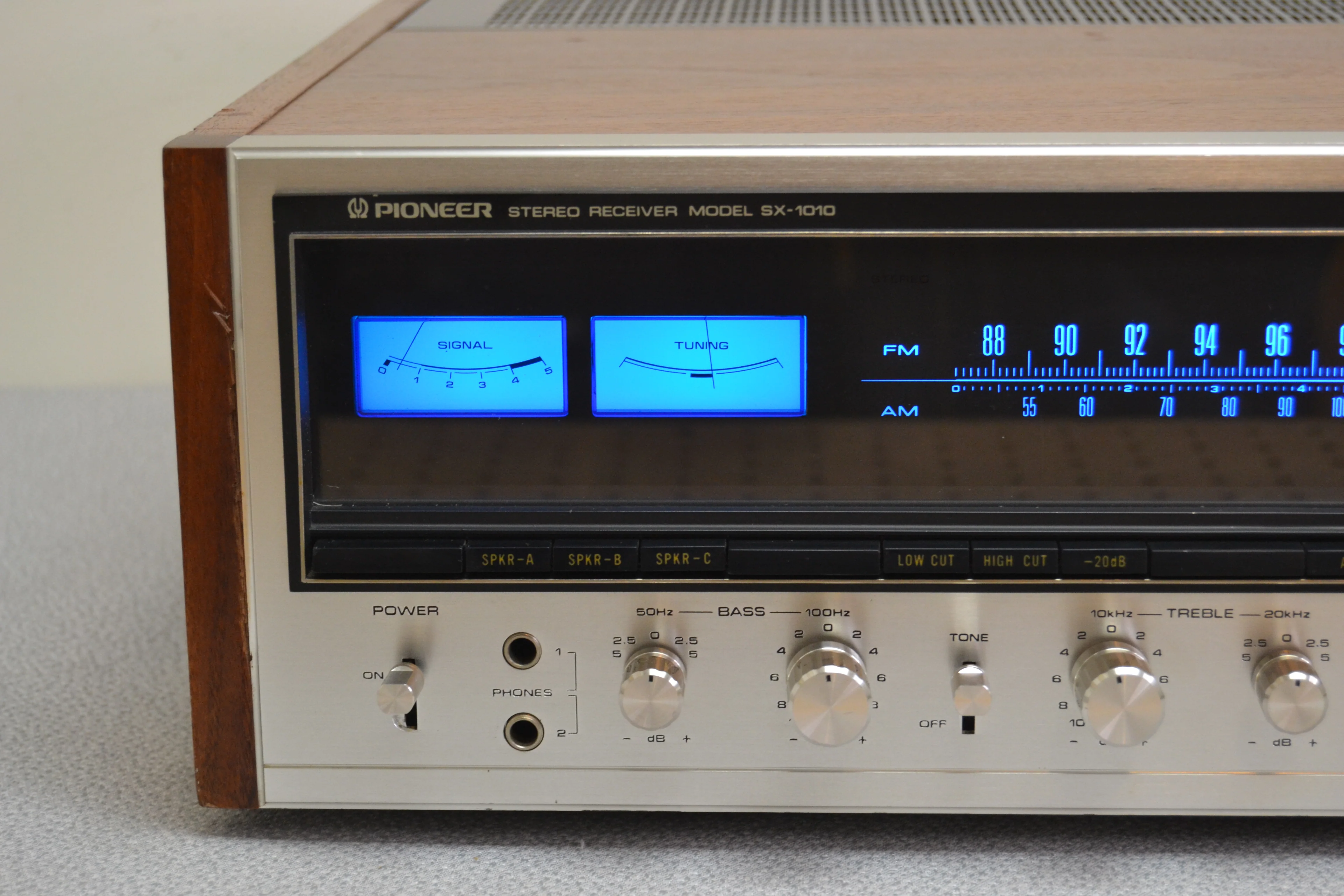

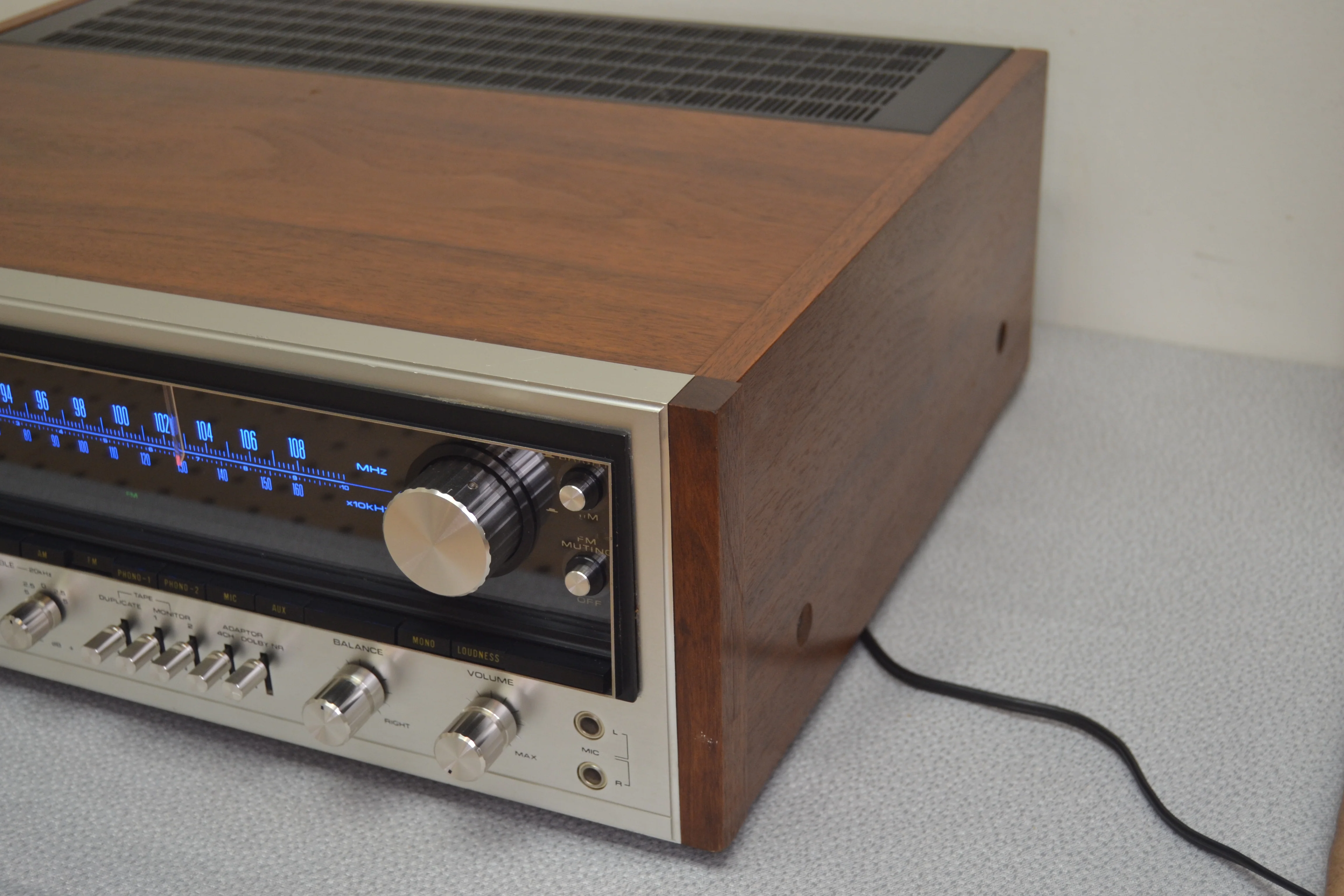

Design: Iconic silver face, large tuning dial, heavy build, walnut veneer case.

Why it's Famous:

Performance: Delivered exceptional power and clean sound for its era, often exceeding advertised wattage.
Build Quality: Heavy, well-compartmentalized chassis designed for longevity and high performance.
Vintage Appeal: A classic "giant" receiver that defined the 70s hi-fi era and is highly desirable today.

Description

The SX-1010 is Pioneer's top of the line FM/MW stereo receiver.

Features include an FM front end with dual-gate FETs, ceramic filters and ics in IF stages for sharp selectivity, quadrature detection, phase lock loop (PLL) stereo demodulator, all IC equipped AM section with linear dial, balanced positive and negative power supply with heavy duty components, and a phono equalizer with wide dynamic range and extremely close tolerances.

The twin tone controls permit precise shaping of sound and direct-coupled power amplifier supplies high output power with minimum distortion.

Specifications

Tuning range: FM, MW

Power output: 100 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 40kHz

Total harmonic distortion: 0.1%

Damping factor: 30

Input sensitivity: 2mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 65dB (mic), 70dB (MM), 95dB (line)

Output: 150mV (line), 30mV (DIN), 1V (Pre out)

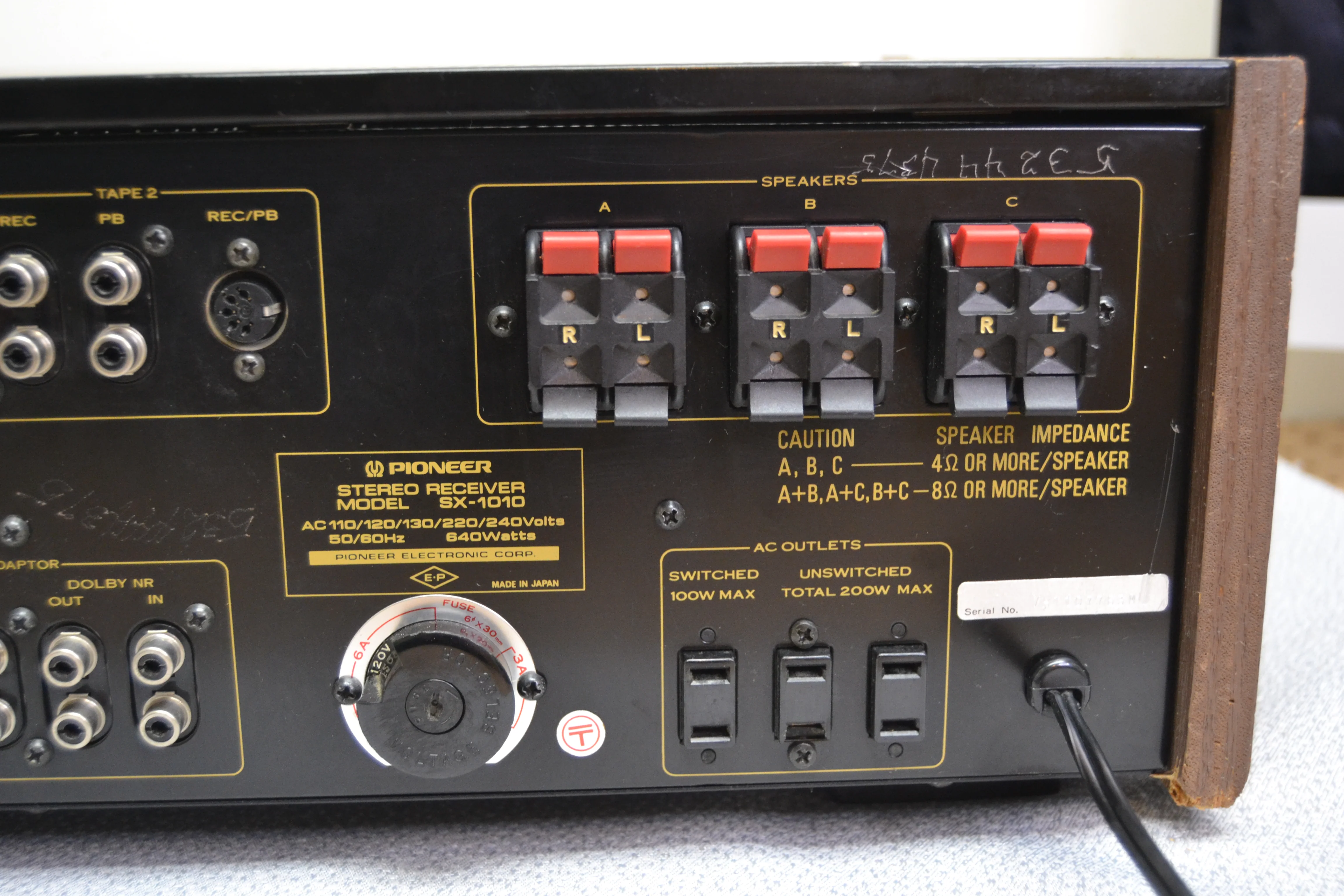

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 3 x FET, 5 x IC, 73 x transistors, 41 x diodes

Dimensions: 520 x 175 x 440mm

Weight: 22.2kg

Accessories: FM T-type antenna

Year: 1974
