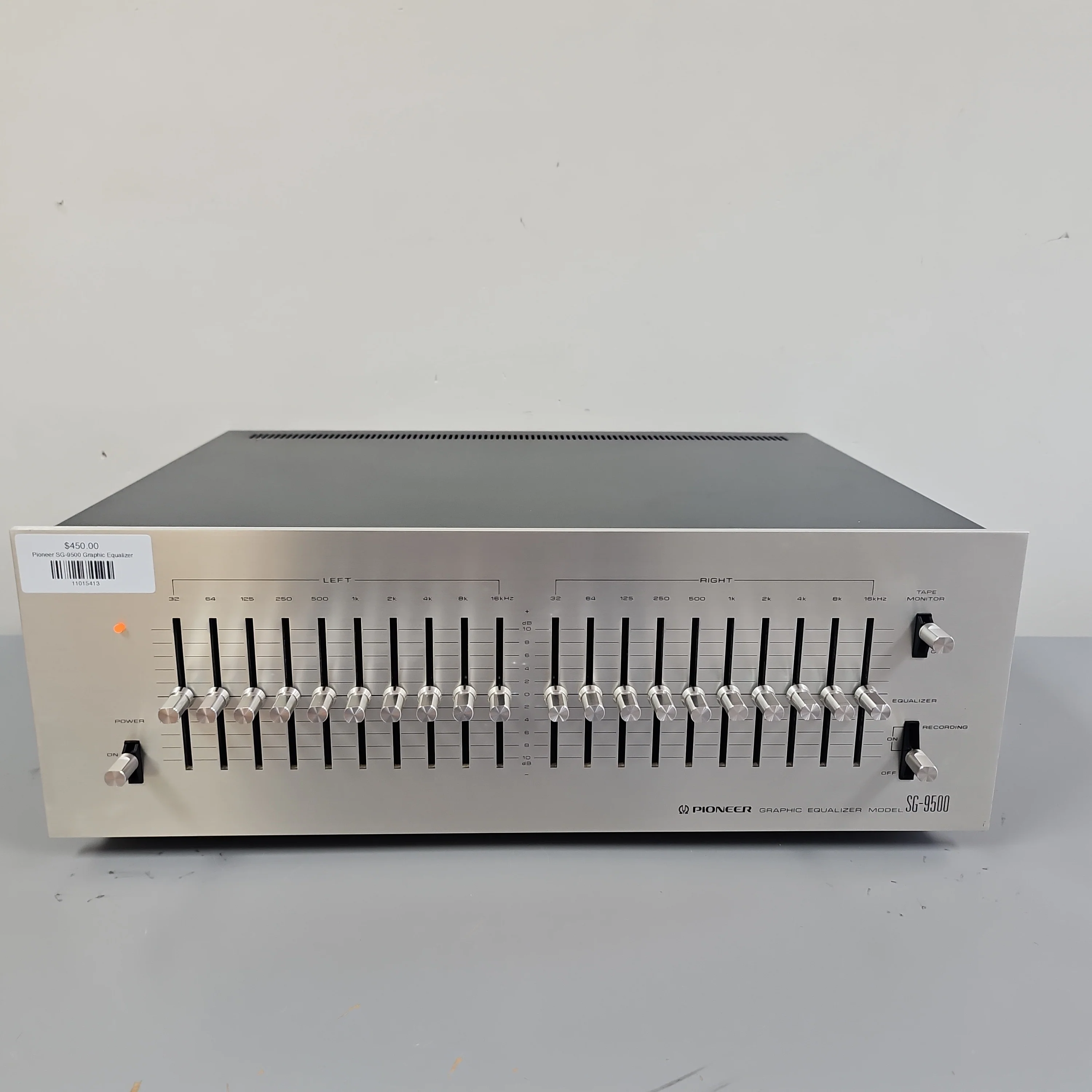

Pioneer SG-9500

Ten Band Stereo Graphic Equaliser (1976-79)

Description

The complex control functions of the Pioneer SG-9500 are not limited merely to the equalisation of a simple program source, but can also provide precise tone corrections for the playback equipment (turntable and tape deck), speakers and listening room.

Musical program sources can also be modified to improve the sound of technically inferior recordings or to tailor them to suit your personal taste.

The SG-9500 is a highly versatile audio component.

Specifications

Output Level: 1V (6V max)

Gain: ± 0dB

Frequency response: 5Hz to 70kHz

Signal to Noise Ratio: 90dB

Total harmonic distortion: 0.04%

Control Range: ± 10dB

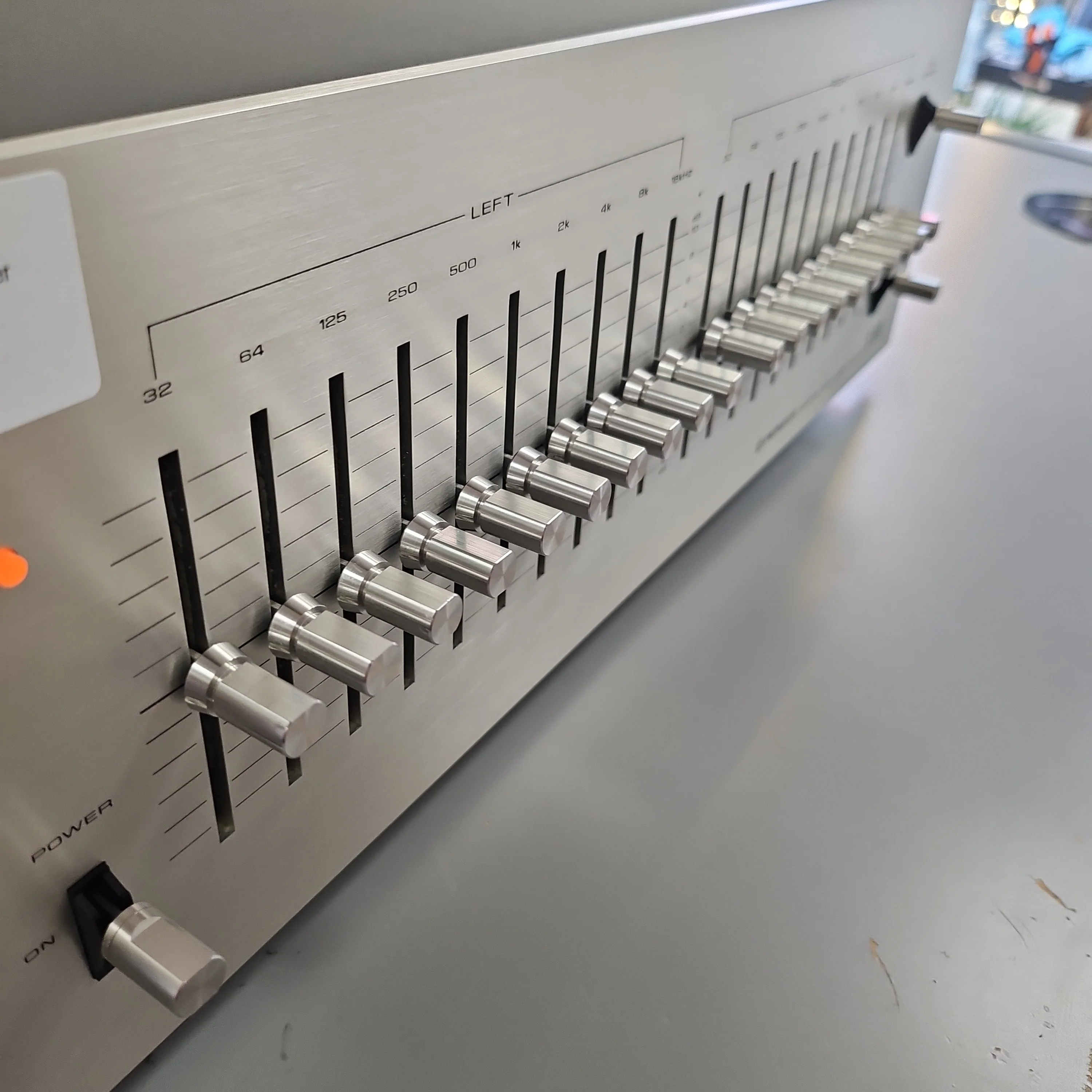

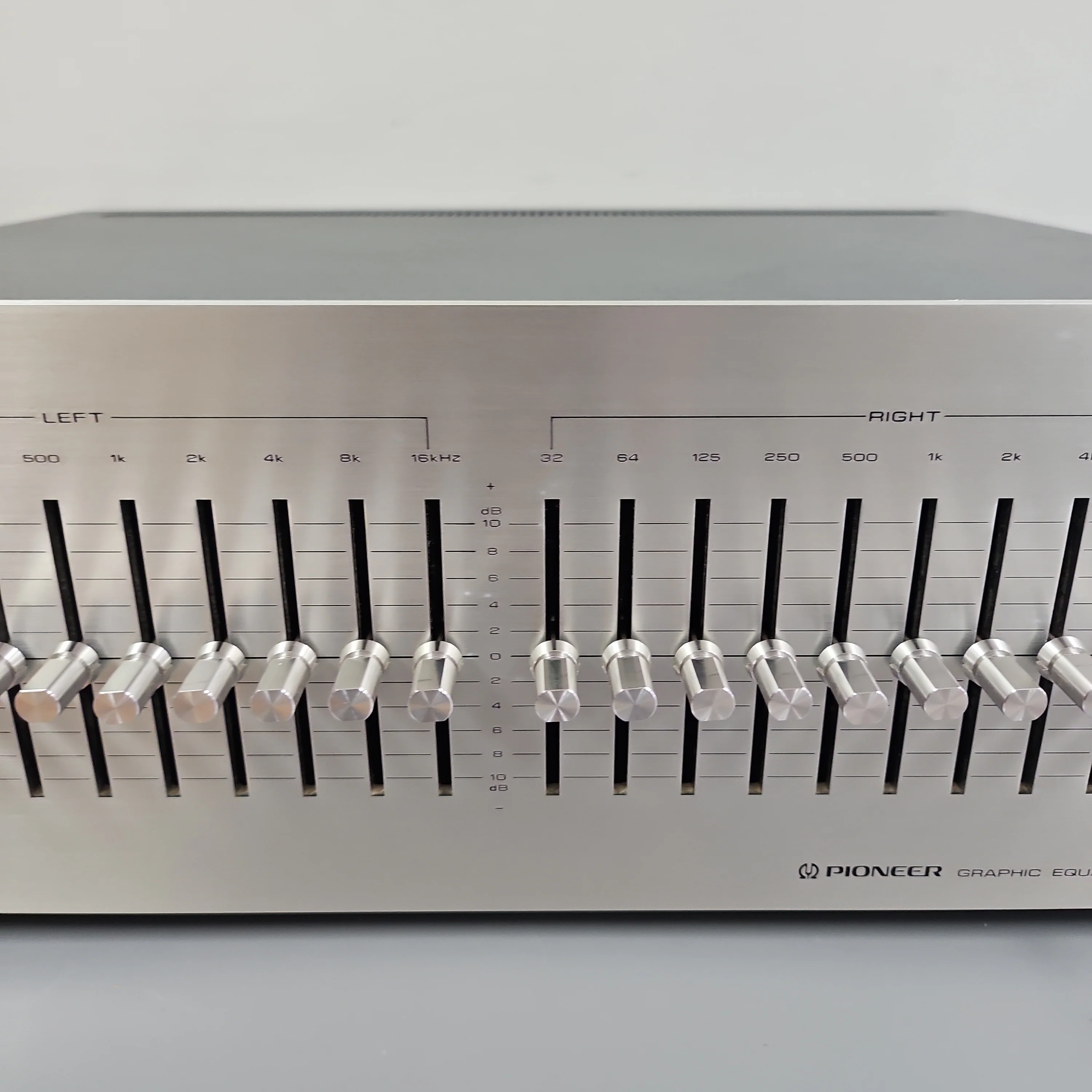

Frequency Bands: 32, 64, 125, 500, 1K, 2K, 4K, 8K, 16KHz

Semiconductors: 14 x IC, 2 x FET, 12 x transistors, 13 x diodes

Dimensions: 420 x 150 x 341mm

Weight: 6.9kg

Year: 1978
