Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote
HomeStore

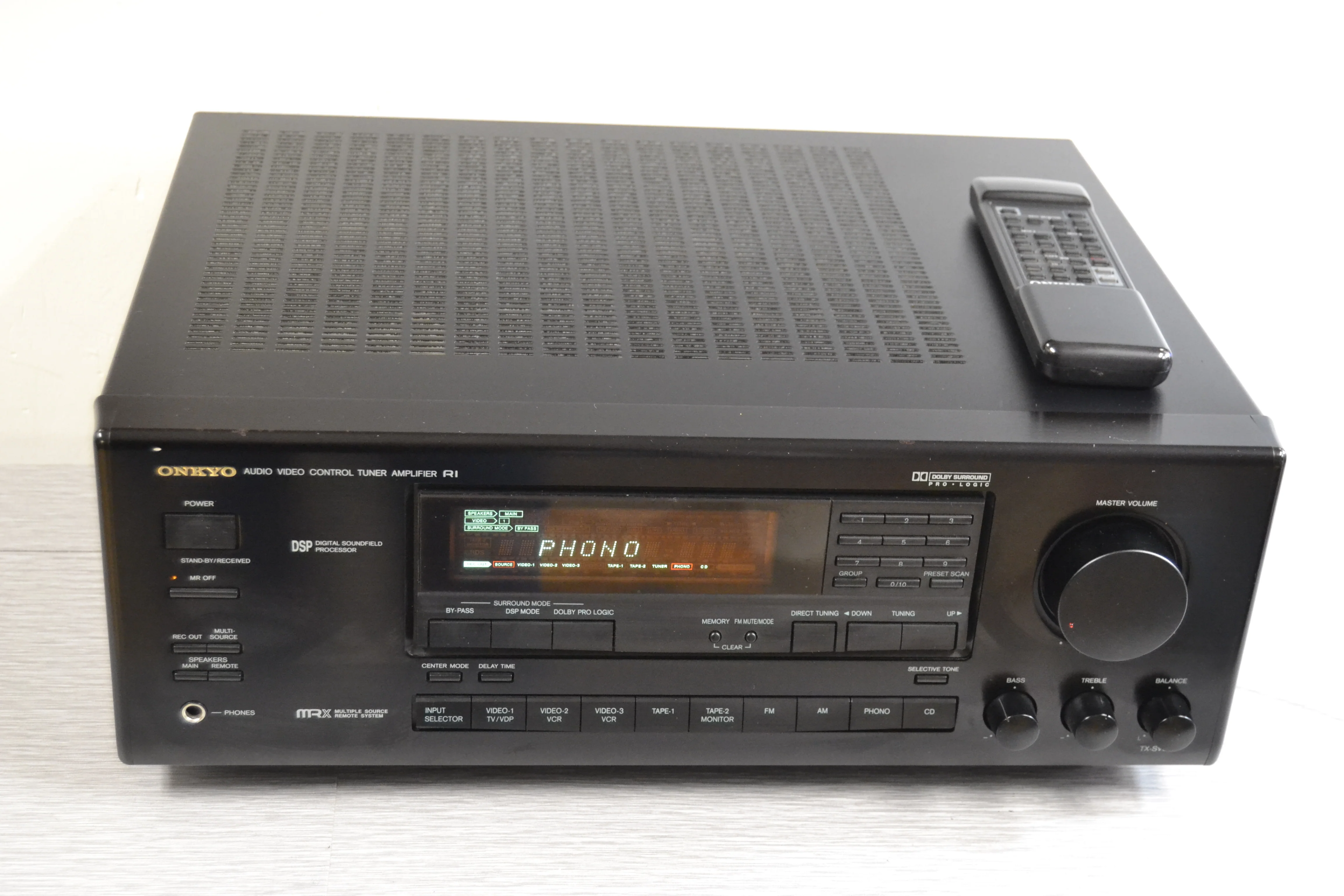

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote

$100.00
Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote—
$100.00

The Story

Onkyo TX-SV525

AV Control Tuner Amplifier (1995-96)

Specifications

Tuning range: FM, MW

Power output: 80 watts per channel into 8Ω (stereo)

Surround output: 60W (front), 60W (center), 20W (rear)

Frequency response: 20Hz to 30kHz

Total harmonic distortion: 0.08%

Damping factor: 60

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 80dB (MM), 100dB (line)

Output: 150mV (line), 1V (Pre out)

Speaker load impedance: 6Ω (minimum)

Video Connections: composite

Dimensions: 455 x 170 x 389mm

Weight: 11.8kg

Finish: black, silver

Accessories: remote control

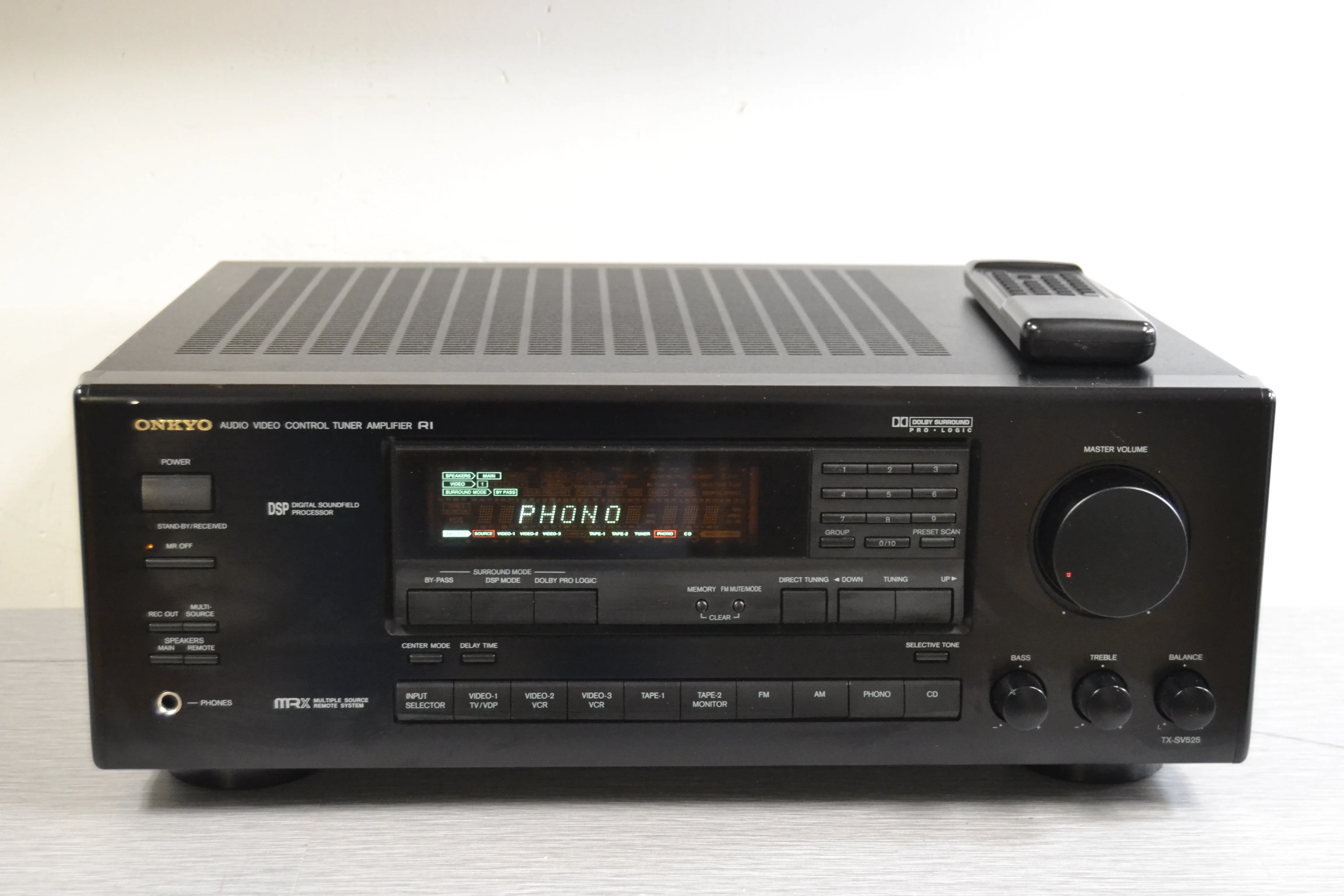

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

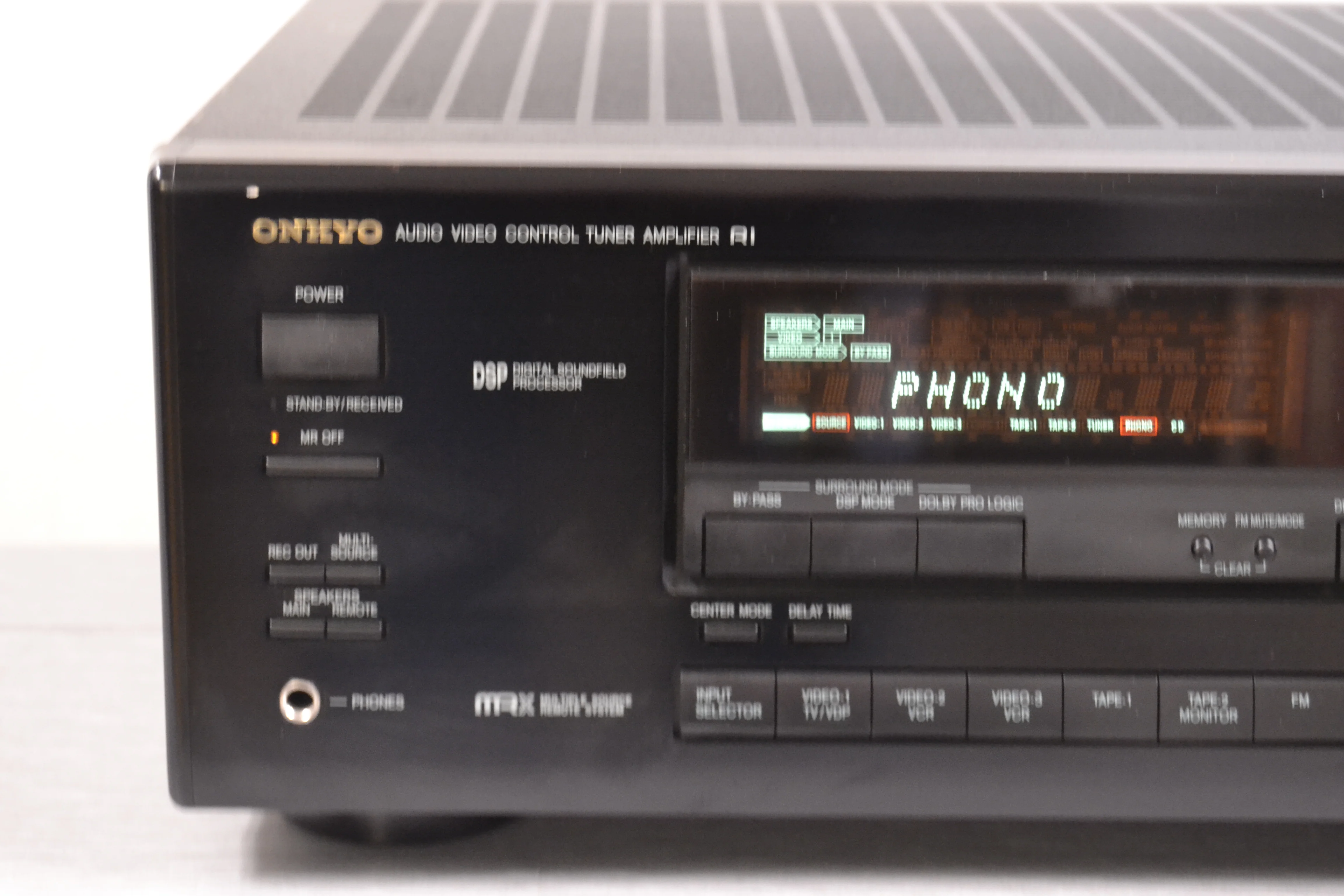

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

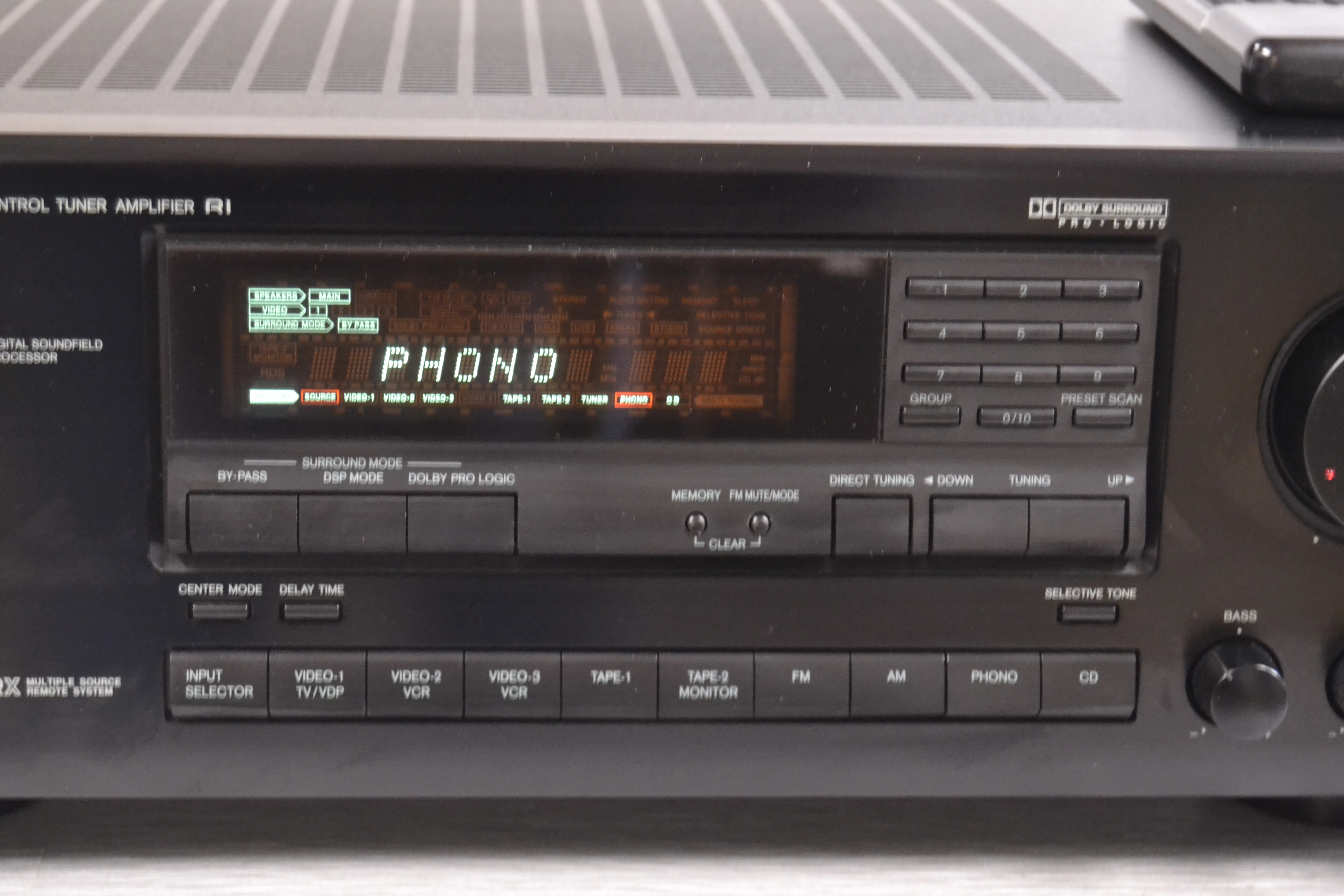

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

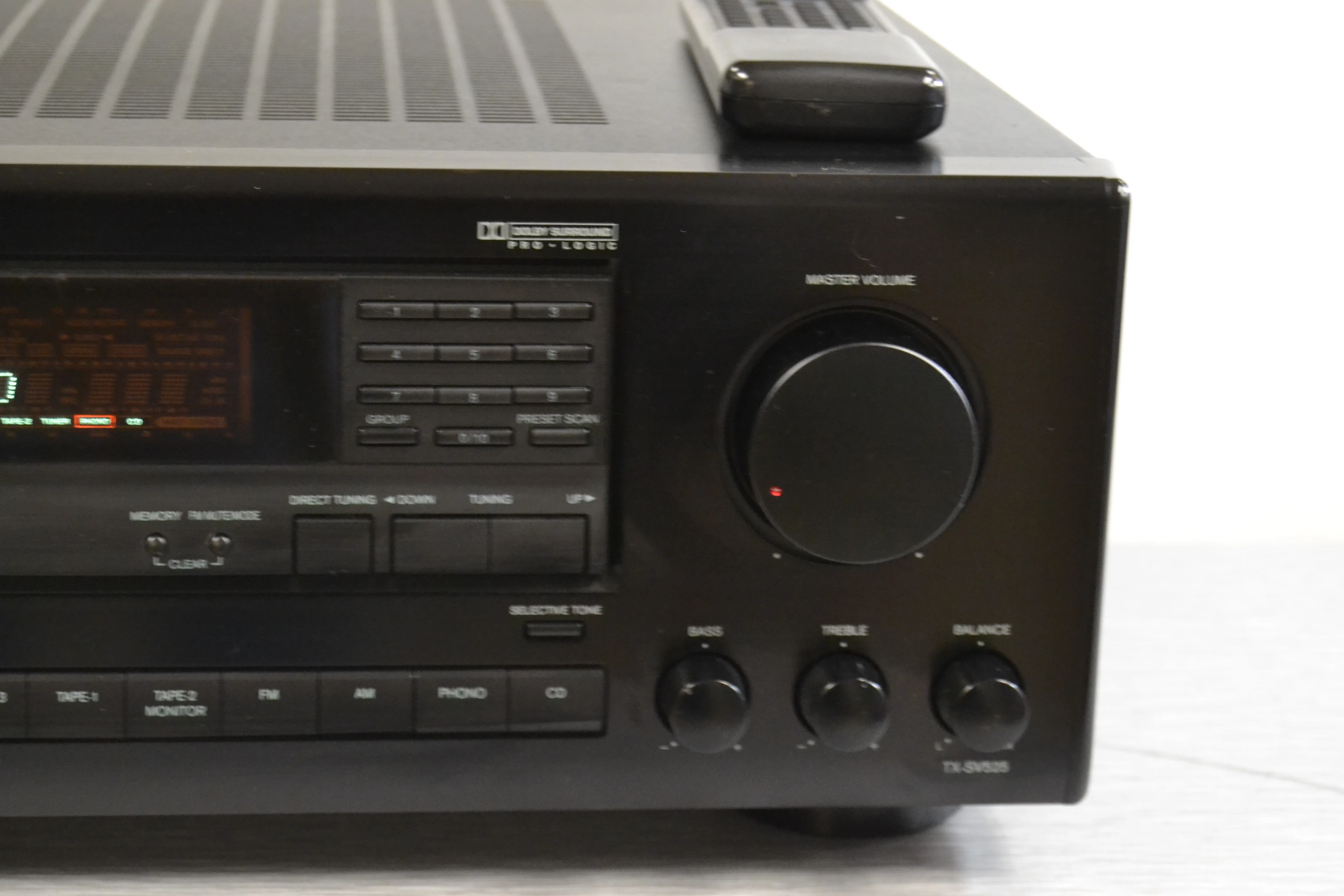

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

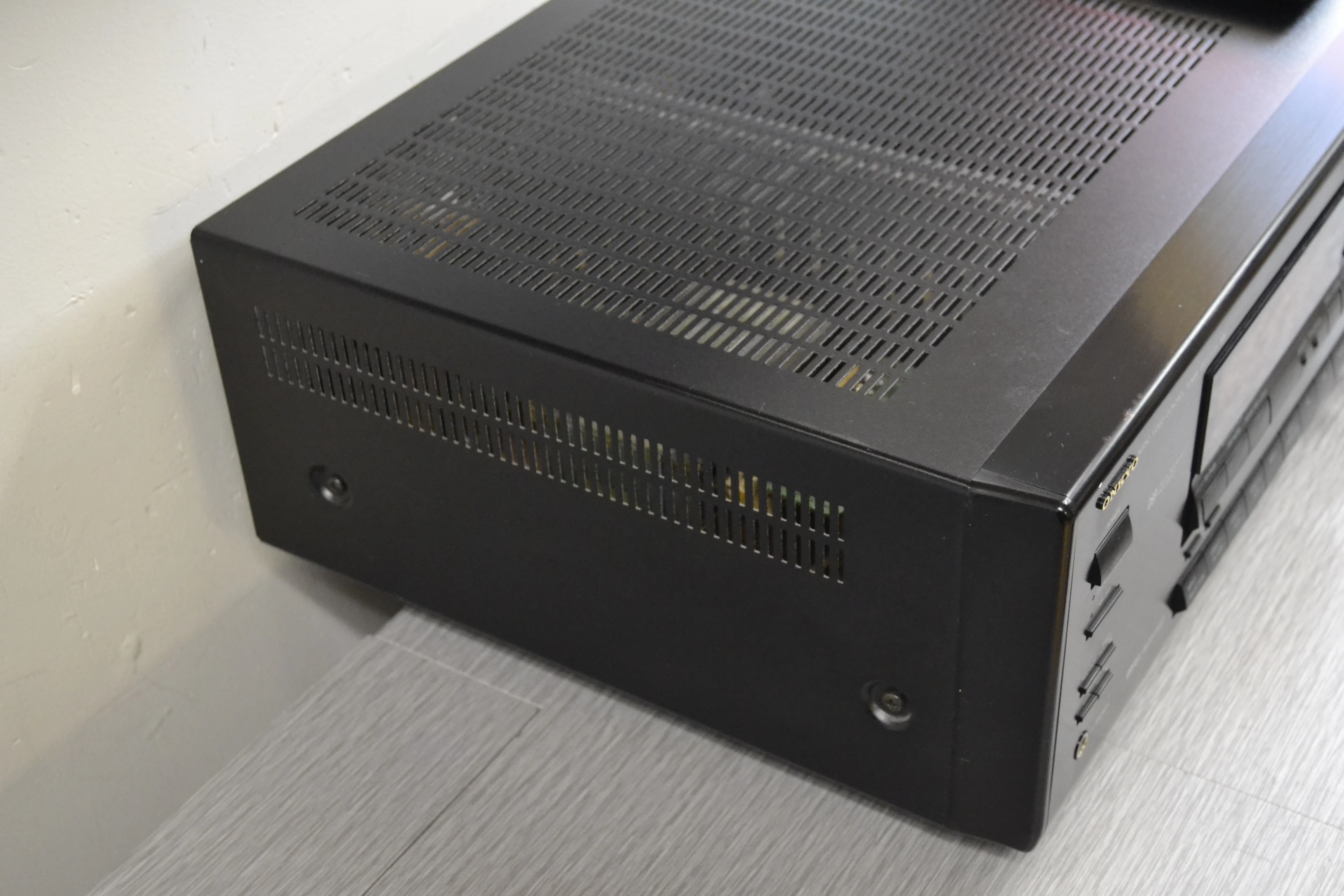

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

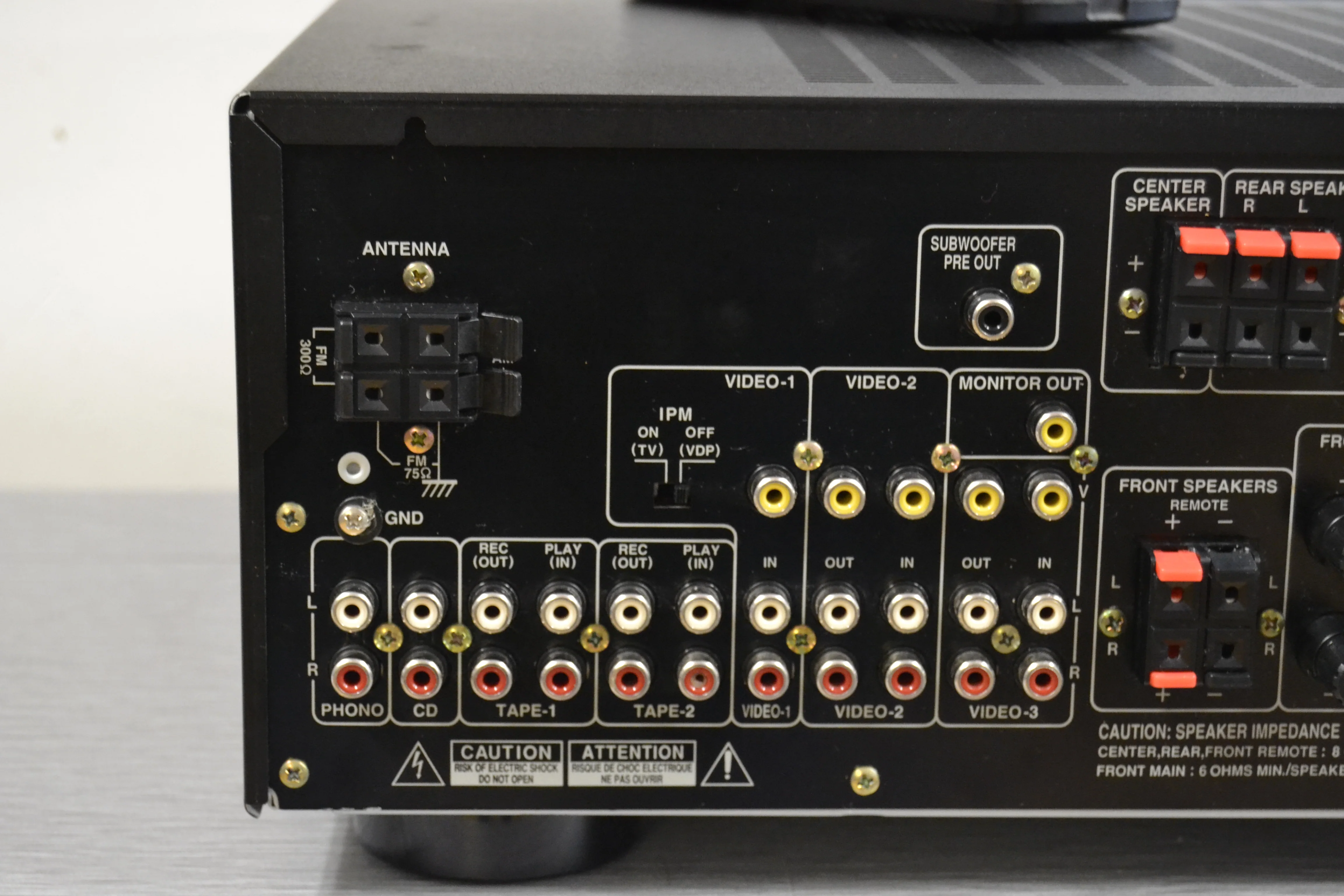

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

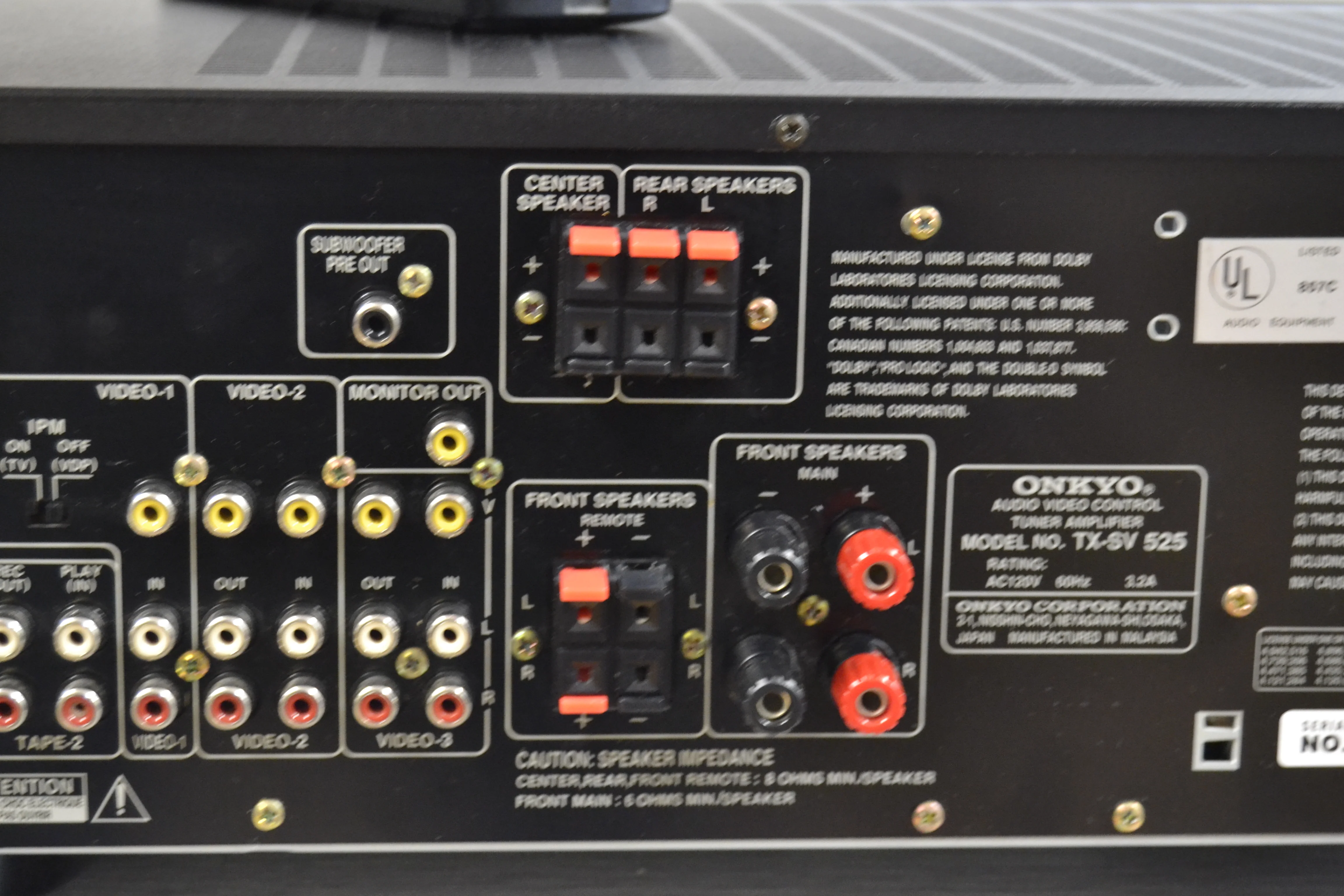

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Onkyo TX-SV525 Stereo Receiver * 80W RMS * 1995 * Remote - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Onkyo TX-SV525

AV Control Tuner Amplifier (1995-96)

Specifications

Tuning range: FM, MW

Power output: 80 watts per channel into 8Ω (stereo)

Surround output: 60W (front), 60W (center), 20W (rear)

Frequency response: 20Hz to 30kHz

Total harmonic distortion: 0.08%

Damping factor: 60

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 80dB (MM), 100dB (line)

Output: 150mV (line), 1V (Pre out)

Speaker load impedance: 6Ω (minimum)

Video Connections: composite

Dimensions: 455 x 170 x 389mm

Weight: 11.8kg

Finish: black, silver

Accessories: remote control
