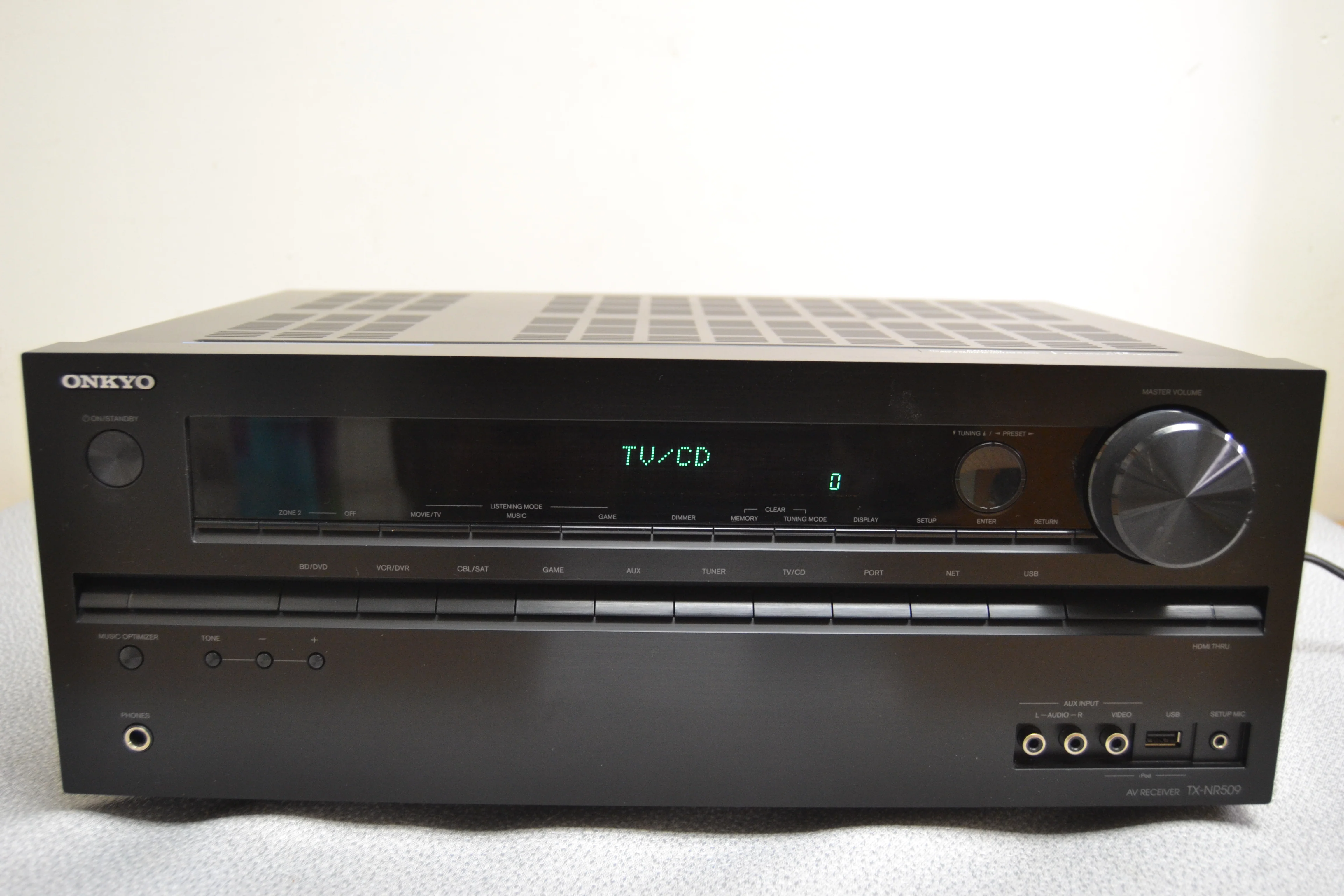

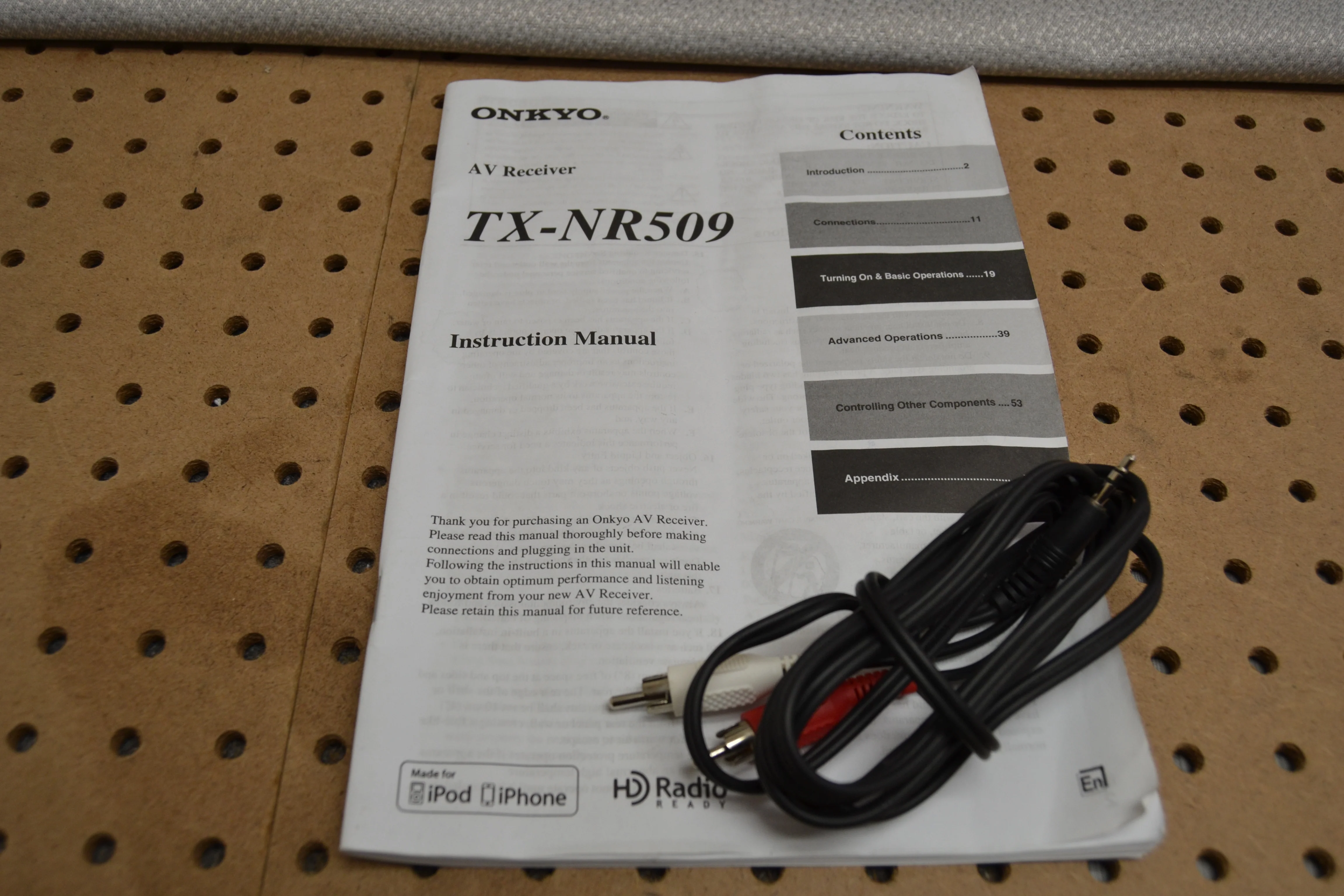

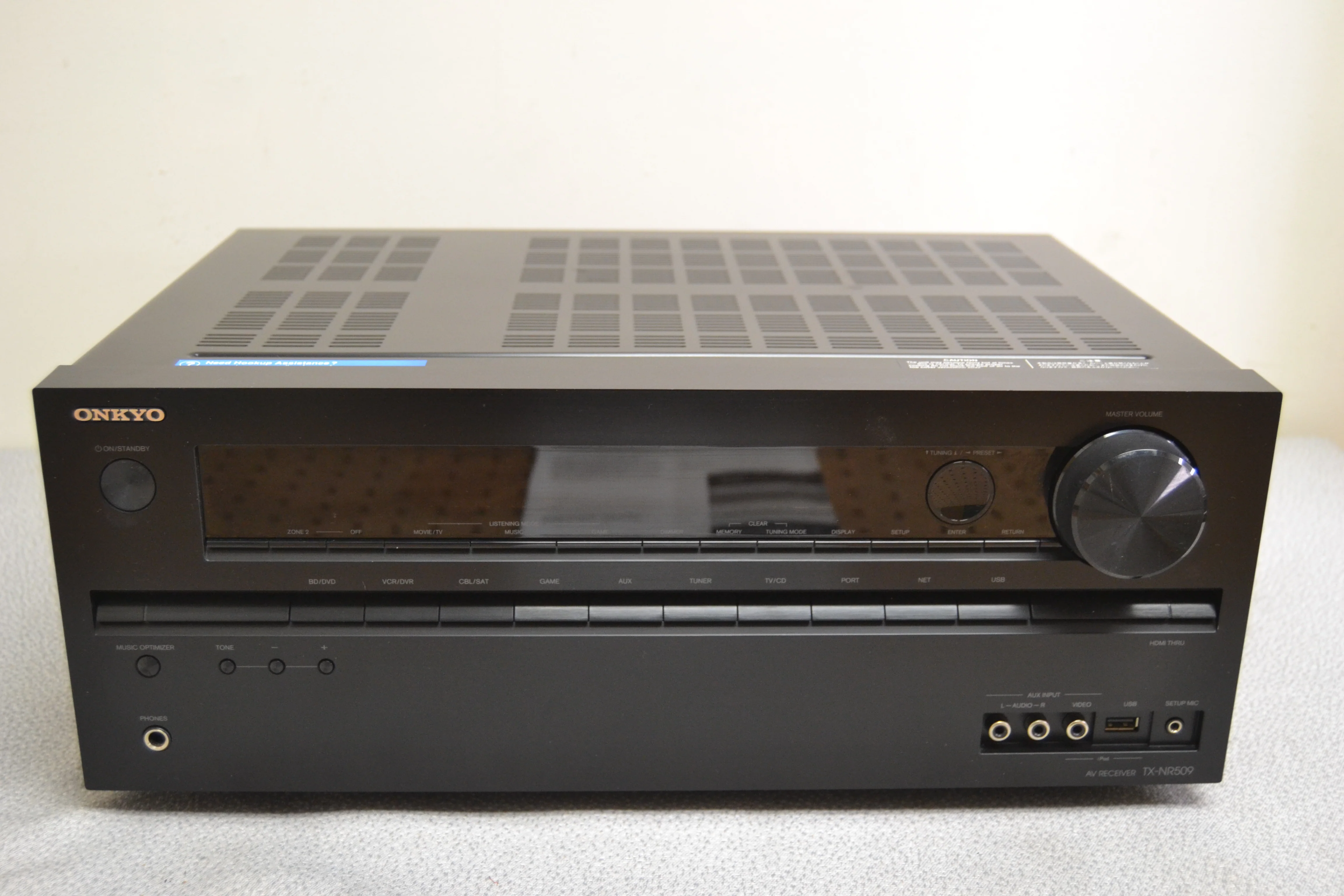

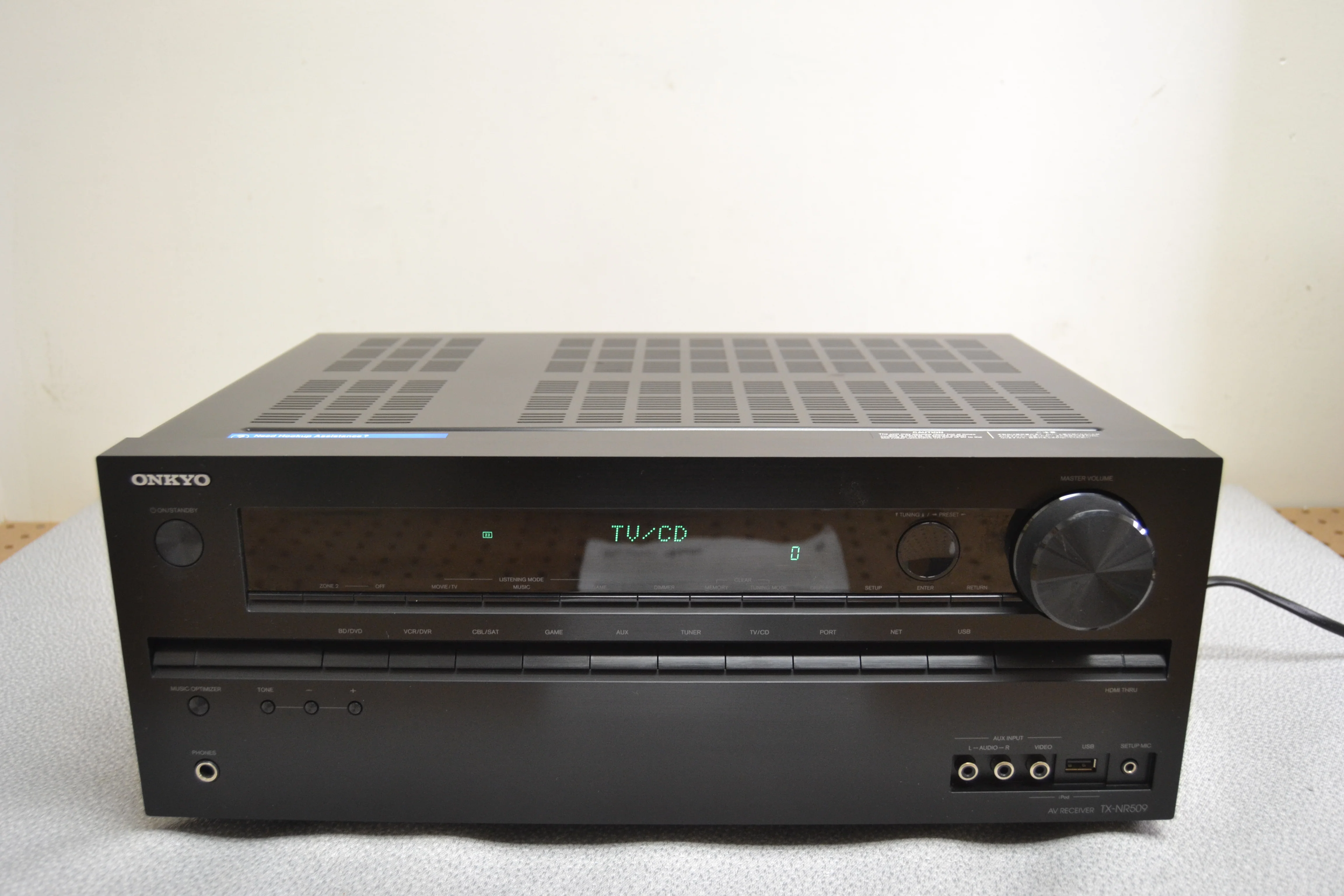

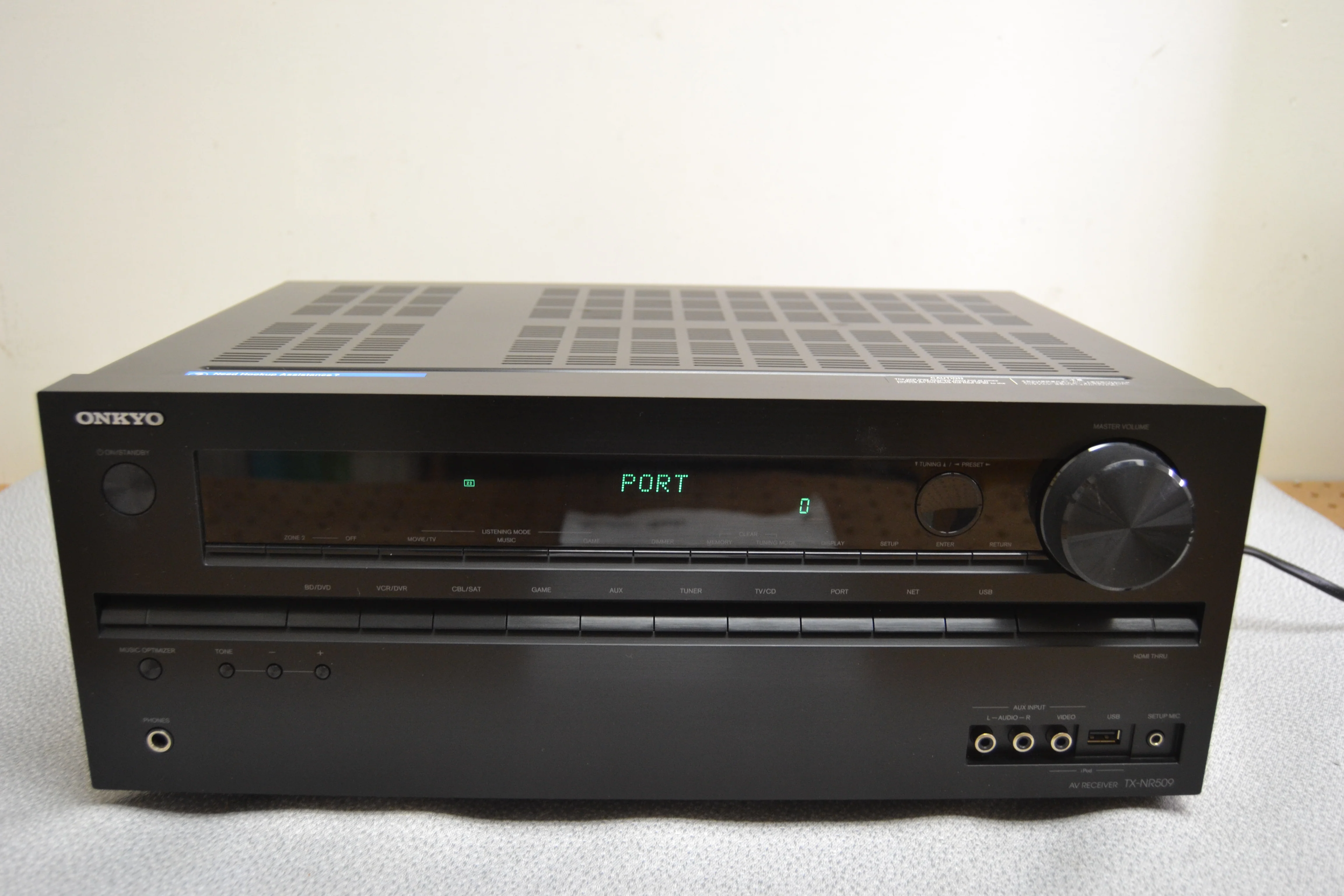

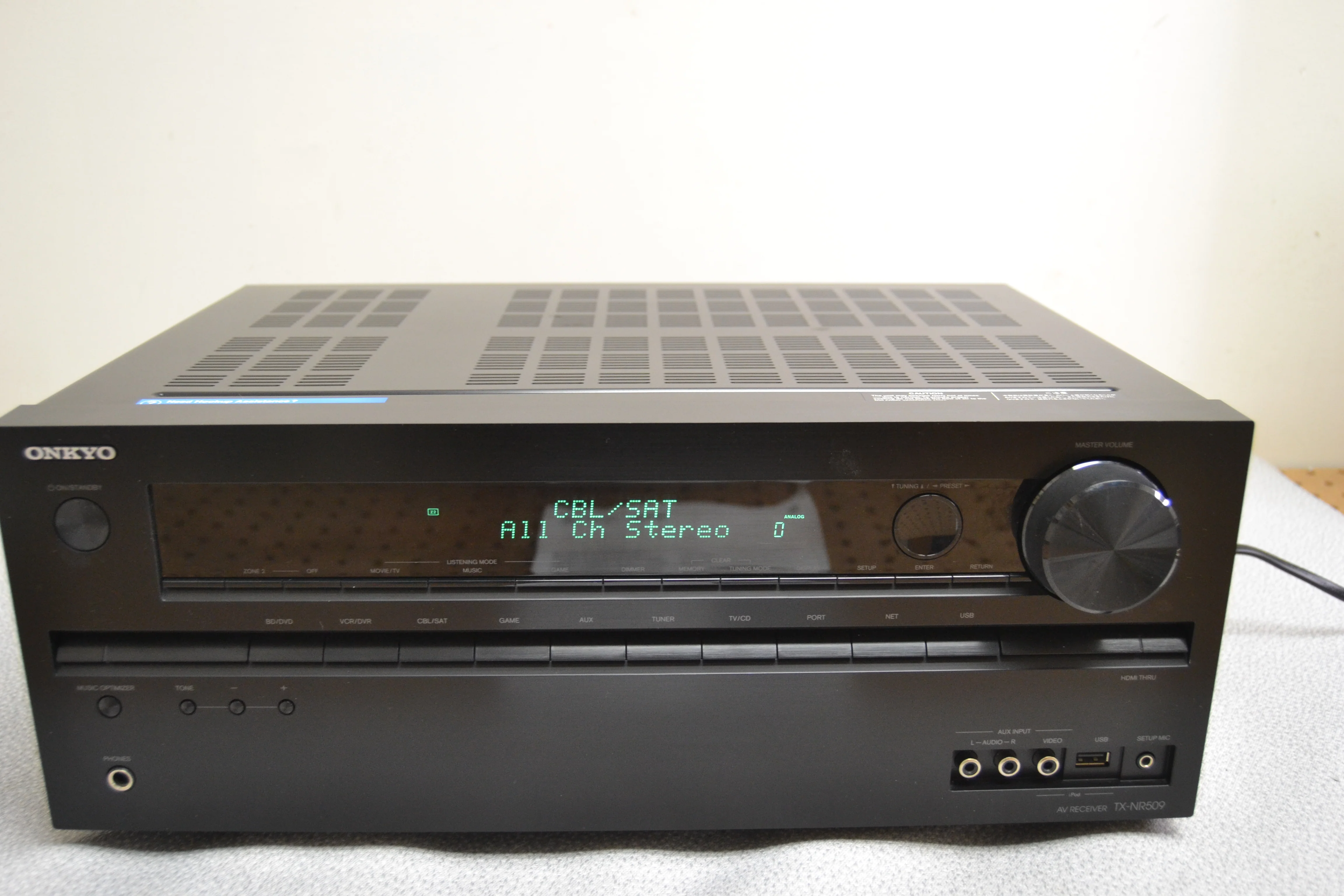

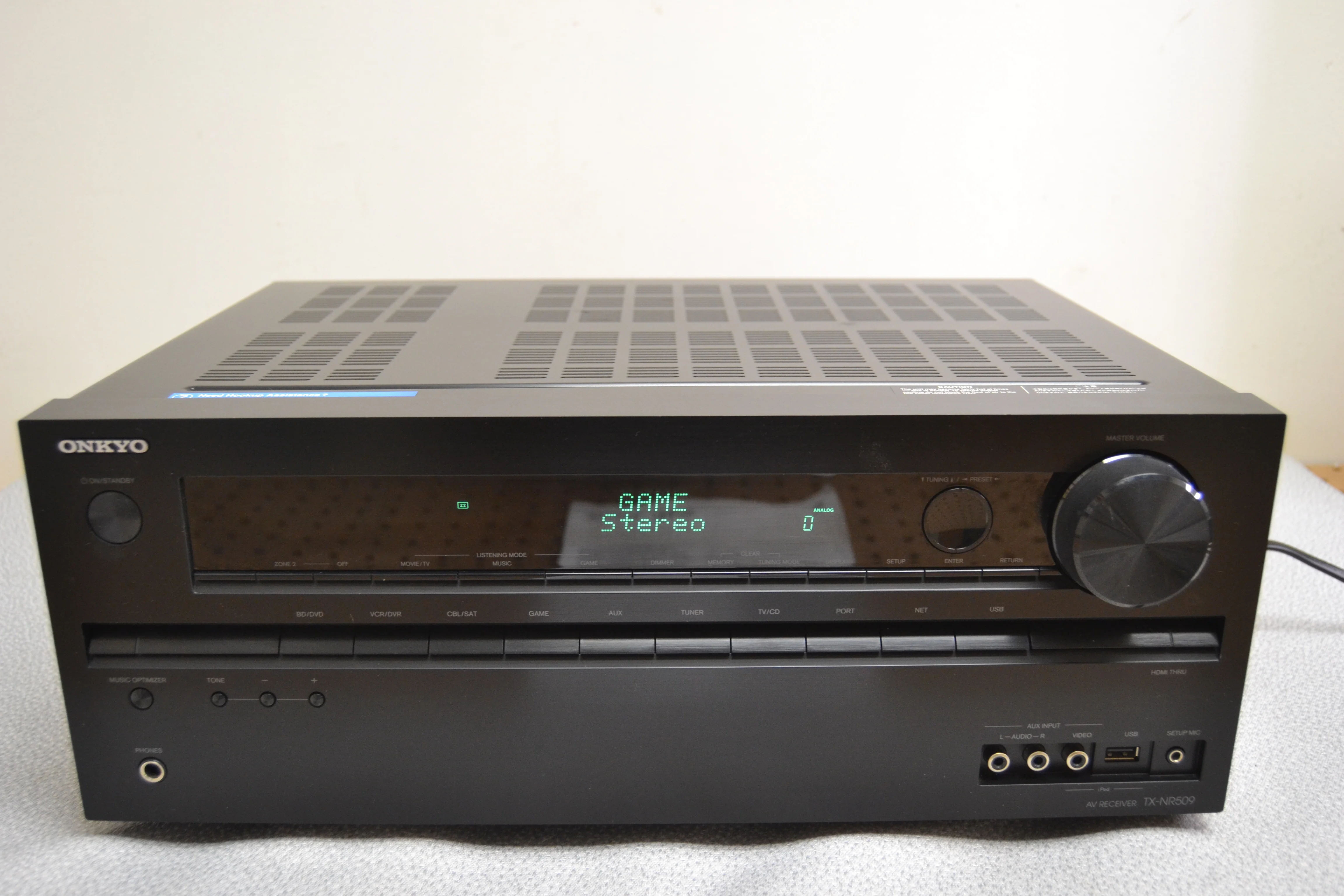

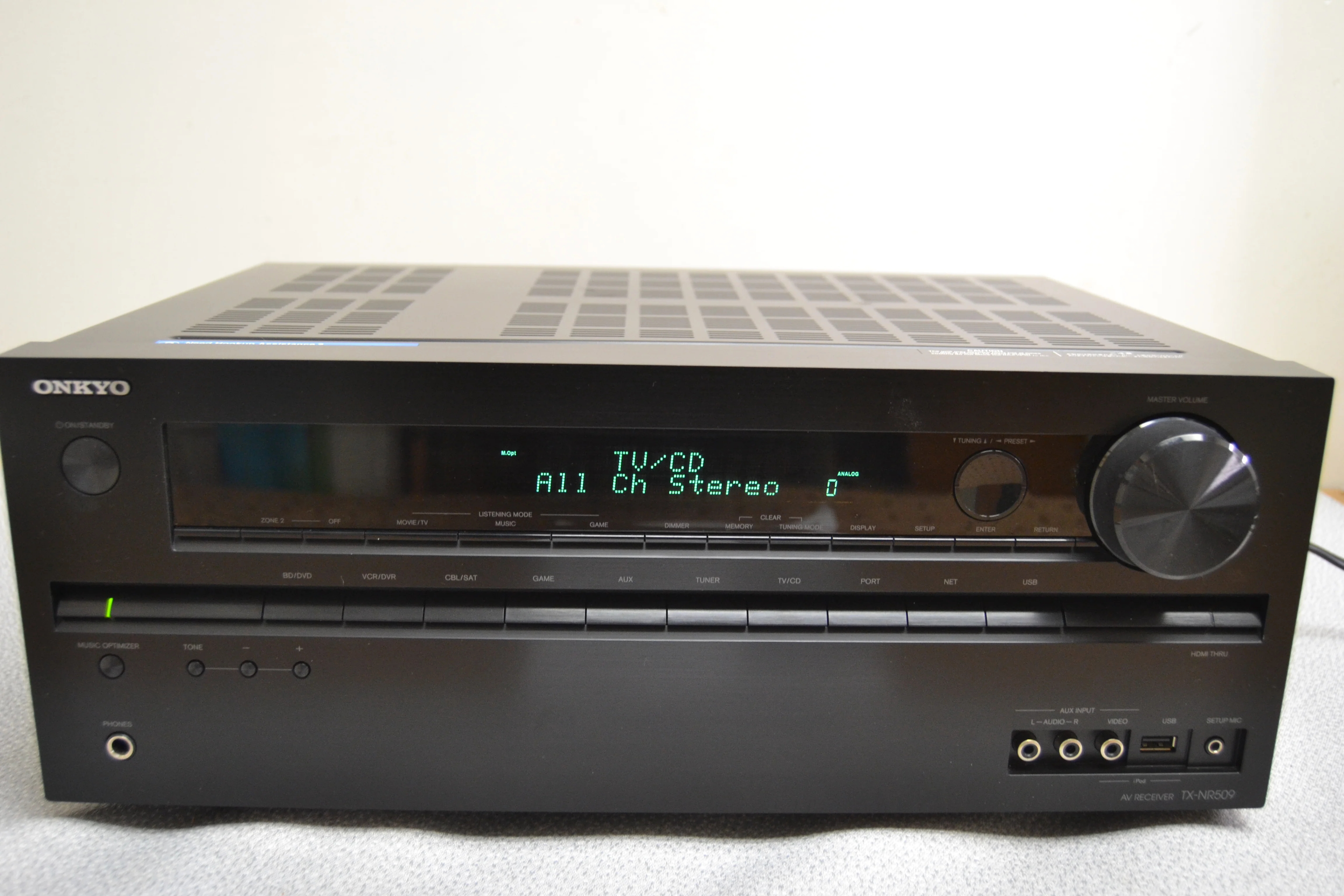

Onkyo TX-NR509 Home theater receiver * 80W RMS * Manual * Remote

A full-featured receiver for less
Chances are that the last time you looked at home theater receivers with all the "goodies" you wanted, the requisite suitcase full of cash wasn't handy. The Onkyo TX-NR509 comes fully loaded without taking you to the cleaner's. It boasts five channels of low-distortion, high-current power and advanced digital processing for engulfing, atmospheric sound that brings your favorite films, TV shows, video games, and music to life. You also get decoding for the latest high-resolution surround sound formats which lend even greater realism to many Blu-ray movies and concerts. Four 3D-ready HDMI inputs and compatibility with the latest 3D video sources and TVs make this receiver the ideal centerpiece for your future-ready home theater system.

Have more fun with your iPod® — and a world of digital music
The 'NR509 makes connecting your iPod a breeze. Just plug your cable into the front USB slot and voilà! The receiver bypasses the iPod's digital-to-analog converter in favor of its own high-quality Burr-Brown DAC. And with Onkyo's free remote app download, you can use your iPod touch®, iPhone® or Android™ device to control your receiver via Wi-Fi® too.

Of course thumb drives with lots of music files will also find a home here. What about all the music on your home computers? DLNA certification makes it simple to connect the 'NR509 to your home network with an Ethernet cable and enjoy convenient access to your digital music. Or if you you have a wireless network, you can use Onkyo's Wi-Fi adapter to make the process even easier. A wide variety of optional streaming services includes Sirius/XM®, PANDORA®, Rhapsody®, and more. Add to all this built-in Internet radio capability, and you've got plenty of listening options to keep your ears happy for a long, long time.

No-stress setup for custom tailored sound
Conquering the acoustic challenges of your room is a huge part of getting accurate sound. The 'NR509 includes Audyssey 2EQ™, a sophisticated speaker calibration system. Using the included microphone, the receiver analyzes sound from two different listening positions, then automatically adjusts volume level, equalization, and delay settings for each of your speakers. You'll get clear, precise, natural sound that's optimized for your theater space. Plus, Audyssey's Dynamic Volume mode helps keep your sound clear and steady, eliminating those annoying spikes in volume that often accompany TV commercials.

Power and Processing:

• 5-channel amplifier
• 80 watts per channel into 8 ohms (20-20,000 Hz) at 0.7% THD, with 2 channels driven
• Dolby® TrueHD, DTS-HD™ Master Audio, Dolby® Digital Plus, DTS-HD™ High Resolution Audio, Pro Logic® IIz
• Audyssey 2EQ auto speaker setup (microphone included)
• Audyssey Dynamic Volume mode to maintain steady listening levels
• Audyssey Dynamic EQ™ for fuller surround sound at lower volumes

Digital Music Options:

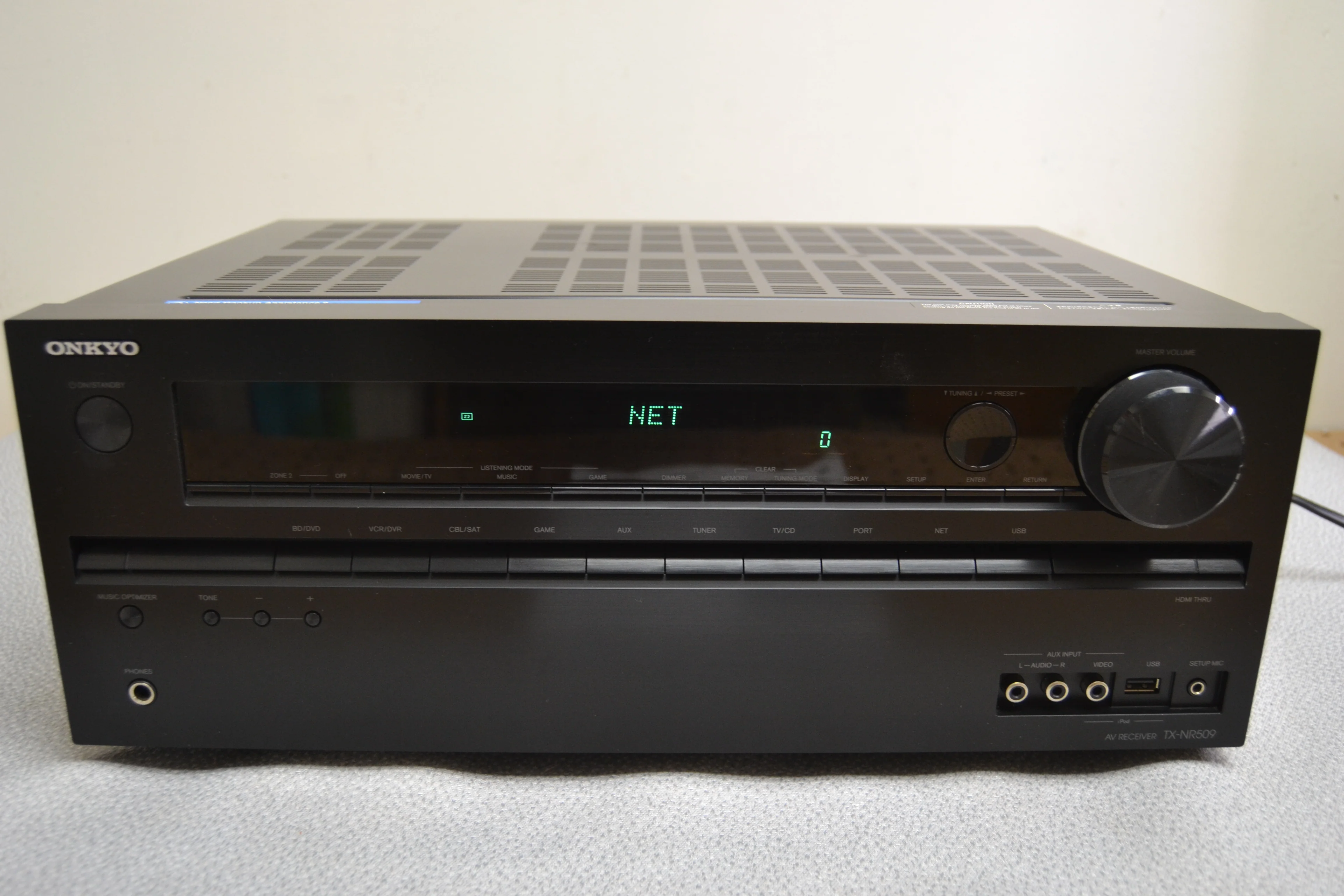

• Internet-ready — access music from your PC and Internet radio stations

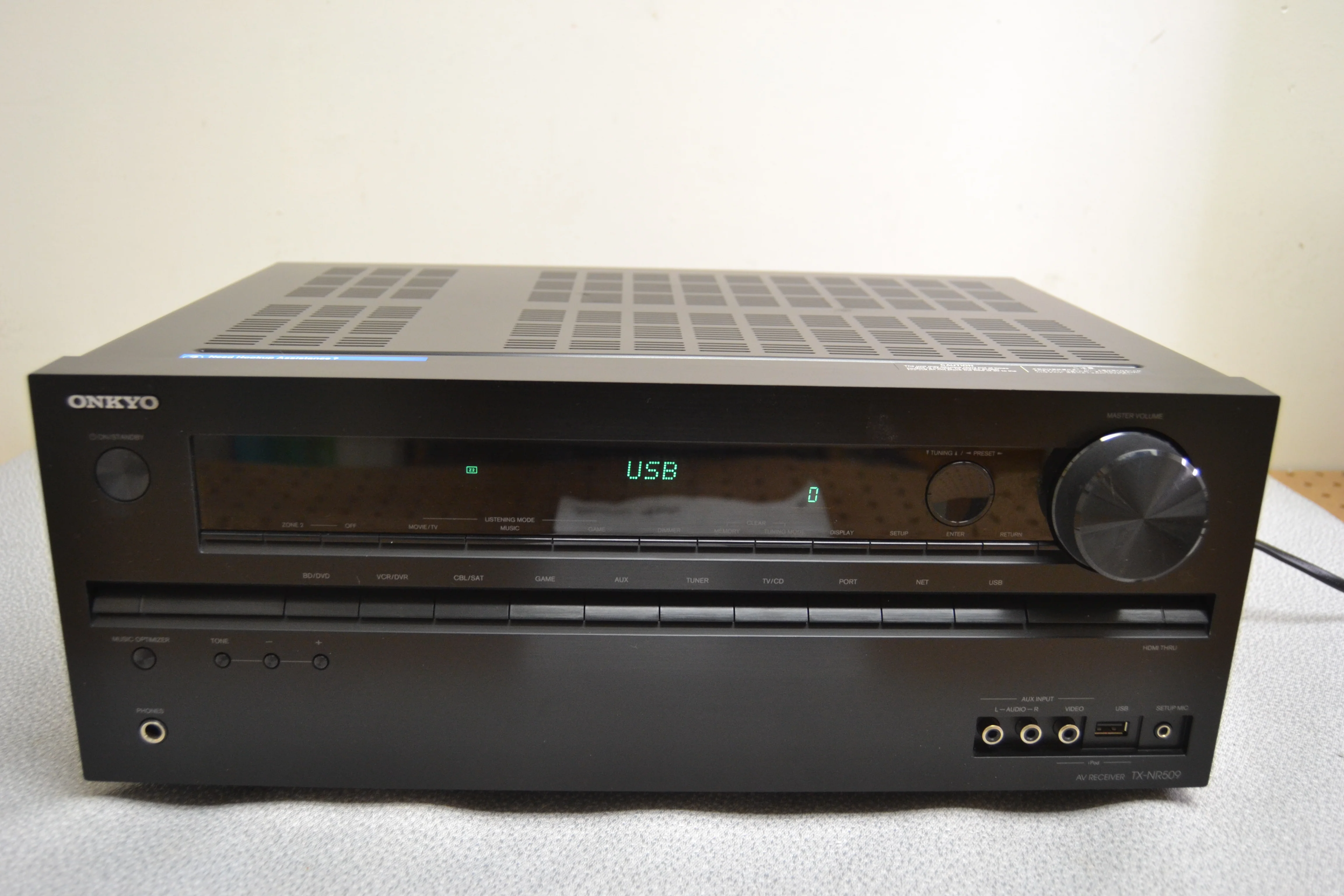

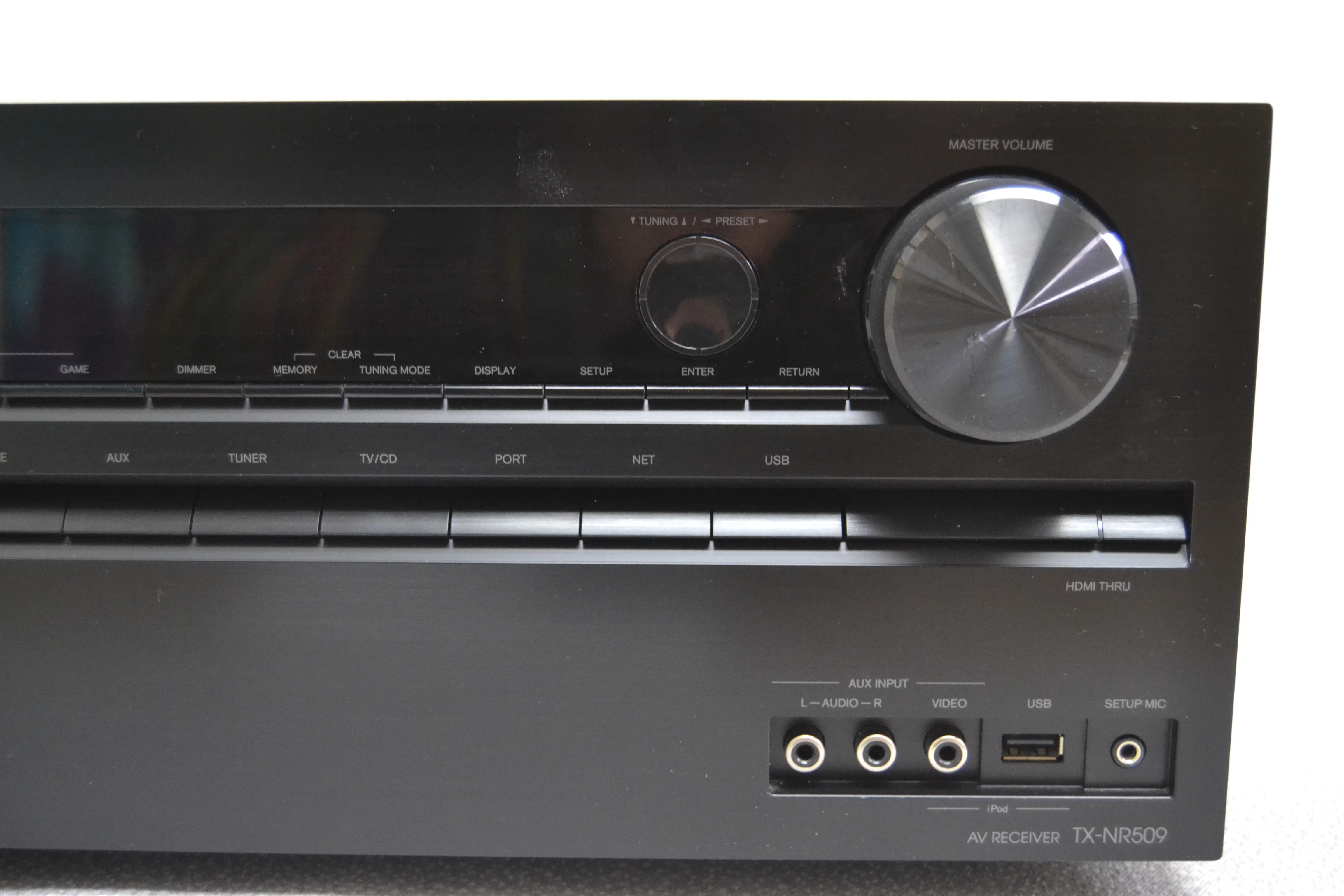

• listen to music from iPod®, iPhone®, or thumb drive through the front-panel USB input
• use the receiver remote to control your iPod®/iPhone® (requires optional Onkyo UP-A1 dock), also charges while docked
• DLNA (Digital Living Network Alliance) certified to ensure optimal compatibility with other network-enabled equipment
• Wi-Fi ready, requires separate Onkyo Wi-Fi® adapter
• optional streaming services include Sirius/XM, PANDORA and Rhapsody (registration and subscription may be required)
• HD Radio ready (requires optional Onkyo UP-HT1 tuner)

Audio Performance Features:

• high-current amplifier design with massive power transformer
• 192kHz/24-bit Burr-Brown digital-to-analog converters for all channels
• direct mode switches off unnecessary circuitry to provide cleaner sound
• Music Optimizer function enhances the sound quality of compressed music files

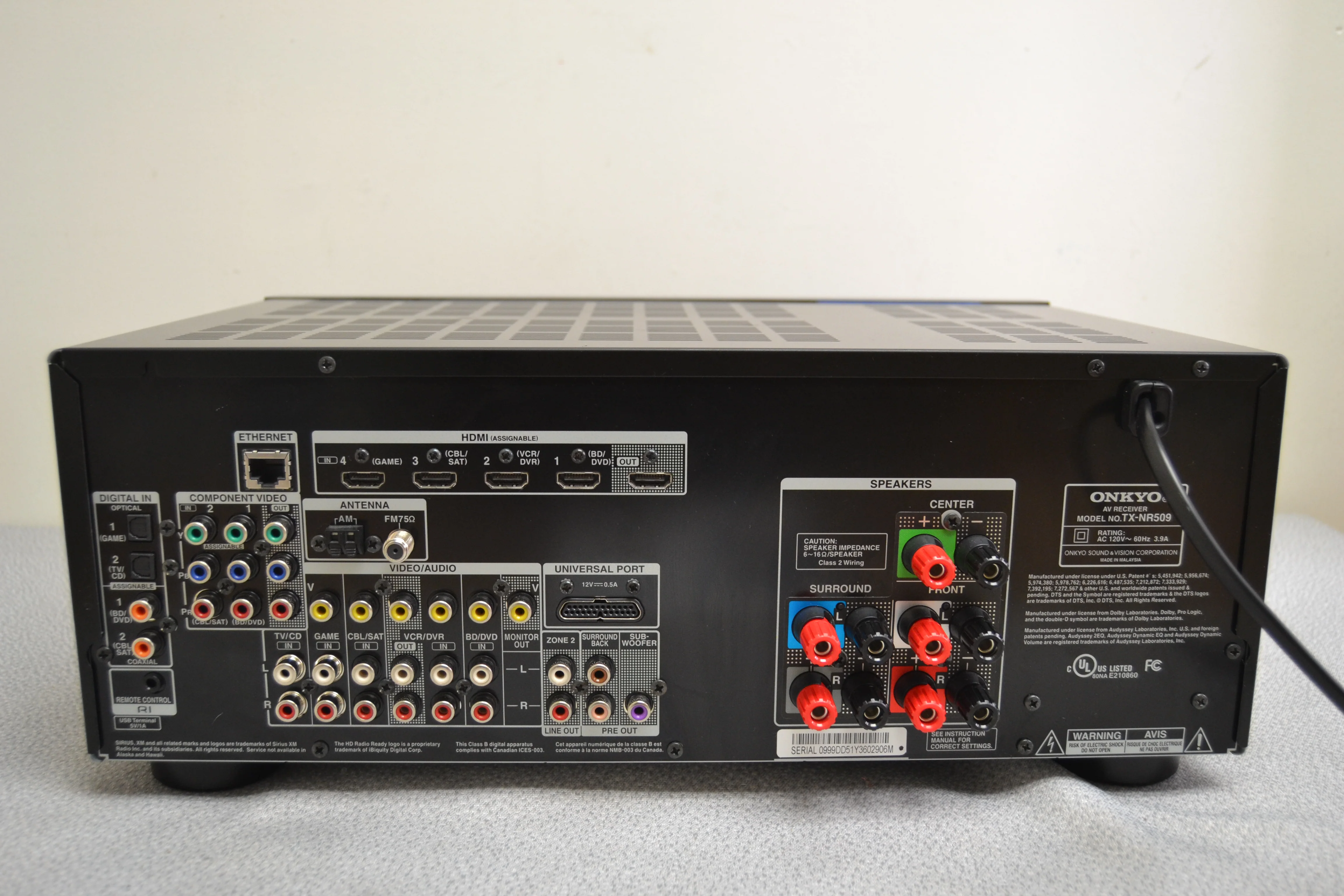

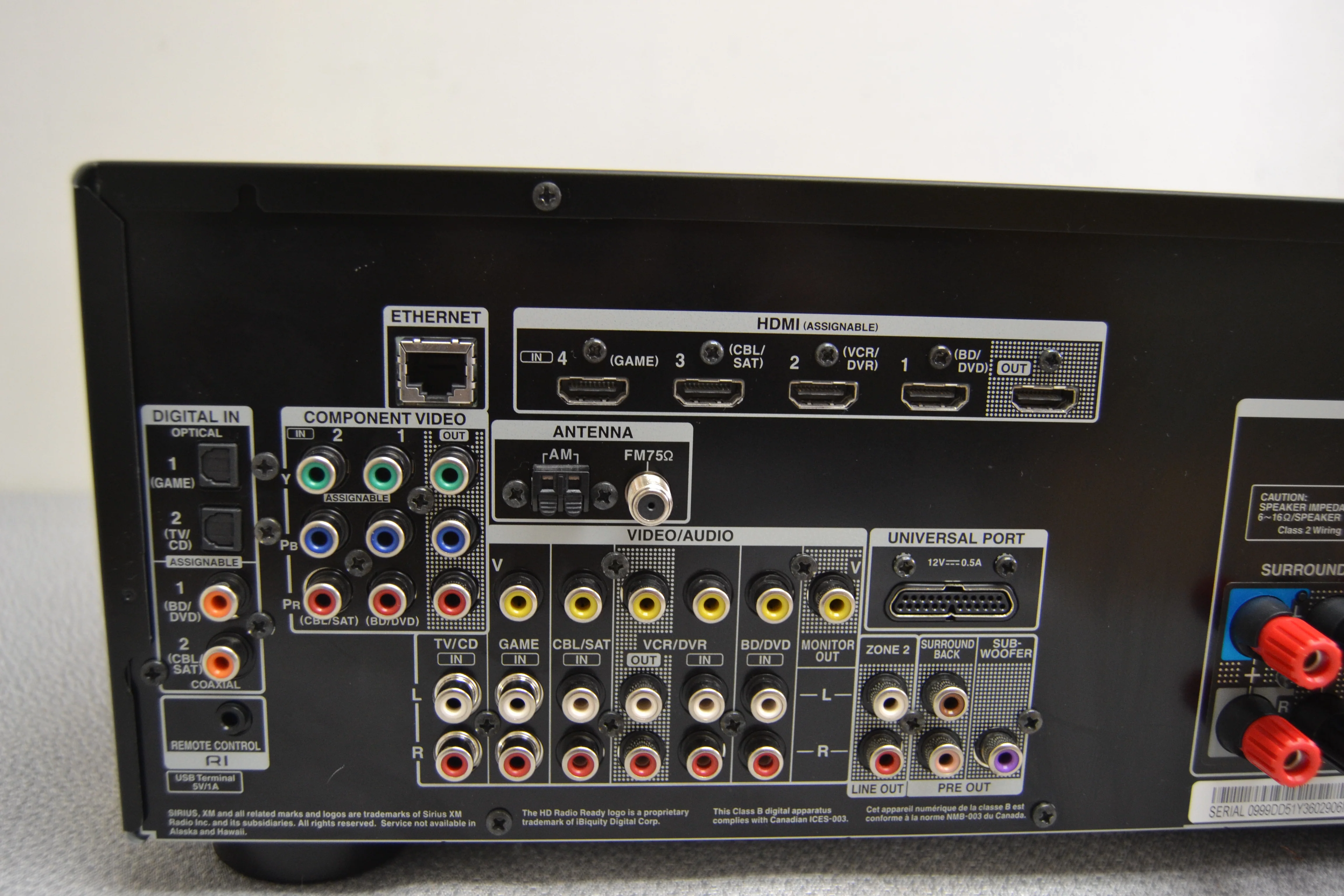

Connections:

• 1080p-compatible HDMI digital video switching (4 in, 1 out)
• HDMI version 1.4 with support for 3D video, Audio Return Channel, Deep Color, x.v.Color, auto lip-sync, and HDMI-CEC
• Audio Return Channel function receives digital audio signals from a compatible HDTV's tuner via HDMI
• component video switching (2 in, 1 out)
• digital audio inputs: 2 optical and 2 coaxial
• 6 audio/video inputs, including:
  • 1 front-panel input with composite video
  • 5 rear-panel inputs with composite video
• 1 audio-only input
• no phono input — to connect a turntable you'll need to add a phono preamp
• Ethernet port for for connection to home PC network
• Wi-Fi ready with Onkyo's USB adapter
• 1 pair of main speaker outputs

General Features:

• Onkyo's free remote app lets you use your iPod touch®, iPhone® or Android™ device as a Wi-Fi remote
• on-screen display for easier setup and operation
• 40 AM/FM/SIRIUS presets

• 17-1/8"W x 6-13/16"H x 12-9/16"D
• weight: 16.5 lbs.
