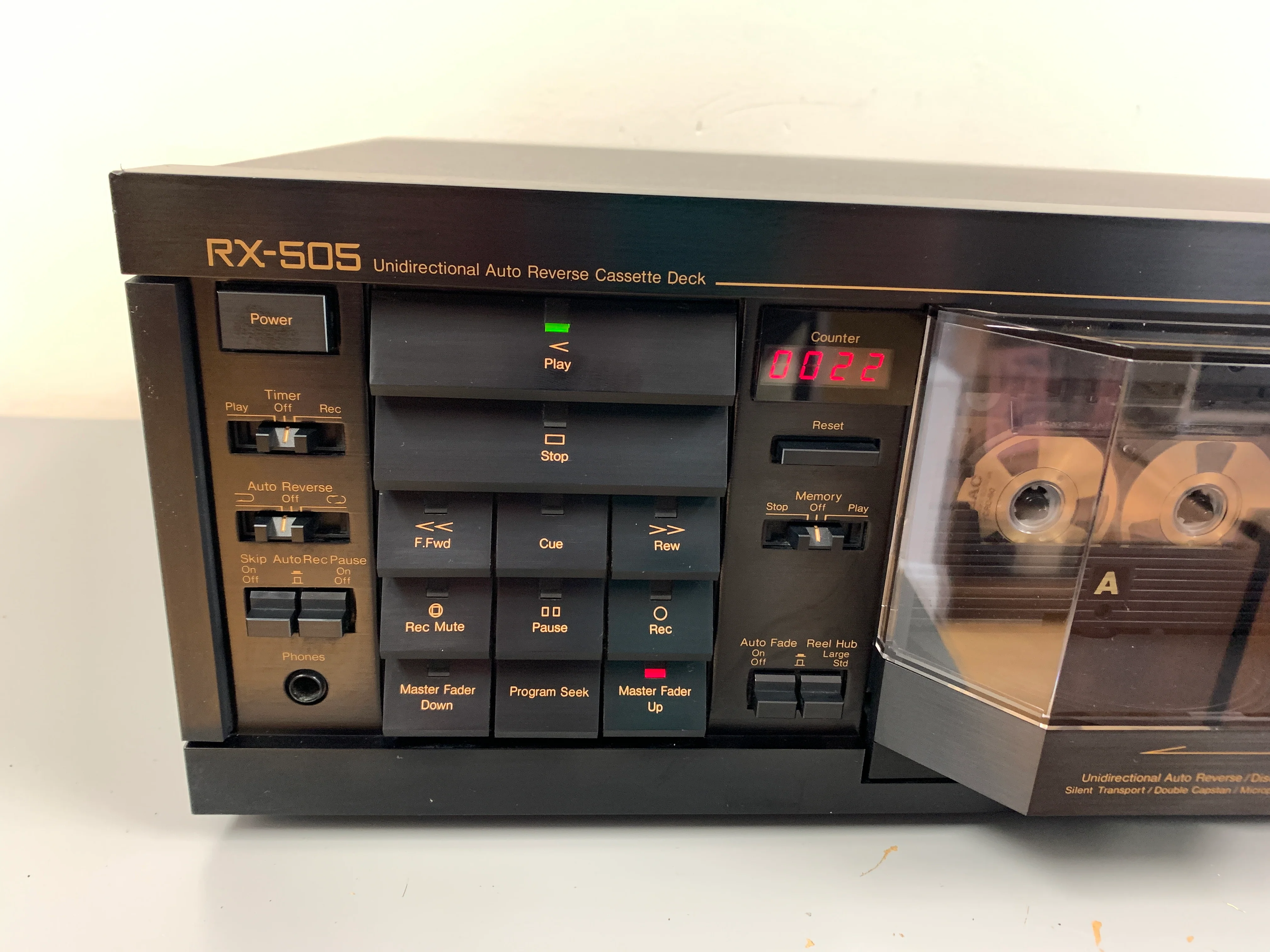

Nakamichi RX-505

Auto-Reverse Three Head Cassette Deck (1984-93)



Description

To Nakamichi, 3-Head always means three discrete heads, physically independent record, playback and erase heads that are perfectly optimized and critically aligned in magnetic azimuth to ensure flat response to beyond 20 KHz and optimum MOL.

Specifications

Type: auto reverse, 3-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record, 1 x playback, 1 x erase

Motor: 1 x reel, 1 x capstan, 2 x mechanism

Tape Type: type I, CrO2, Metal

Noise Reduction: B, C

Frequency Response: 20Hz to 20kHz  (Metal tape)

Signal to Noise Ratio: 70dB  (dolby C)

Wow and Flutter: 0.04%

Total Harmonic Distortion: 0.9%

Input: 50mV (line)

Output: 1V (line)

Dimensions: 450 x 144 x 300mm

Weight: 10kg

Year: 1984

Price: GBP £1000 (1990)
