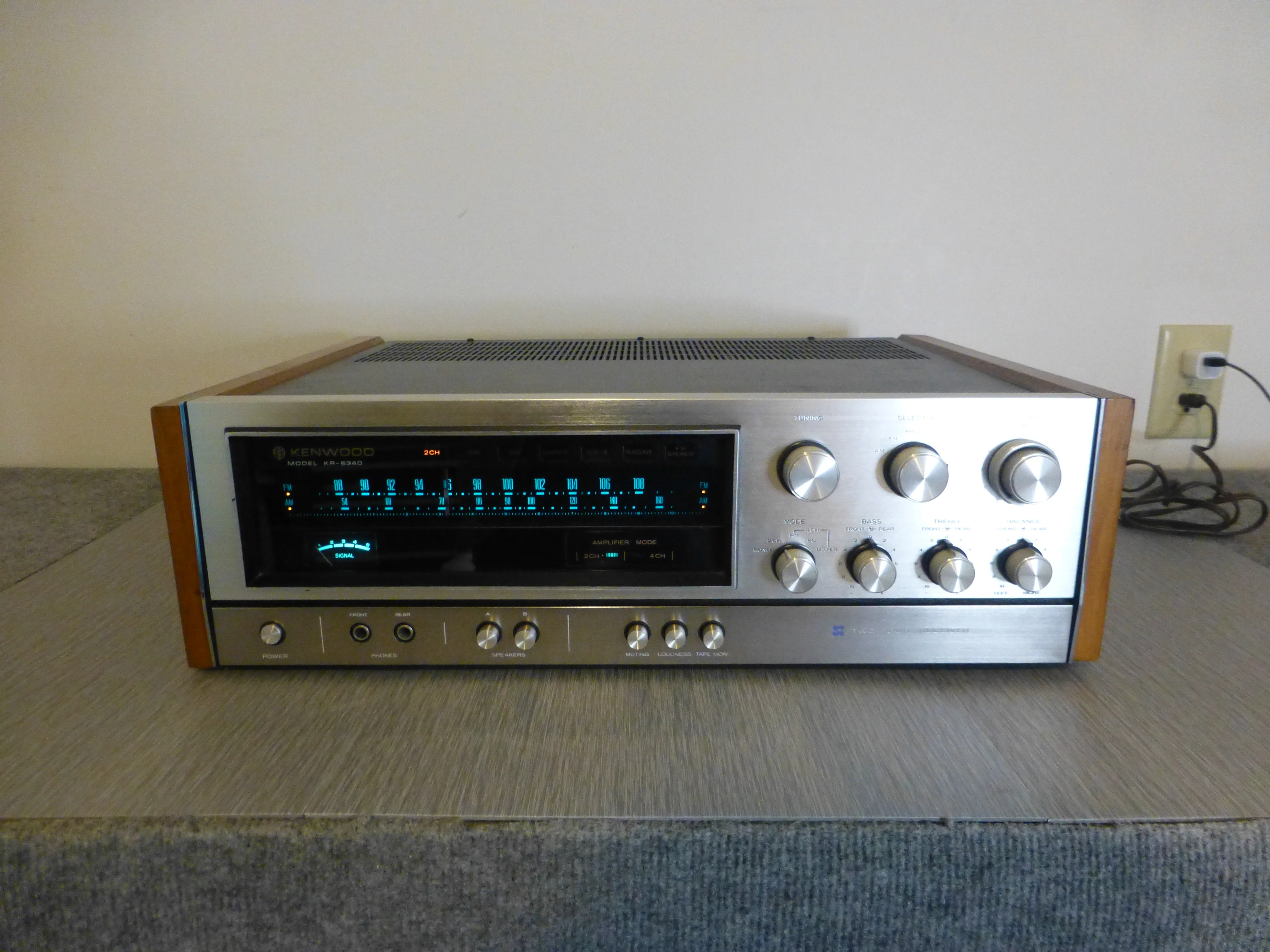

Kenwood KR-6340

Stereo Amplifier Receiver (1973-74)

Description

The Kenwood KR-6340 can function as a two or four channel receiver, having a built in regular matrix and SQ type decoders.

As a four channel receiver the amplification channels work separately, each driving one of four speakers.

The semi-complementary directly coupled power amplifiers have wideband and low distortion characteristics which ensure smooth, high-fidelity amplification.

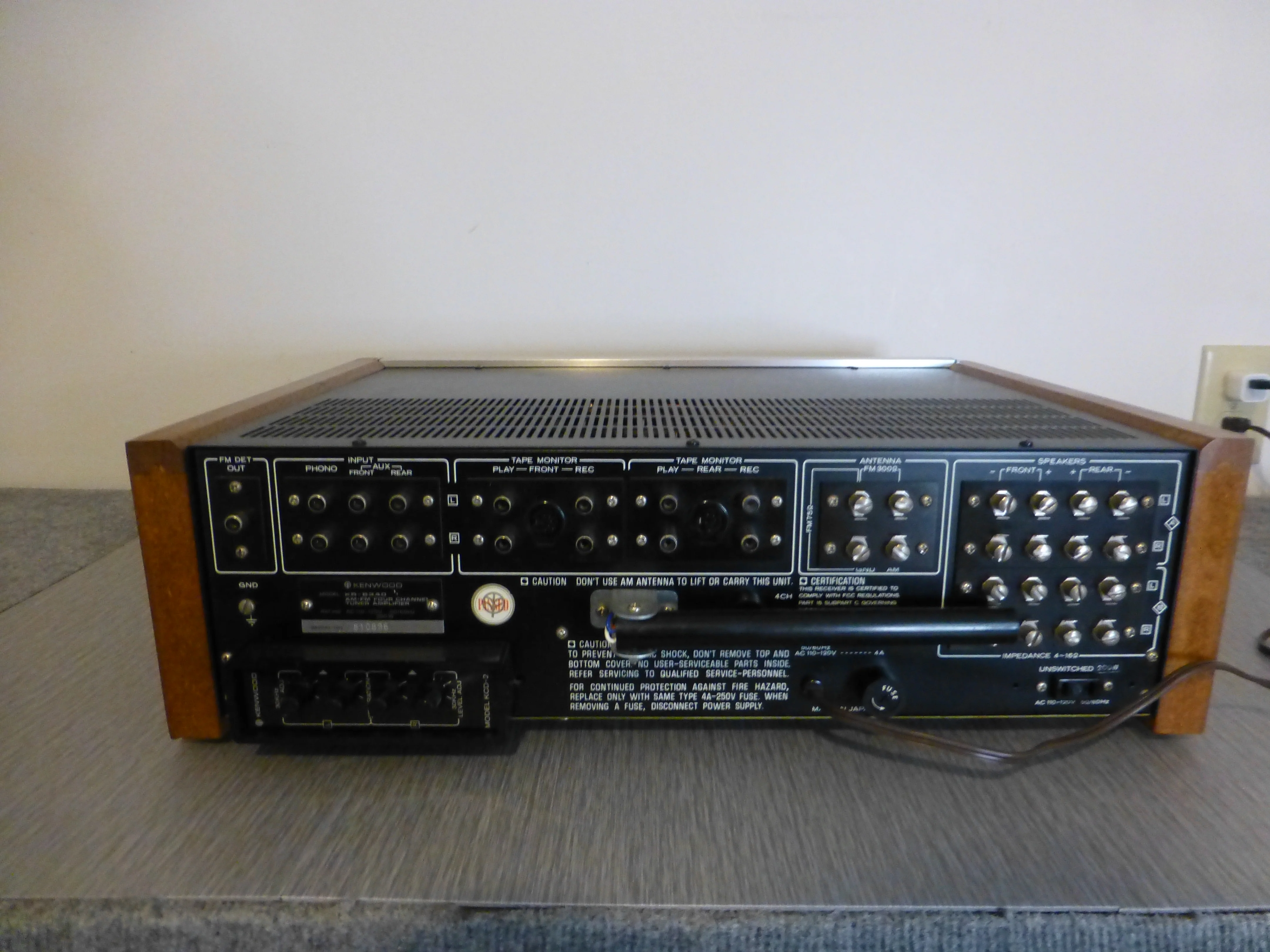

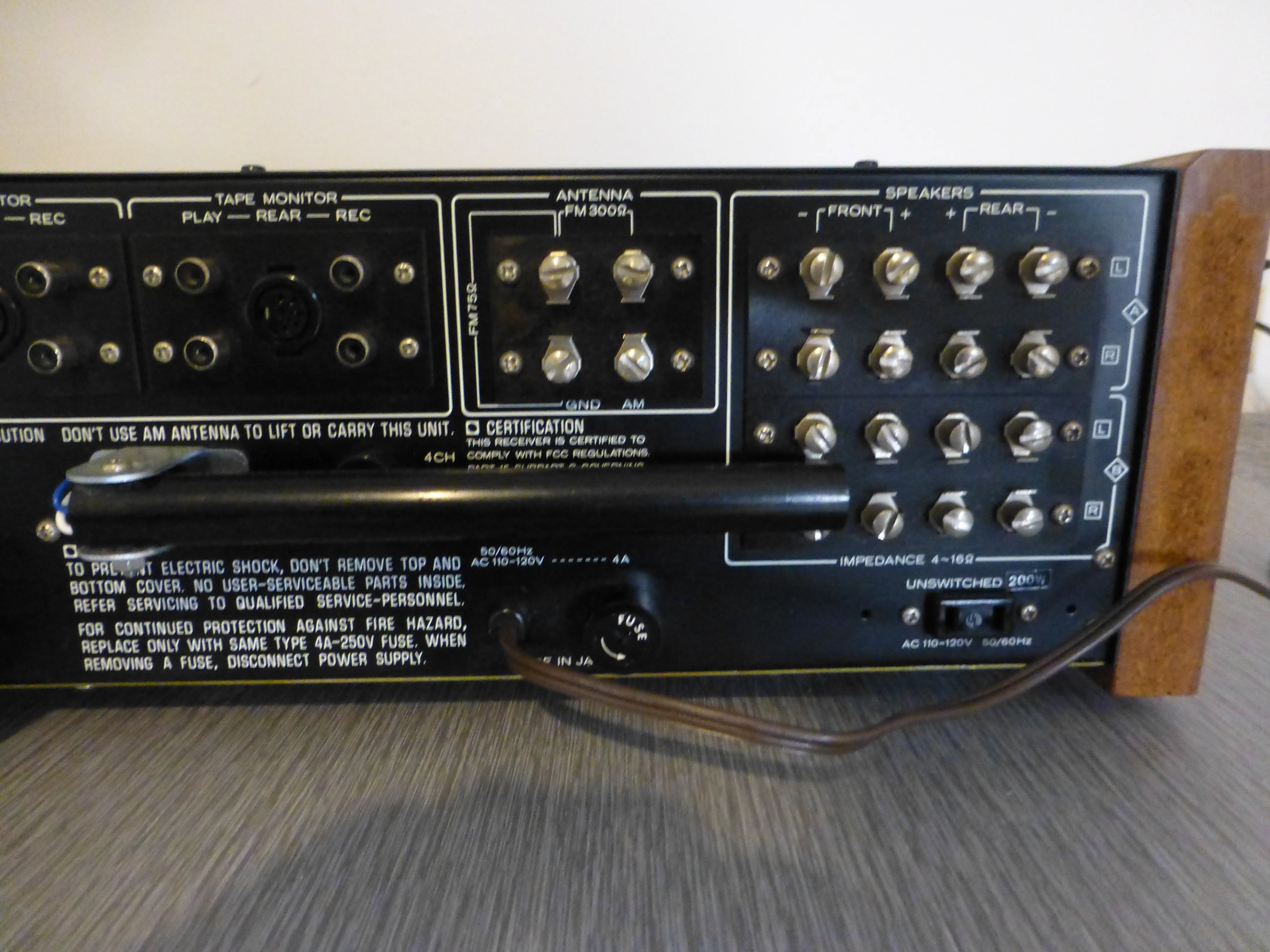

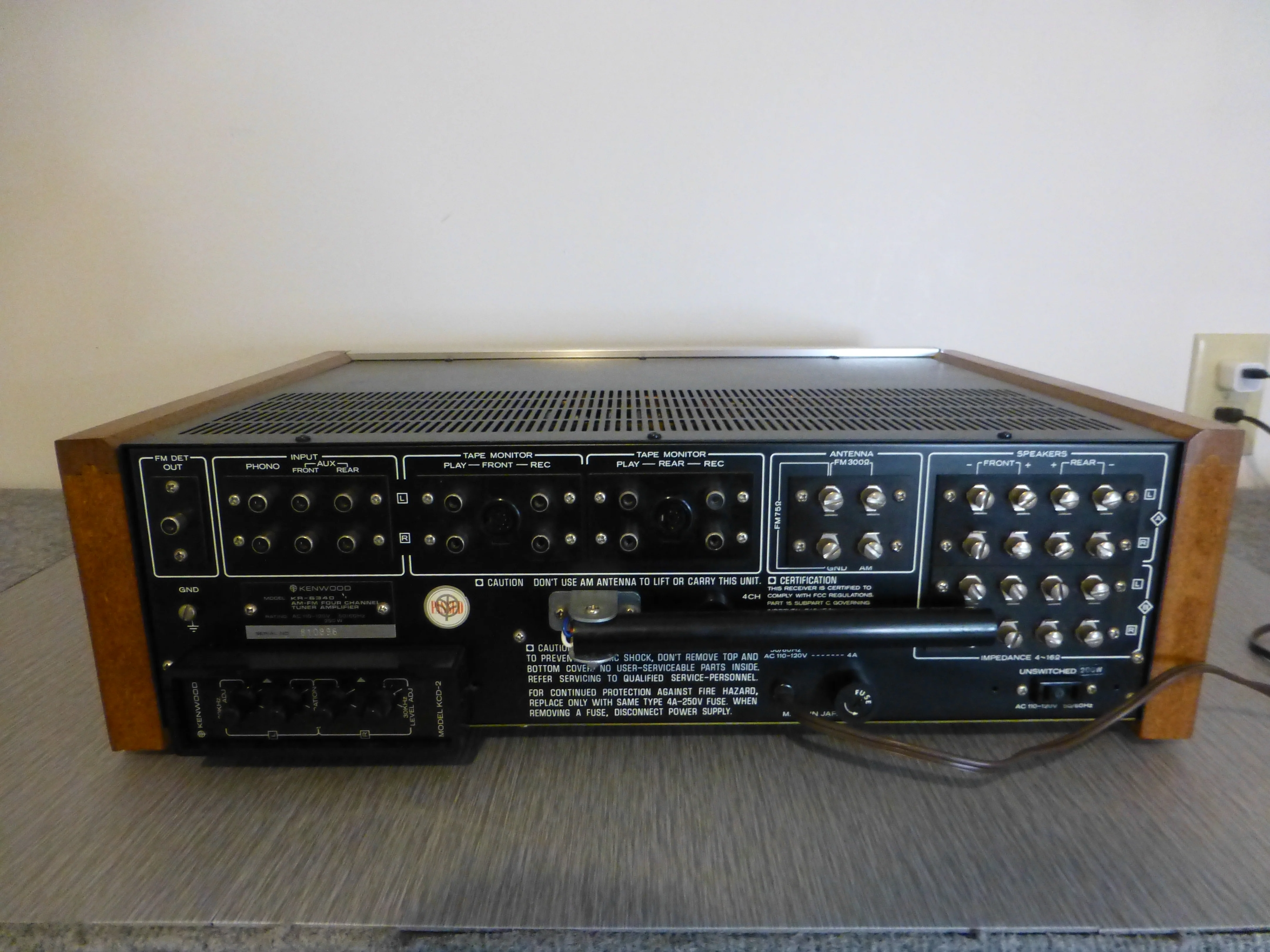

Two pairs of speaker terminals are available to permit simultaneous listening at two different places.

A double switching demodulator is used in the MPX section to prevent carrier leaks and ensure the best sound quality.

Specifications

Tuning range: FM, MW

Power output: 40W/ch (stereo), 15W/ch into 8Ω (quadraphonic)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.8%

Damping factor: 20

Input sensitivity: 1.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 60dB (MM), 75dB (DIN), 75dB (line)

Output: 150mV (line), 40mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 555 x 160 x 360mm

Weight: 15kg
