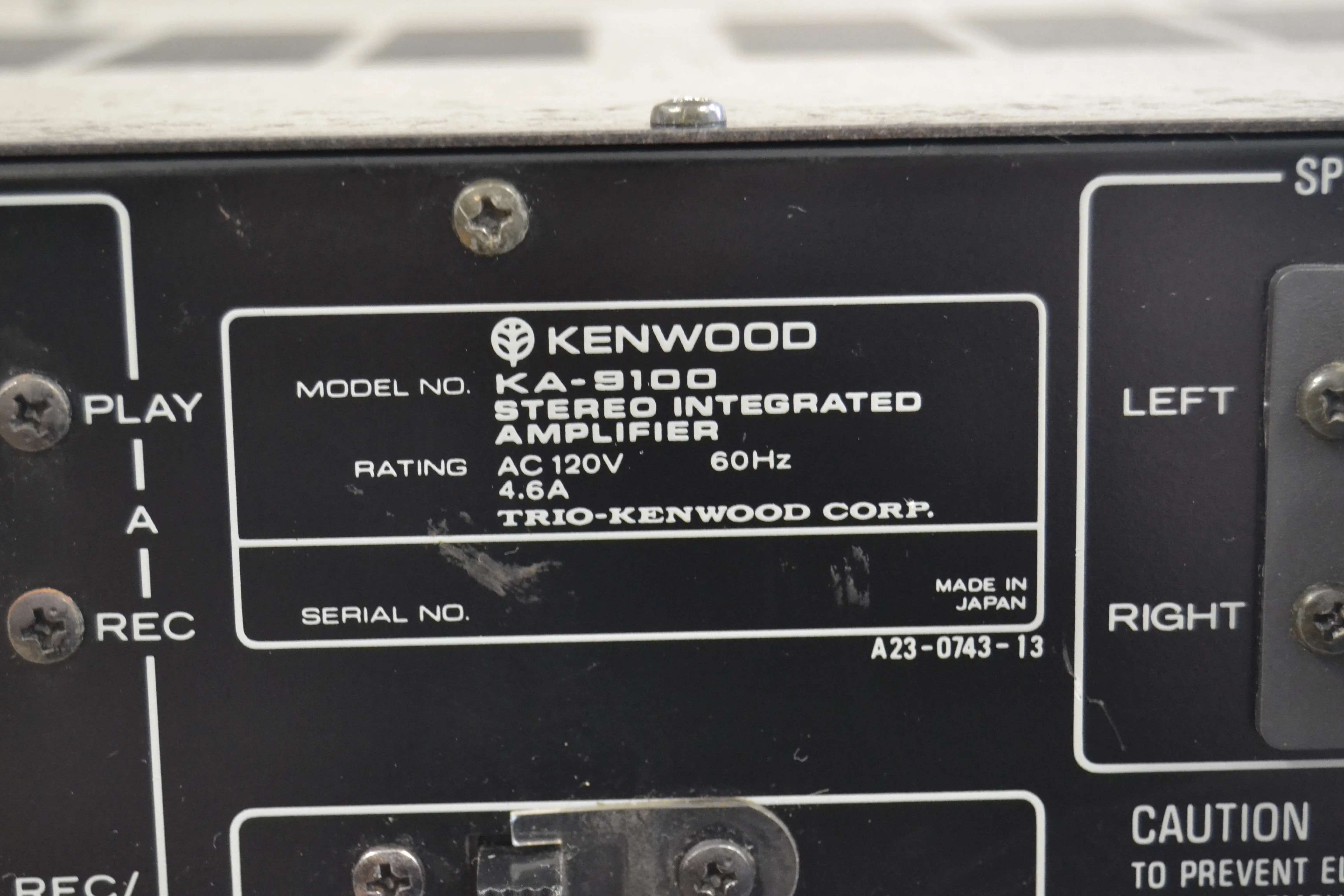

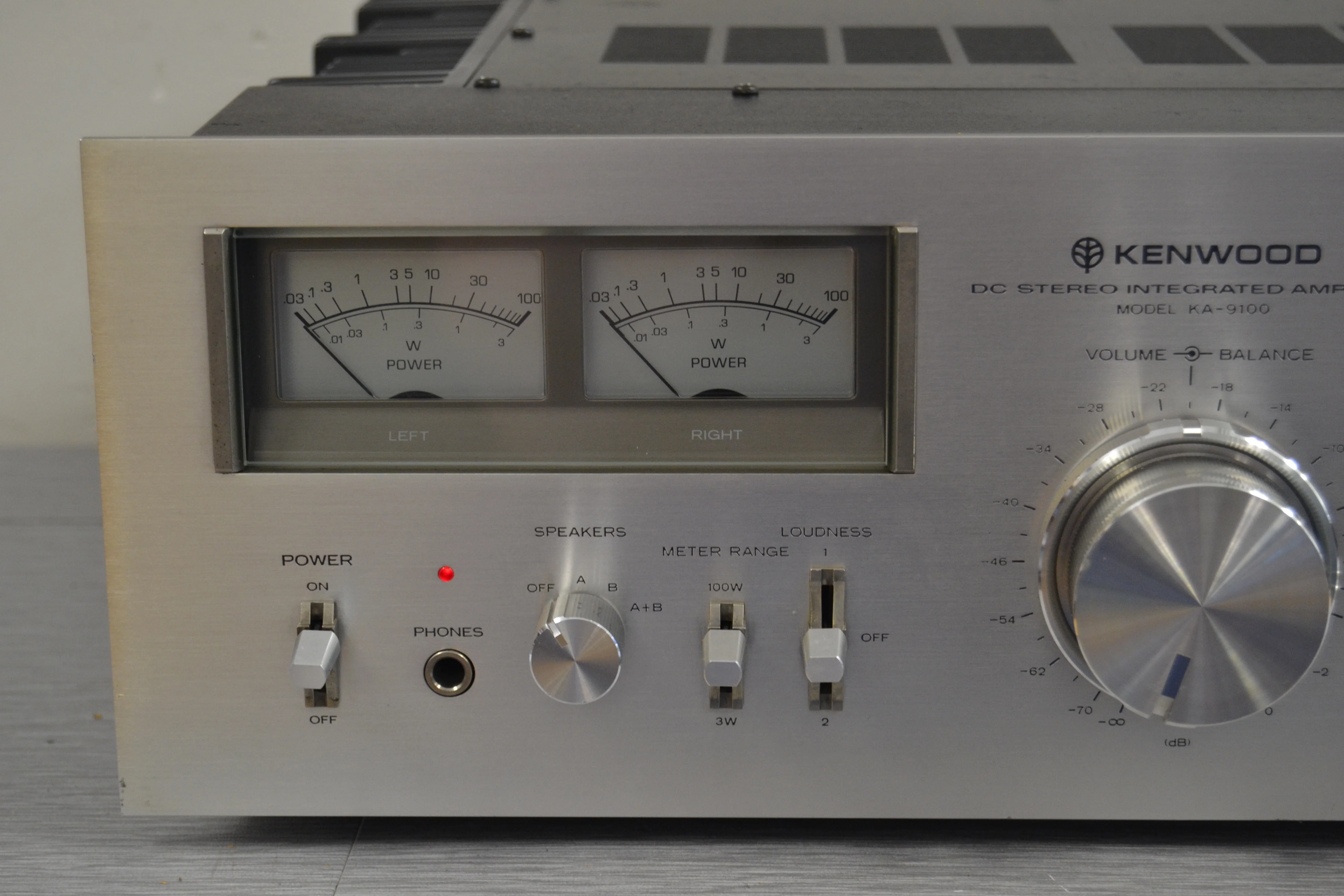

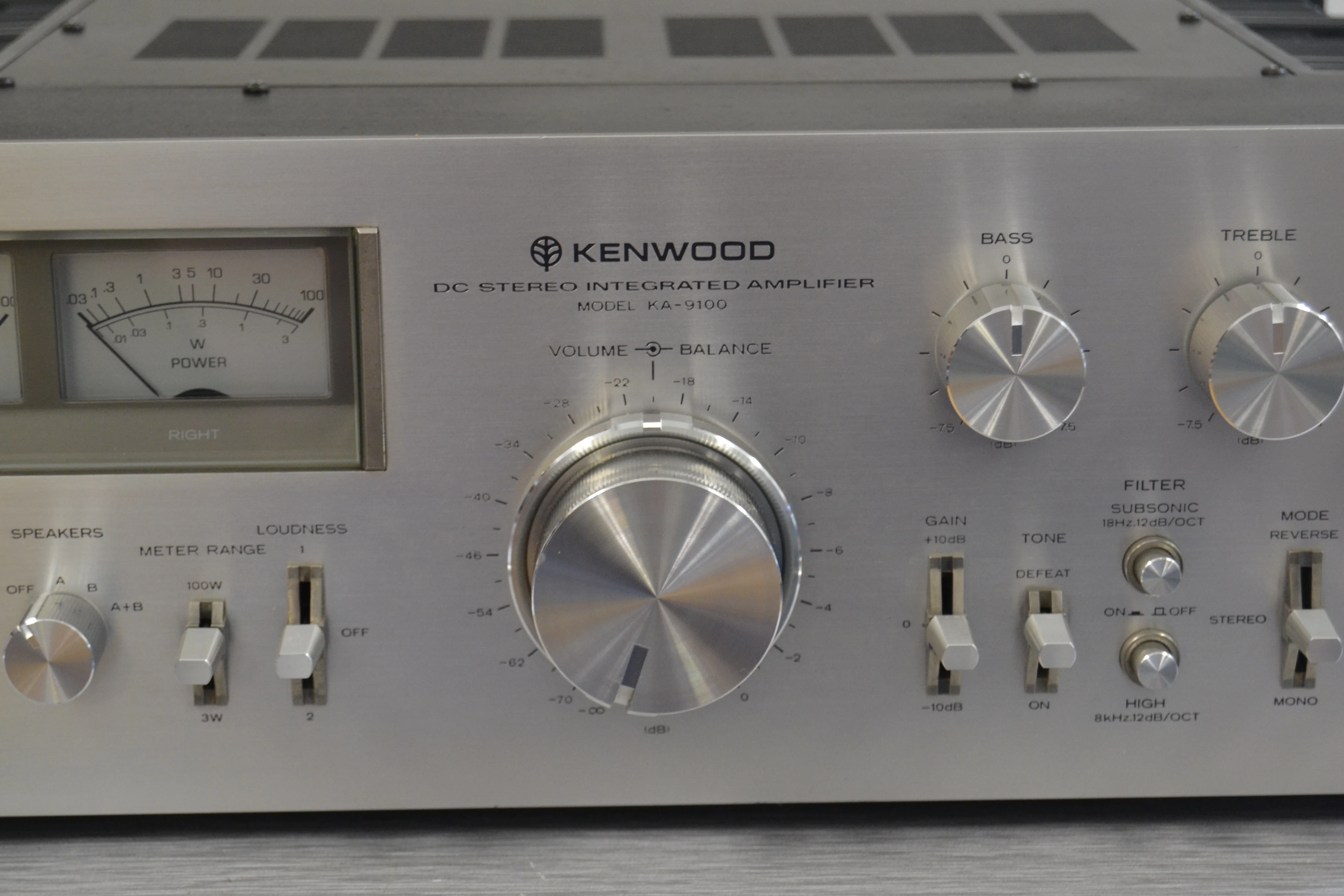

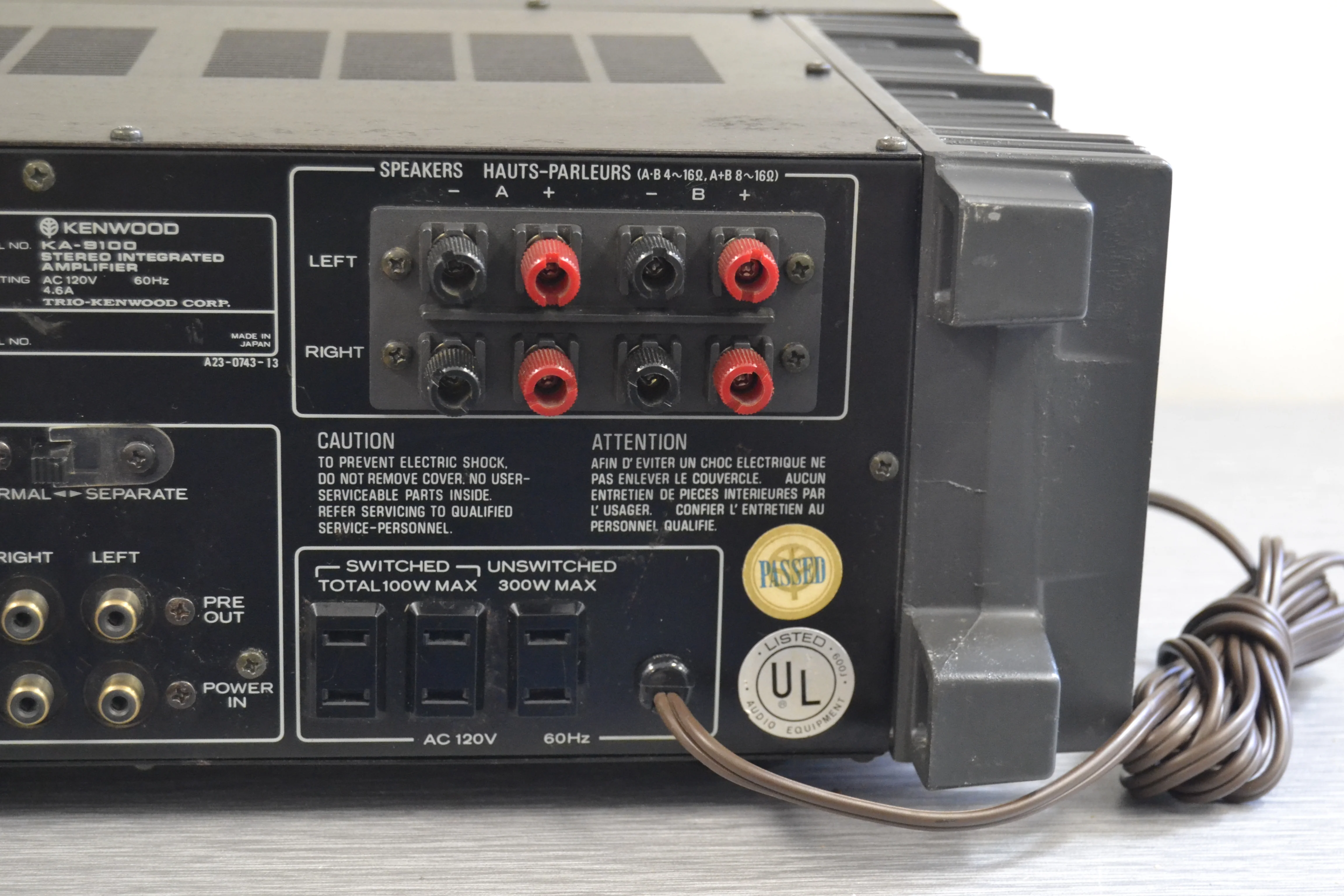

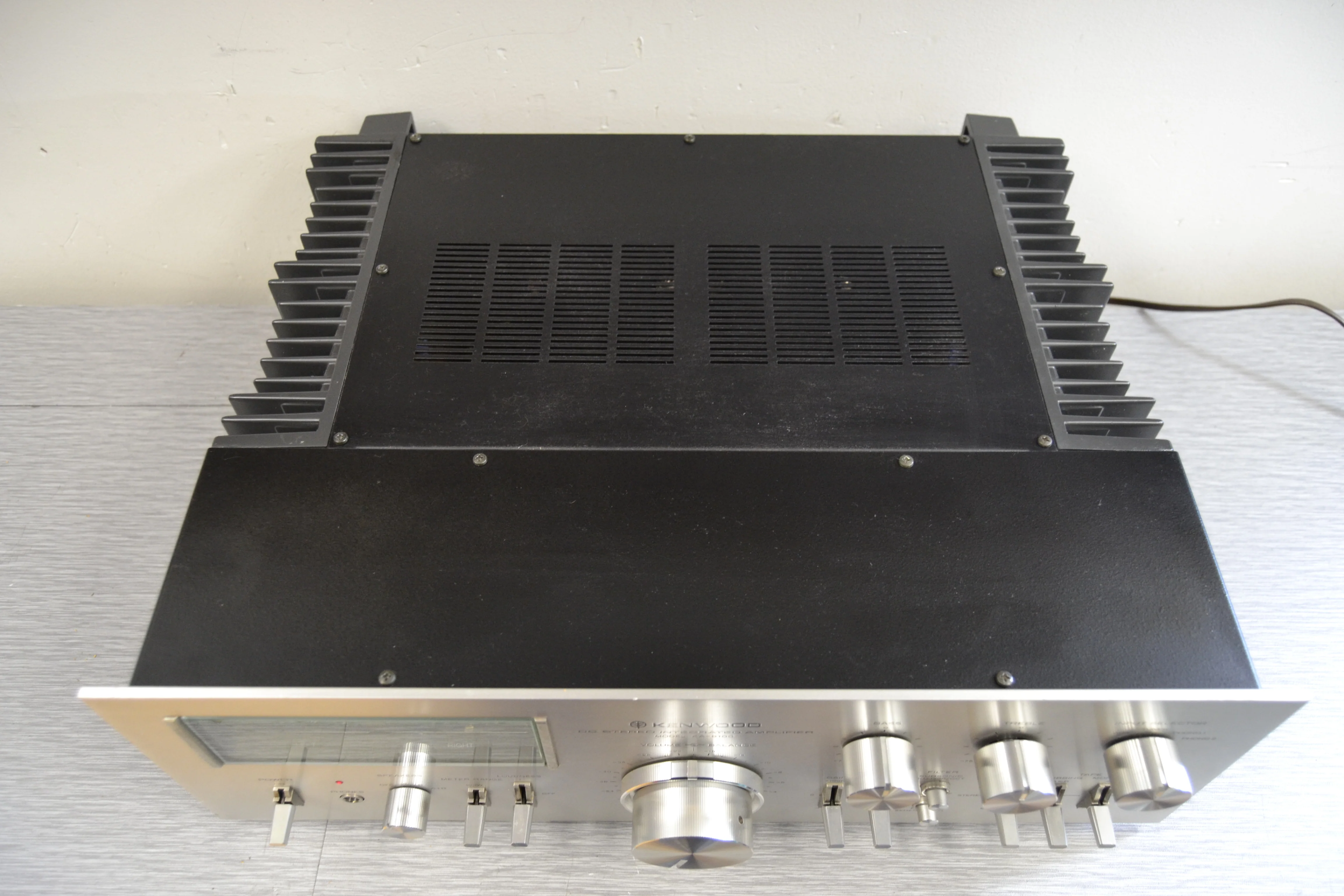

Kenwood KA-9100

DC Stereo Integrated Amplifier (1977-79)

Specifications

Power output: 90 watts per channel into 8Ω (stereo)

Frequency response: 7Hz to 50kHz

Total harmonic distortion: 0.03%

Damping factor: 50

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 83dB (MM), 100dB (line)

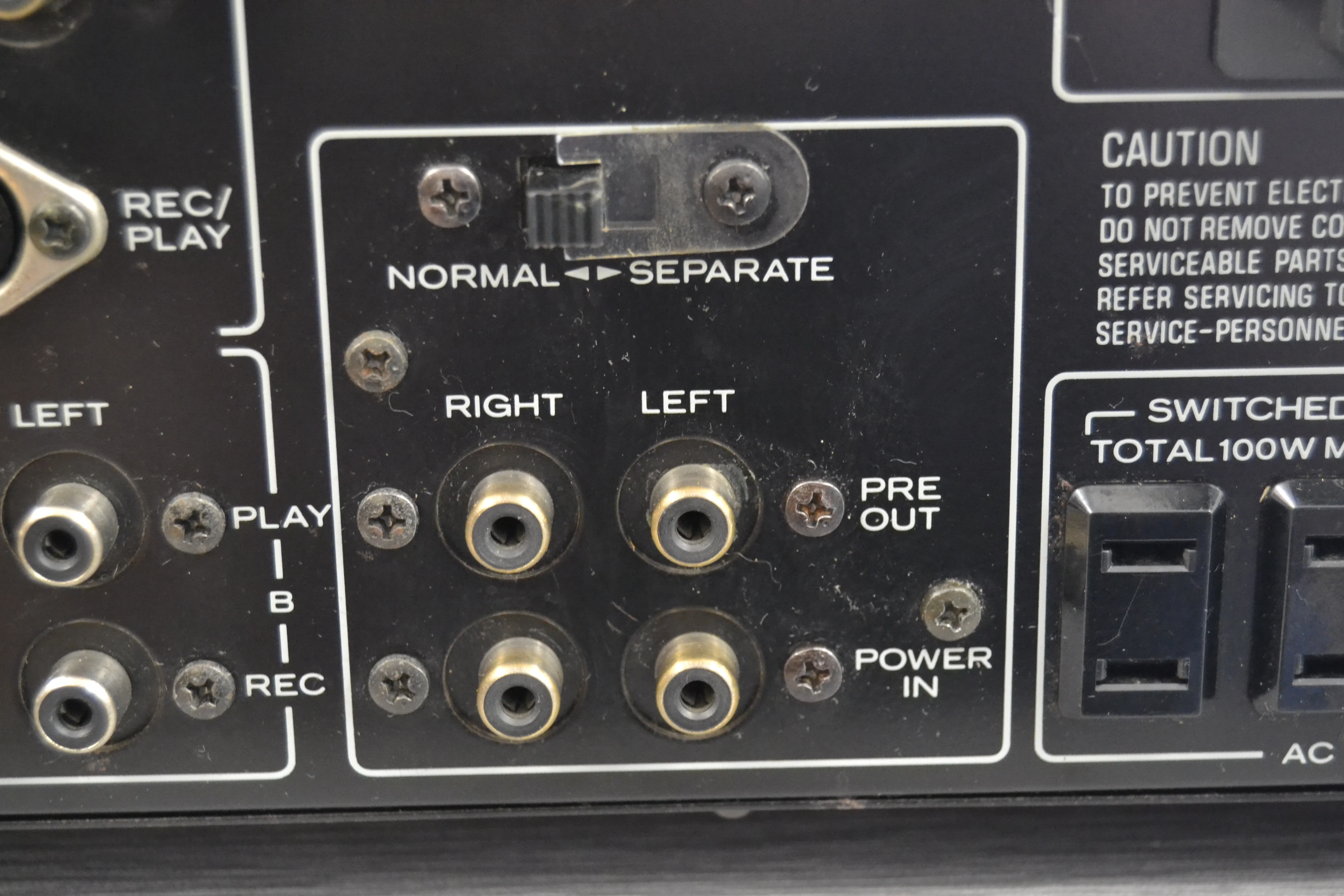

Output: 1V (Pre out)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 430 x 149 x 384mm

Weight: 16.7kg

Year: 1977
