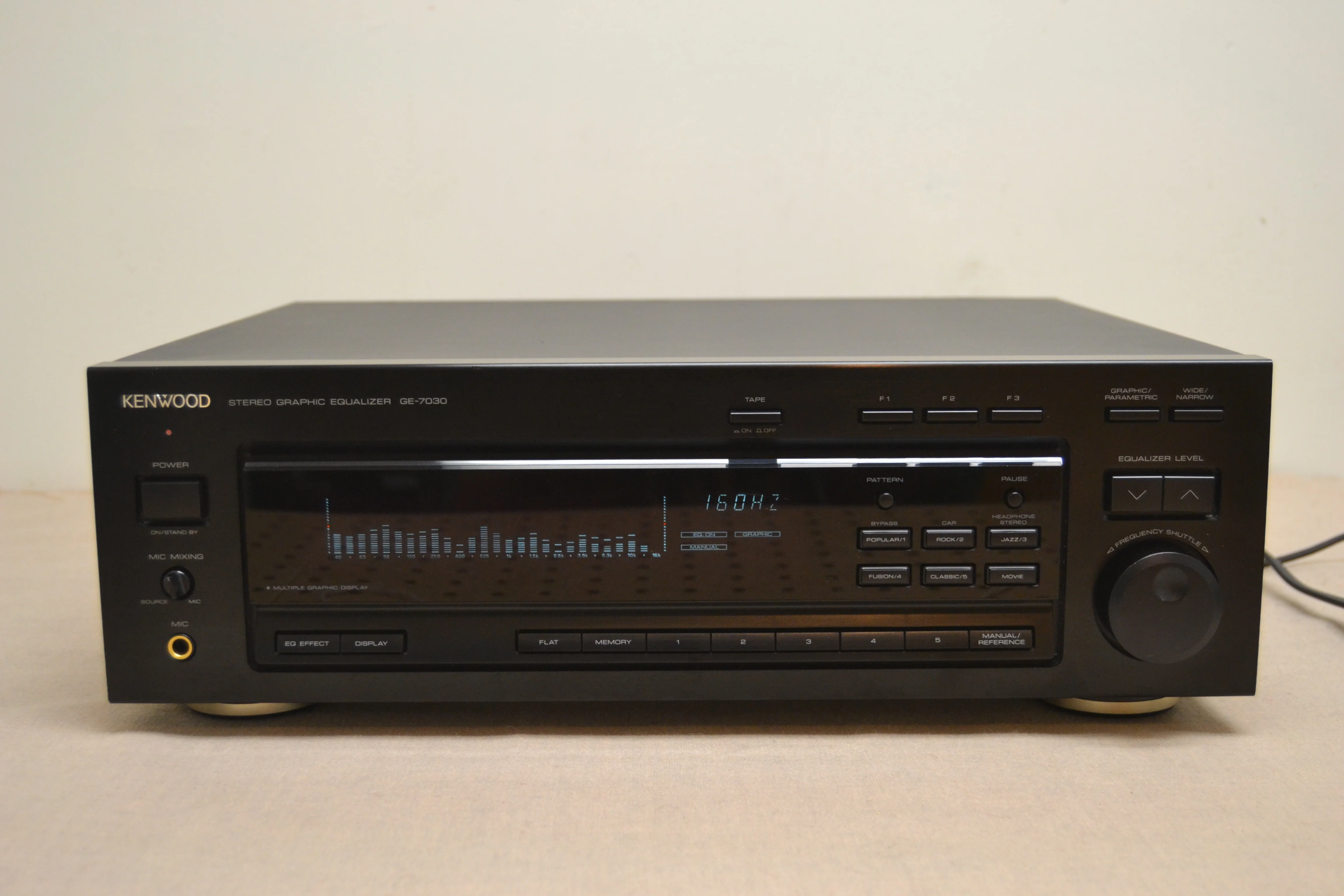

Kenwood GE-7030 Graphic and Parametric Equalizer * Spectrum Analyzer

The Kenwood GE-7030 features a 14-band graphic equalizer, a 3-band parametric equalizer, a built-in spectrum analyzer, 30 music presets, and a microphone mixing facility. It has a 10Hz to 70kHz frequency response, ±12dB control range, ultra-low distortion of less than 0.006%, and a 100dB signal-to-noise ratio.

Key Features

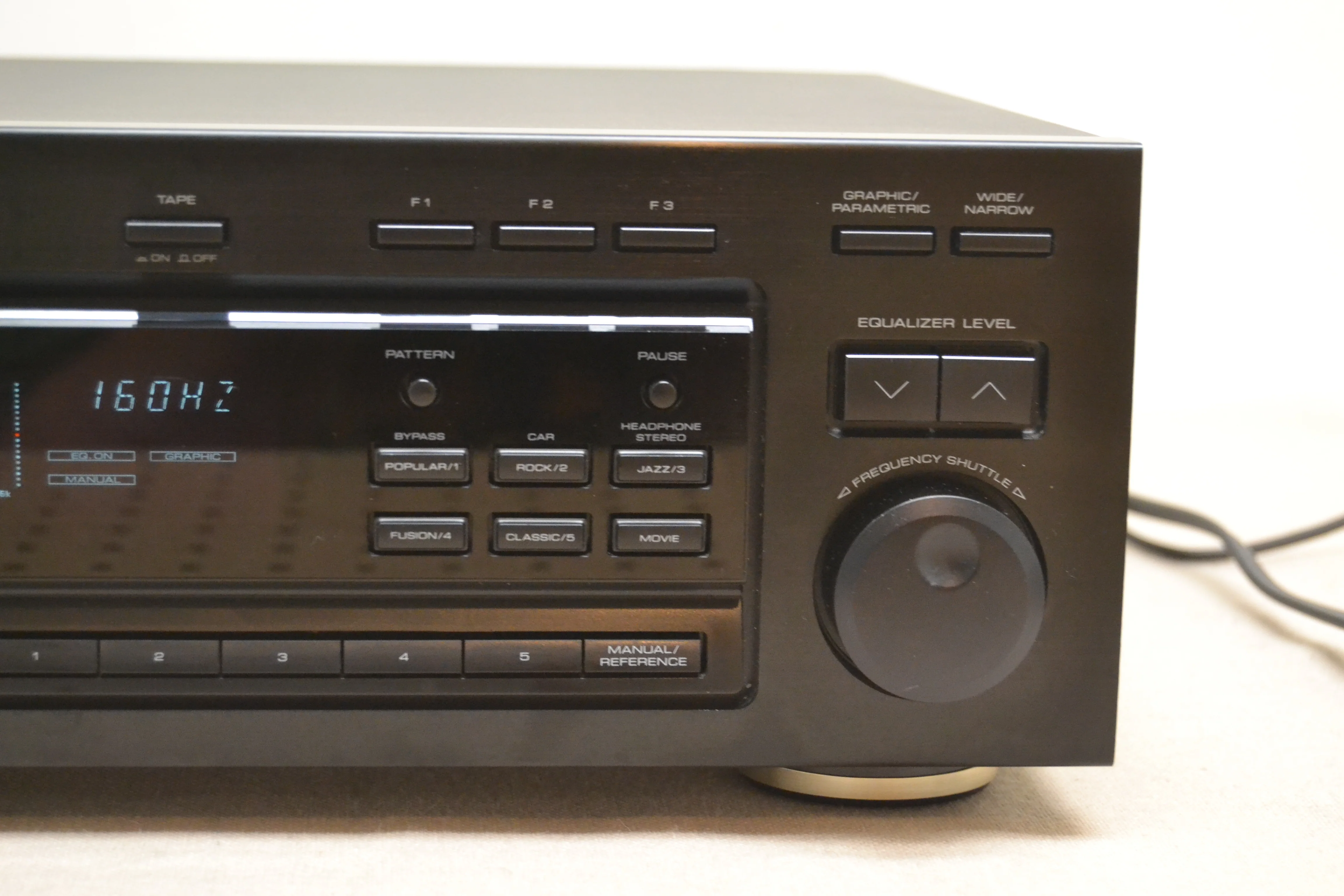

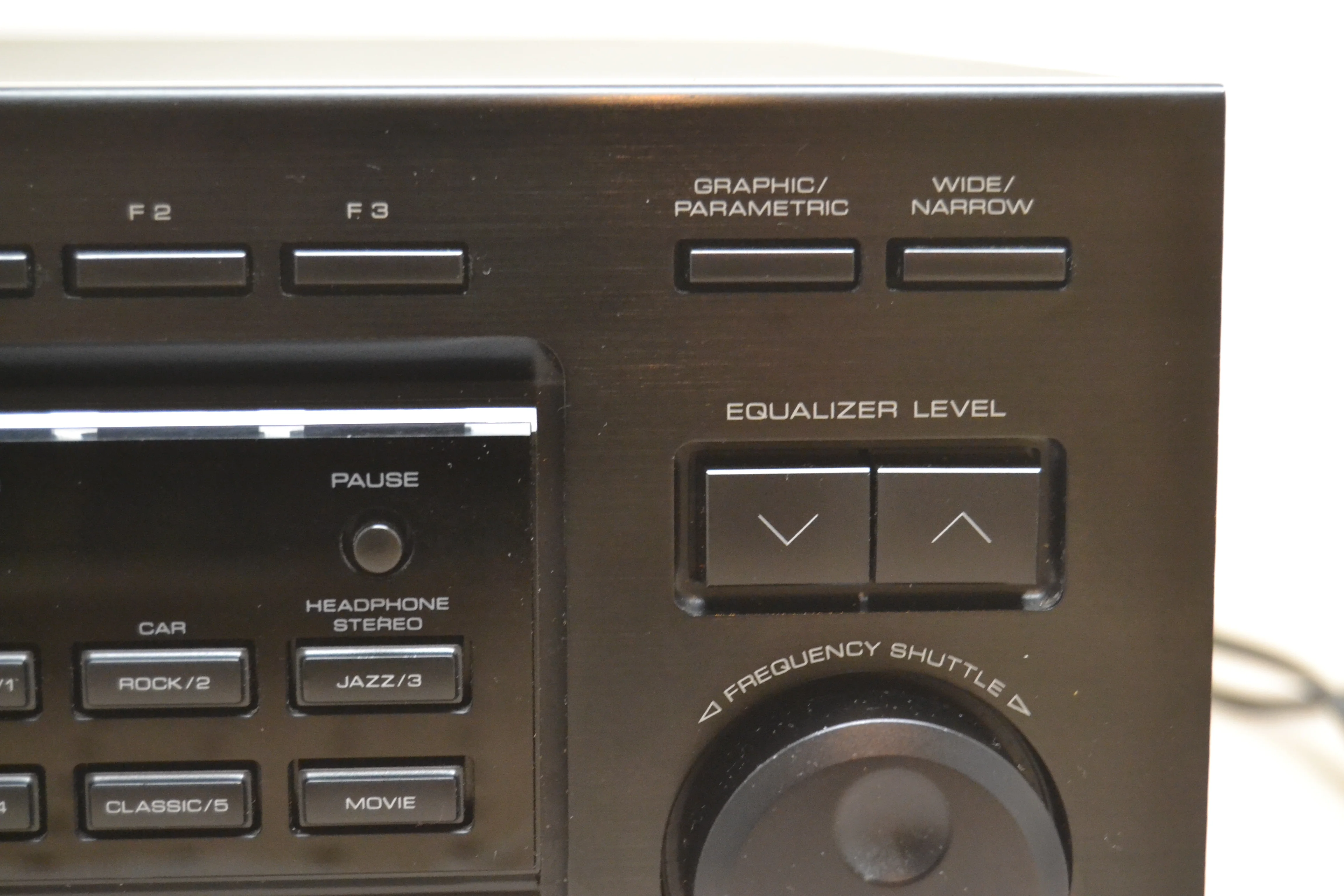

Graphic Equalizer: 14-band graphic equalizer with easy shuttle dial control.
Parametric EQ: A 3-band parametric mode for pinpoint frequency control.

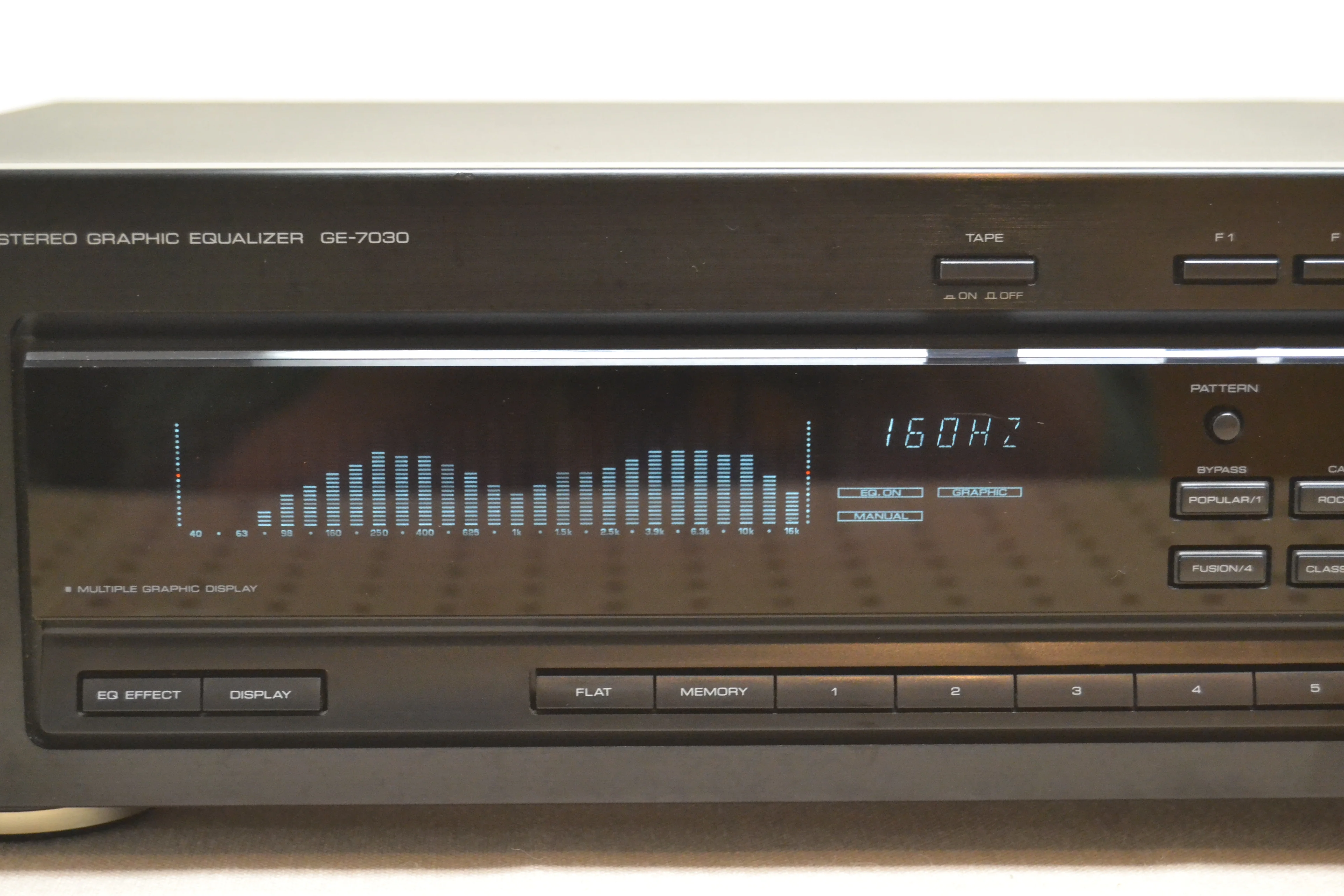

Spectrum Analyzer: A built-in spectrum analyzer displays music energy in 27 frequency bands.

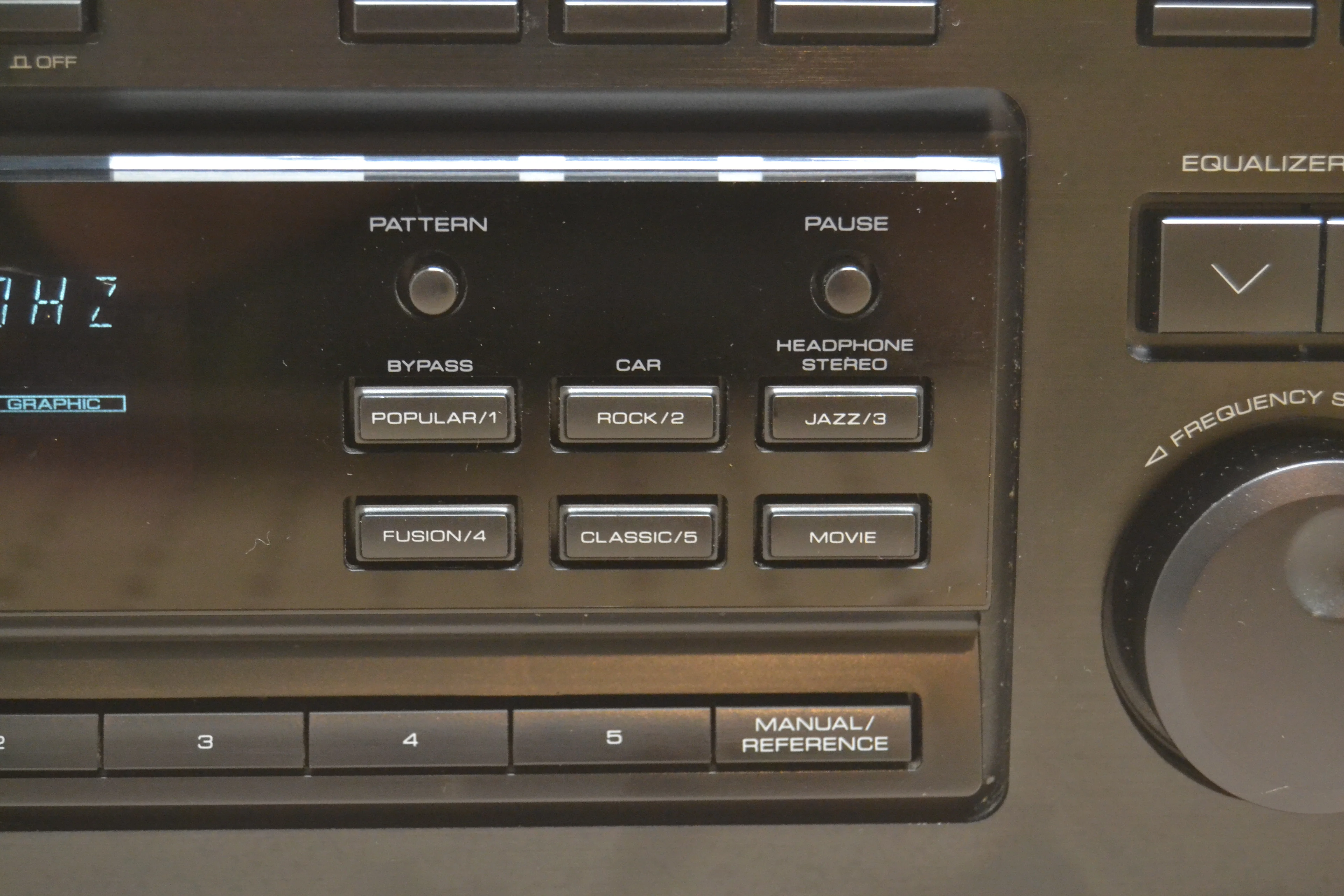

Presets: 30 memorable presets with 6 settings for different music types, each with 5 equalized patterns.

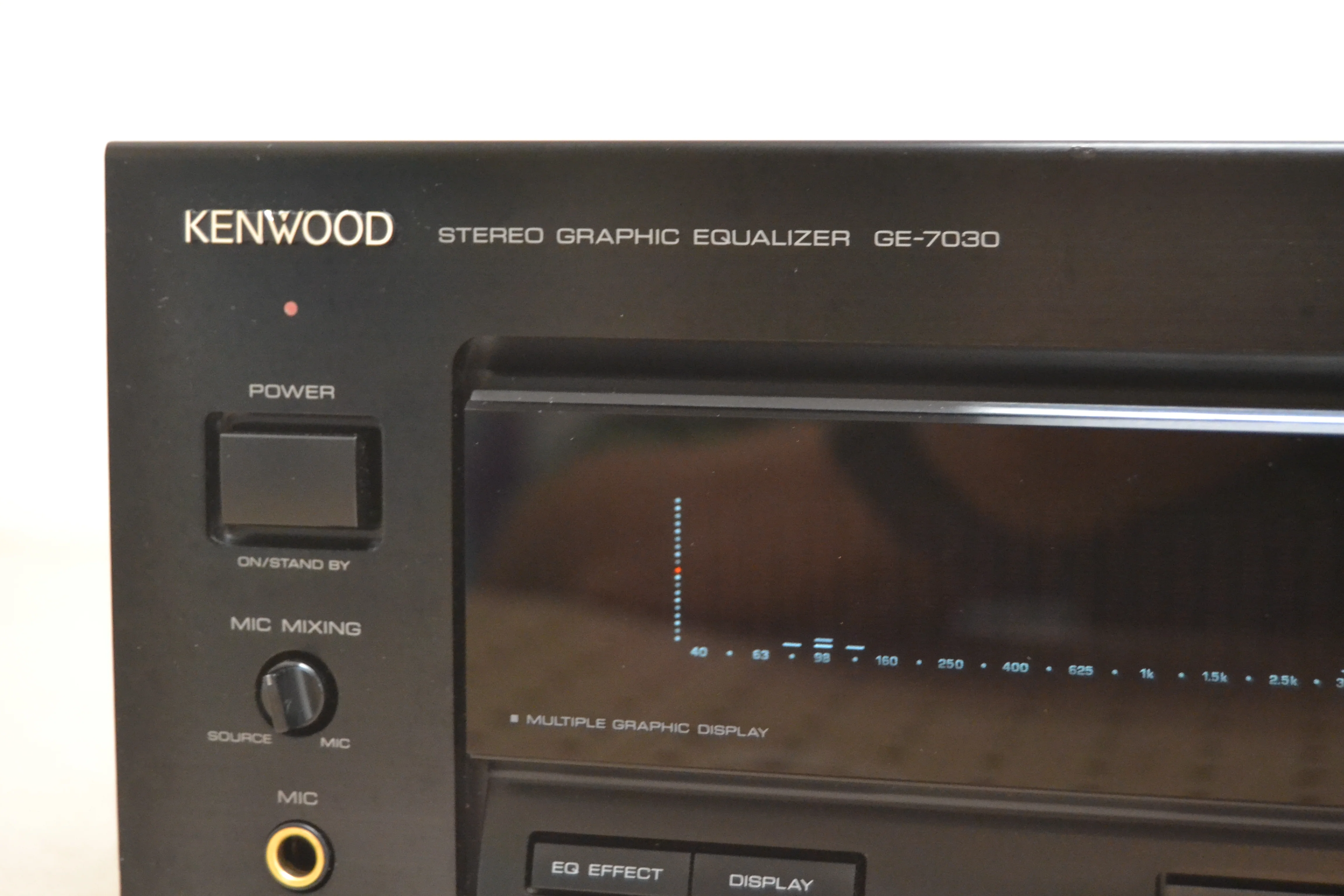

Microphone Mixing: Allows for microphone mixing.
Sound Quality: Delivers a frequency response of 10Hz to 70kHz, ±12dB control range, and ultra-low THD of <0.006%.

Technical Specifications
Frequency Response: 10Hz to 70kHz
Signal to Noise Ratio: 100dB
Total Harmonic Distortion (THD): <0.006%
Control Range: ±12dB
Frequency Bands: 14 bands at specific frequencies including 40, 63, 100, 160, 250, 400, 625, 1kHz, 1.5kHz, 2.5kHz, 3.9kHz, 6.3kHz, 10kHz, and 16kHz.
Dimensions & Weight
Dimensions: 440 x 148 x 376mm
Weight: 5.1kg
