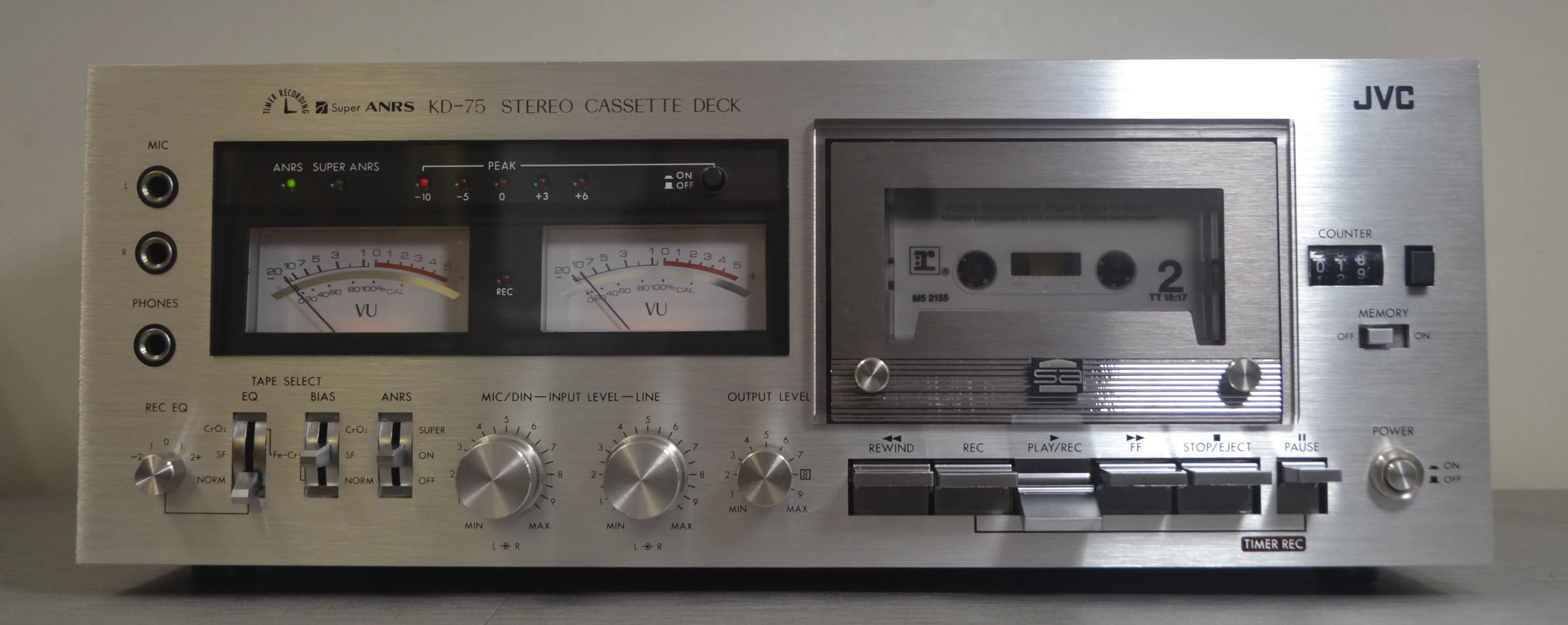

JVC KD-75

Stereo Cassette Deck (1977)

Description

The KD-75 features a SEN-Alloy head, a revolutionary head combining the sound quality of permalloy heads and the long life of ferrite heads.

Other features include ANRS and Super ANRS, defeatable multi-point peak level indicators, high-frequency response compensator switch, mixing microphone switch, vertical cassette loading, dual ball cassette holder, air damped cassette door and highly effective VU meters with mirrors.

Specifications

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: electronic governor DC

Tape Type: type I, CrO2

Noise Reduction: ANRS

Frequency Response: 20Hz to 18kHz  (Cr02 tape)

Signal to Noise Ratio: 62dB  (ANRS)

Wow and Flutter: 0.06%

Total Harmonic Distortion: 1.2%

Input: 80mV (line), 0.2mV (mic)

Output: 0.5V (line)

Semiconductors: 8 x IC, 29 x transistors, 38 x diodes, 1 x SCR

Dimensions: 420 x 161 x 333mm

Weight: 7.8kg
