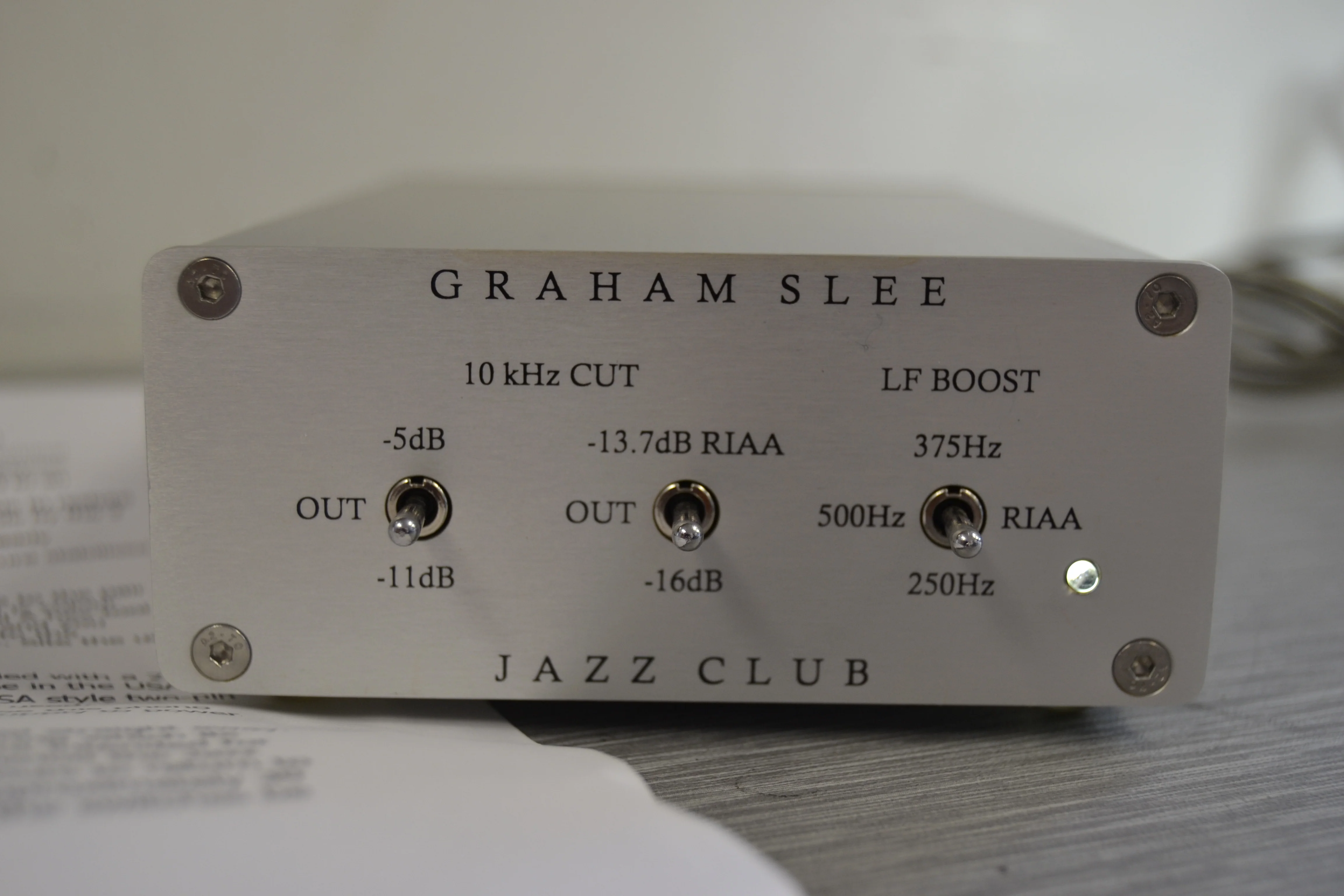

Graham Slee JAZZ CLUB Phono Stage

Bringing New Life to Old Records
- and modern records too!

The Jazz Club phono preamp will put new life into the sound of your old records: 78s; early vinyl LPs and EPs.

It does so by restoring their original tonal balance - something a modern phono preamp cannot do.

It also has the correct tonal settings (RIAA) for newer records meaning you only need this phono preamp for all your record collection.

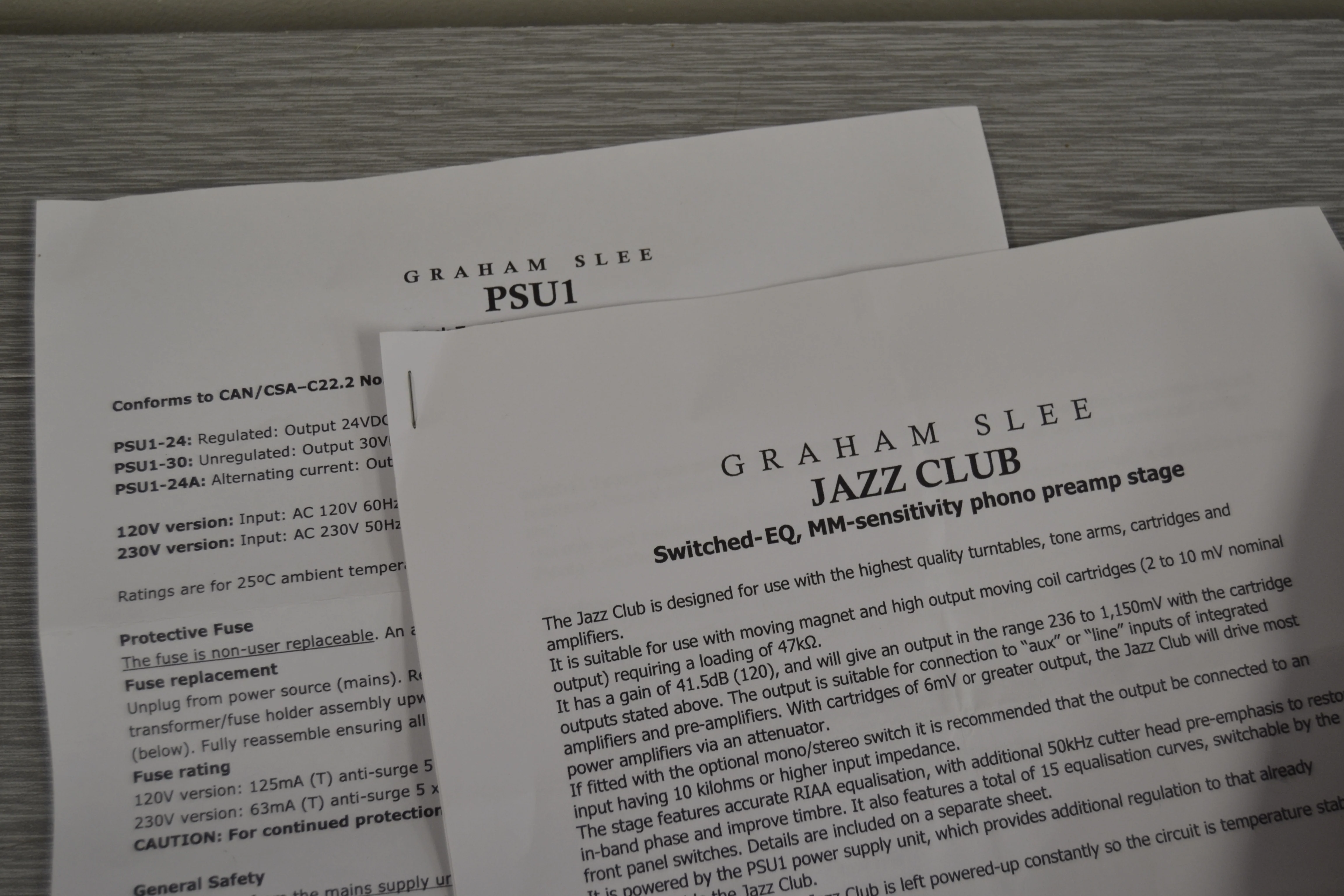

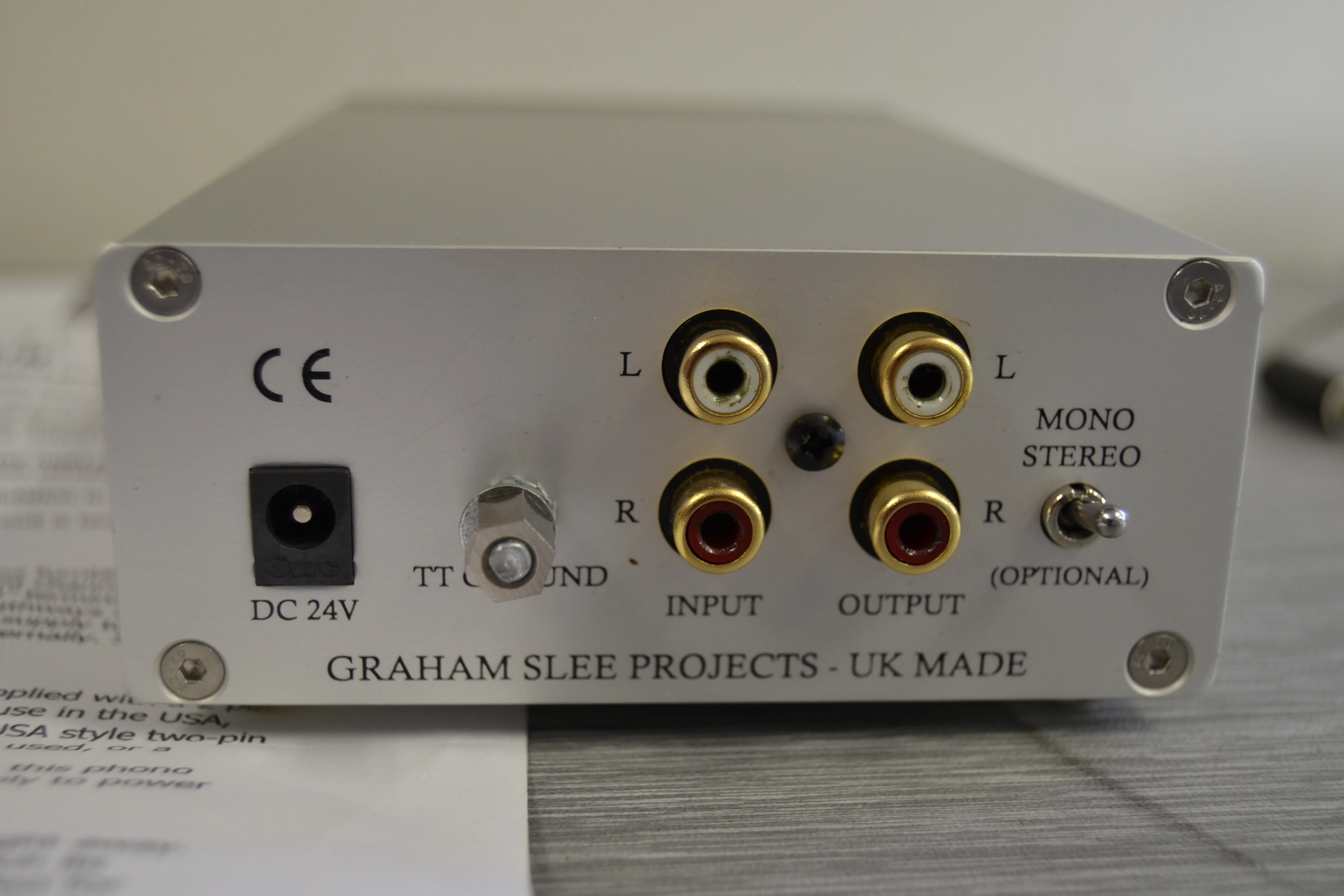

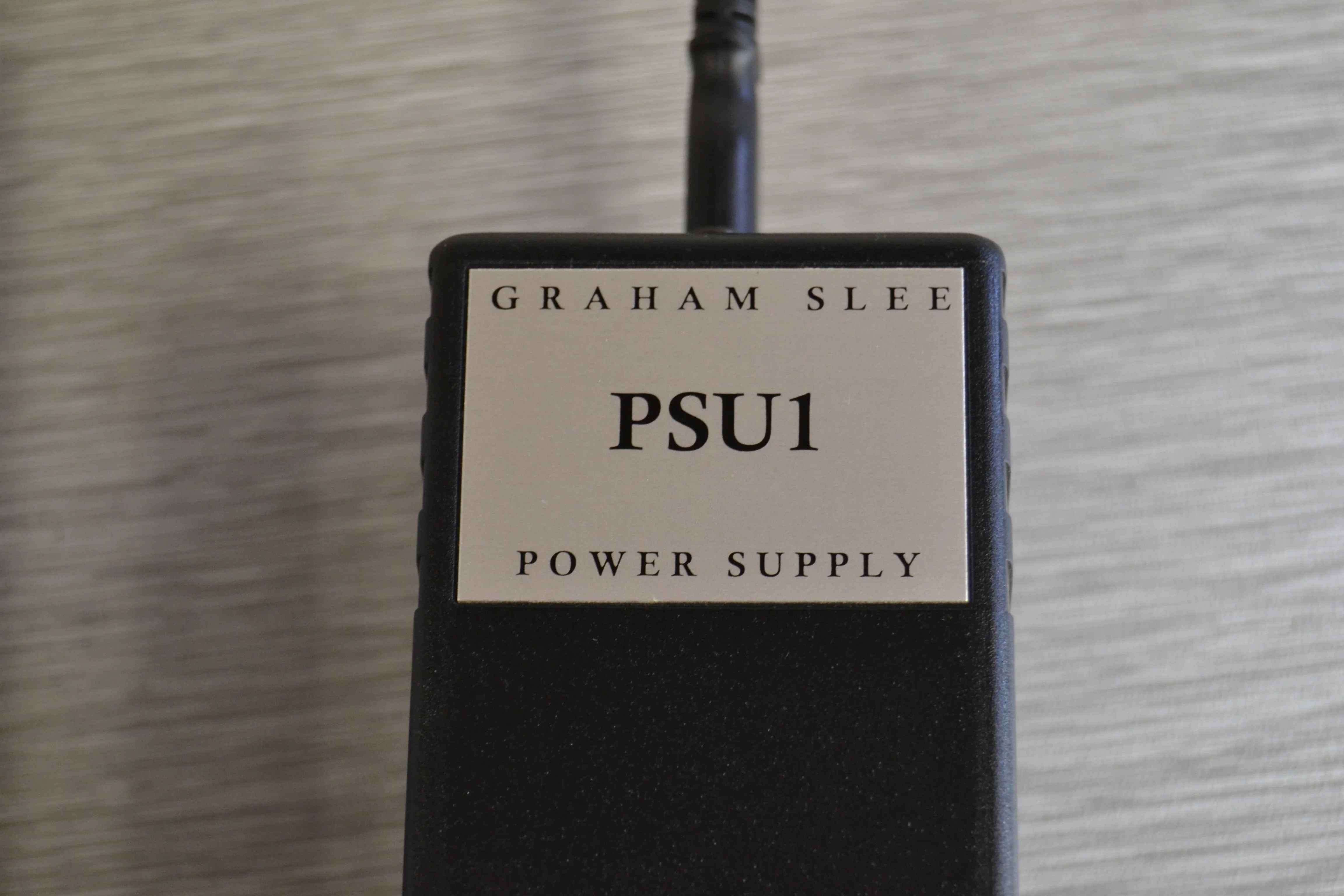

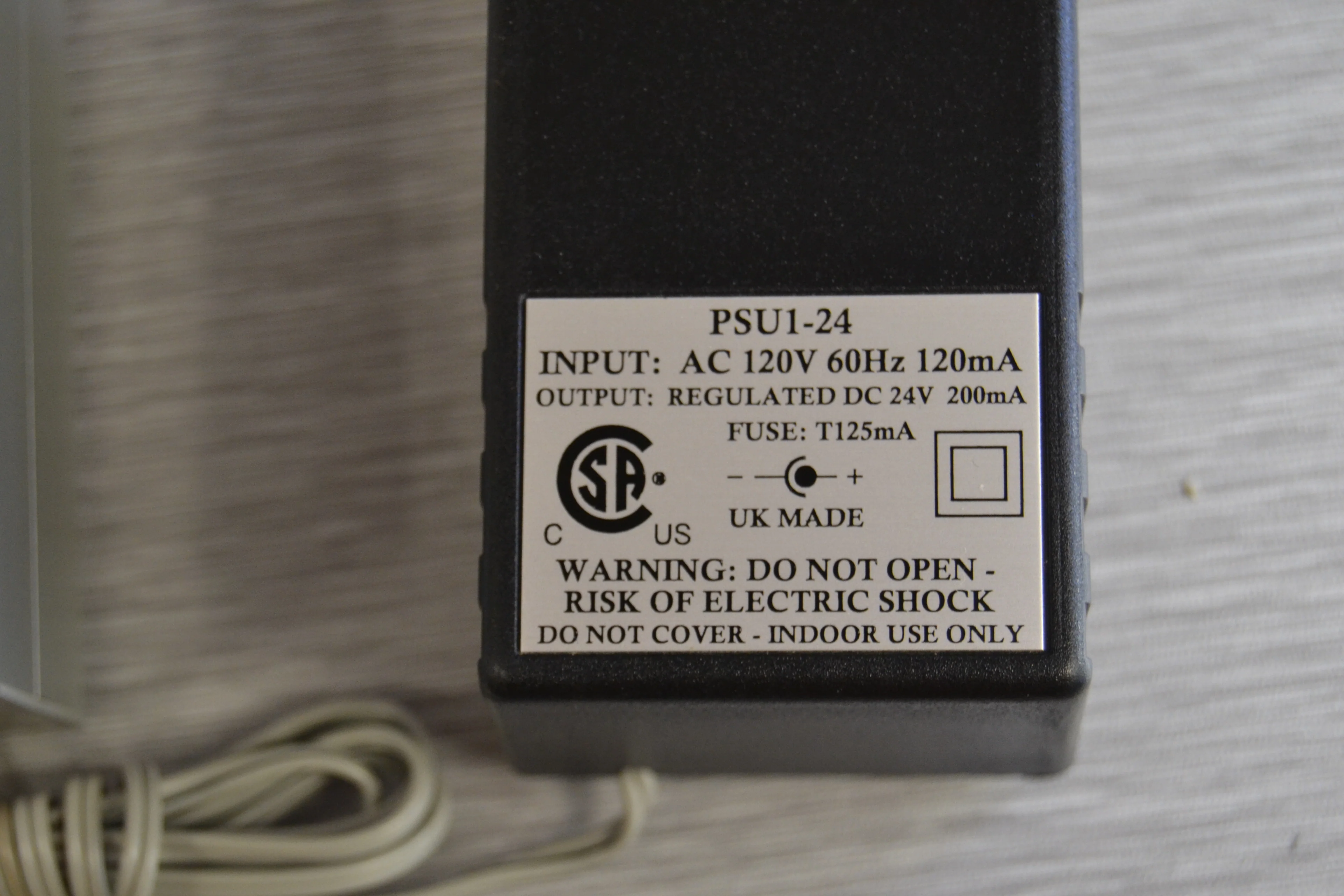

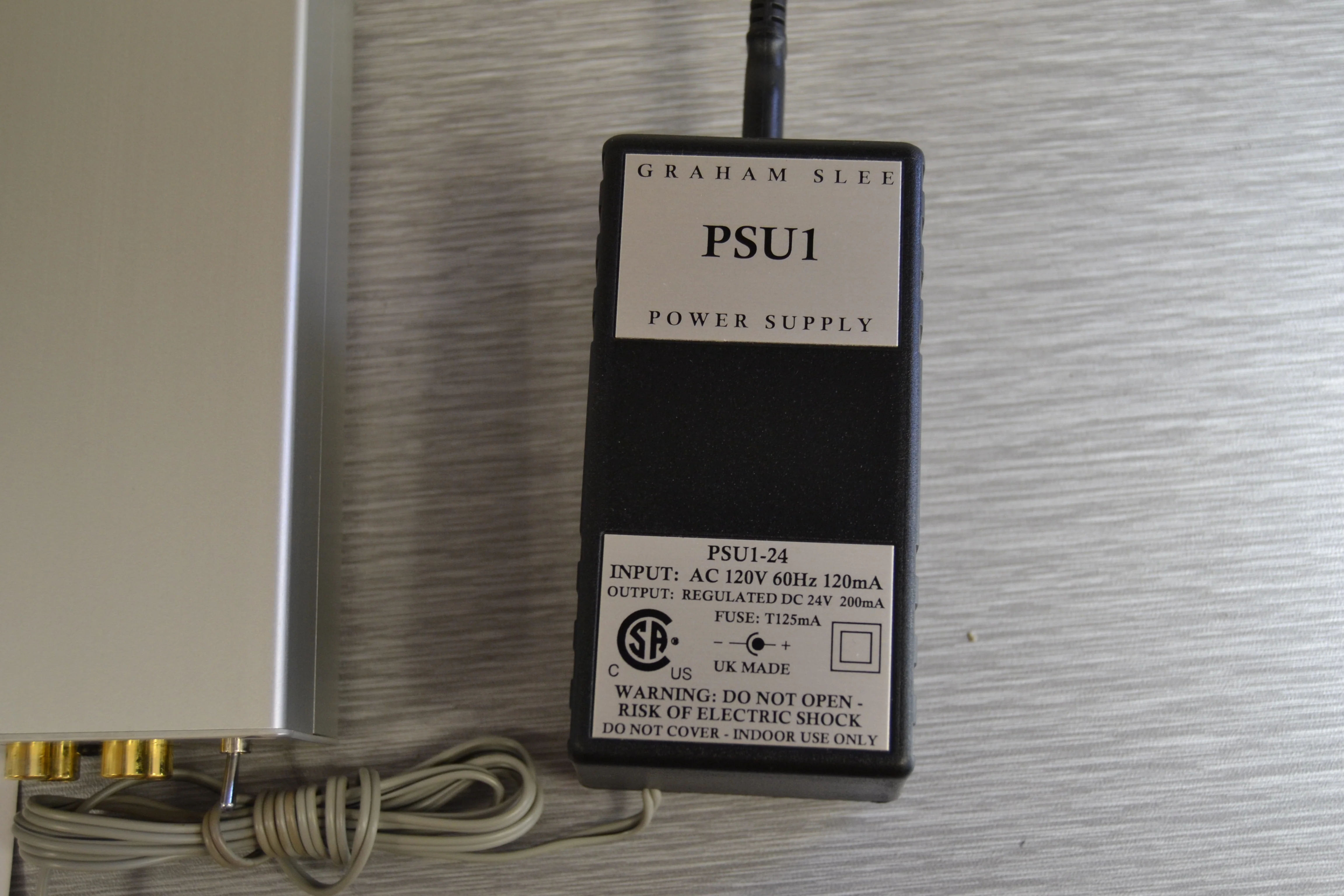

The Jazz Club is supplied with the PSU1 power supply and is fitted with a rear panel mono-switch. Plus you'll get an Old Record EQ information sheet, and more information on old record EQ can be found here.

Specification

Item	Measurement
Input range	2mV to 10mV
Output (for input range)	252mV to 1,260mV (1.26V)
Maximum input	39mV rms
Maximum output	4.914V rms
Gain	42dB (126) at 1kHz
Input impedance	47k Ohms plus 100pf
Output (driving/source) impedance	1.2k Ohm
Recommended load impedance	10k Ohm or greater
Noise at output	-65dB CCIR Q-pk
Distortion	0.02%
EQ curve accuracy	< 0.5dB
Channel balance	0.2dB
Channel separation	64dB
Size (approx.)	W: 107 x H: 50 x D: 180 (mm) inc. jacks
