Original: $800.00
-70%$800.00
$240.00The Story
NO SHIPPING - LOCAL PICKUP ONLYÂ

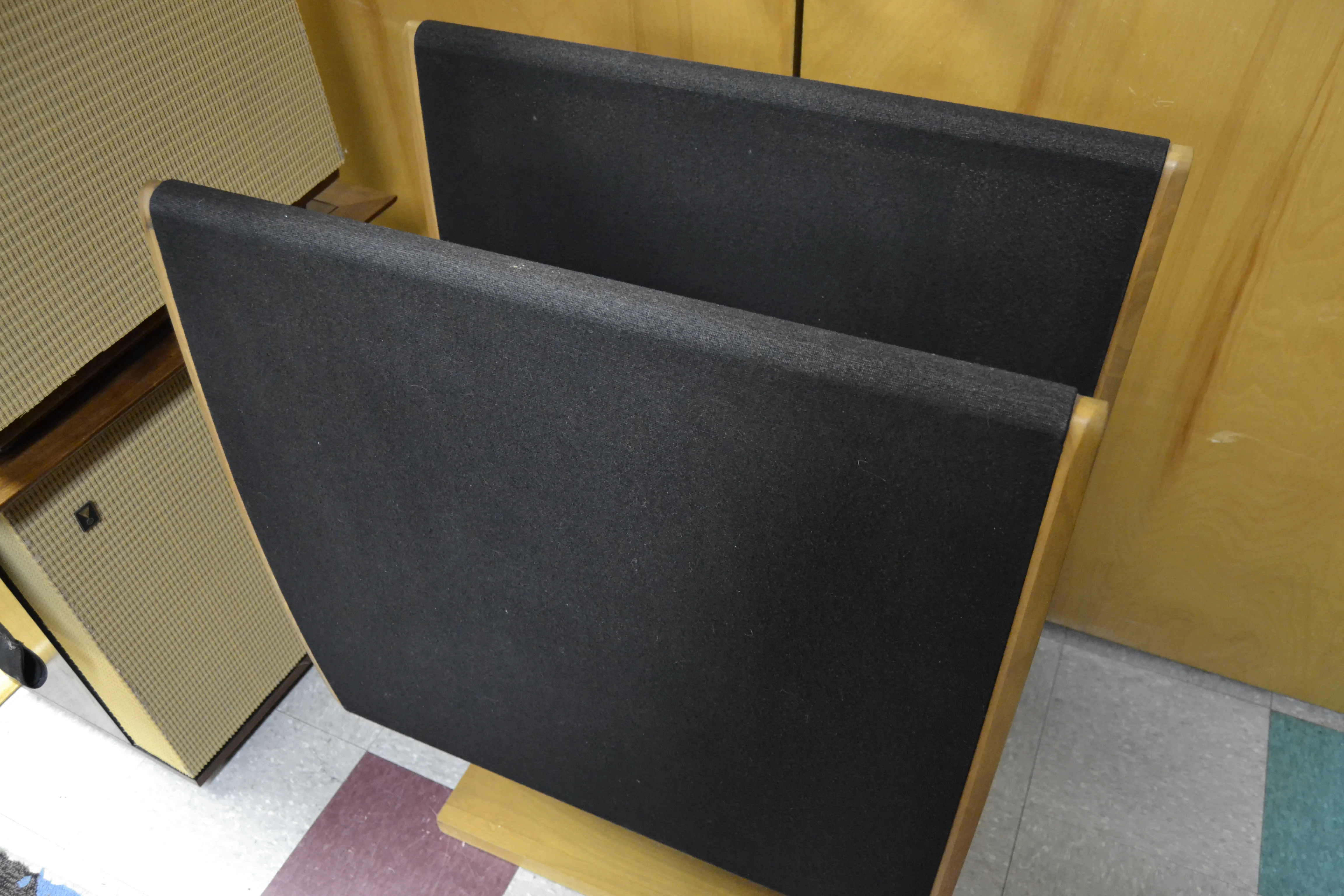

Dahlquist DQ-10
Five Way Dynamic Loudspeaker System
Description
The Phased Array model DQ-10 is a five-way dynamic loudspeaker system.
It's operation is based on patented acoustical techniques which provide very accurate reproduction of source material.

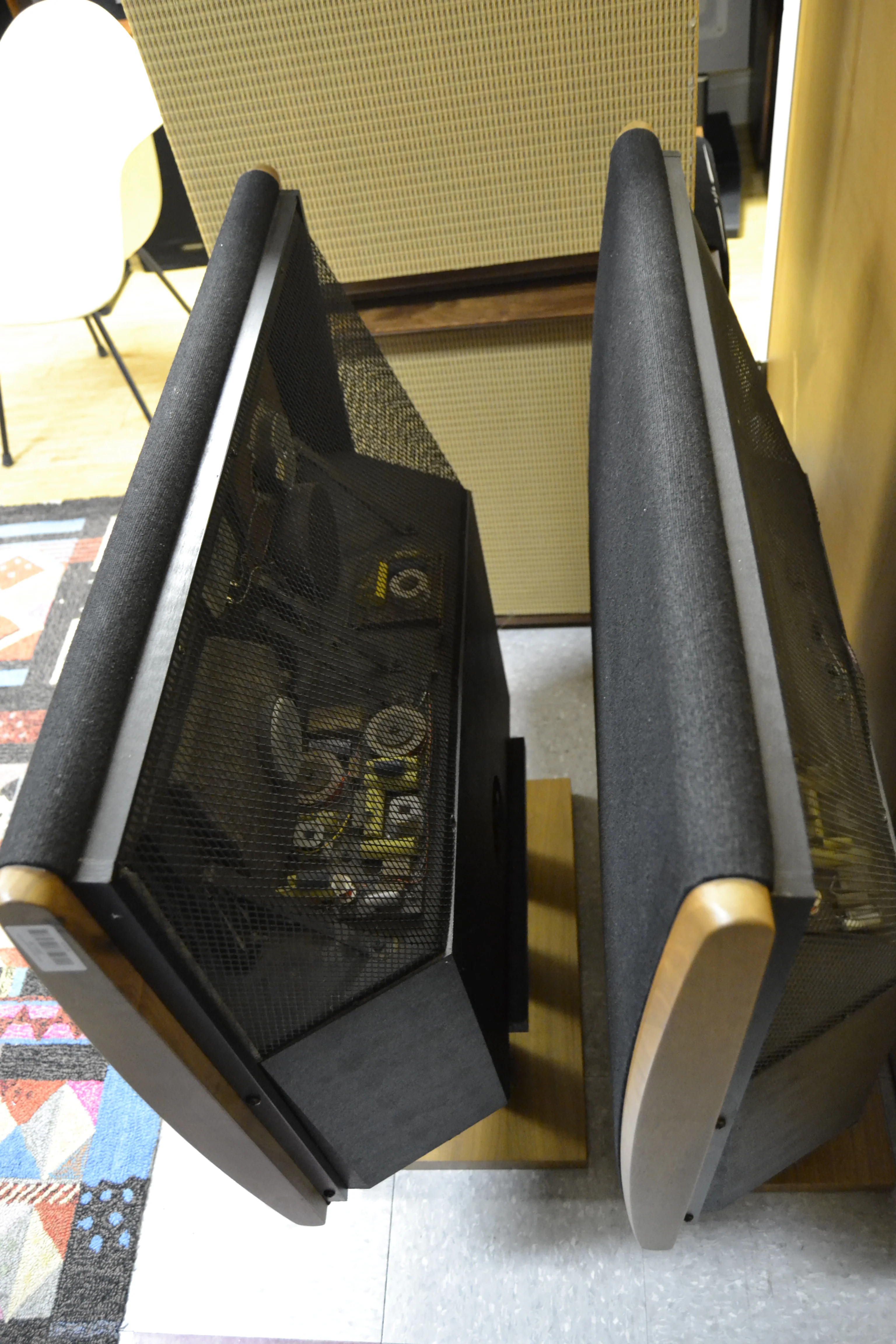

In order to minimize undesirable effects from diffraction, each driver has been separately mounted on the smallest possible baffle, whose dimensions were determined by the frequency range of the passband.
This is directly opposed to the standard practice of mounting the drivers on one relatively large baffle.
The mounting method used in the Phased Array also makes it possible to incorporate time-delay correction through relative front-to-back positioning of each element.
Specifications
Type: 5 way, 5 driver loudspeaker system
Frequency Response: 35Hz to 27kHz
Recommended Amplifier: 60 to 200W
Crossover Frequency: 400, 1000, 6000, 12000Hz
Impedance: 8Ω
Bass: 1 x 10" cone
Midbass: 1 x 5" cone
Midrange: 1 x 1.75" soft dome
Tweeter: 1 x 0.75" dome
Super Tweeter: 1 x piezoelectric element
Weight: 50lbs
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
NO SHIPPING - LOCAL PICKUP ONLYÂ
Dahlquist DQ-10
Five Way Dynamic Loudspeaker System
Description
The Phased Array model DQ-10 is a five-way dynamic loudspeaker system.
It's operation is based on patented acoustical techniques which provide very accurate reproduction of source material.
In order to minimize undesirable effects from diffraction, each driver has been separately mounted on the smallest possible baffle, whose dimensions were determined by the frequency range of the passband.
This is directly opposed to the standard practice of mounting the drivers on one relatively large baffle.
The mounting method used in the Phased Array also makes it possible to incorporate time-delay correction through relative front-to-back positioning of each element.
Specifications
Type: 5 way, 5 driver loudspeaker system
Frequency Response: 35Hz to 27kHz
Recommended Amplifier: 60 to 200W
Crossover Frequency: 400, 1000, 6000, 12000Hz
Impedance: 8Ω
Bass: 1 x 10" cone
Midbass: 1 x 5" cone
Midrange: 1 x 1.75" soft dome
Tweeter: 1 x 0.75" dome
Super Tweeter: 1 x piezoelectric element
Weight: 50lbs
