Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box

$3,200.00

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box—

$3,200.00

The Story

Audio Research SP3-A1 specs

The Audio Research SP3-A1 is a vintage, all-tube stereo preamplifier manufactured around 1975

. It was highly regarded in its day for its sonic performance and reliability.

Technical specifications

Frequency response: 15Hz to 30kHz, ±1dB.
Distortion: Less than 0.005% total harmonic distortion (THD) and intermodulation distortion (IM) at 5V RMS output into an IHF load.
Maximum output: 25V RMS at 1kHz.
Signal-to-noise (S/N) ratio:
- High-level inputs: Greater than 90dB below rated output (unweighted, wide-band).
- Magnetic phono inputs: Greater than 70dB below rated output, 20Hz to 20kHz, referenced to a 10mV input.
Input impedance:
- Magnetic phono: 50K ohms typical (150pf shunt).
- High-level: 100K ohms typical.
Output impedance: Less than 600 ohms at 1kHz for all outputs. Recommended load is 20K ohms or greater.
Maximum inputs:
- Magnetic phono: 300mV RMS @ 1kHz.
- High-level: Overload-proof.
Tube complement: Eight 12AX7 dual triodes.
Tone controls: Bass and treble, variable ±18dB at 10Hz and 15kHz, respectively
$15 and five-eighths " cross 5 and one-half " cross 12 and one-half "$
Upgraded by Audio Research in June 2012
Power Supply Update
New Tubes & RIAA Trim

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

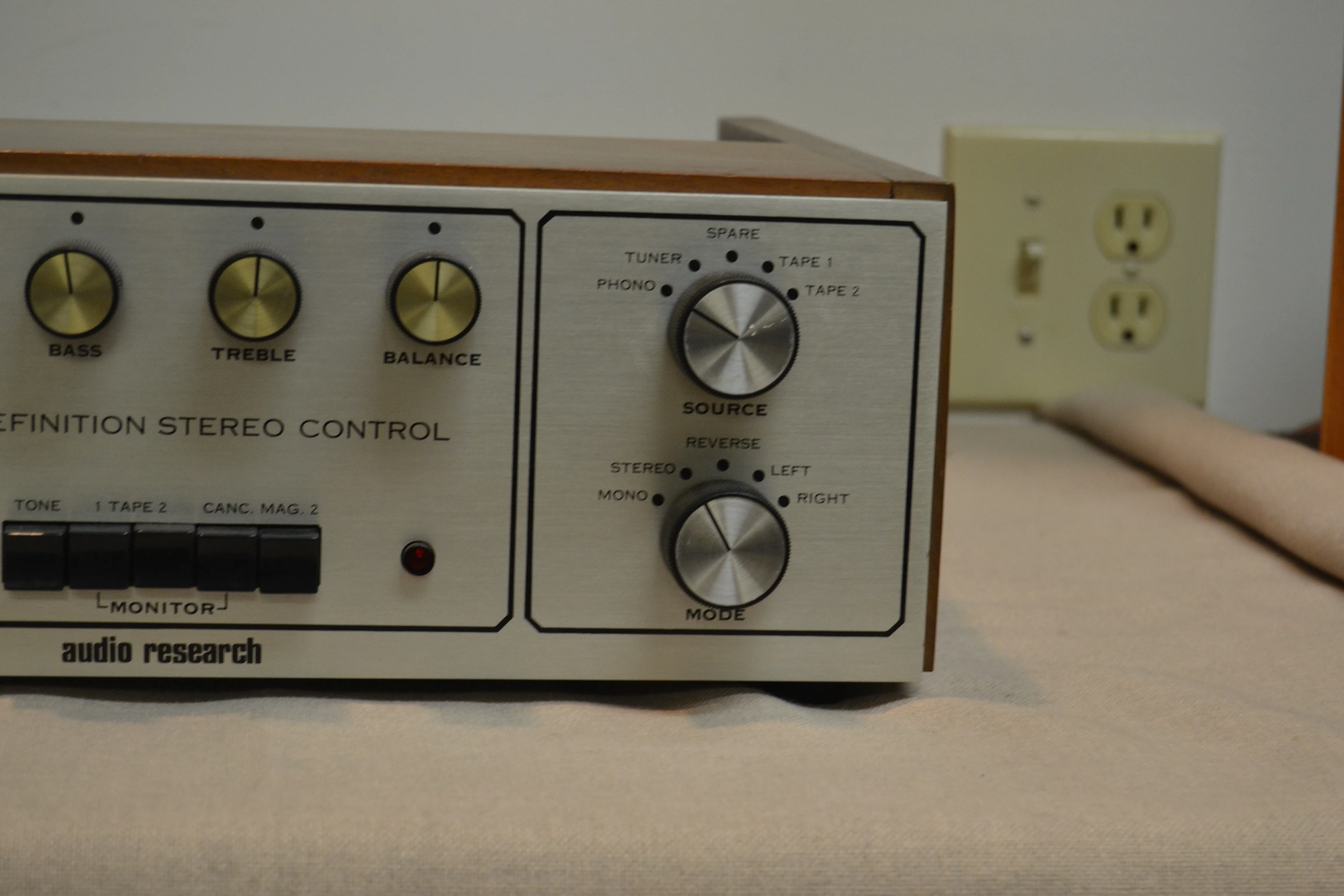

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

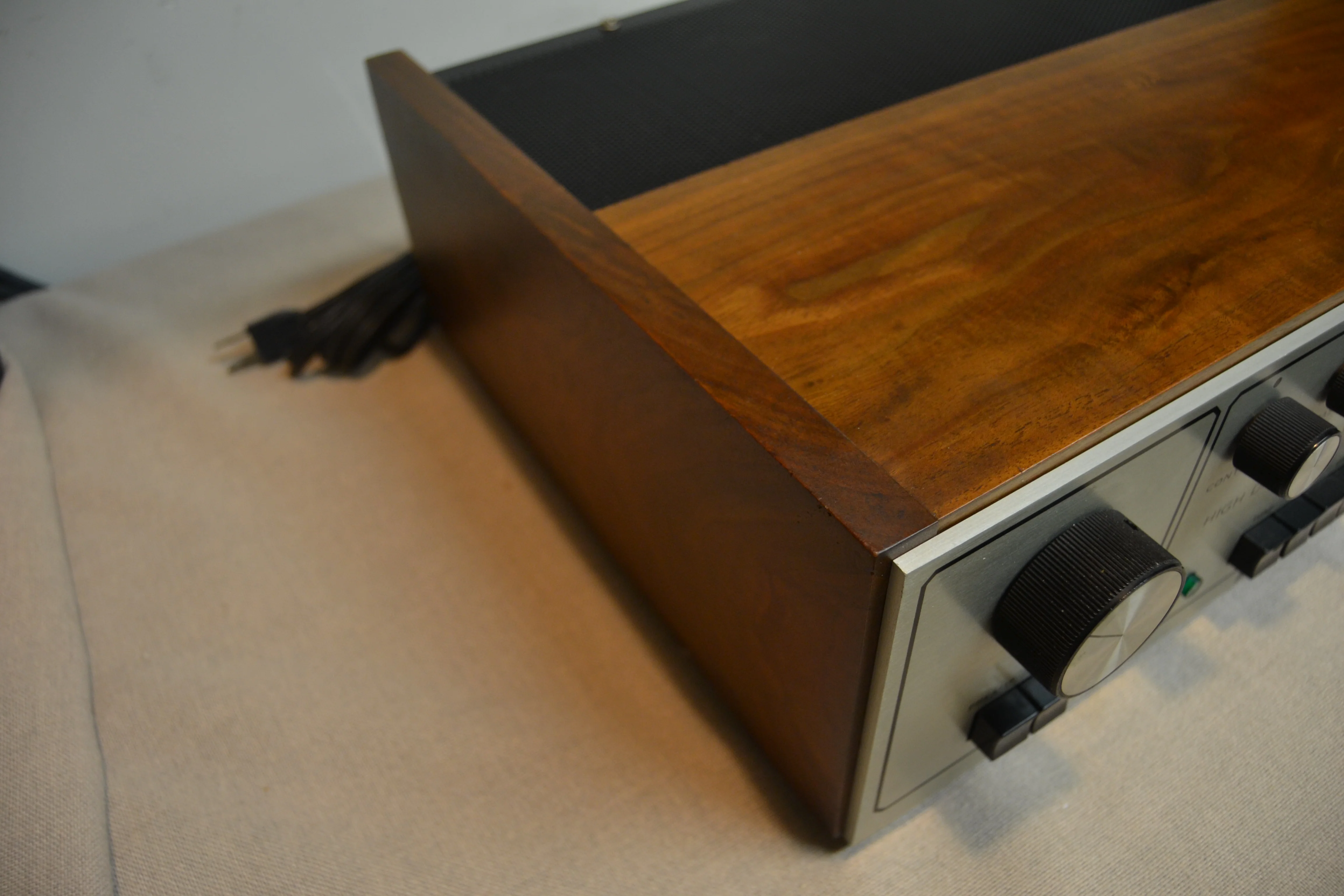

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

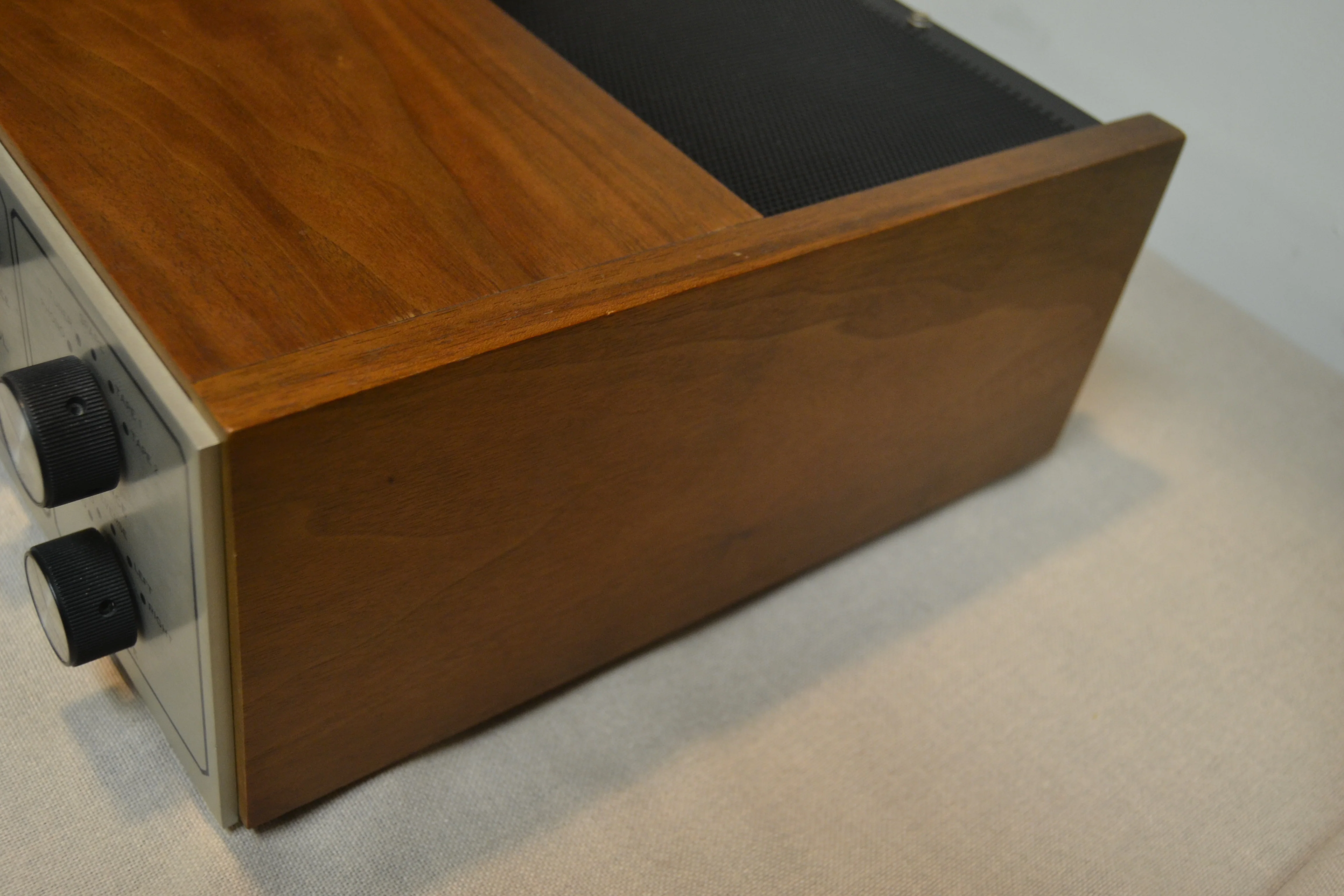

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

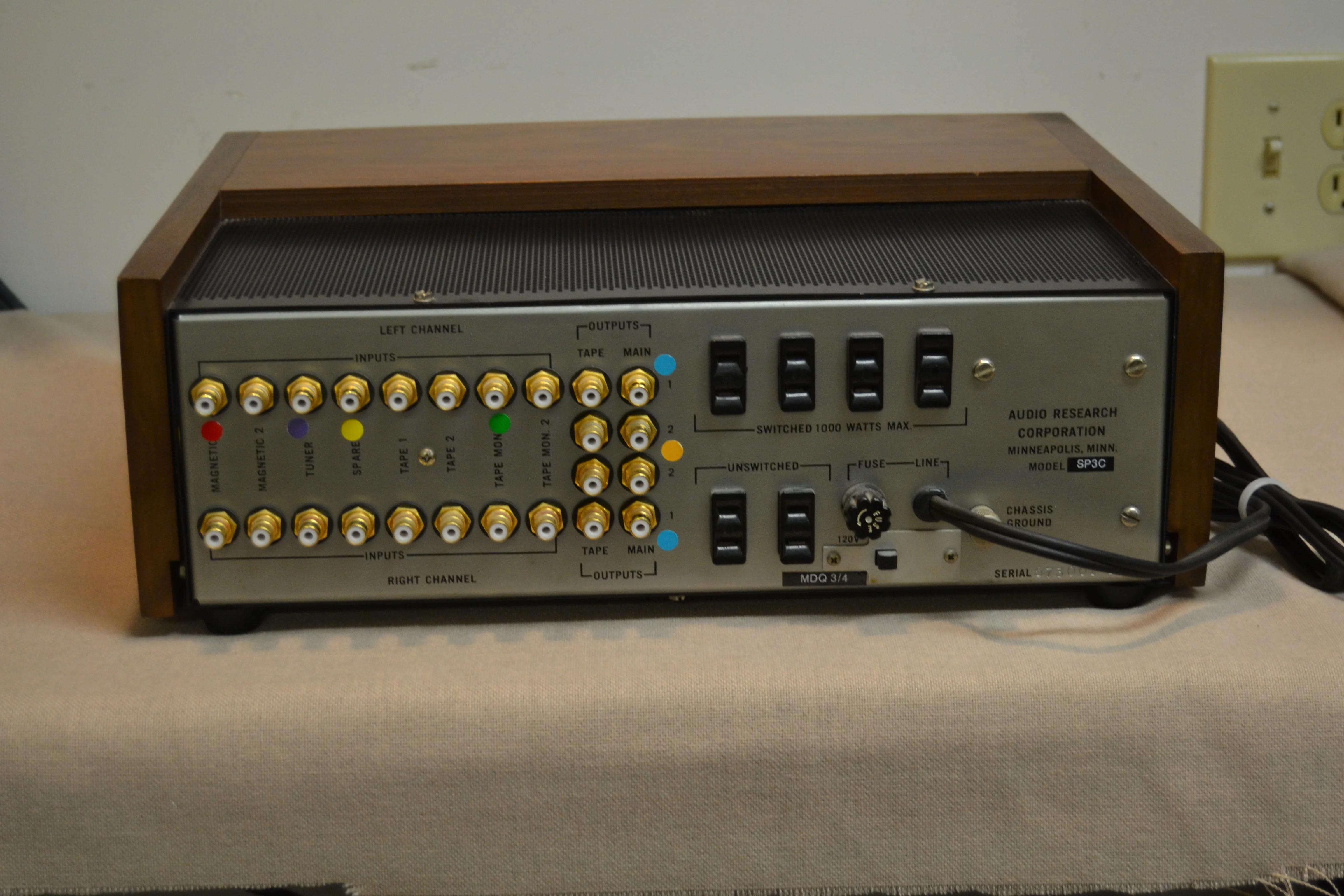

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

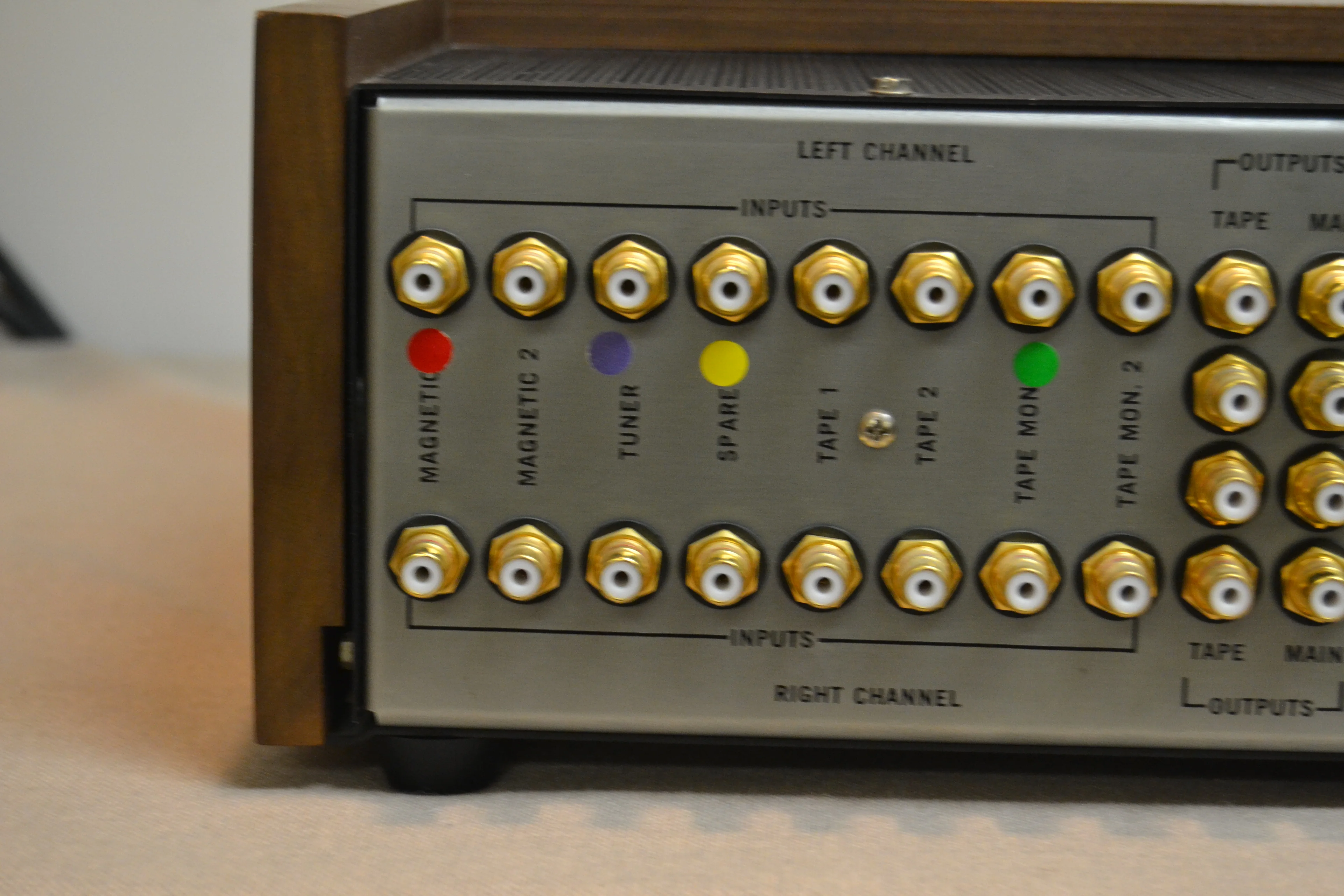

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

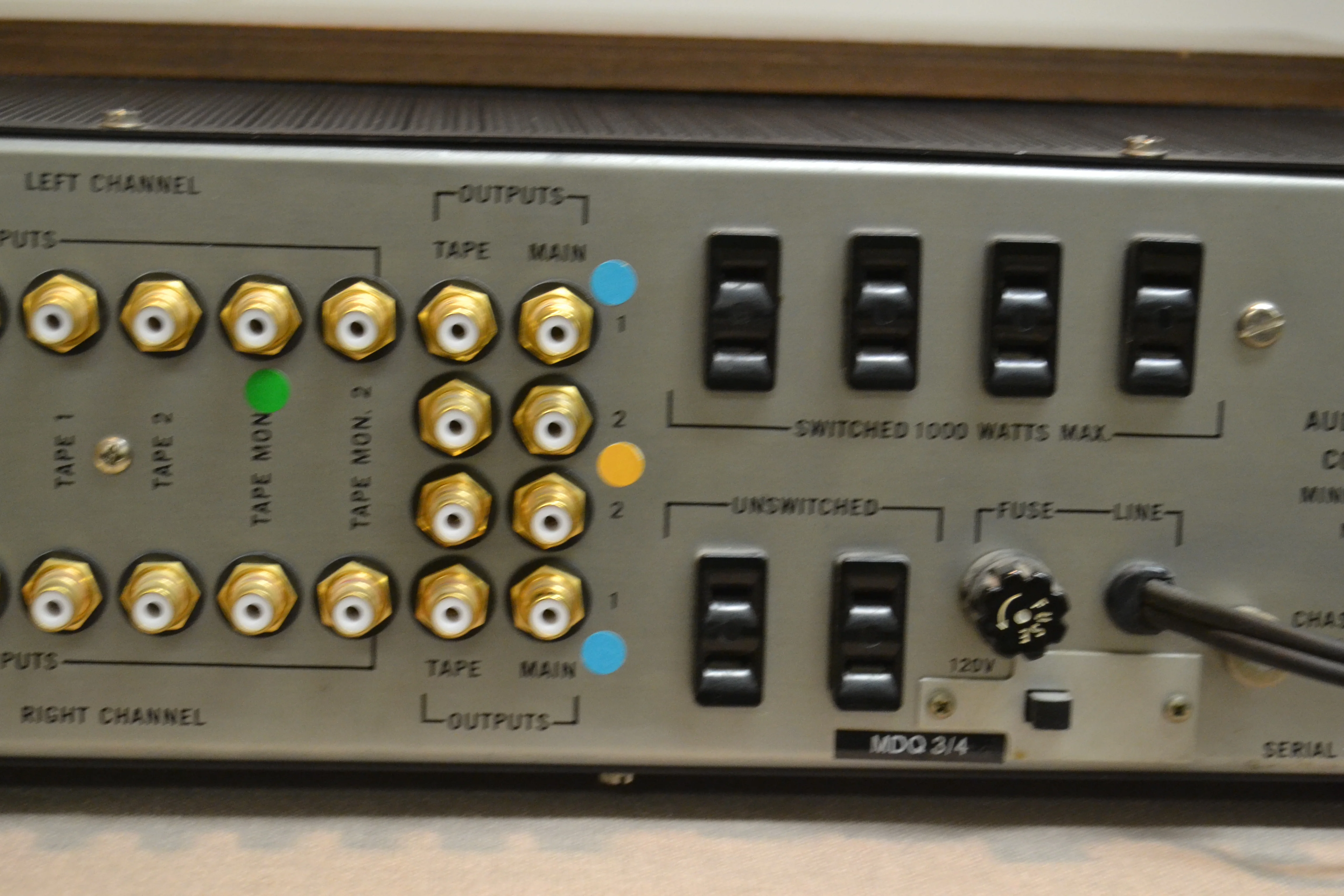

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

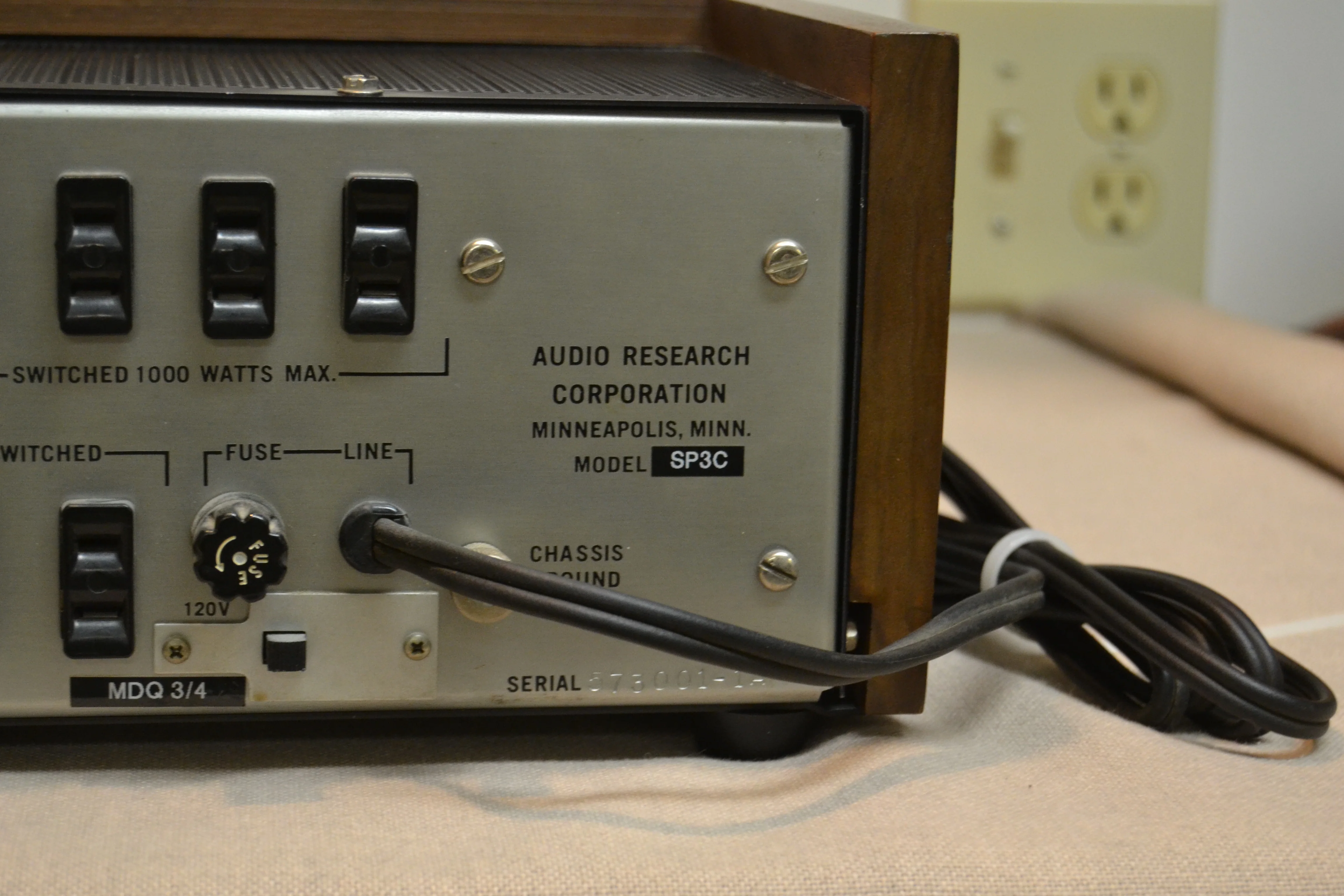

Audio Research SP3-A1 Tube Preamplifier * 2012 Factory Upgraded * Walnut Case * Box - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Audio Research SP3-A1 specs

The Audio Research SP3-A1 is a vintage, all-tube stereo preamplifier manufactured around 1975

. It was highly regarded in its day for its sonic performance and reliability.

Technical specifications

Frequency response: 15Hz to 30kHz, ±1dB.
Distortion: Less than 0.005% total harmonic distortion (THD) and intermodulation distortion (IM) at 5V RMS output into an IHF load.
Maximum output: 25V RMS at 1kHz.
Signal-to-noise (S/N) ratio:
- High-level inputs: Greater than 90dB below rated output (unweighted, wide-band).
- Magnetic phono inputs: Greater than 70dB below rated output, 20Hz to 20kHz, referenced to a 10mV input.
Input impedance:
- Magnetic phono: 50K ohms typical (150pf shunt).
- High-level: 100K ohms typical.
Output impedance: Less than 600 ohms at 1kHz for all outputs. Recommended load is 20K ohms or greater.
Maximum inputs:
- Magnetic phono: 300mV RMS @ 1kHz.
- High-level: Overload-proof.
Tube complement: Eight 12AX7 dual triodes.
Tone controls: Bass and treble, variable ±18dB at 10Hz and 15kHz, respectively
$15 and five-eighths " cross 5 and one-half " cross 12 and one-half "$
Upgraded by Audio Research in June 2012
Power Supply Update
New Tubes & RIAA Trim
