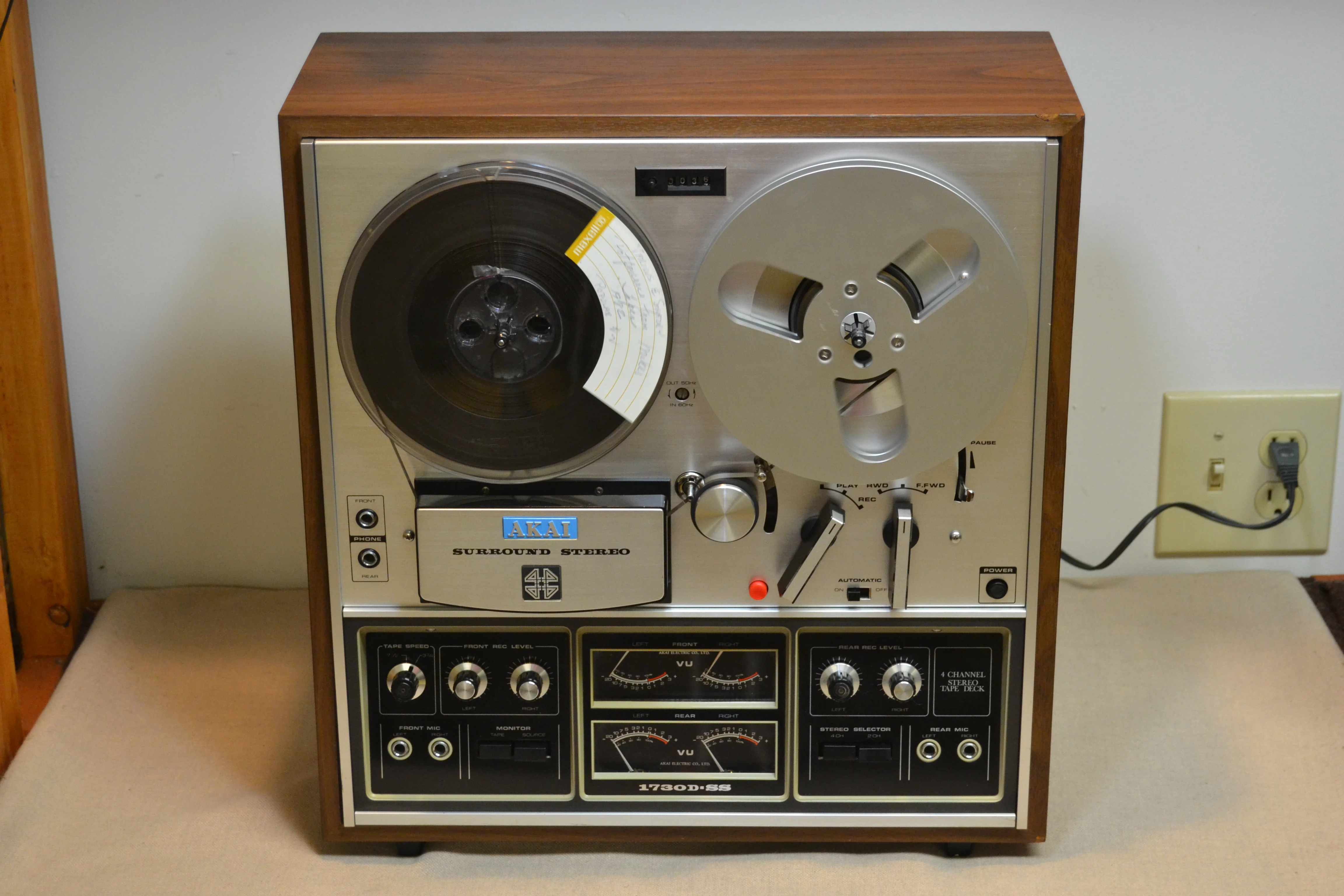

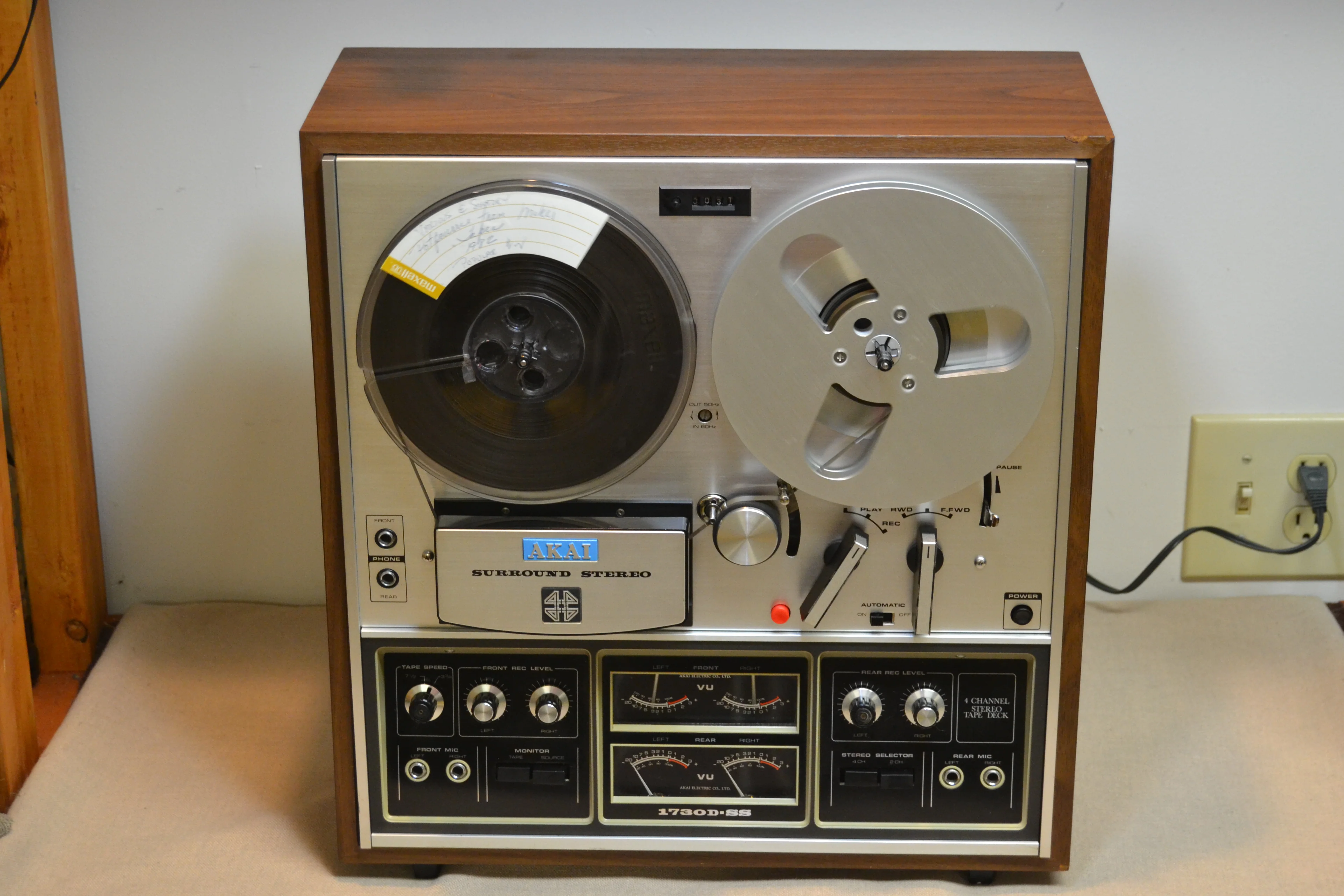

Akai 1730D-SS

Discrete 4-Channel Tape Deck (1973-76)

Description

Nothing is lacking in the performance of the 1730D-SS. It is versatile and completely compatible with conventional 2 channel.

Engineered with 4 heads, hysteresis synchronous 2-speed motor, automatic shut-off, pause control and slanted control panel for operating ease.

Specifications

Track system: 4-track, 4-channel, stereo/multi channel system

Heads: 1 x record, 1 x playback, 2 x erase

Motor: 2 speed hysteresis synchronous

Reel size: 5 or 7 inch reel

Tape speeds: 3 ³⁄₄  7 ¹⁄₂ ips

Wow and flutter: 0.15% (7 ¹⁄₂ ips)

Frequency response: 30Hz to 22kHz (7 ¹⁄₂ ips)

Signal to Noise Ratio: 48dB

Total harmonic distortion: 2%

Crosstalk: 40dB

Input: 40mV (line), 20mV (DIN), 0.4mV (mic)

Output: 1.228V (line)

Output power: 5 watts

Dimensions: 450 x 420 x 240mm

Weight: 17kg
