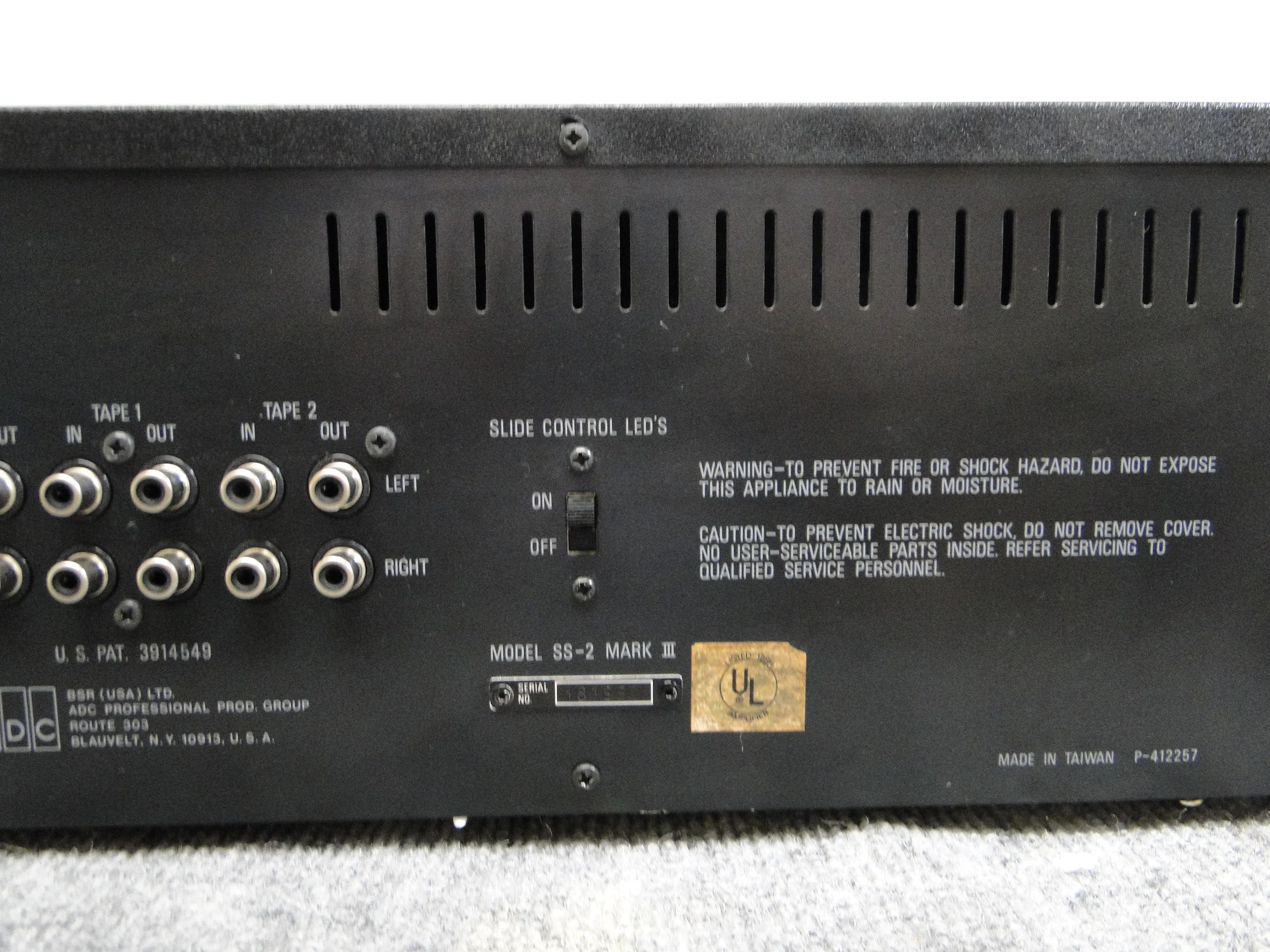

ONE SLIDE COVER is MISSING please SEE PICTURES



ADC Sound Shaper Two

Stereo Frequency Equalizer

Specifications

Input Sensitivity: 1V

Output Level: 1V (9V max)

Gain: ± 1dB

Frequency response: 5Hz to 100kHz

Signal to Noise Ratio: 85dB

Total harmonic distortion: 0.02%

Control Range: ± 12dB

Frequency Bands: 30, 50, 90, 160, 300, 500, 900, 1.6K, 3K, 5K, 9K, 16KHz

Semiconductors: 12 x transistors, 20 x diodes, 2 x IC

Dimensions: 416 x 172 x 159mm

Weight: 6kg
