Graphic equalizer with independent 10-band configuration on left and right.

Each of the left and right 10 independent bands can be adjusted within ± 15 db.

The center of the front panel is equipped with a high-precision RTA (real-time analyzer) FL display that displays the spectrum distribution of the input source.
In addition, a bar meter is installed at the left end of the display so that you can see the average level of the whole.

The equalizer circuit can be turned on / off, so you can compare the sound after adjustment and before adjustment.

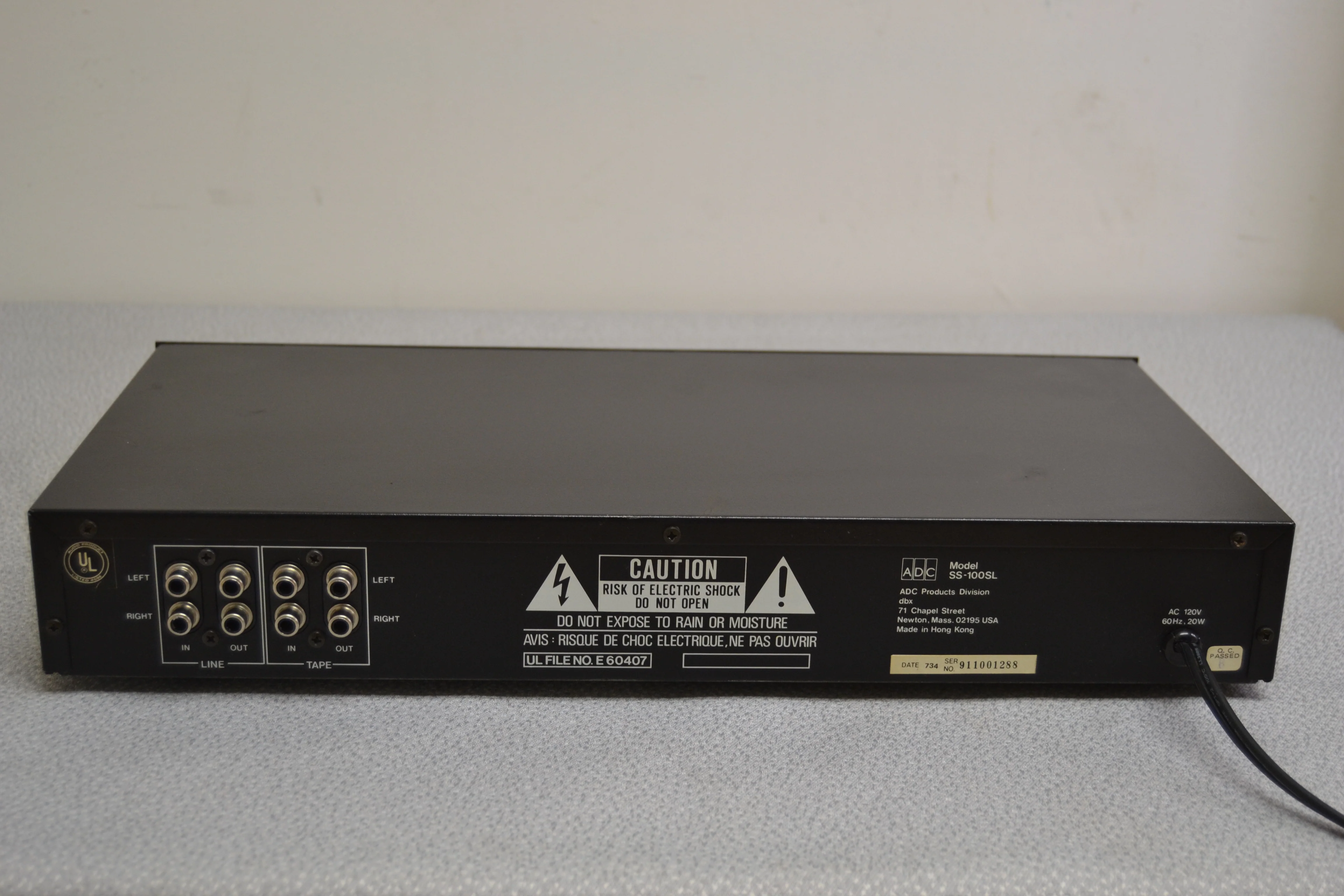

One tape deck can be connected, and frequency-corrected sound can be recorded on tape as it is.

Model Rating

Type	Graphic equalizer
Center frequency	31.5, 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16 kHz
Adjustment range	± 15 dB
Gain	± 1 dB
Maximum input / output level	4 V RMS or more
Frequency characteristic	20 Hz ~ 20 kHz ± 0.5 dB (Center position of each slide volume)
Total harmonic distortion factor	0.05%
Cross modulation distortion factor	0.05%
Signal-to-noise ratio	100 dB at 1 V or less, A-WTD (100 dBA)
Subsonic filter	20 Hz or less, -18dB/oct.
External dimensions	Width 435x Height 70x Depth 324 mm
Weight	3.3kg
